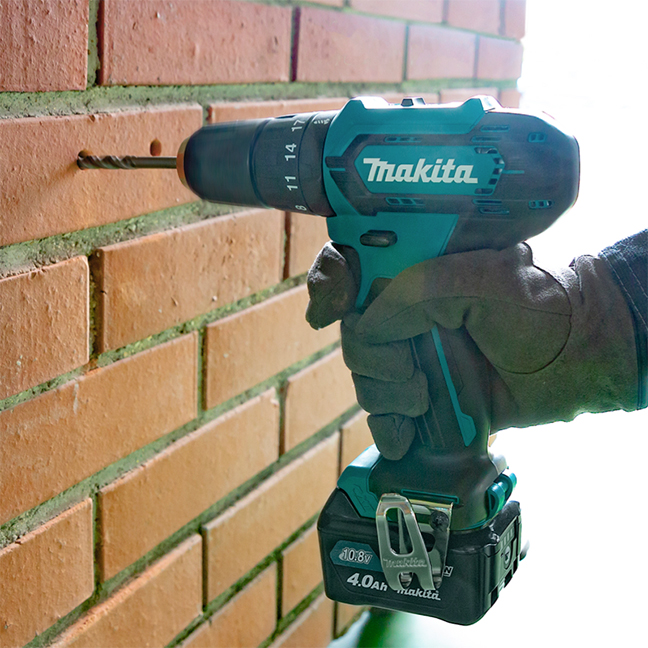

HP333DZ

12Vmax CXT 3/8" Hammer Drill-Driver, Tool Only

Compact eXtreme Technology (CXT)

Variable 2-Speed, Reversible

CXT Technology
  • Improved ball bearing anvil holder reduces bit wobbling and vibration for cleaner, more accurate drilling and fastening
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 20 clutch settings + drill mode delivers up to 250 in. lbs. of torque
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ultra-compact design (7-5/8 long)
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Phillips Bit 2-50 (784244-7), Hook (346909-5)

  • Improved ball bearing anvil holder reduces bit wobbling and vibration for cleaner, more accurate drilling and fastening
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 20 clutch settings + drill mode delivers up to 250 in. lbs. of torque
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ultra-compact design (7-5/8 long)
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Phillips Bit 2-50 (784244-7), Hook (346909-5)

Shipping Dimensions (Length x Width x Height) & Weight : 8.03 In. X 2.91 In. X 8.07 In. Weight : 2.59 Lb.

Specifications

Battery Capacities: 12Vmax CXT Li-ion
Capacities:
Concrete 5/16" (8 mm)
Steel 3/8" (10 mm)
Wood 13/16" (21 mm)
No Load Speed:
Low 0 - 450 RPM
High 0 - 1,700 RPM
Blows Per Minute:
Low 0 - 6,750 BPM
High 0 - 25,500 BPM
Maximum Lock Torque 250 in. lbs (28 Nm)
Vibration Level 13.0 m/s2
Noise Level 82 dB(A)
Overall Length 7-5/8" (193 mm)
Net Weight 2.0 lbs (0.9 kg)
12Vmax CXT Standard Charger Starter Kit, 2.0Ah x1

12Vmax CXT Standard Charger Starter Kit, 2.0Ah x1
