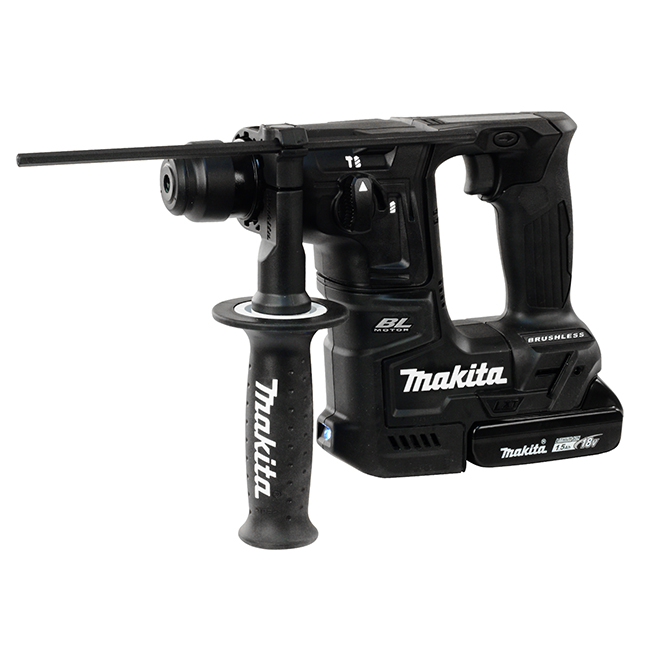

11/16" Sub-Compact Cordless Rotary Hammer with Brushless Motor

Lightweight, 2-Mode Rotary Hammer

SDS-PLUS Shank

Hammer & Rotation / Rotation Only

Variable Speed, Reversible

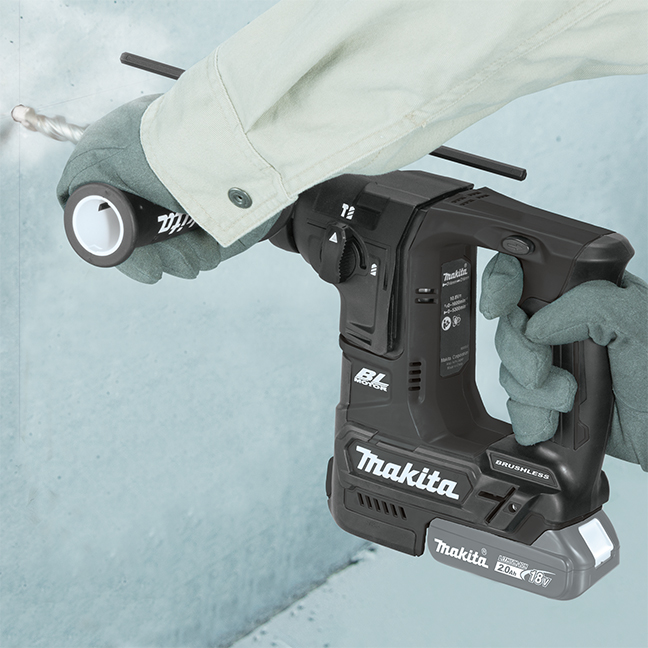

Sub-compact size and weight ideal for fast and fatigue free drilling of holes in concrete and masonry

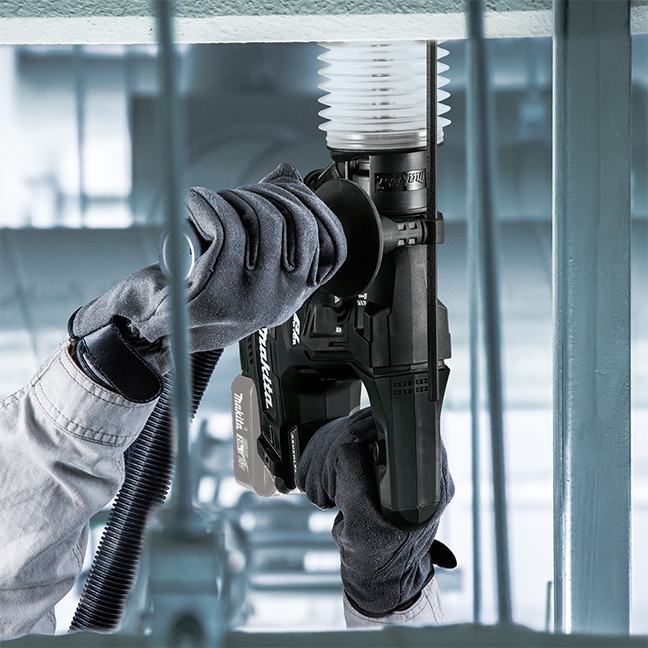

Ideal for overhead anchor / installation applications
Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in high production applications
2 operating modes: rotation / rotation + hammer
One touch SDS-PLUS sliding chuck enables quick and easy bit changes
LED job light with afterglow feature illuminates drilling area
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

Items Included:Two 18V (Compact) Li-ion Batteries BL1815N (196235-0), Rapid Charger (DC18RC), Side Handle (158057-6), Depth Gauge (415486-9), Battery Cover (450128-8), Interlocking Case (197212-5)

158057-6

415486-9

450128-8

Images shown may not represent the full listing or the true size of included items.

Sub-compact size and weight ideal for fast and fatigue free drilling of holes in concrete and masonry
Ideal for overhead anchor / installation applications
Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in high production applications
2 operating modes: rotation / rotation + hammer
One touch SDS-PLUS sliding chuck enables quick and easy bit changes
LED job light with afterglow feature illuminates drilling area
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Two 18V (Compact) Li-ion Batteries BL1815N (196235-0), Rapid Charger (DC18RC), Side Handle (158057-6), Depth Gauge (415486-9), Battery Cover (450128-8), Interlocking Case (197212-5)

Shipping Dimensions (Length x Width x Height) & Weight : 15.551 In. X 11.614 In. X 8.465 In. Weight : 12.13 Lb.

Specifications

Battery Capacities	18V LXT
Capacities:
Concrete	11/16" (17 mm)
Steel	3/8" (10 mm)
Wood	1/2" (13 mm)
Impact Energy	1.1 J (0.81 ft. lbs)
No Load Speed	0 - 680 RPM
Blows Per Minute	0 - 4,800 BPM
Vibration Level	9.0 m/s²
Noise Level	86 dB(A)
Overall Length	10-3/4" (273 mm)
Net Weight	4.6 lbs (2.1 kg)
