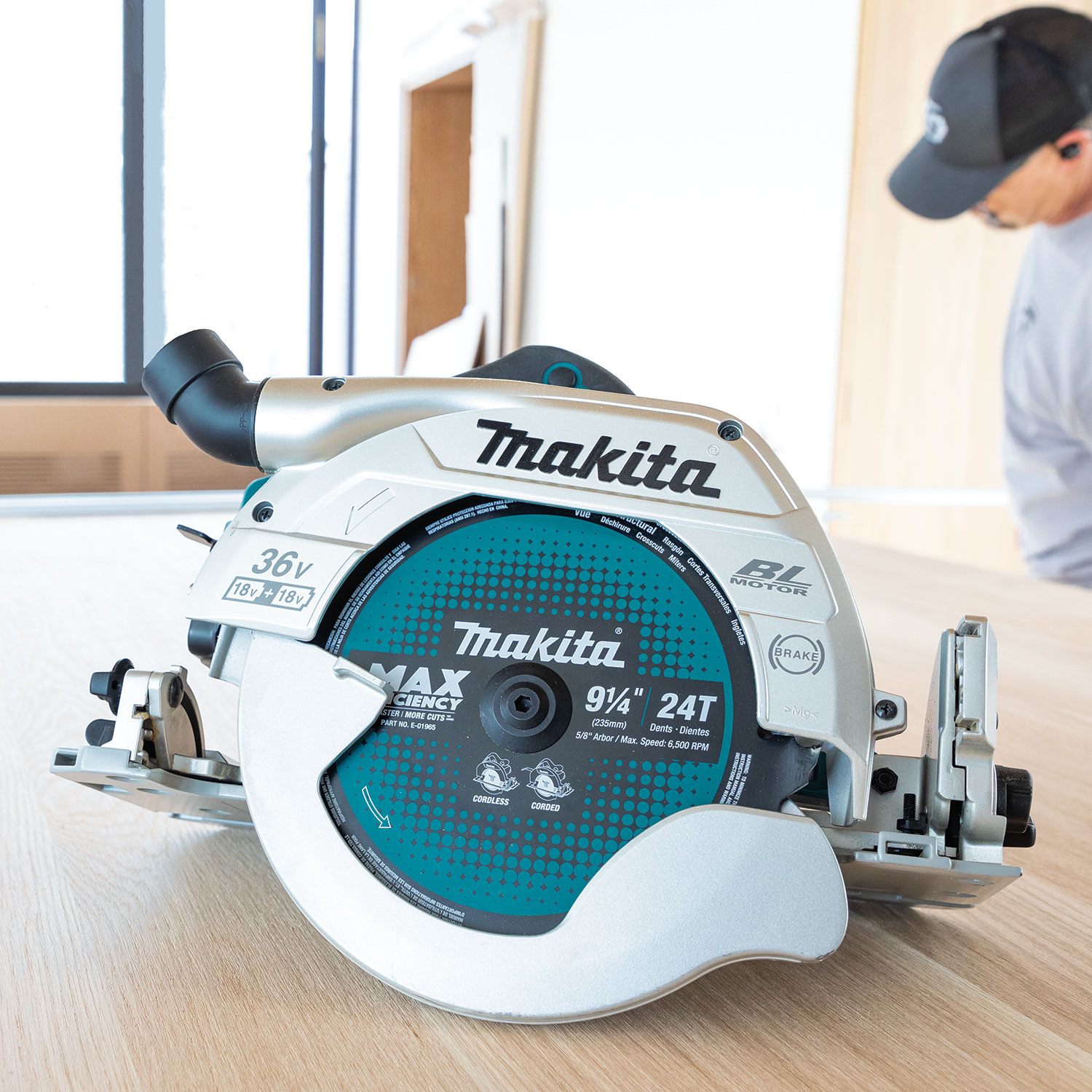

36V(18Vx2) LXT Brushless 9-1/4" Circular Saw w/AWS, Tool Only

High Cutting Capacity With Cordless Freedom And Guide Rail Precision!

Cutting Capacity Of 3-3/8" (85mm)

Automatic torque-Drive Technology (ADT), Soft Start, Electric Brake

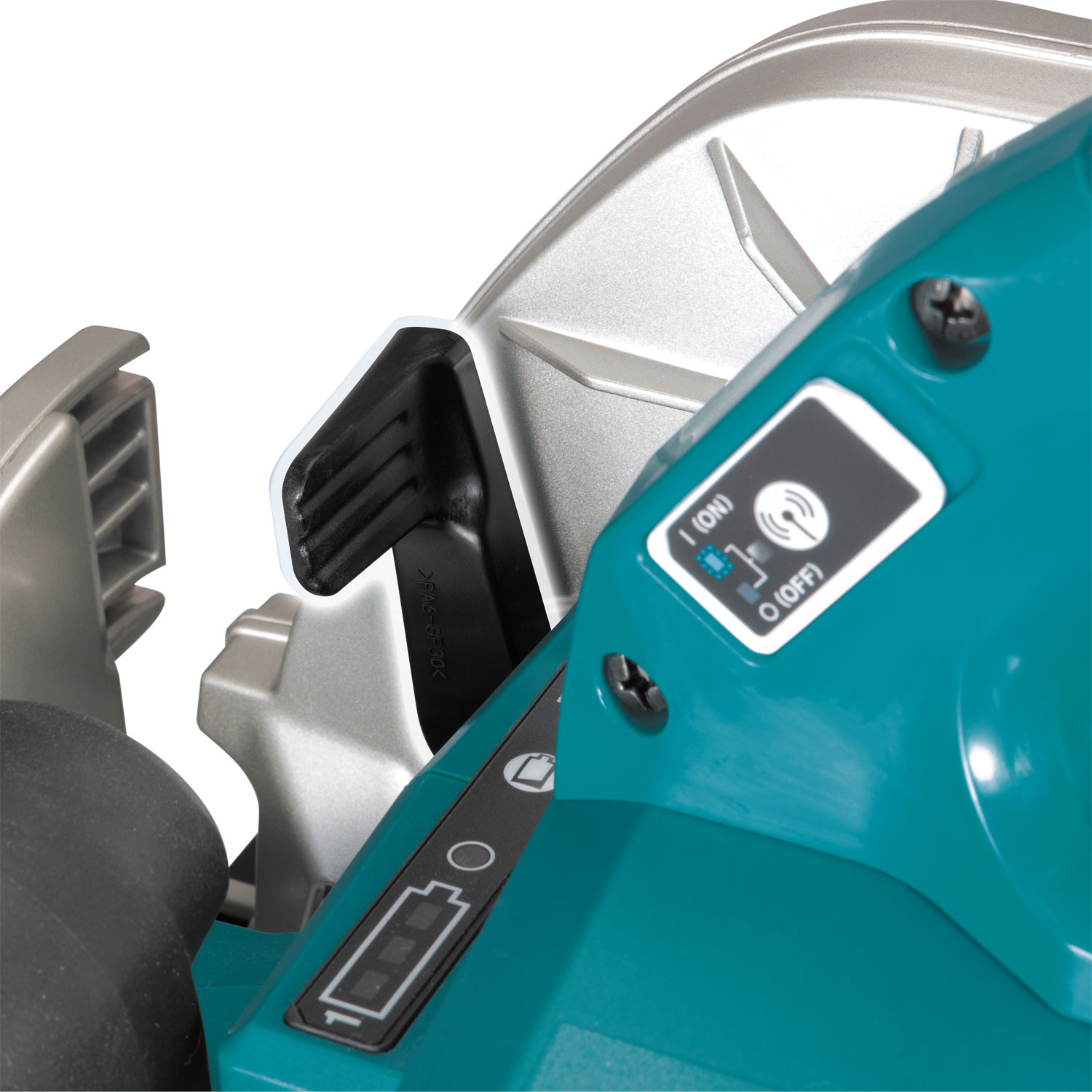

AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools

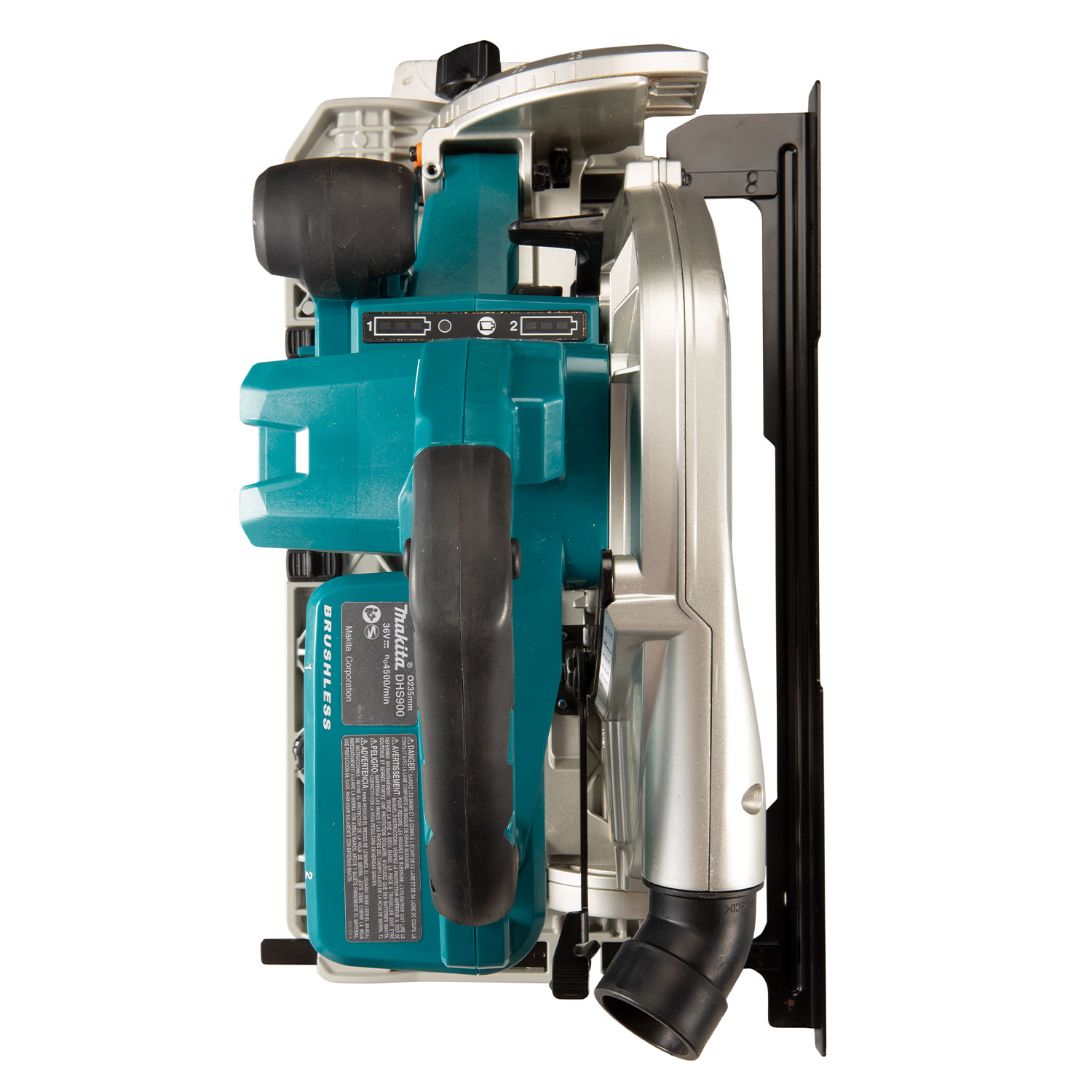

Guide rail compatible base design requires no additional adapters
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Quick adjust blade guard lever allows operator to retract blade guard when making mitre or bevel cuts
Rotatable dust nozzle provides maximum convenience and maneuverability
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Lightweight design with magnesium baseplate and blade case
LED charge level indicator displays approximate remaining battery power

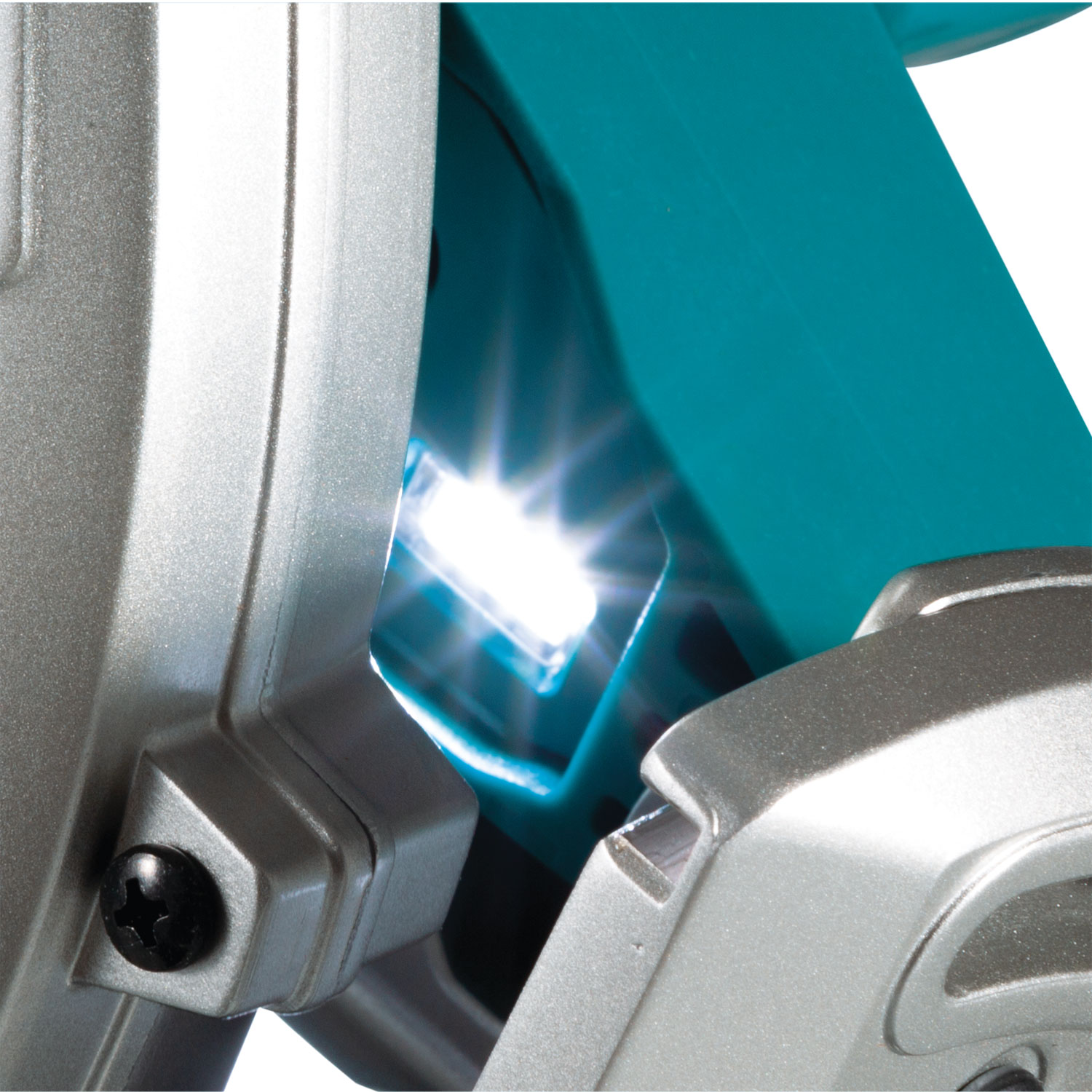

Twin LED job light, with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
Trigger-lock button prevents accidental start-up for increased safety
Lanyard loop enables quick attachment of lanyards when working at heights
Bevel capacity of -1° - 60° with positive stop at 22.5° and 45°
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

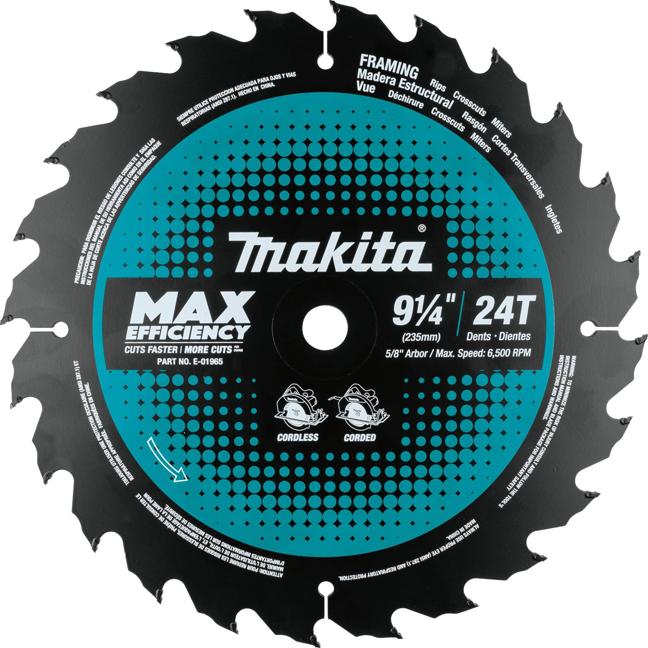

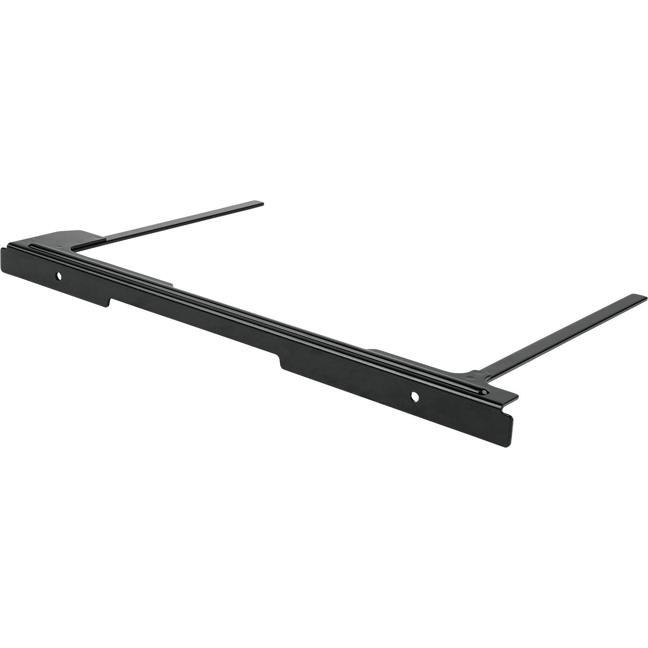

Items Included:Tool Only. Batteries and Charger Sold Separately. 9-1/4" CT Blade 24T (E-01965), Sub Base (162687-7), Hex Wrench 6 (783204-6)

E-01965

162687-7

783204-6

Images shown may not represent the full listing or the true size of included items.

AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
Guide rail compatible base design requires no additional adapters
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Quick adjust blade guard lever allows operator to retract blade guard when making mitre or bevel cuts
Rotatable dust nozzle provides maximum convenience and maneuverability
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Lightweight design with magnesium baseplate and blade case
LED charge level indicator displays approximate remaining battery power
Twin LED job light, with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
Trigger-lock button prevents accidental start-up for increased safety
Lanyard loop enables quick attachment of lanyards when working at heights
Bevel capacity of -1° - 60° with positive stop at 22.5° and 45°
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 9-1/4" CT Blade 24T (E-01965), Sub Base (162687-7), Hex Wrench 6 (783204-6)

Shipping Dimensions (Length x Width x Height) & Weight : 19.25 In. X 10.79 In. X 13.94 In. Weight : 15.7 Lb.

Specifications

Battery Capacities	Two 18V LXT
Blade Diameter	9-1/4” (235 mm)
Arbor	5/8" (15.88 mm)
Max. Cutting Depth:
0°	3-3/8" (85 mm)
45°	2-3/8" (61 mm)
60°	1-3/4" (44 mm)
No Load Speed	4,500 RPM
Vibration Level	2.5 m/s²
Noise Level	93 dB(A)
Overall Length	16-1/4" (413 mm)
Net Weight	10.4 lbs (4.7 kg)
