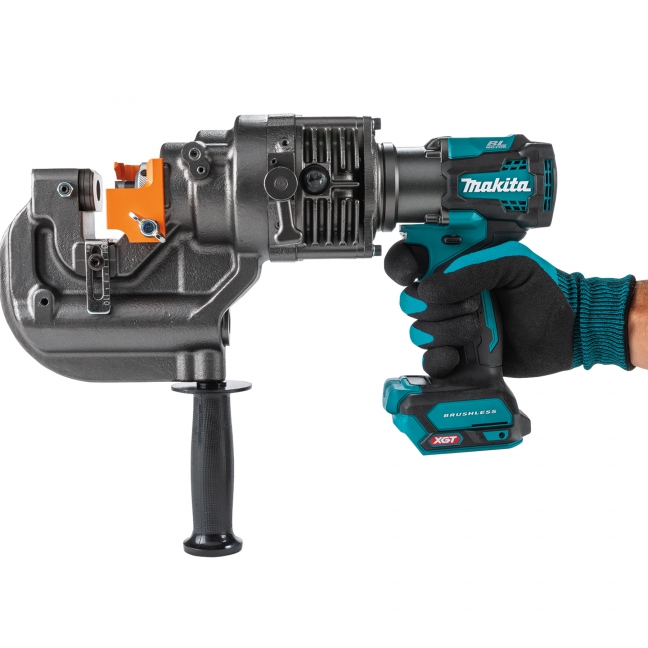

40Vmax XGT Brushless Hole Puncher, Tool Only

Punches holes up to 25/32" (20 mm) diameter in steel plate up to 3/8" (9 mm) thick!

High-efficiency punching

Automatic punch return feature automatically retracts punch to its initial position once cycle is complete to enable rapid continuous hole punching
Adjustable depth guide enables adjustment up to 1-37/64" from the edge of the material

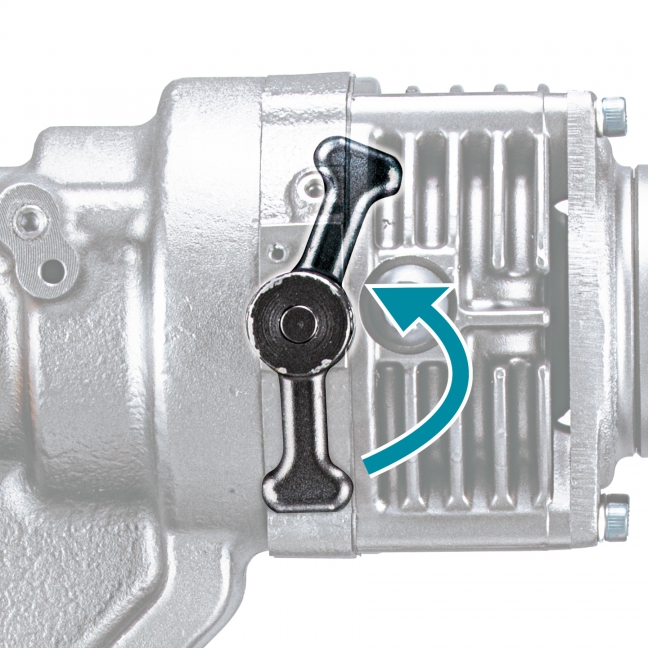

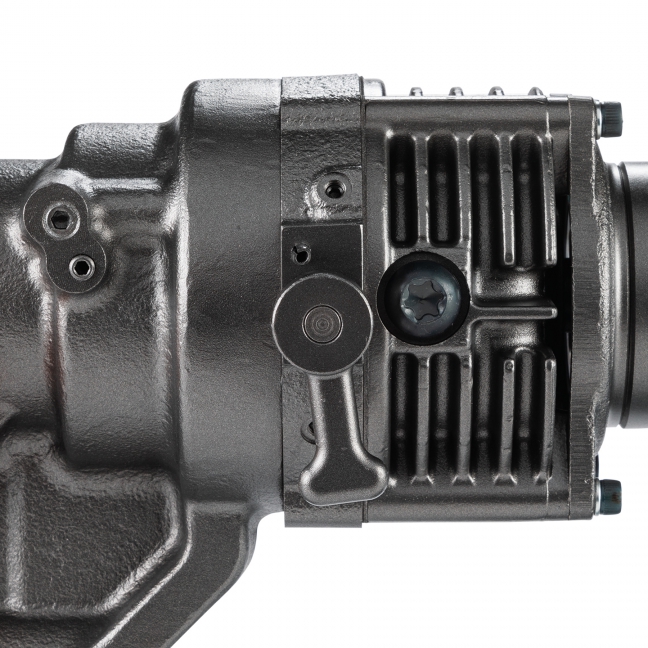

360° rotatable motor section for optimal positioning in tight spaces

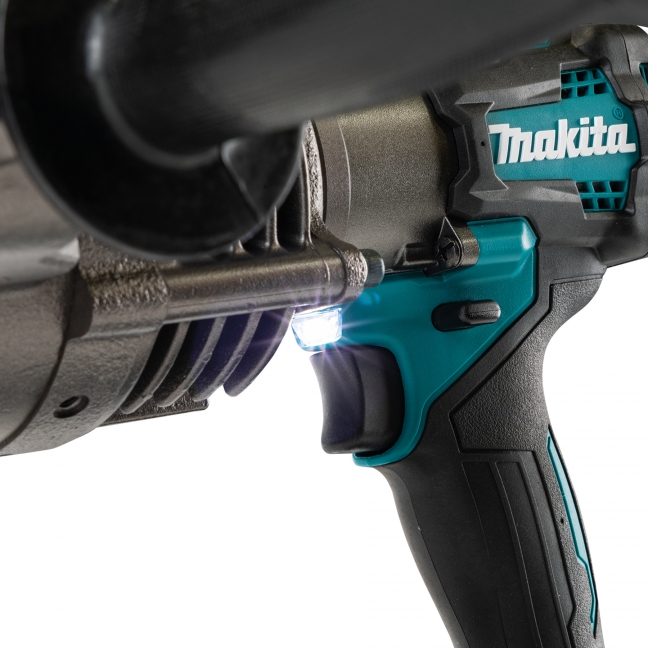

LED job light illuminates punch area for maximum precision in low lighting conditions
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

Items Included:Tool Only. Batteries and Charger Sold Separately. Punch 14 (SC05340120), Die SB-14 (SC00000219), Nut Retaining Bar (SC03505300), Hex Wrench 3 (SC00000103), Hex Wrench 4 (SC00000104), Wrench 8 - 10 (SC00000166), Plastic Carrying Case

SC03505300

SC00000103

SC00000104

SC00000166

Images shown may not represent the full listing or the true size of included items.

Automatic punch return feature automatically retracts punch to its initial position once cycle is complete to enable rapid continuous hole punching
Adjustable depth guide enables adjustment up to 1-37/64" from the edge of the material
360° rotatable motor section for optimal positioning in tight spaces
LED job light illuminates punch area for maximum precision in low lighting conditions
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Punch 14 (SC05340120), Die SB-14 (SC00000219), Nut Retaining Bar (SC03505300), Hex Wrench 3 (SC00000103), Hex Wrench 4 (SC00000104), Wrench 8 - 10 (SC00000166), Plastic Carrying Case

Shipping Dimensions (Length x Width x Height) & Weight : 220.5 In. X 173.2 In. X 80.7 In. Weight : 25.57 Lb.

Specifications

Battery Capacities	40V Max Li-Ion
Maximum Hole Size and Thickness	Steel-Diameter 25/32" (20 mm), Thickness 3/8" (9 mm); Stainless Steel-Diameter 25/32" (20 mm), Thickness 15/64" (6 mm)
Maximum Throat Depth	1-37/64" (40 mm)
Shape of Hole	Round / Oblong
Overall Length	15-5/8" (398 mm)
Net Weight	24.1 lbs (10.9 kg)
