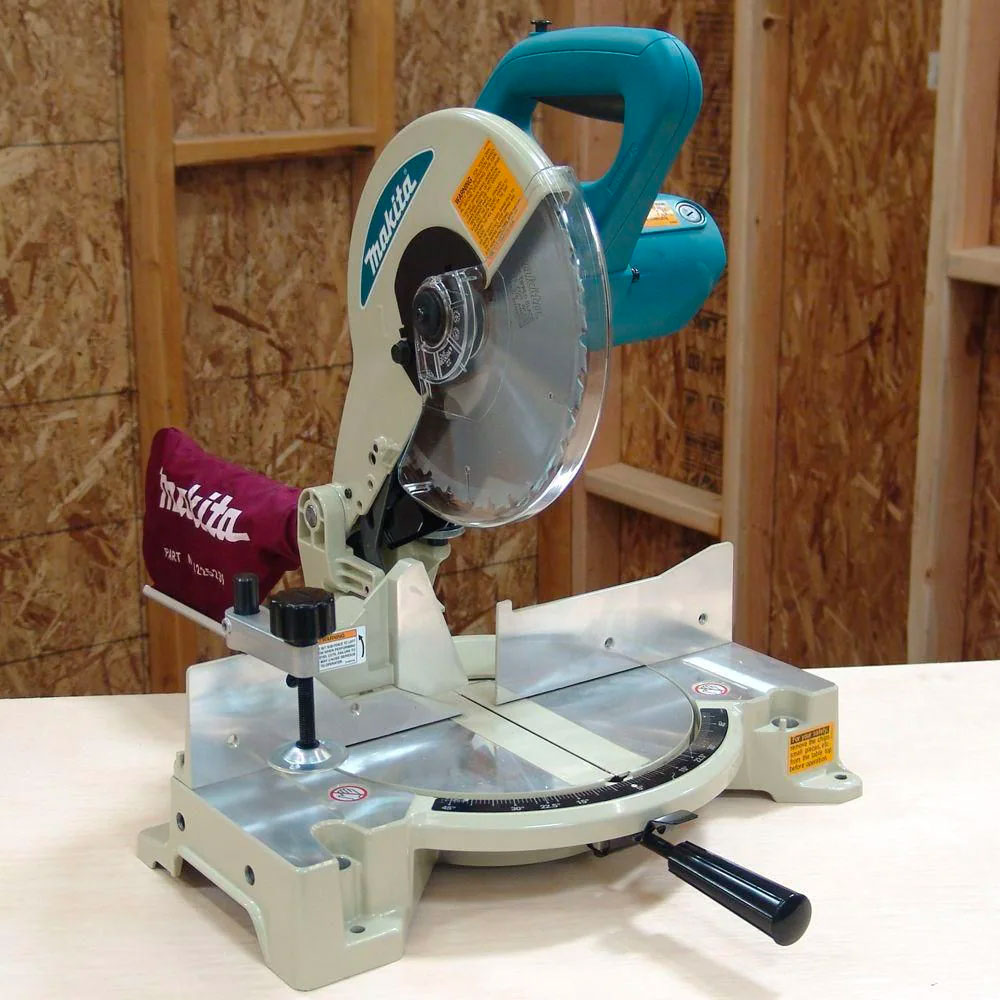

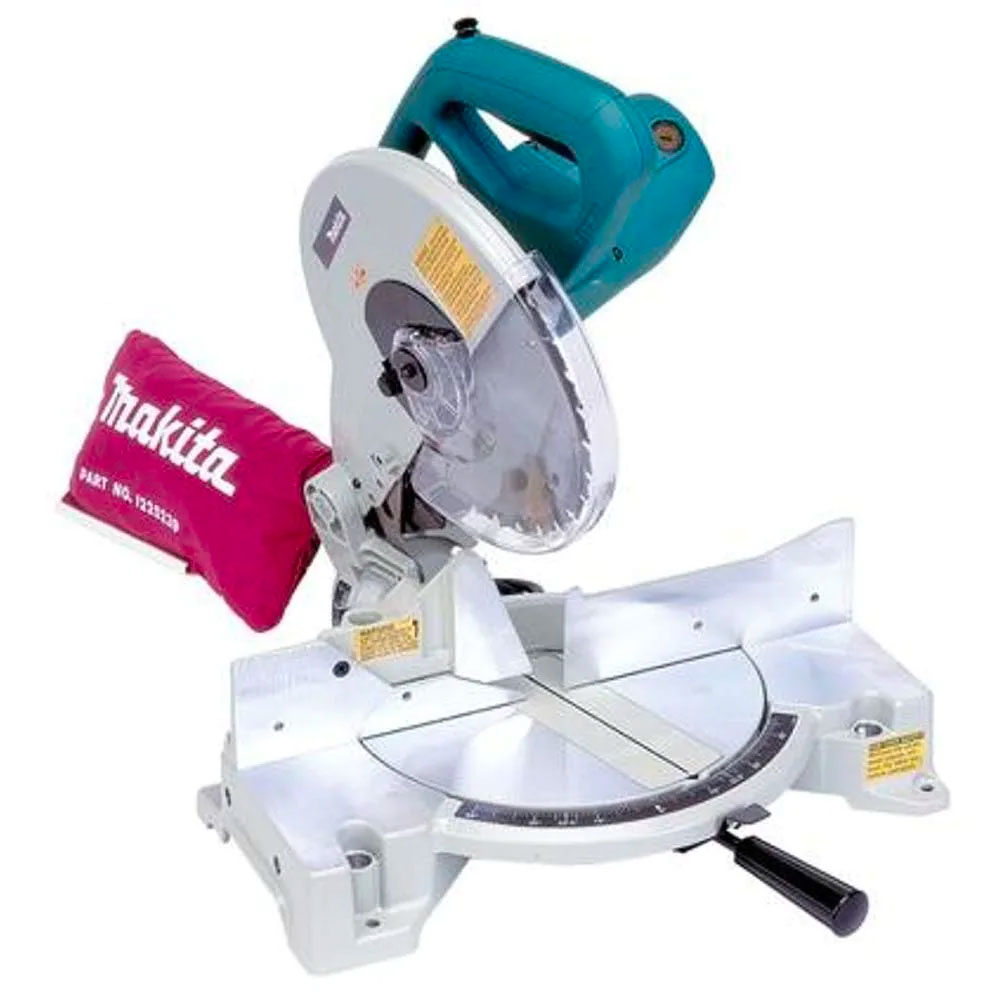

10" Compound Mitre Saw

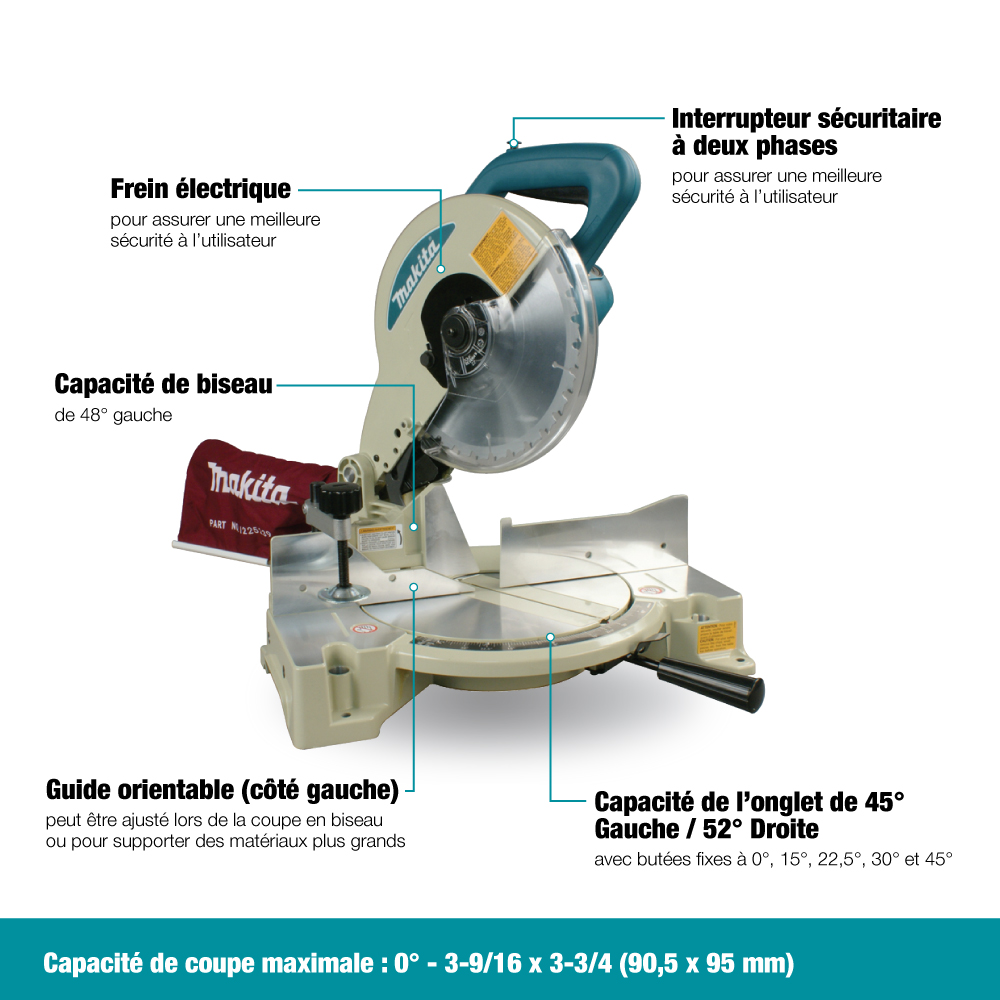

Electric Brake for increased operator safety

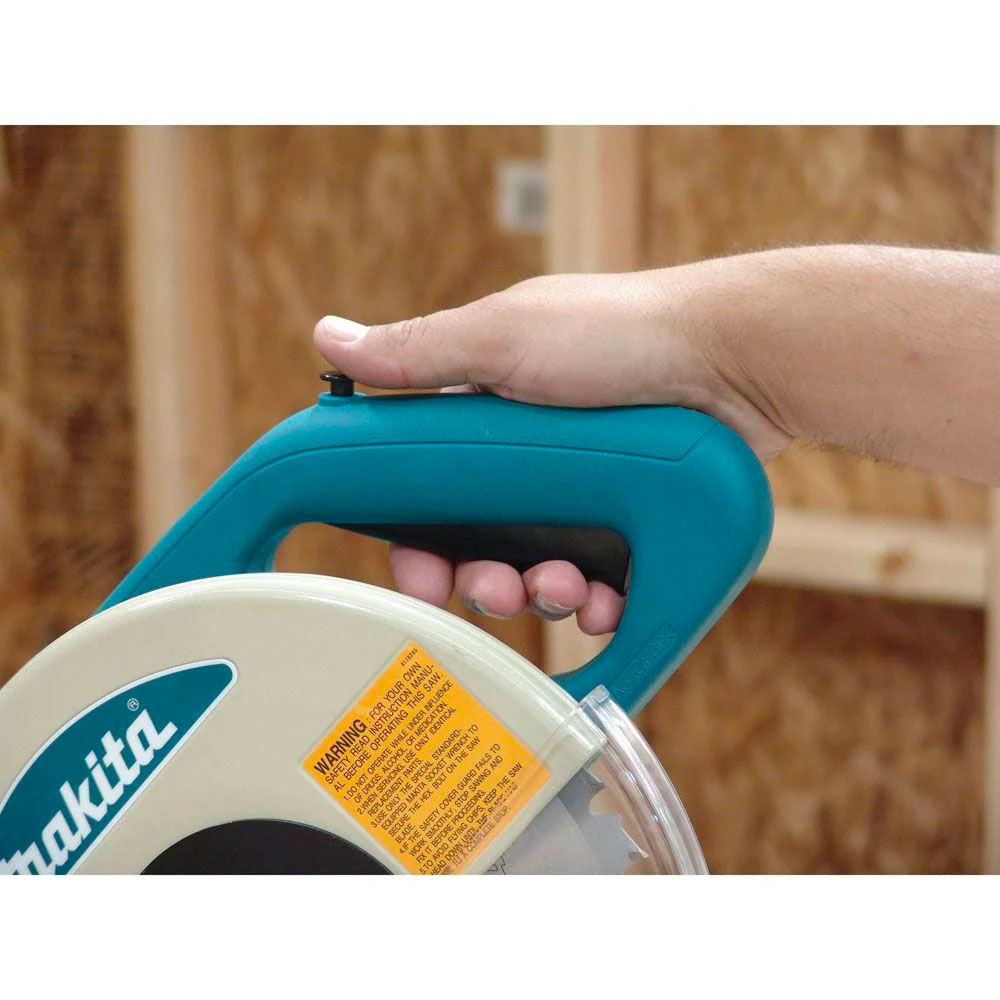

2 Stage Safety Switch for increased operator safety

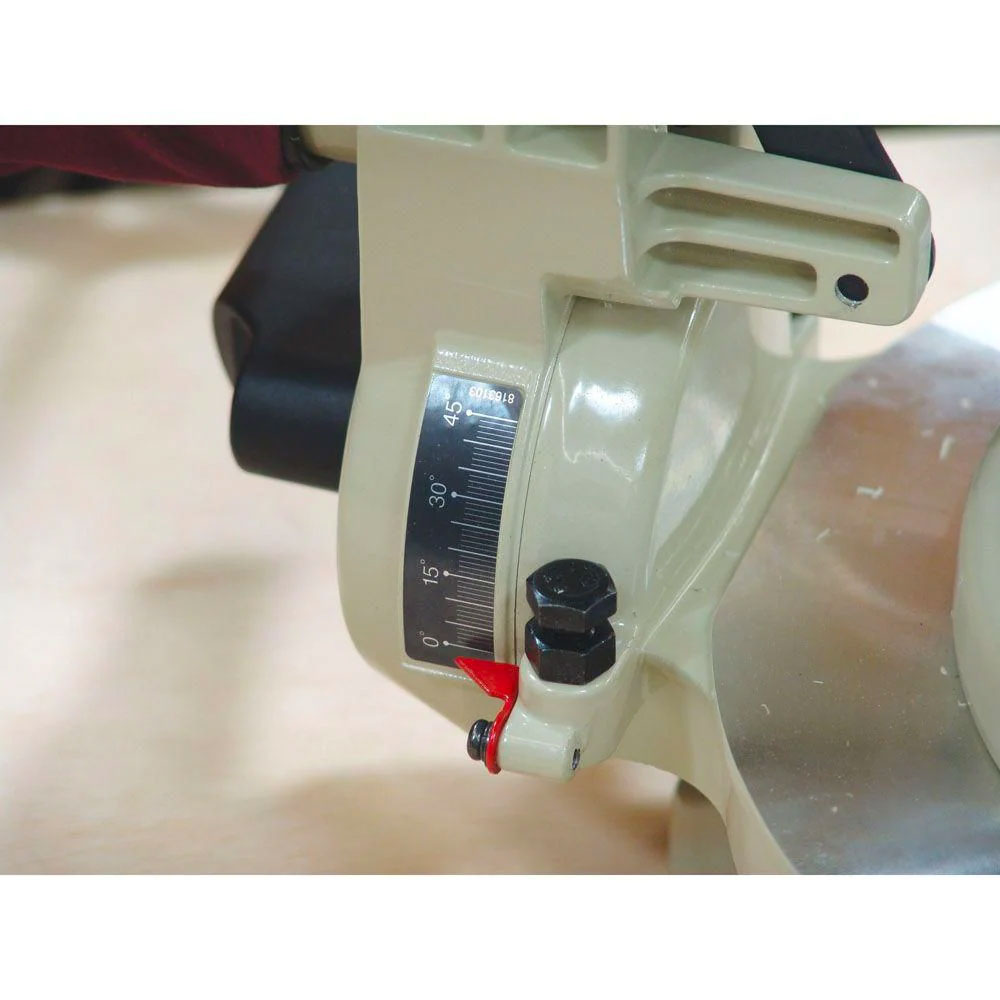

Bevel Capacity of 45^oLeft

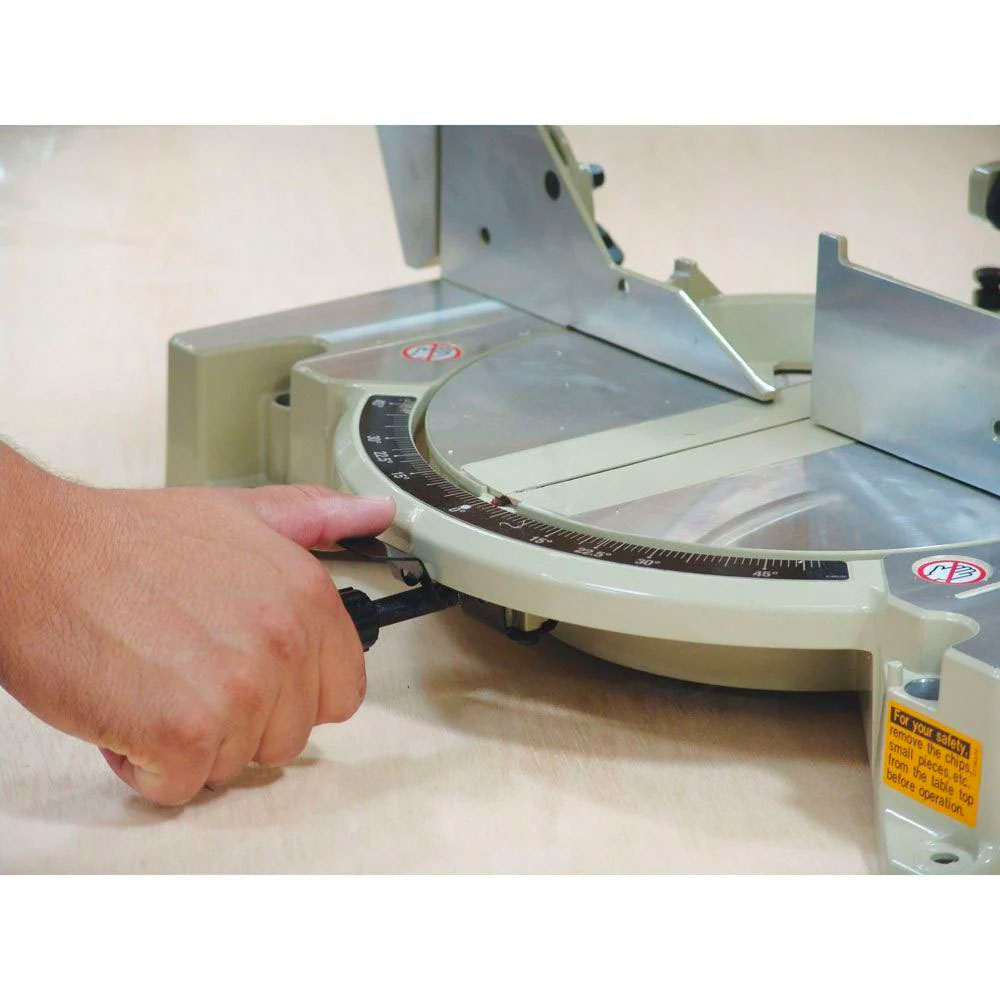

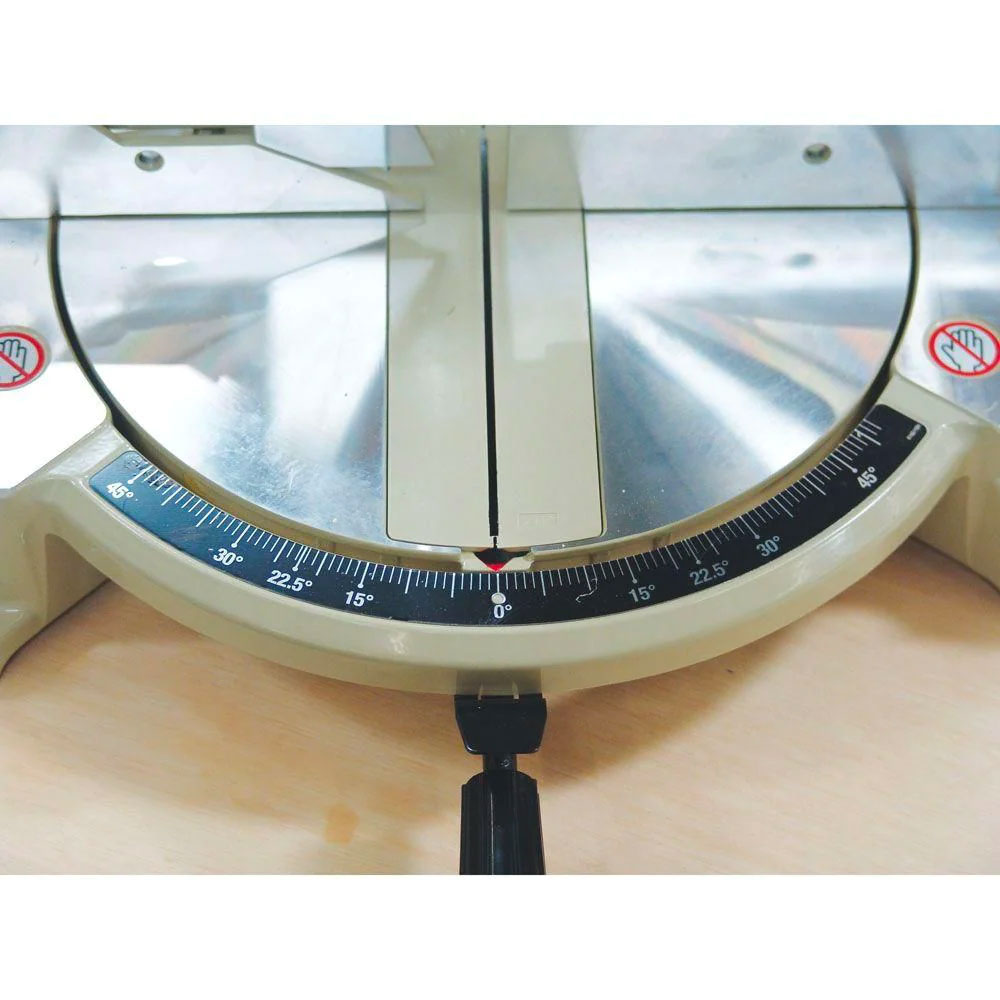

Mitre Capacity of 45^o Left or 52^o Right with Positive Stops at 0^o, 15^o, 22.5^o, 30^o and 45^o

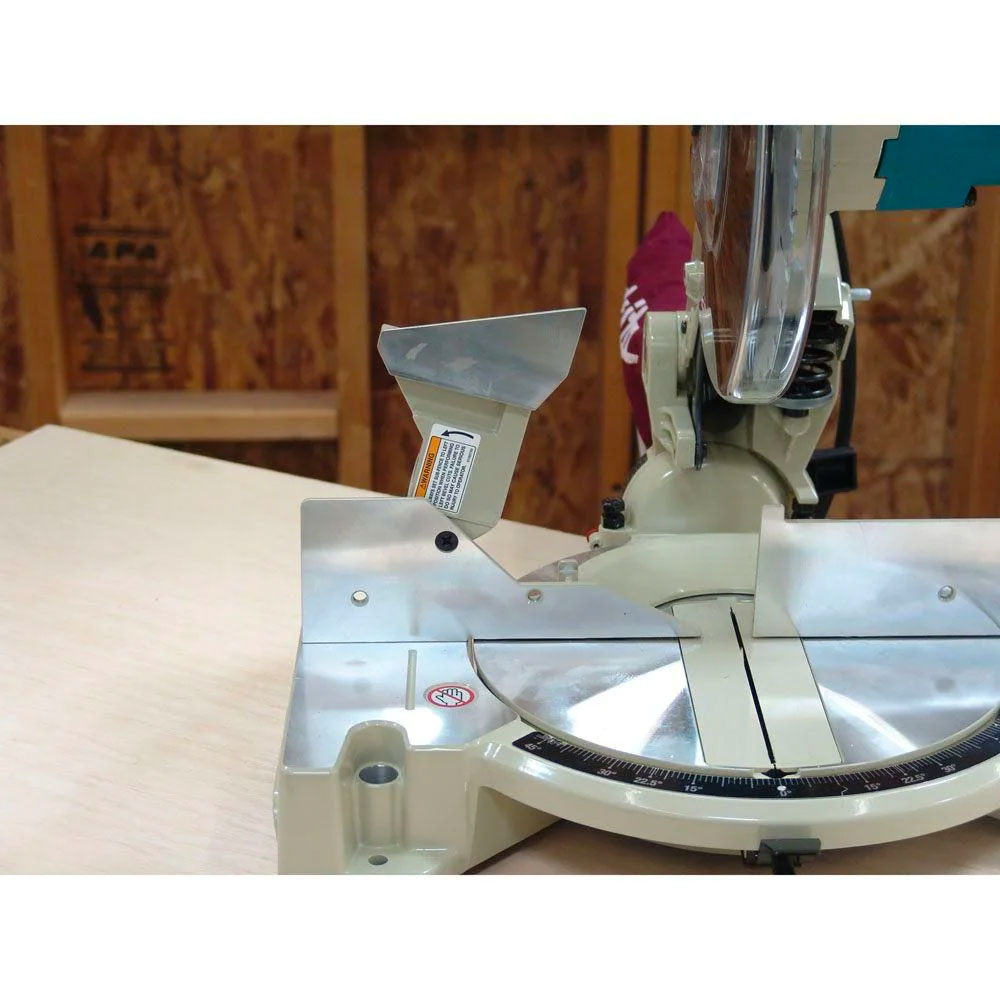

Pivoting Fence (Left Side) can be adjusted when bevel cutting or to support larger materials

Where to buy

Items Included:10" C.T. Blade 32T (721434-1), Socket Wrench 13 (782212-4), Dust Bag (122852-0), Vertical Vise (122536-0), Triangle Rule (762001-3), Sub Plate Assy (193471-9)

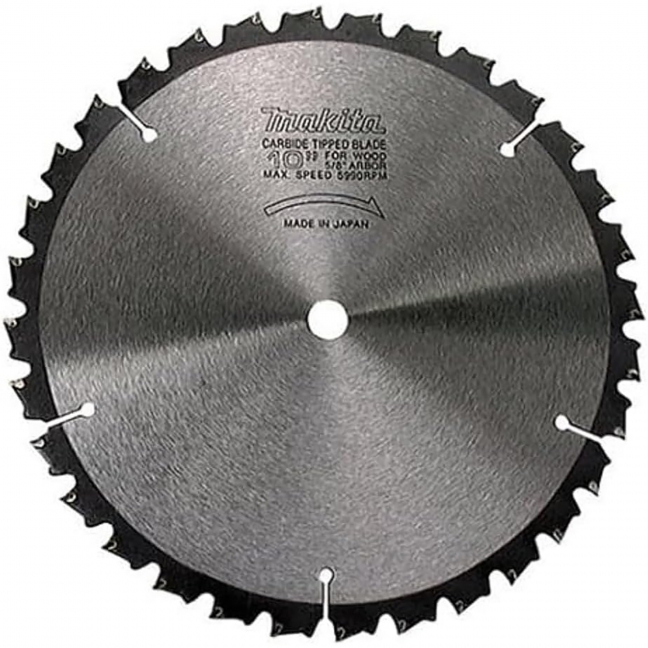

721434-1

782212-4

122852-0

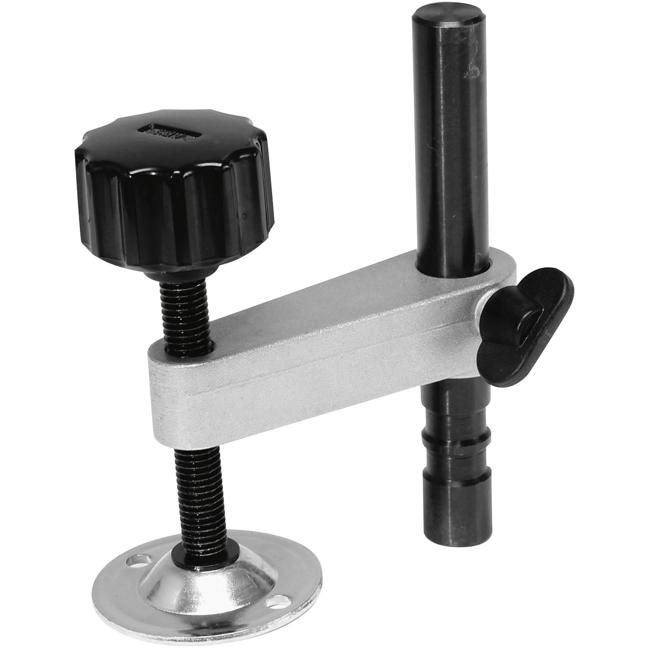

122536-0

762001-3

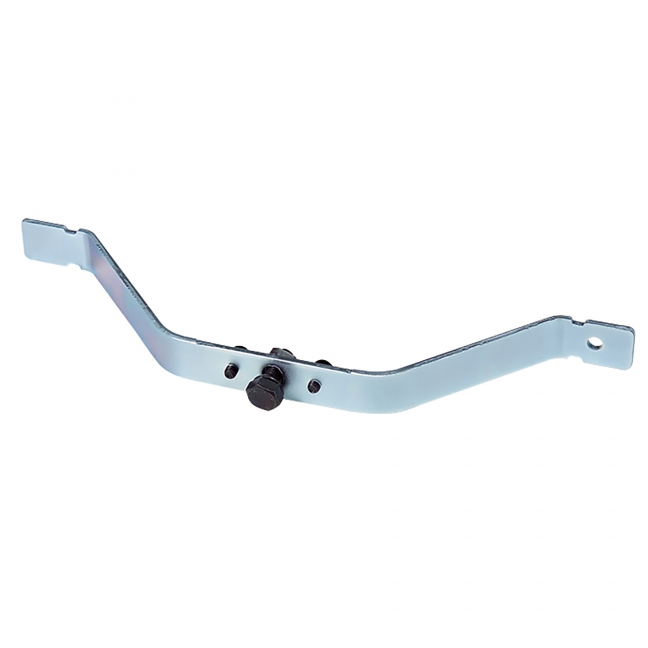

193471-9

Images shown may not represent the full listing or the true size of included items.

Electric Brake for increased operator safety
2 Stage Safety Switch for increased operator safety
Bevel Capacity of 45^oLeft
Mitre Capacity of 45^o Left or 52^o Right with Positive Stops at 0^o, 15^o, 22.5^o, 30^o and 45^o
Pivoting Fence (Left Side) can be adjusted when bevel cutting or to support larger materials

Items Included: 10" C.T. Blade 32T (721434-1), Socket Wrench 13 (782212-4), Dust Bag (122852-0), Vertical Vise (122536-0), Triangle Rule (762001-3), Sub Plate Assy (193471-9)

Shipping Dimensions (Length x Width x Height) & Weight : 17.76 In. X 20 In. X 14.57 In. Weight : 32.41 Lb.

Specifications

Blade Diameter	10" (255 mm)
Arbor	5/8" (15.88 mm)
No Load Speed	5,100 RPM
AMPS (120V)	15.0 A
Vibration Level	2.5 m/s²
Noise Level	91 dB(A)
Dimensions (L x W x H):	20-7/8" x 18-3/4" x 21" (530 mm x 476 mm x 532 mm)
Net Weight	27.3 lbs (12.4 kg)
