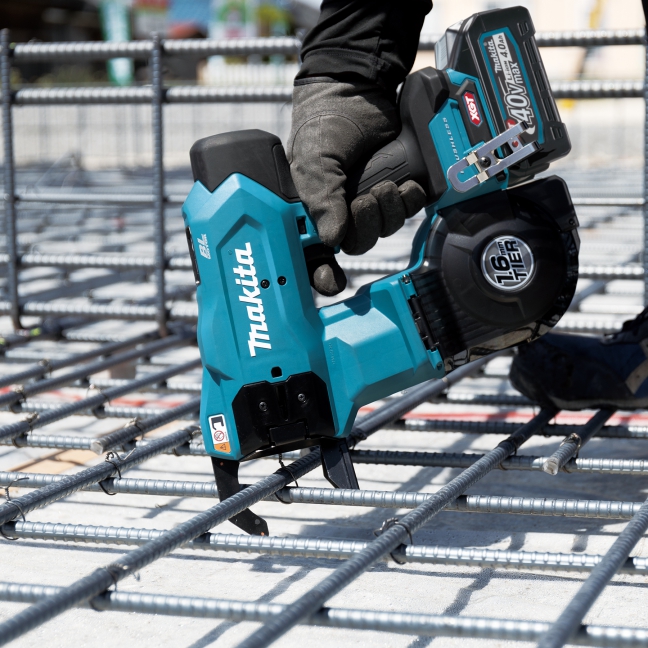

40Vmax XGT Brushless Rebar Tying Tool, Tool Only

Capable of Tying Wide Range of Rebar Sizes From D10/#3 x D10/#3 to (D16/#5 x 2) x (D16/#5 x 2)

Excellent Combination of High Tying Strength and Speed

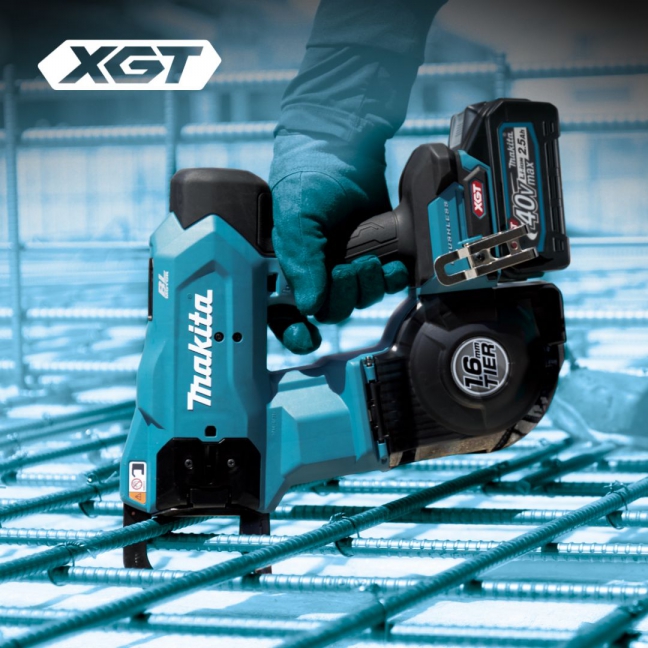

Powered by an XGT battery and equipped with dual BL motors, the tool delivers high tying strength and speed using 1.6 mm wire.

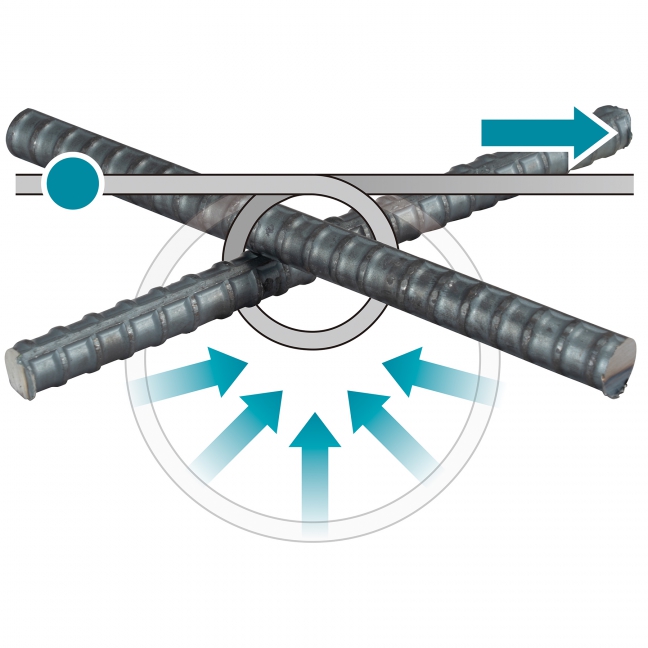

Equipped with a wire pullback mechanism, the tool pulls back the wire while holding its tip, allowing the rebars to be tightly and securely tied.
Equipped with a main power switch and a trigger lock function for enhanced control and safety
Capable of tying a wide range of rebar sizes, from D10/N⁰ 3 x D10/N⁰ 3 to (D16/N⁰ 5 x 2) x (D16/N⁰ 5 x 2)
Dual BL motors for twisting and feeding ensure stable tying with 1.6 mm wire.

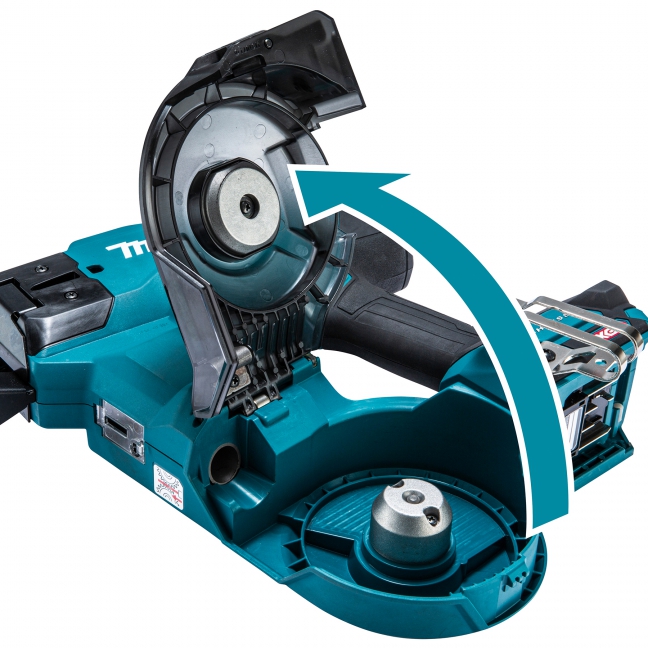

Easy One-step wire reel loading, enabled by a linked cover and gear mechanism.

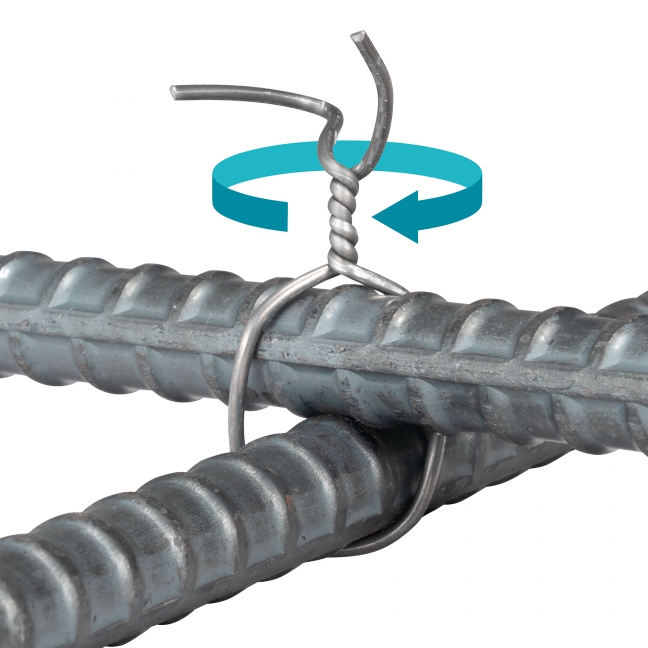

Clockwise wire twisting minimizes the chance of unintentional loosening when retightening by hand.
Tying strength is easily adjustable via the panel to suit different rebar combinations.
Tying strength (compared to our 18V models):
D10 × D10 rebar: approx. 300% increase
D22 × D22 rebar: approx. 200% increase
Ergonomic rubberized soft grip for increased comfort
XPT-compatible for enhanced dust and water resistance in harsh conditions
The optional extension handle(1915N6-8) enables the operator to tie rebars while standing.

Where to buy

Items Included:Tool Only. Batteries and Charger Sold Separately. Oil Supply (194381-3), Hex Wrench 2.5 (783208-8), Hook (347D31-5), Plastic Carrying Case

194381-3

783208-8

Images shown may not represent the full listing or the true size of included items.

Powered by an XGT battery and equipped with dual BL motors, the tool delivers high tying strength and speed using 1.6 mm wire.
Equipped with a wire pullback mechanism, the tool pulls back the wire while holding its tip, allowing the rebars to be tightly and securely tied.
Equipped with a main power switch and a trigger lock function for enhanced control and safety
Capable of tying a wide range of rebar sizes, from D10/N⁰ 3 x D10/N⁰ 3 to (D16/N⁰ 5 x 2) x (D16/N⁰ 5 x 2)
Dual BL motors for twisting and feeding ensure stable tying with 1.6 mm wire.
Easy One-step wire reel loading, enabled by a linked cover and gear mechanism.
Clockwise wire twisting minimizes the chance of unintentional loosening when retightening by hand.
Tying strength is easily adjustable via the panel to suit different rebar combinations.
Tying strength (compared to our 18V models):
D10 × D10 rebar: approx. 300% increase
D22 × D22 rebar: approx. 200% increase
Ergonomic rubberized soft grip for increased comfort
XPT-compatible for enhanced dust and water resistance in harsh conditions
The optional extension handle(1915N6-8) enables the operator to tie rebars while standing.

Items Included: Tool Only. Batteries and Charger Sold Separately. Oil Supply (194381-3), Hex Wrench 2.5 (783208-8), Hook (347D31-5), Plastic Carrying Case

Shipping Dimensions (Length x Width x Height) & Weight : 23 In. X 7.2 In. X 18 In. Weight : 16.23 Lb.

Specifications

Battery Capacities	40V Max Li-Ion
Tie Wire	16 ga Annealed Wire
Rebar Capacities
Two Pieces	1-1/4" (32 mm) x 7/8" (22 mm)
Three Pieces	1" (25 mm) x 3/4" (19 mm) x 3/4" (19 mm)
Four Pieces	5/8" (16 mm) x 5/8" (16 mm) x 5/8" (16 mm) x 5/8" (16 mm)
Vibration Level	2.5 m/s²
Noise Level	80 dB(A)
Overall Length	13-3/8" (340 mm)
Net Weight	5.7 lbs (2.6 kg)
