Home / Tool / Cordless / XGT / Drilling & Fastening / Nailers / BN001GZ01

XGT Technology

(Tool only)


BN001GZ01

40Vmax XGT Brushless 3-1/2" Framing Nailer, 30-34° Clipped Head, Tool Only

Capable of driving nails up to 3-1/2" with a feel similar to using a Pneumatic Nailer

Rapid Firing Capability of 4 Nails Per Second

XGT Technology LXT Technology LXT Technology

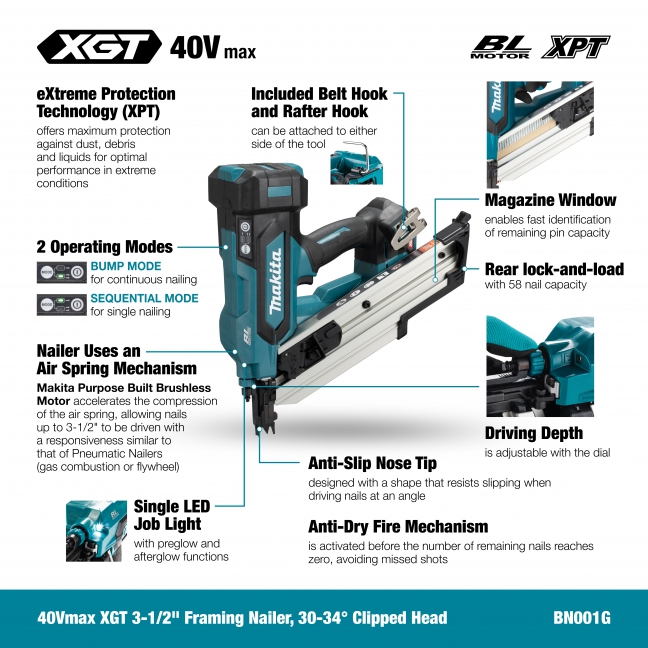

  • POWER : Delivers the power of Pneumatic

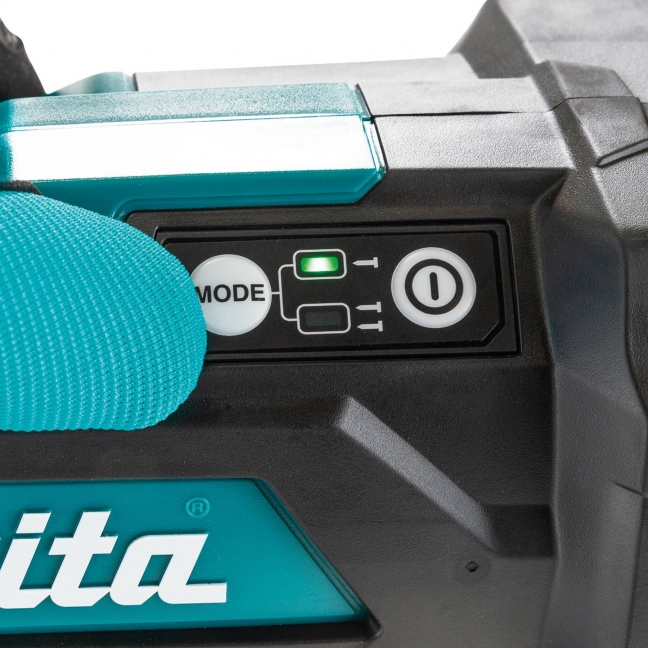

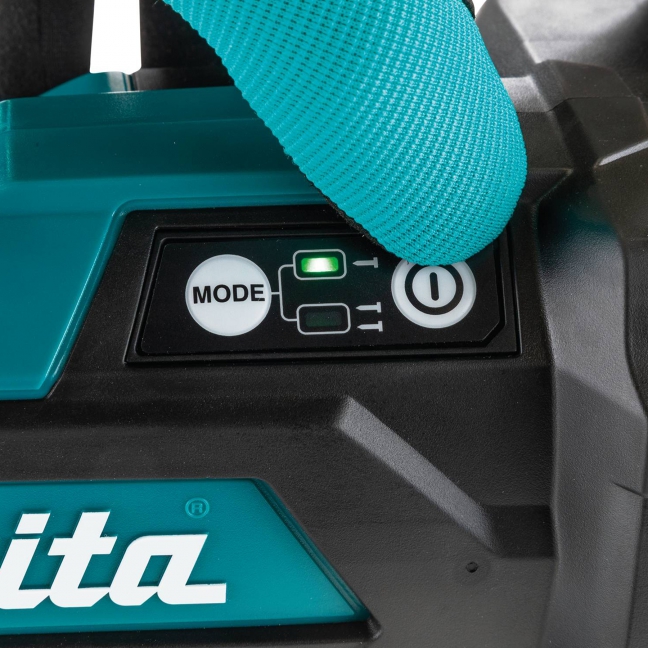

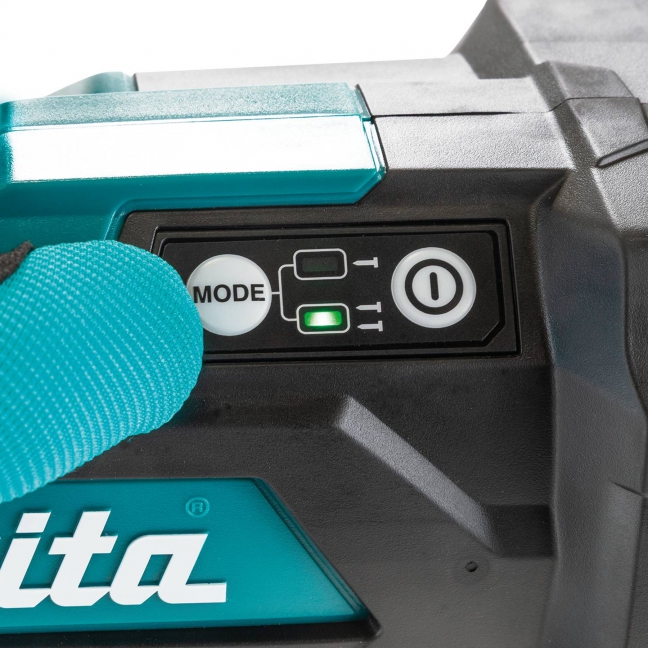

  • SPEED : 2-mode selector switch allows operator to select sequential nailing or bump fire options with firing speed of up to 4 nails per second
  • PRECISION : Drives clipped head nails into dense engineered lumber with power and ease
  • EFFICIENCY : Drives up to 1,020 framing nails on a 2.5Ah battery
  • Drives nails up to 3-1/2 with a pneumatic-like feel with the Air Spring driving system - for superior performance versus gas or flywheel models
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle

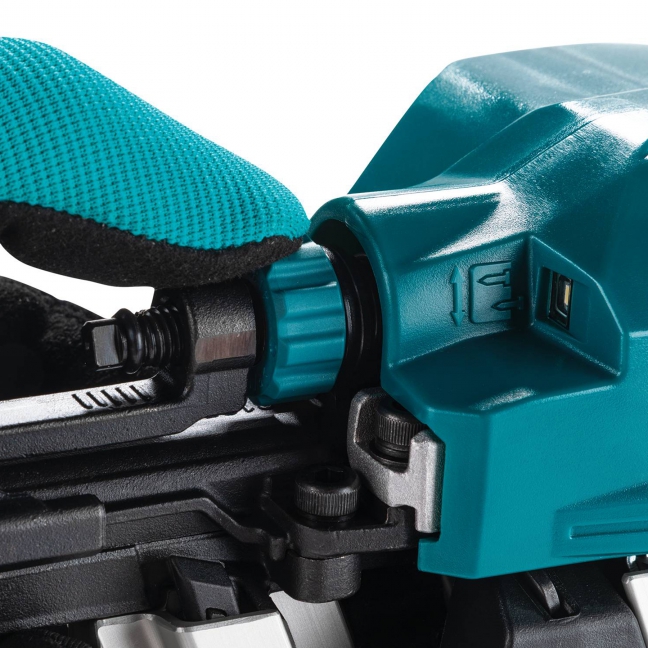

  • Driving depth is adjustable with the dial

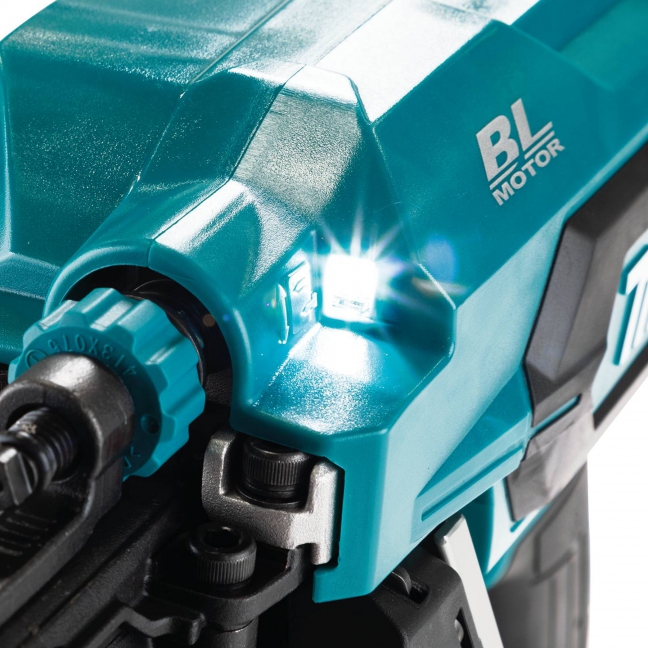

  • Built-in L.E.D. light illuminates the work area
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Makita Purpose-Built Brushless Motor Ensures efficient firing while maintaining consistent power.

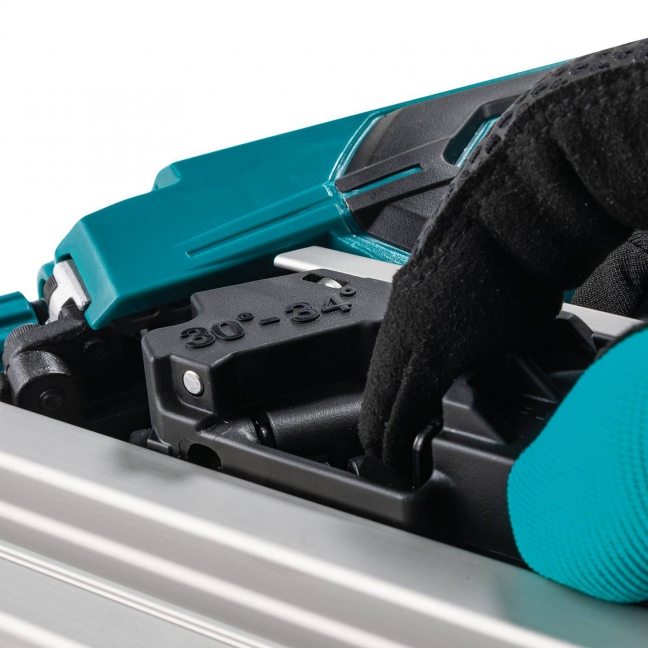

  • Rear lock-and-load magazine, with 58 nail capacity for maximum efficiency
  • Ergonomically designed handle with rubberized soft grip provides increased comfort
  • Window for checking remaining nail quantity

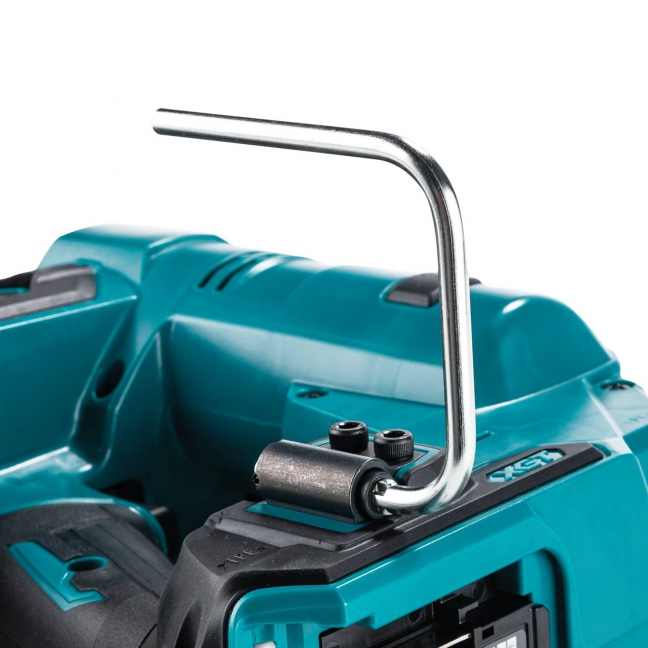

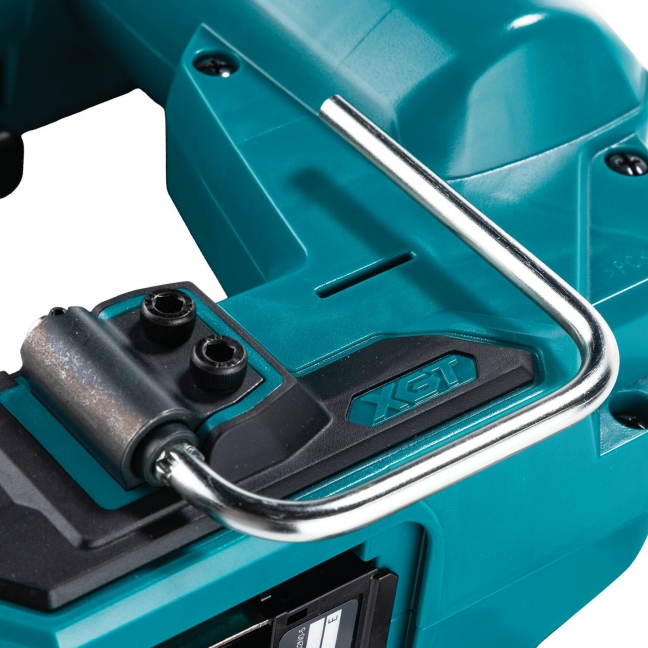

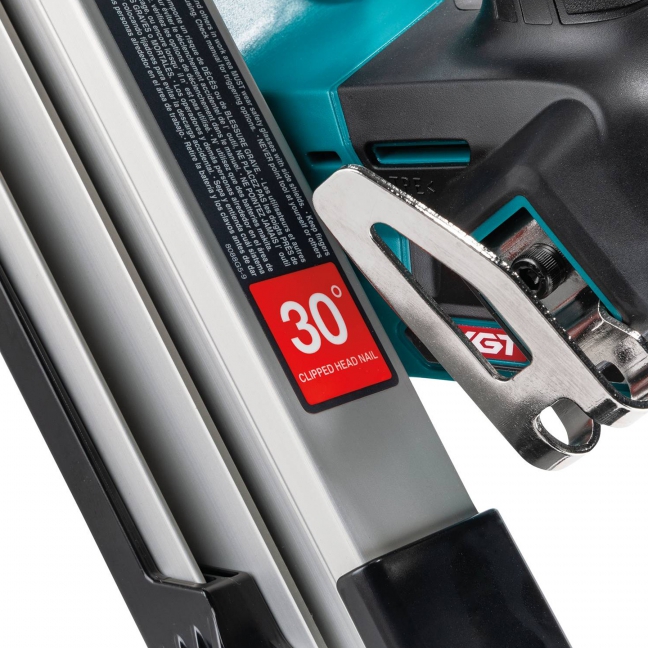

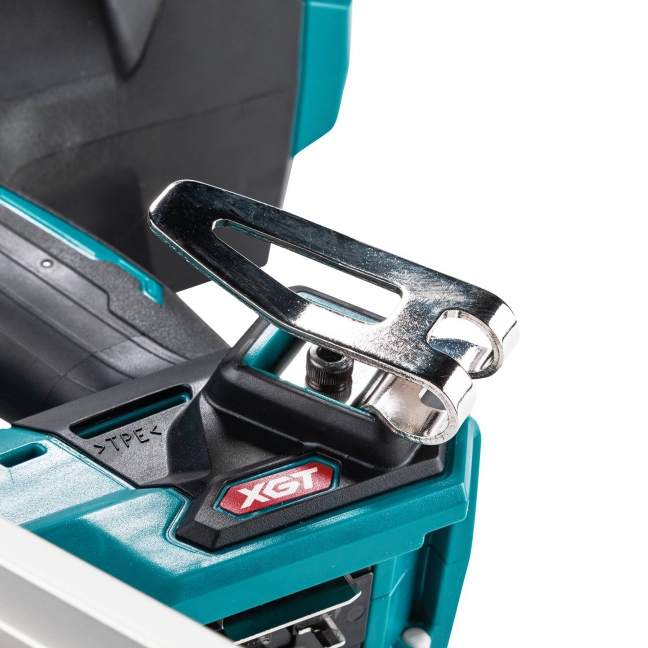

  • Belt Hook with retractable extra-wide tool hook secures the tool when not in use

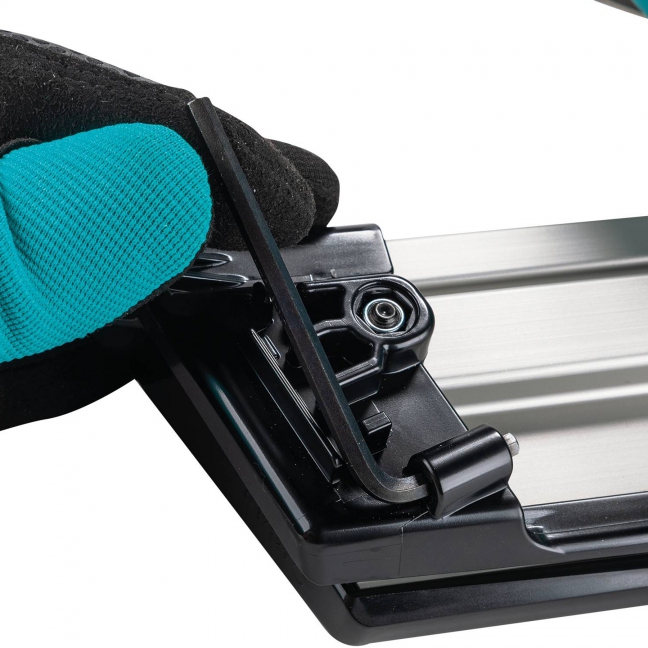

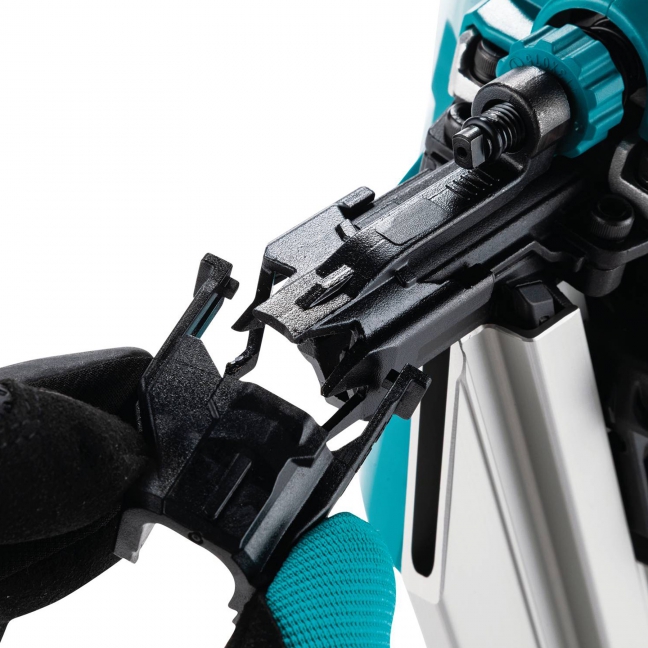

Items Included:Batteries and Charger Sold Separately. Nose Adapter (4133Y2-4), Hang Hook (141X57-7), Hook (347C14-9), Hex Wrench 4 (783202-0)

  • POWER : Delivers the power of Pneumatic
  • SPEED : 2-mode selector switch allows operator to select sequential nailing or bump fire options with firing speed of up to 4 nails per second
  • PRECISION : Drives clipped head nails into dense engineered lumber with power and ease
  • EFFICIENCY : Drives up to 1,020 framing nails on a 2.5Ah battery
  • Drives nails up to 3-1/2 with a pneumatic-like feel with the Air Spring driving system - for superior performance versus gas or flywheel models
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle
  • Driving depth is adjustable with the dial
  • Built-in L.E.D. light illuminates the work area
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Makita Purpose-Built Brushless Motor Ensures efficient firing while maintaining consistent power.
  • Rear lock-and-load magazine, with 58 nail capacity for maximum efficiency
  • Ergonomically designed handle with rubberized soft grip provides increased comfort
  • Window for checking remaining nail quantity
  • Belt Hook with retractable extra-wide tool hook secures the tool when not in use

Items Included: Batteries and Charger Sold Separately. Nose Adapter (4133Y2-4), Hang Hook (141X57-7), Hook (347C14-9), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 16.1 In. X 7.4 In. X 14.4 In. Weight : 12.5 Lb.

Specifications

Battery Capacities 40Vmax XGT
Figure of Nail Head Clipped Head
Nail Length 2" - 3-1/2" (50 mm - 90 mm)
Shank Diameter 0.113" - 0.131"
Magazine Capacities 51 - 58 Nails
Nail Collation Angle 30° - 34°
Dimensions (L x W x H) 12-7/8" x 7-3/8" x 14-1/8" (326 mm x 186 mm x 358 mm)
Net Weight  10.2 lbs (4.6 kg)
