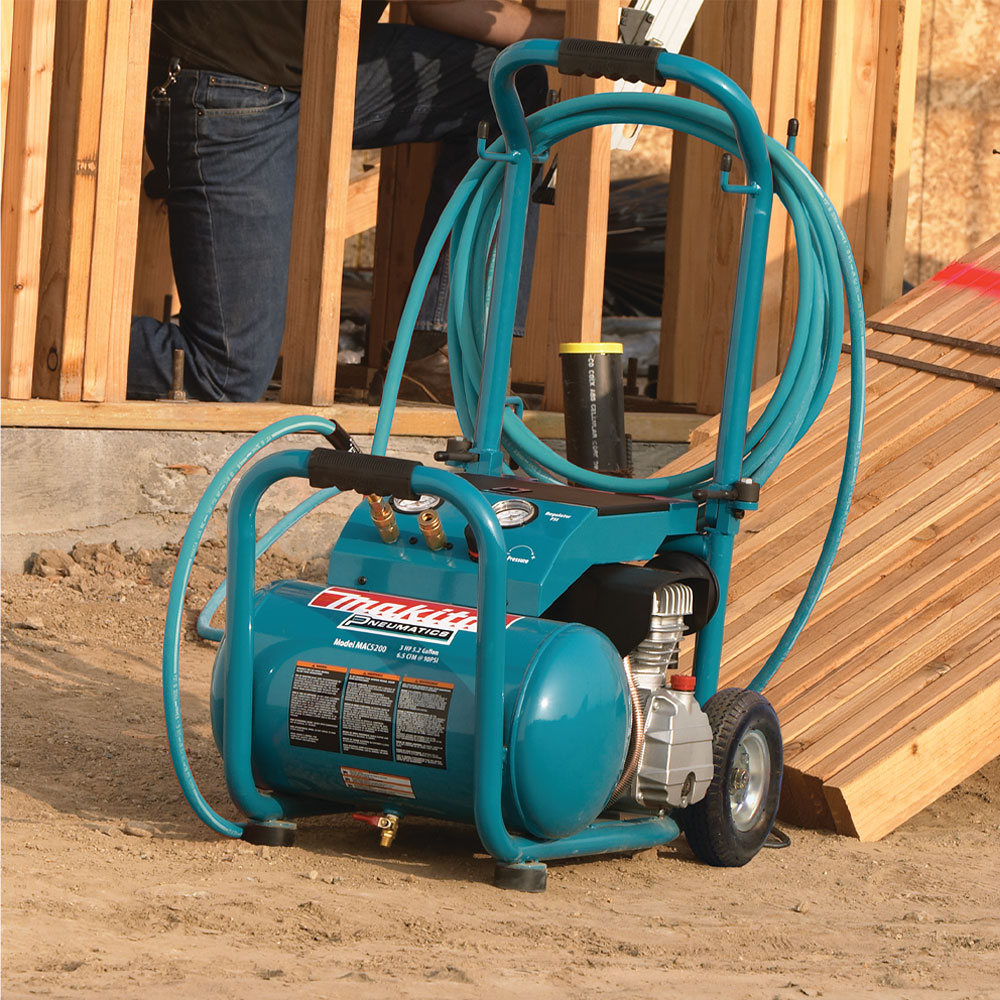

3 HP Air Compressor

Oil Lubricated

Oil lubricated for cooler operation and reduced noise
High output cast iron pump delivers maximum performance and operational life
Big Bore^TM cylinder and piston feature high output at lower RPM with reduced heat buildup, less noise and longer operational life
Low amperage draw reduces incidents of tripped breakers and voltage drops that cause premature motor failure

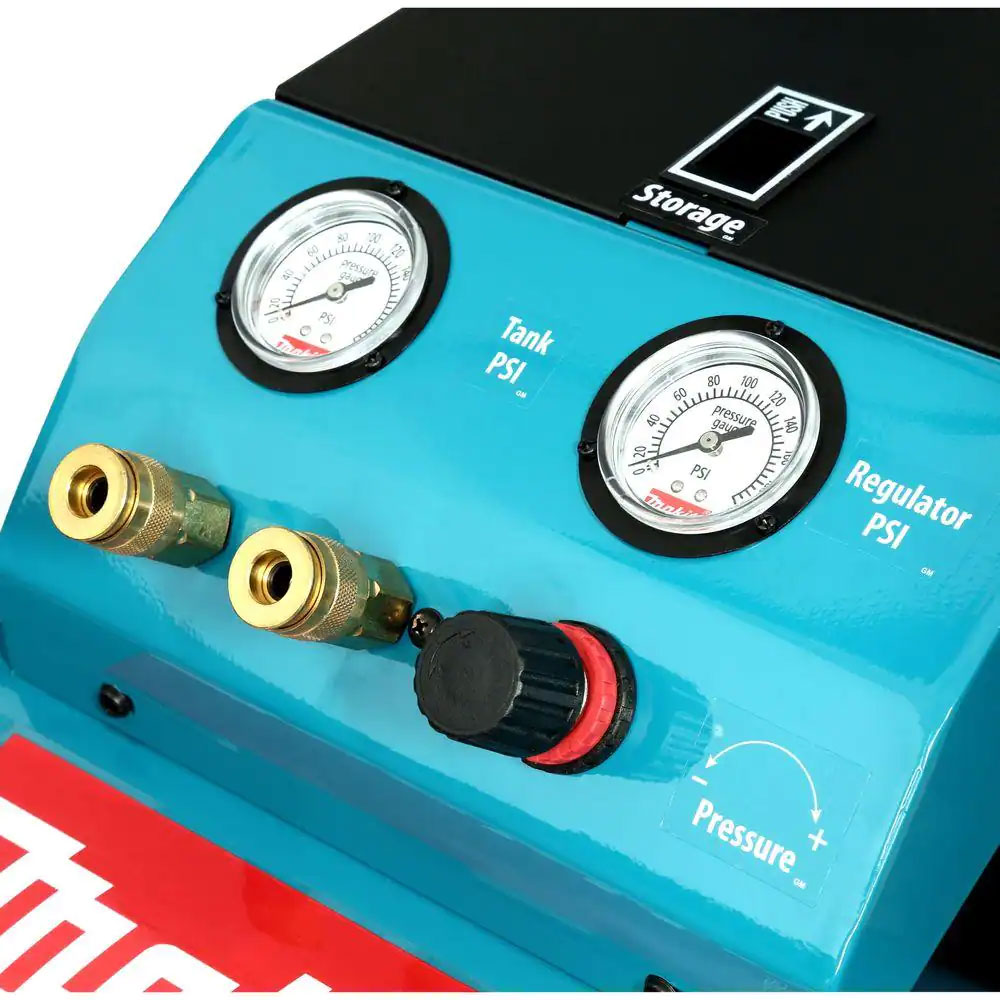

Easy view oil gauge and large pressure gauges for quick identification
Air pressure regulator enables easy adjustment of line pressure
Features 2 quick connect air hose fittings
Finned discharge tube promotes safe and efficient cooling
Stores 50' of 3/8" air hose with handle folded or upright

Where to buy

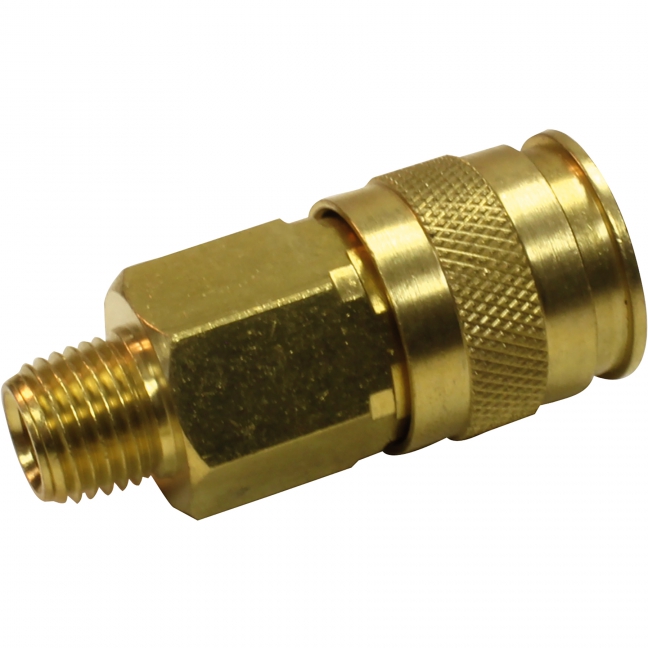

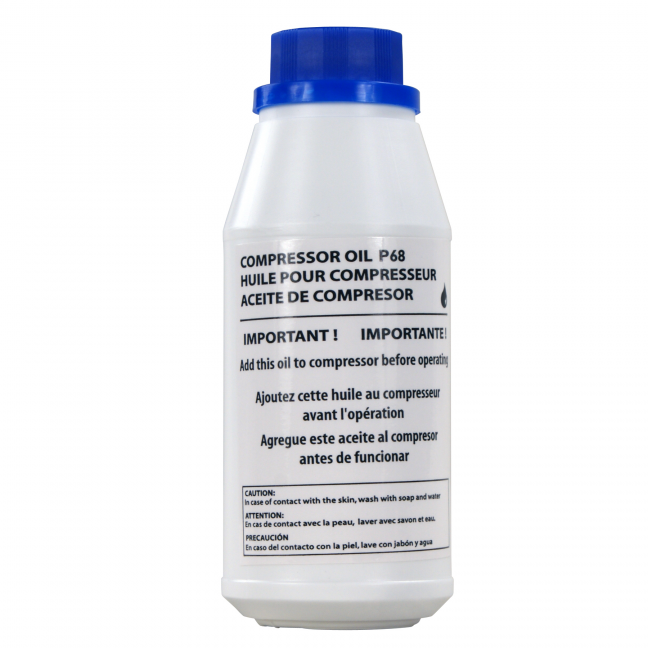

Items Included:1/4” Quick Coupler, (10TT-8), Compressor Oil (0.25L) (181122-A)

10TT-8

181122-A

Images shown may not represent the full listing or the true size of included items.

Oil lubricated for cooler operation and reduced noise
High output cast iron pump delivers maximum performance and operational life
Big Bore^TM cylinder and piston feature high output at lower RPM with reduced heat buildup, less noise and longer operational life
Low amperage draw reduces incidents of tripped breakers and voltage drops that cause premature motor failure
Easy view oil gauge and large pressure gauges for quick identification
Air pressure regulator enables easy adjustment of line pressure
Features 2 quick connect air hose fittings
Finned discharge tube promotes safe and efficient cooling
Stores 50' of 3/8" air hose with handle folded or upright

Items Included: 1/4” Quick Coupler, (10TT-8), Compressor Oil (0.25L) (181122-A)

Shipping Dimensions (Length x Width x Height) & Weight : 28.94 In. X 19.69 In. X 22.05 In. Weight : 106.04 Lb.

Specifications

Motor	3.0 hp
Pump	Oil-Lubricated
Tank	5.2 gal (19.7L)
Performance (90 PSI)	6.5 CFM
Noise level	90 dB(A)
AMPS (120V)	13.8 A
Dimensions (L x W x H, with Handle Folded)	30-5/16" x 20 x 21-13/16" (770 mm x 510 mm x 553 mm)
Maximum Pressure	140 PSI
Net Weight	88.0 lbs (39.9 kg)
