Home / Tool / OPE / Power Cutters / 4114

Full Screen

4114

12" / 14" Portable Angle Cutter

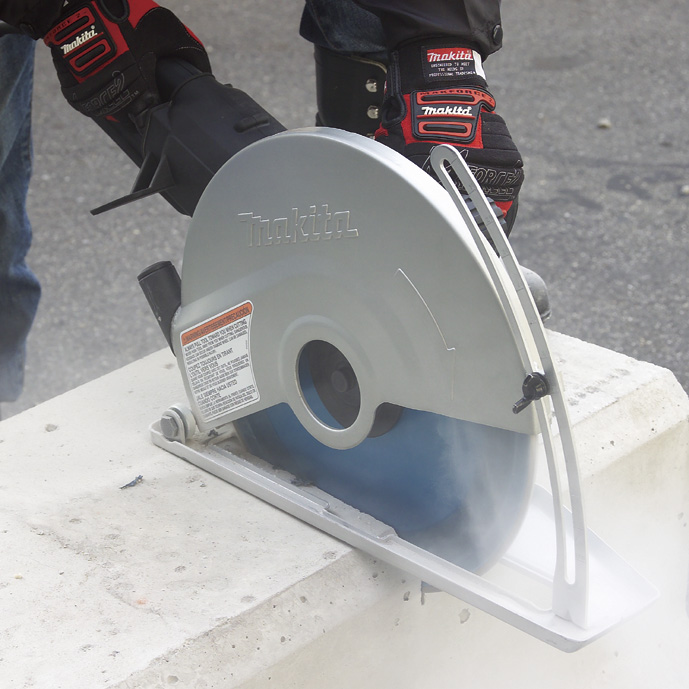

AC/DC Used To Cut Steel, Concrete And Masonry Materials With A Dry Cutting Diamond Blade

"SJS" Technology

SJS Technology
  • Guide wheels on the tool guard ensure smooth tool travel over surface material
  • Rubber shield protects the operators hand and motor from debris
  • Lock-on button for continuous operation
  • Ball bearing construction for longer tool life
  • "SJS" technology prevents kickback if blade jams protecting both the operator and tool
  • Integrated nozzle can be connected to vacuum system for clean operation
Read More

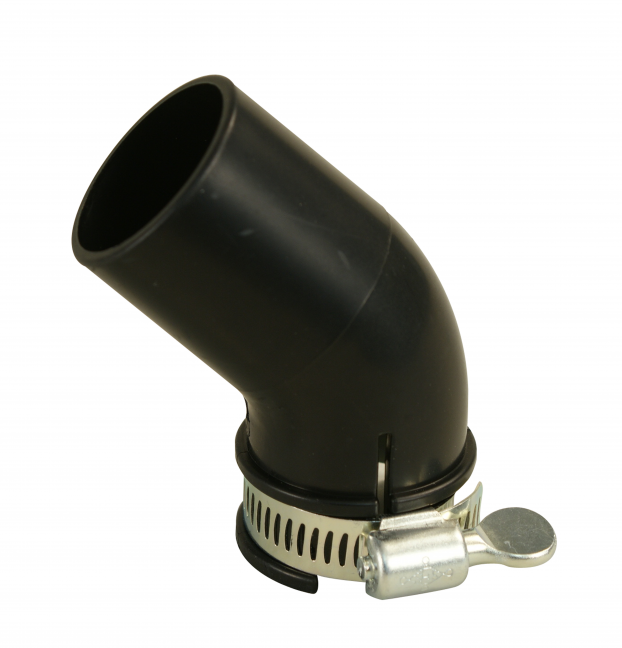

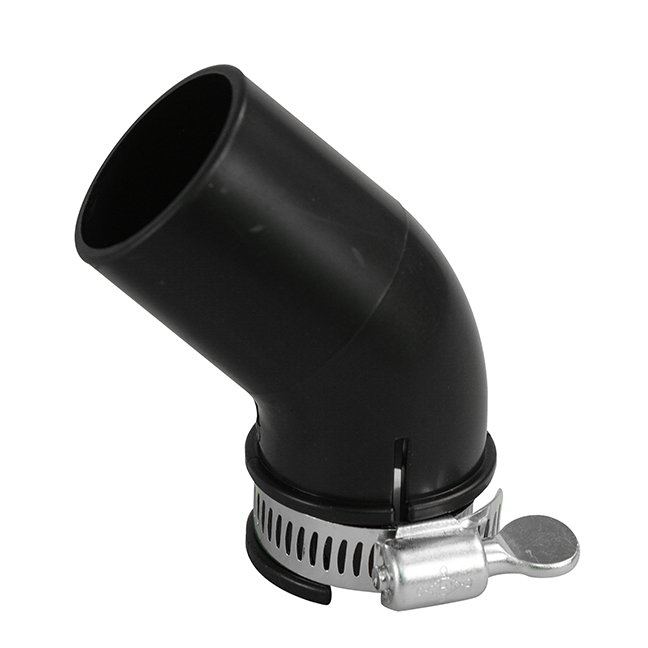

Items Included:Socket Wrench 17 (782210-8), Elbow Joint (P-80008)

782210-8

P-80008

Images shown may not represent the full listing or the true size of included items.

  • Guide wheels on the tool guard ensure smooth tool travel over surface material
  • Rubber shield protects the operators hand and motor from debris
  • Lock-on button for continuous operation
  • Ball bearing construction for longer tool life
  • "SJS" technology prevents kickback if blade jams protecting both the operator and tool
  • Integrated nozzle can be connected to vacuum system for clean operation

Items Included: Socket Wrench 17 (782210-8), Elbow Joint (P-80008)

Shipping Dimensions (Length x Width x Height) & Weight : 31.89 In. X 16.34 In. X 11.34 In. Weight : 39.68 Lb.

Specifications

Blade Diameter 14" (355 mm)
Arbor 1" (25.4 mm)
Maximum Cutting Depth 5" (125 mm)
No Load Speed: 3,800 RPM
AMPS (120V) 15.0 A
Vibration Level (Unavailable)
Noise Level (Unavailable)
Overall Length 26-1/2" (673 mm)
Net Weight 22.7 lbs (10.3 kg)
