DBN640Z

18V LXT Burshless 2-1/2" Metal Connector Nailer, 30-35° Round Head, Tool Only

Capable of driving nails up to 2-1/2" with a feel similar to using a Pneumatic Nailer

Precise, Balanced, Powerful


LXT Technology LXT Technology LXT Technology

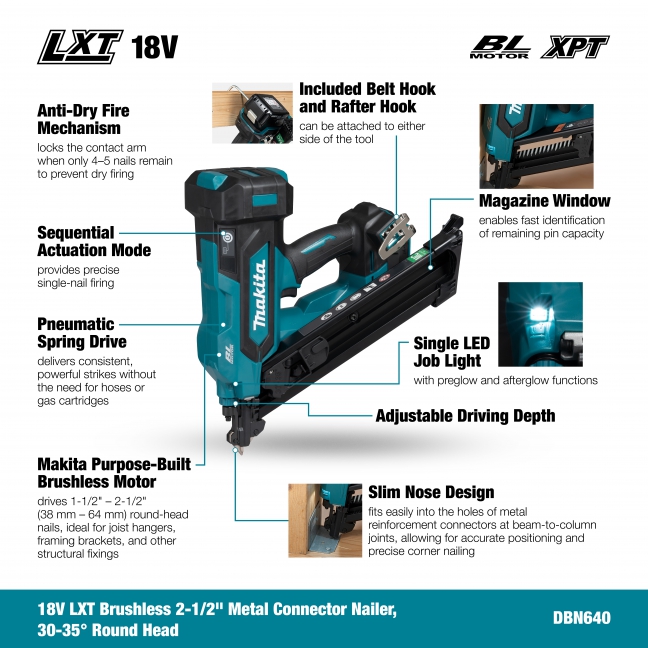

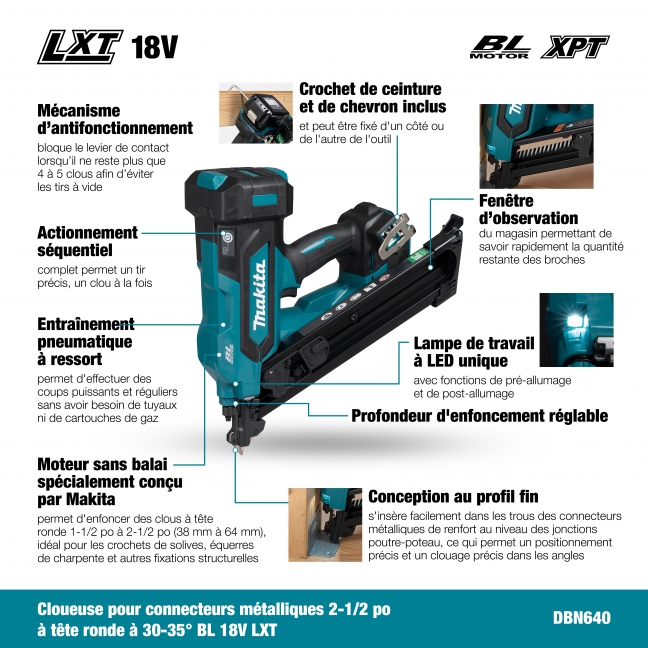

  • POWER : Delivers the power of pneumatic for driving nails into dense engineered lumber with ease

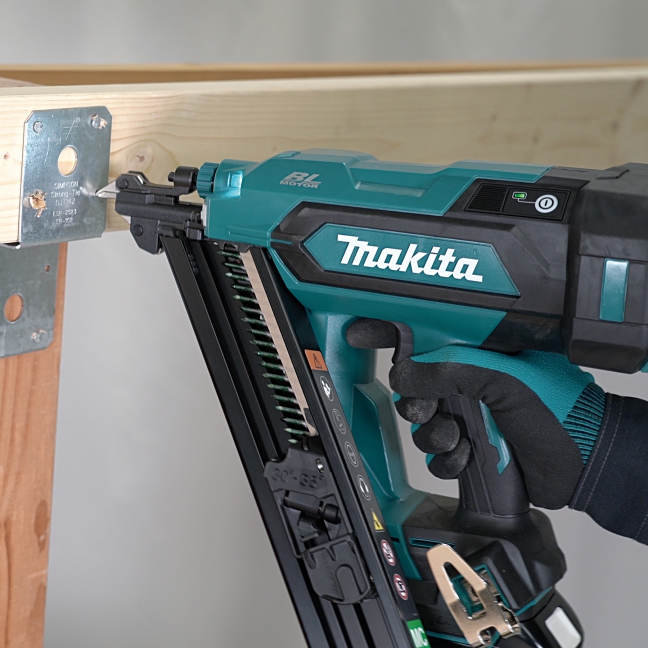

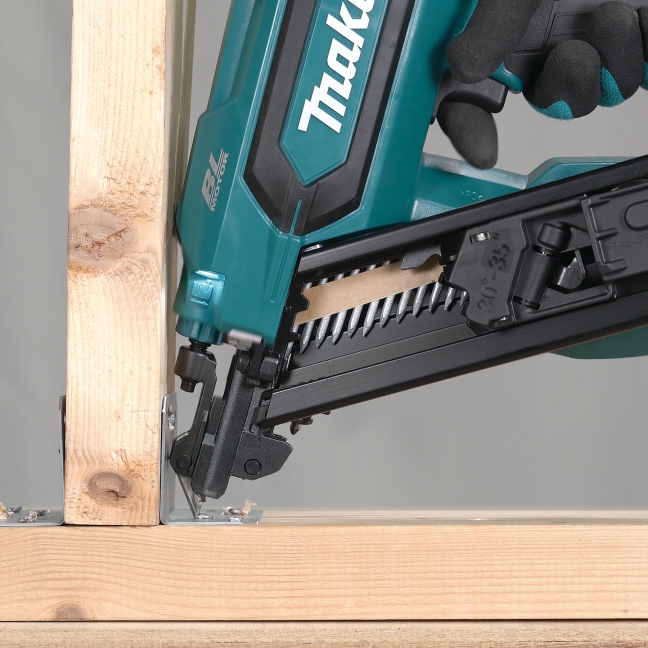

  • PRECISION : Slim nose design for easy to aiming into the holes of metal reinforcement connectors used at beam-to-column joints, enabling accurate corner nailing.
  • EFFICIENCY : Drives up to 1,000 nails on a single charge
  • Air Spring driving system delivers a pneumatic-like feel and drives nails up to 2-1/2" for superior performance over gas and flywheel models
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.

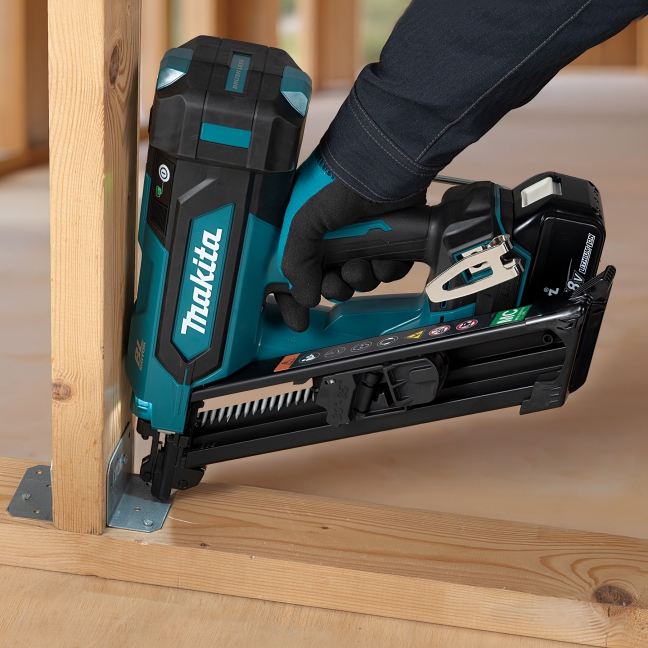

  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle
  • Adjust driving depth easily with the integrated adjustment dial

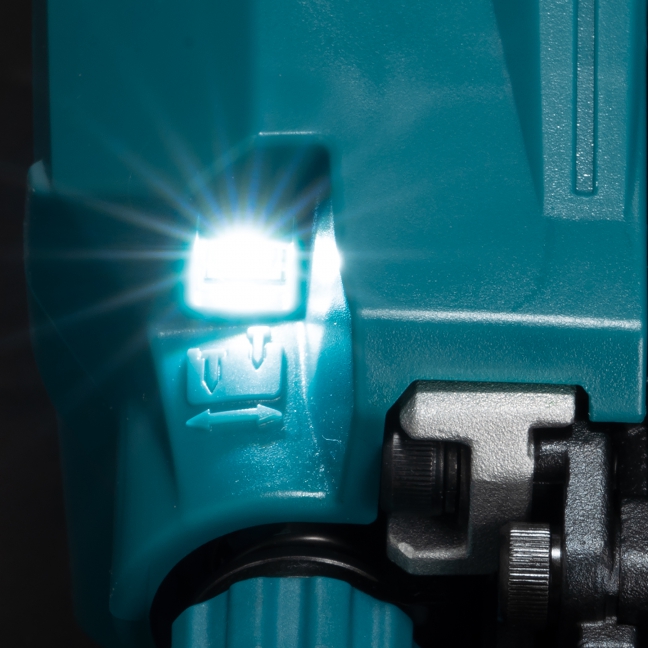

  • Built-in LED light illuminates the work area
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Makita Purpose-Built Brushless Motor ensures efficient firing while maintaining consistent power.
  • Rear lock-and-load magazine holds up to 31 nails for maximum efficiency
  • Ergonomically designed handle with rubberized soft grip provides increased comfort
  • Window for checking remaining nail quantity

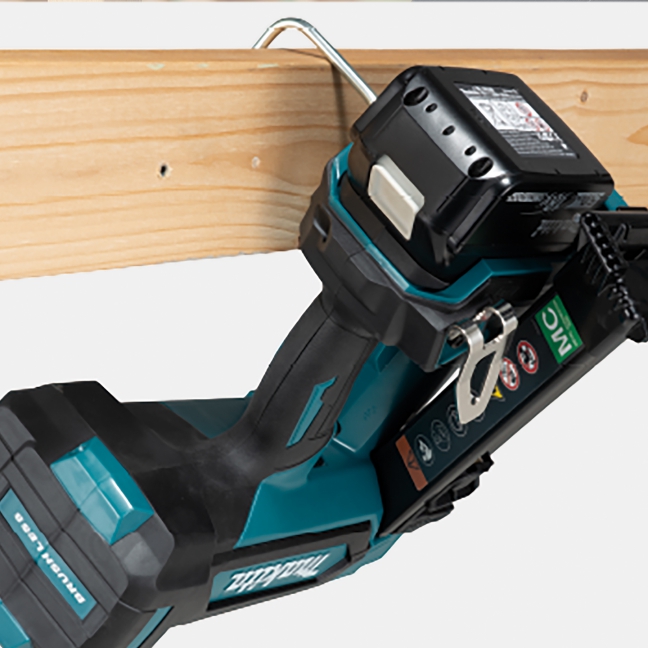

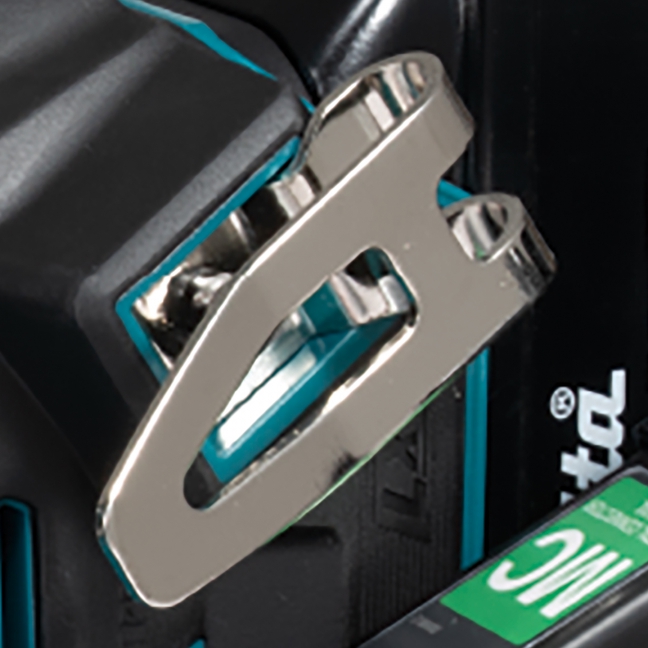

  • Belt hook with retractable extra-wide tool hook secures the tool when not in use

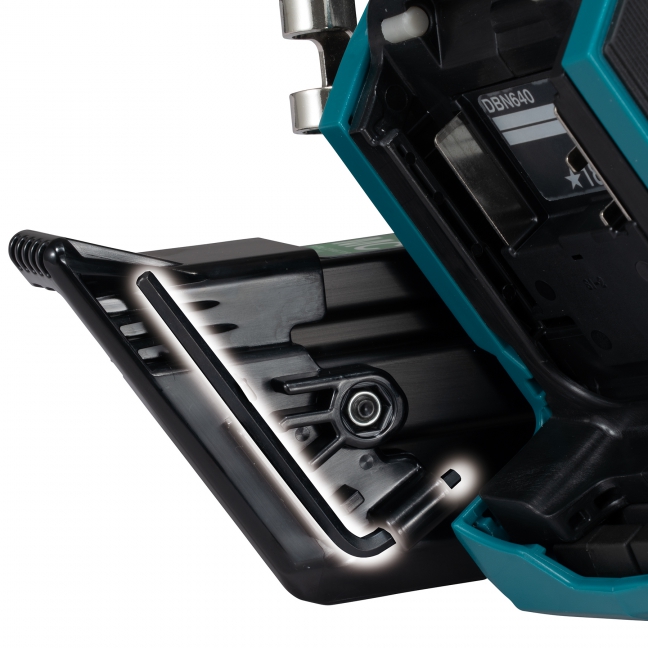

Items Included:Batteries and Charger Sold Separately. Hook (347C14-9), Hang Hook (141X57-7), Hex Wrench 4 (783202-0)

  • POWER : Delivers the power of pneumatic for driving nails into dense engineered lumber with ease
  • PRECISION : Slim nose design for easy to aiming into the holes of metal reinforcement connectors used at beam-to-column joints, enabling accurate corner nailing.
  • EFFICIENCY : Drives up to 1,000 nails on a single charge
  • Air Spring driving system delivers a pneumatic-like feel and drives nails up to 2-1/2" for superior performance over gas and flywheel models
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle
  • Adjust driving depth easily with the integrated adjustment dial
  • Built-in LED light illuminates the work area
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Makita Purpose-Built Brushless Motor ensures efficient firing while maintaining consistent power.
  • Rear lock-and-load magazine holds up to 31 nails for maximum efficiency
  • Ergonomically designed handle with rubberized soft grip provides increased comfort
  • Window for checking remaining nail quantity
  • Belt hook with retractable extra-wide tool hook secures the tool when not in use

Items Included: Batteries and Charger Sold Separately. Hook (347C14-9), Hang Hook (141X57-7), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 16.5 In. X 8.1 In. X 15.9 In. Weight : 13.01 Lb.

Specifications

Battery Capacities 18V Li-Ion
Figure of Nail Head Round Head
Nail Length 1-1/2" - 2-1/2" (38 mm - 64 mm)
Shank Diameter 0.131" - 0.162"
Magazine Capacities 31 Nails
Nail Collation Angle 30° - 35°
Dimensions (L x W x H) 12-7/8" x 7-1/4" x 14-1/8" (326 mm x 185 mm x 359 mm)
Net Weight  10.8 - 11.5 lbs (4.9 kg - 5.2 kg)

User Manual: DBN640 - EN FR SP.pdf

Parts Breakdown: DBN640 - DEC2025.pdf
