Cutting Capacity Of 2-1/2" (63.5 Mm), Electric Brake

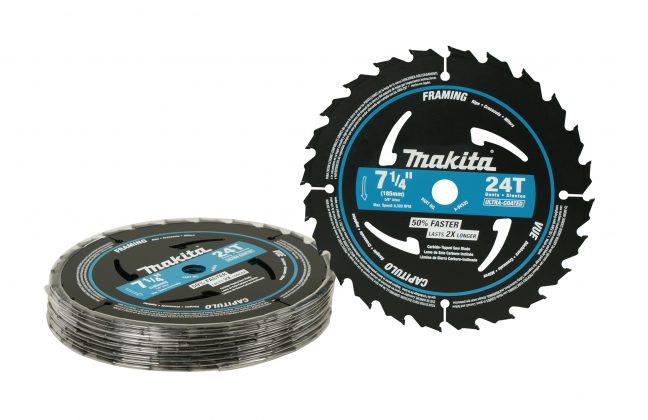

Items Included:1Pc. 7-1/4" Blade 24T (A-94530-10), Hex Wrench (783204-6), Guide Rule (164095-8)
A-94530-10
783204-6
164095-8
Images shown may not represent the full listing or the true size of included items.
Items Included: 1Pc. 7-1/4" Blade 24T (A-94530-10), Hex Wrench (783204-6), Guide Rule (164095-8)
Shipping Dimensions (Length x Width x Height) & Weight : 15.51 In. X 9.49 In. X 12.01 In. Weight : 14.55 Lb.
| Blade Diameter | 7-1/4” (185 mm) |
| Arbor | 5/8” (15.88 mm) |
| Maximum Cutting Capacities: | |
| 0° | 2-1/2”(63.5 mm) |
| 45° | 1-3/4 (45 mm) |
| 56° | 1-3/8 (35 mm) |
| No Load Speed | 5,800 RPM |
| AMPS (120V) | 15.0 A |
| Overall Length | 12-1/2” (317 mm) |
| Net Weight | 11.5 lbs (5.2 kg) |
| Shipping Weight: | 14.6 lbs (6.6 kg) |
