DDF491Z01

18V LXT Brushless Multi-Head Drill-Driver, Tool Only

Maximum Versatility In A Single Tool

Includes 4 Quick Change Heads For A Variety Of Applications

LXT Technology LXT Technology LXT Technology

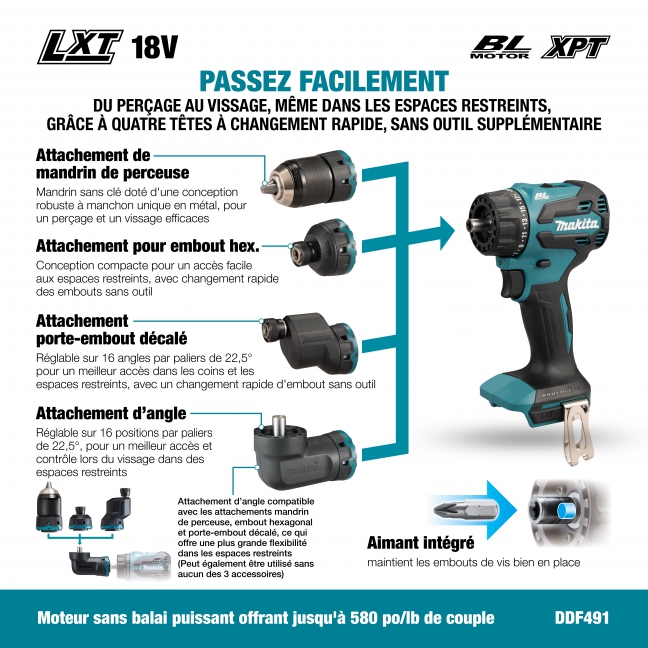

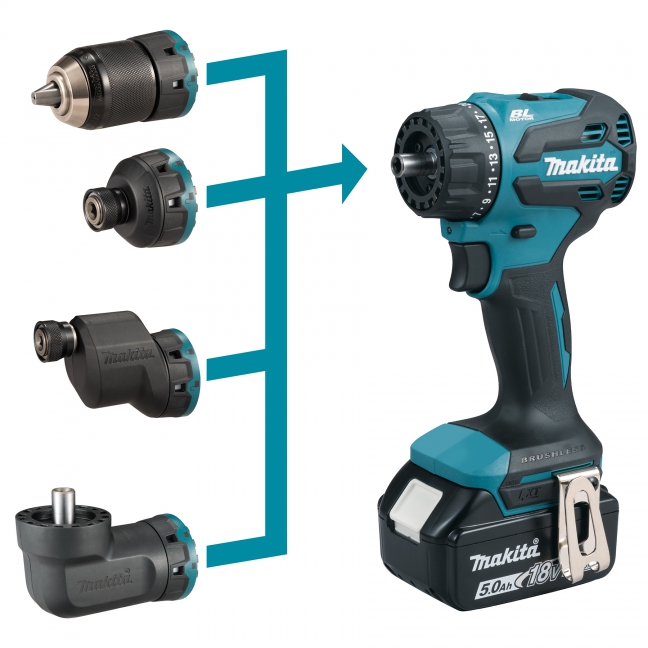

  • Includes 1/2" Keyless Drill Chuck Attachment (1918F1-0), 1/4" Hex Bit Attachment (1918F2-8), 1/4" Offset Attachment (1918F4-4)And 1/4" Angle Attachment (1918F6-0)
  • The model can also be used without any of the four attachments.

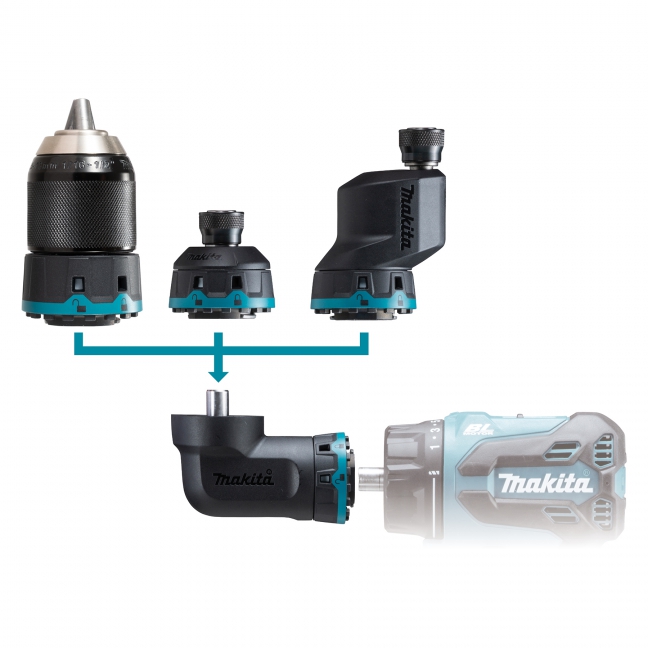

  • The angle attachment accepts connection of the 1/2" drill chuck, 1/4" hex attachment or the 1/4" offset attachment.
  • The offset attachment is adjustable to 16 different angles every 22.5 degrees when installed in the drill driver.
  • Equipped with a powerful brushless motor, the tool delivers the maximum torque of 580 in. lbs.
  • With its lightweight and compact design, the tool is easy to handle even in narrow spaces.
  • Brushless motor provides longer work hours per charge and extended tool life.
  • Provides increased efficiency with the maximum no-load speed of up to 1,900 RPM.
  • 20-stage torque settings allow for fine adjustments to suit the task at hand.
  • Mechanical two-speed gearing system allows users to switch between maximum RPM and higher torque.
  • Two action modes are available: Drilling and Screwdriving
  • Single LED light with pre-glow and after-glow functions illuminate the work area.
  • Variable speed trigger allows for speed adjustments based on the material or application.
  • Ergonomically designed grip ensures comfortable handling.
  • Reversing switch is conveniently located.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Hook allows for easy and convenient hanging of the tool.
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Items Included:Batteries and Charger Sold Separately. Drill Chuck Attachment (1918F1-0), Hex Bit Attachment (1918F2-8), Offset Attachment (1918F4-4), Angle Attachment (1918F6-0), Phillips Bit 2-50 (784244-7), Hook (346449-3)

  • Includes 1/2" Keyless Drill Chuck Attachment (1918F1-0), 1/4" Hex Bit Attachment (1918F2-8), 1/4" Offset Attachment (1918F4-4)And 1/4" Angle Attachment (1918F6-0)
  • The model can also be used without any of the four attachments.
  • The angle attachment accepts connection of the 1/2" drill chuck, 1/4" hex attachment or the 1/4" offset attachment.
  • The offset attachment is adjustable to 16 different angles every 22.5 degrees when installed in the drill driver.
  • Equipped with a powerful brushless motor, the tool delivers the maximum torque of 580 in. lbs.
  • With its lightweight and compact design, the tool is easy to handle even in narrow spaces.
  • Brushless motor provides longer work hours per charge and extended tool life.
  • Provides increased efficiency with the maximum no-load speed of up to 1,900 RPM.
  • 20-stage torque settings allow for fine adjustments to suit the task at hand.
  • Mechanical two-speed gearing system allows users to switch between maximum RPM and higher torque.
  • Two action modes are available: Drilling and Screwdriving
  • Single LED light with pre-glow and after-glow functions illuminate the work area.
  • Variable speed trigger allows for speed adjustments based on the material or application.
  • Ergonomically designed grip ensures comfortable handling.
  • Reversing switch is conveniently located.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Hook allows for easy and convenient hanging of the tool.
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Items Included: Batteries and Charger Sold Separately. Drill Chuck Attachment (1918F1-0), Hex Bit Attachment (1918F2-8), Offset Attachment (1918F4-4), Angle Attachment (1918F6-0), Phillips Bit 2-50 (784244-7), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 8.9 In. X 3.9 In. X 8.9 In. Weight : 5 Lb.

Specifications

Battery Capacities 18V Li-Ion
Capacities: Steel 1/2" (13 mm), Wood 1-1/2" (38 mm)
No Load Speed: Low 0 - 500 RPM, High 0 - 1,900 RPM
Maximum Torque 580 in. lbs (65 Nm)
Vibration Level 2.0 m/s²
Noise Level 79 dB(A)
Overall Length 7-3/8" (186 mm)
Net Weight 4.0 lbs (1.8 kg)

User Manual: DDF491 - EN FR SP_Bill29.pdf

Parts Breakdown: DDF491 - FEB2026.pdf
