DTL300Z

18V LXT Brushless 1/2" Angle Impact Wrench, Tool Only

Suitable For Tight Spaces In Vehicles And For Equipment Maintenance Applications

Maximum fastening torque up to 250 ft.lbs with nut-busting torque of up to 390 ft.lbs.

1/2" Square Drive w/Hole, Friction Ring

High Power And High Speed Fastening

LXT Technology LXT Technology LXT Technology
  • 18V LXT Brushless 1/2" Angle Impact Wrench, Tool Only

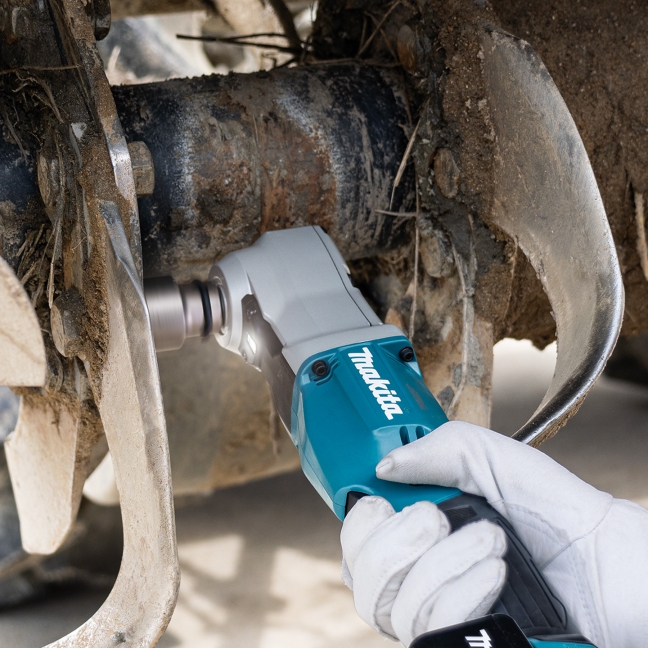

  • This high torque model has been developed for work in tight spaces such as automobile and agricultural machinery maintenance.
  • Drive size: 12.7mm (1/2") Square w/ Hole, Friction Ring
  • High torque is achieved by increasing hammer inertia, resulting in higher performance than competitors' models.

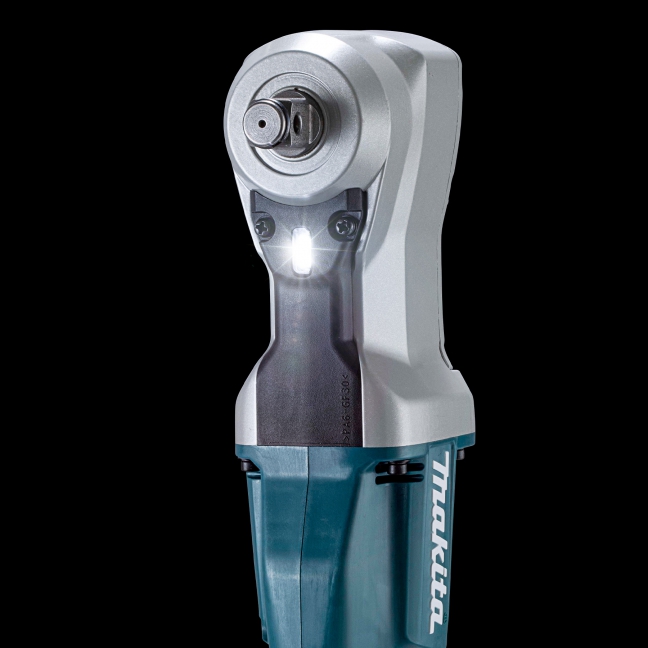

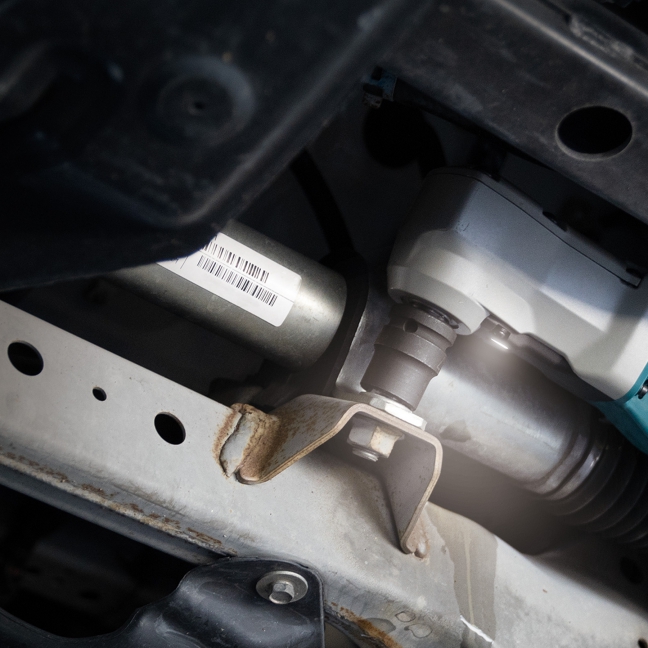

  • LED job light is positioned below the angle head to improve visibility when working in tight spaces.

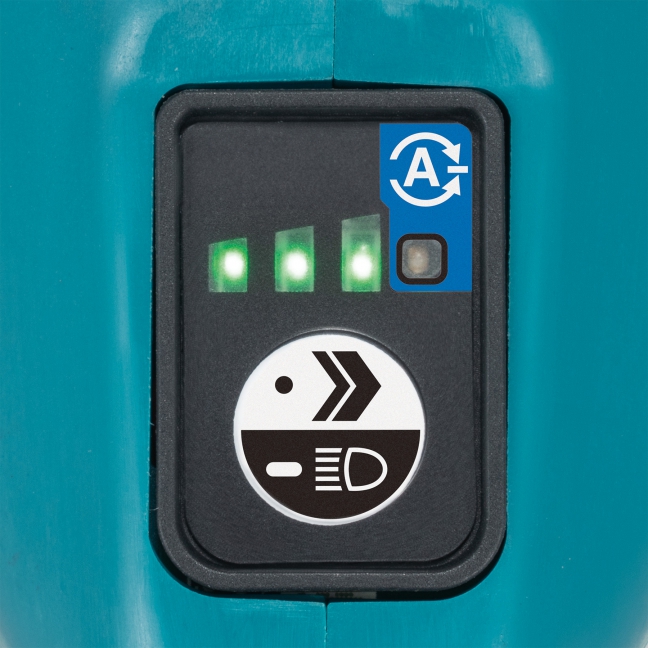

  • The brightness (3 stages) can be changed by pressing and holding the mode switch button

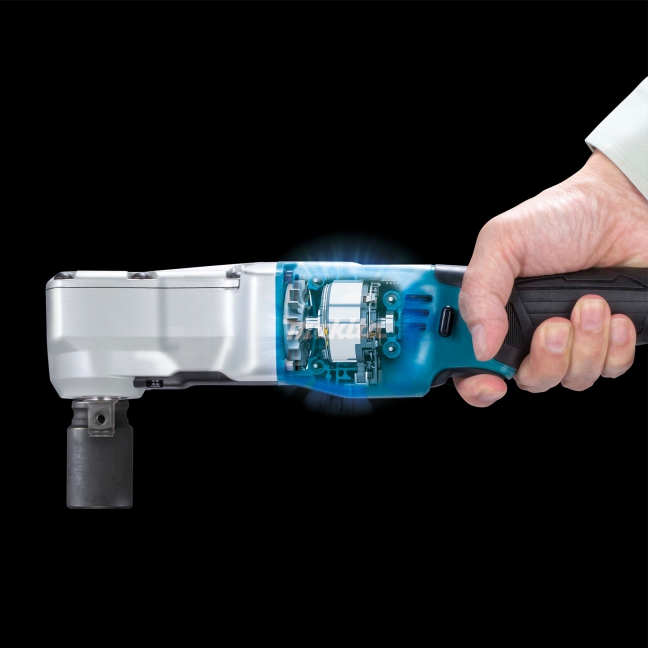

  • Excellent maneuverability as the center of gravity is moved closer to the switch to reduce the strain on the user's arm.
  • Slim diameter due to the use of a slide battery for an ergonomically designed and comfortable handle.
  • Slim tool head that makes it easy to use in tight spaces.
  • Electronic variable 3 speeds (0-3200 RPM / 0-1500 RPM / 0-1000 RPM)
  • 3-Stage impact power selection (Hard 4000 IPM / Medium 2800 IPM / Soft 1800 IPM)
  • Equipped with auto-stop system in forward and reverse for continuous temporary fastening and for preventing nuts from falling off during loosening.

Items Included:Tool Only. Batteries and Charger Sold Separately.

  • 18V LXT Brushless 1/2" Angle Impact Wrench, Tool Only
  • This high torque model has been developed for work in tight spaces such as automobile and agricultural machinery maintenance.
  • Drive size: 12.7mm (1/2") Square w/ Hole, Friction Ring
  • High torque is achieved by increasing hammer inertia, resulting in higher performance than competitors' models.
  • LED job light is positioned below the angle head to improve visibility when working in tight spaces.
  • The brightness (3 stages) can be changed by pressing and holding the mode switch button
  • Excellent maneuverability as the center of gravity is moved closer to the switch to reduce the strain on the user's arm.
  • Slim diameter due to the use of a slide battery for an ergonomically designed and comfortable handle.
  • Slim tool head that makes it easy to use in tight spaces.
  • Electronic variable 3 speeds (0-3200 RPM / 0-1500 RPM / 0-1000 RPM)
  • 3-Stage impact power selection (Hard 4000 IPM / Medium 2800 IPM / Soft 1800 IPM)
  • Equipped with auto-stop system in forward and reverse for continuous temporary fastening and for preventing nuts from falling off during loosening.

Items Included: Tool Only. Batteries and Charger Sold Separately.

Shipping Dimensions (Length x Width x Height) & Weight : 17 In. X 3.5 In. X 4.8 In. Weight : 4 Lb.

Specifications

Battery Capacities 18V Li-Ion
Square Drive 1/2"
No Load Speed: 0 - 1000 / 1,500 / 3,200 RPM
Impacts Per Minute: 0 - 1,800 / 2,800 / 4,000 IPM
Maximum Fastening Torque 230 - 250 ft. lbs (310 - 340 Nm)
Nut-busting Torque (reverse) 370 - 390 ft. lbs (500 - 530 Nm)
Vibration Level 14.4 m/s²
Noise Level 100 dB(A)
Head Height 3-3/16" (81.0 mm)
Overall Length 16-1/4" (414 mm)
Net Weight 4.0 - 4.6 lbs (1.8 - 2.1 kg)
