40Vmax XGT XDefence Tool Management Communication Adapter w/Bluetooth – ADP12
Owners Manual Print Print
ADP12 Photo 1
ADP12 Photo 2
ADP12 Photo 3
ADP12 Photo 4
ADP12 Photo 5
ADP12 Photo 6
ADP12 Photo 7
ADP12 Photo 8

New Accessory

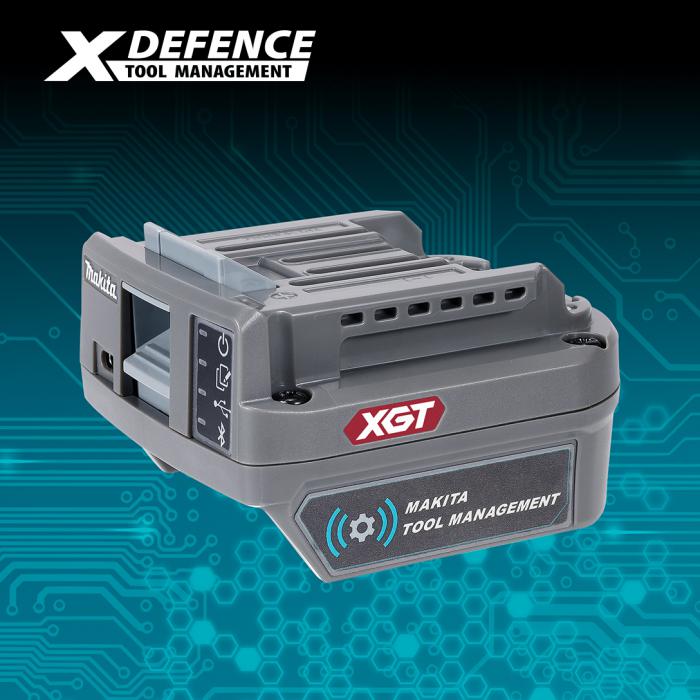

Part No: ADP12

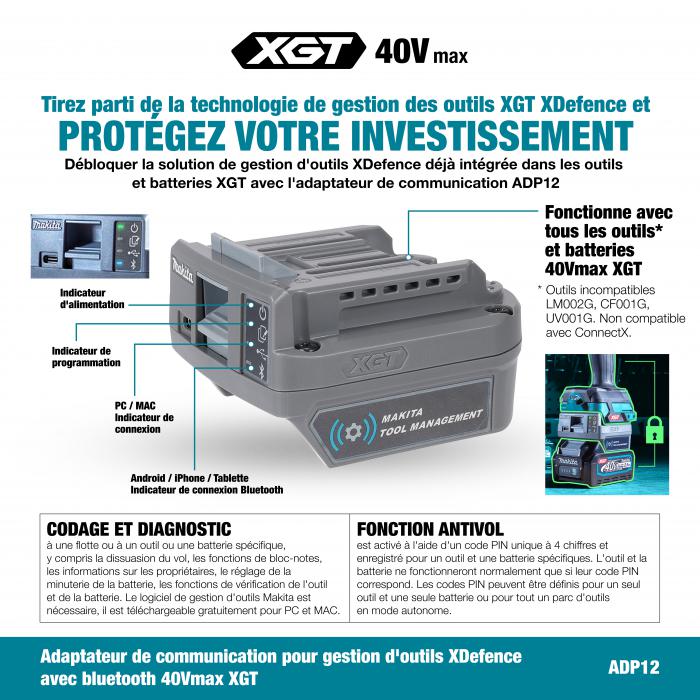

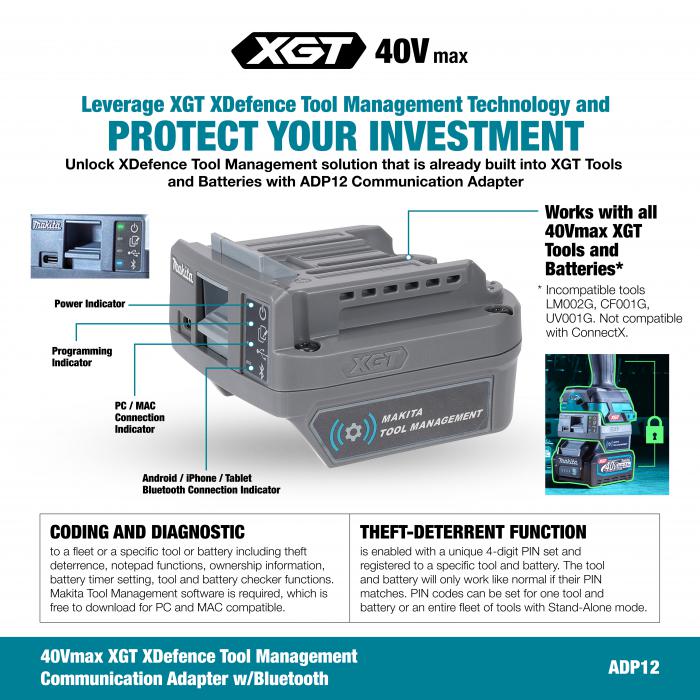

Leverage XGT® XDefence Tool Management Technology and Protect Your Investment

App/Software Manual: Download Link

PC/Mac: Download Link

Android: Download Link

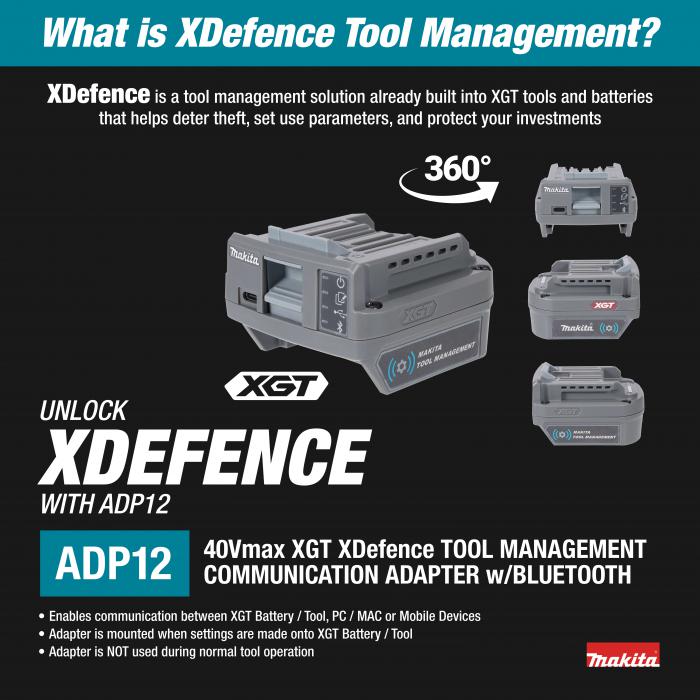

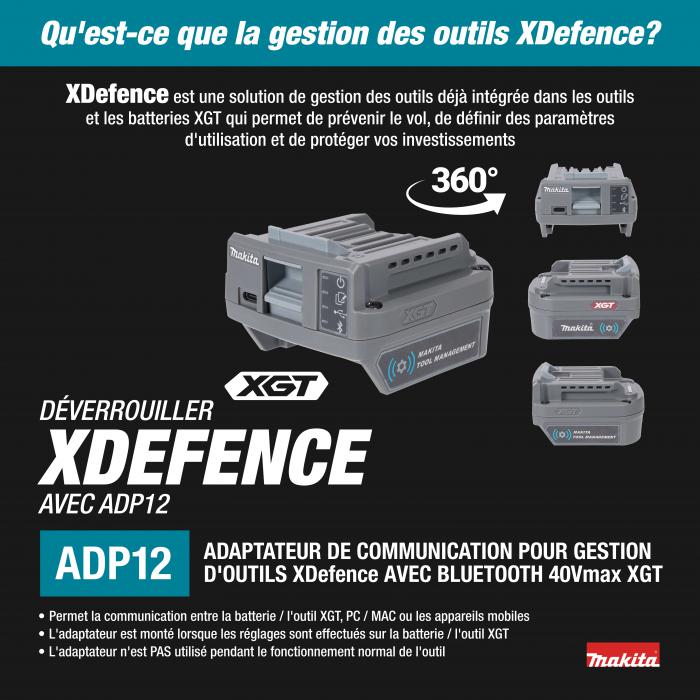

  • - Unlock XDefence tool management solution that is already built into XGT tools and batteries with ADP12 communication adapter

  • Works with all 40Vmax XGT Tools and Batteries*

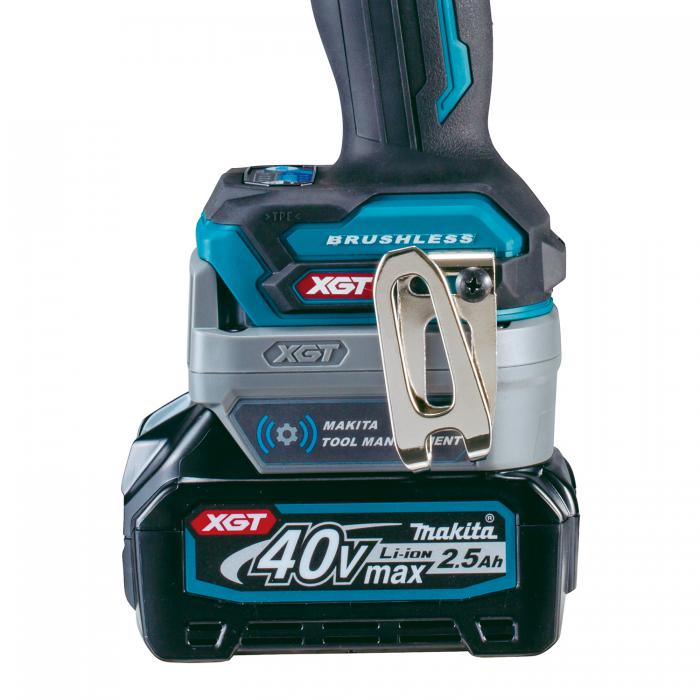

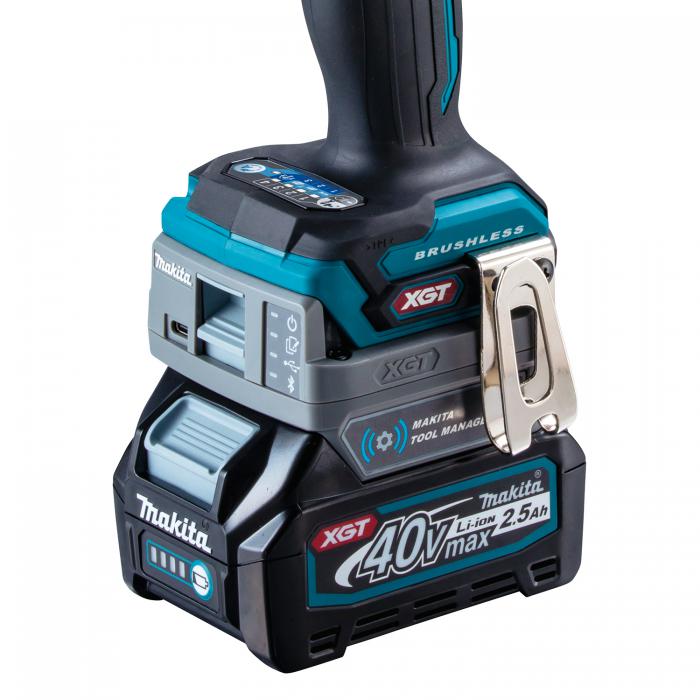

  • Adapter to be mounted when settings are made on the XGT Battery/Tool only, and is not used during operation of the tool

  • Code Multiple Functions with ADP12: Theft Deterrent Pin Code, Notepad Function, Ownership Details, Battery Timer, Tool/Battery Checker

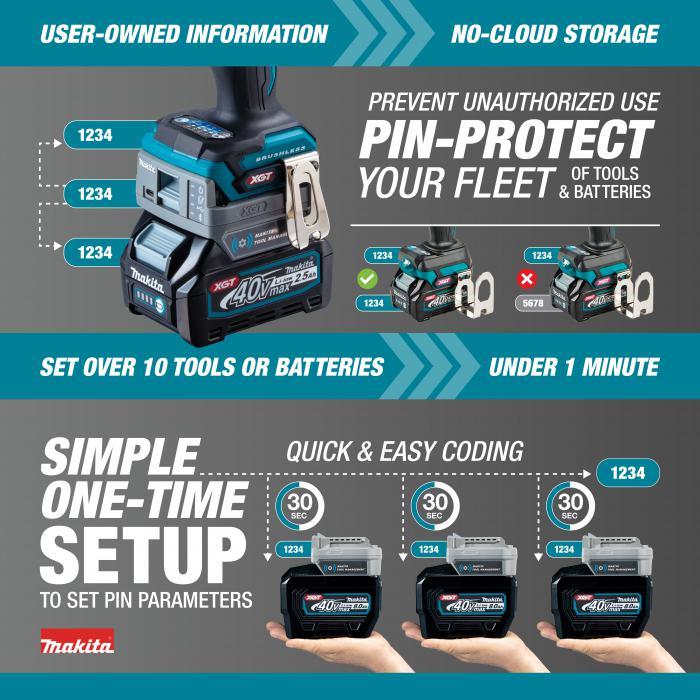

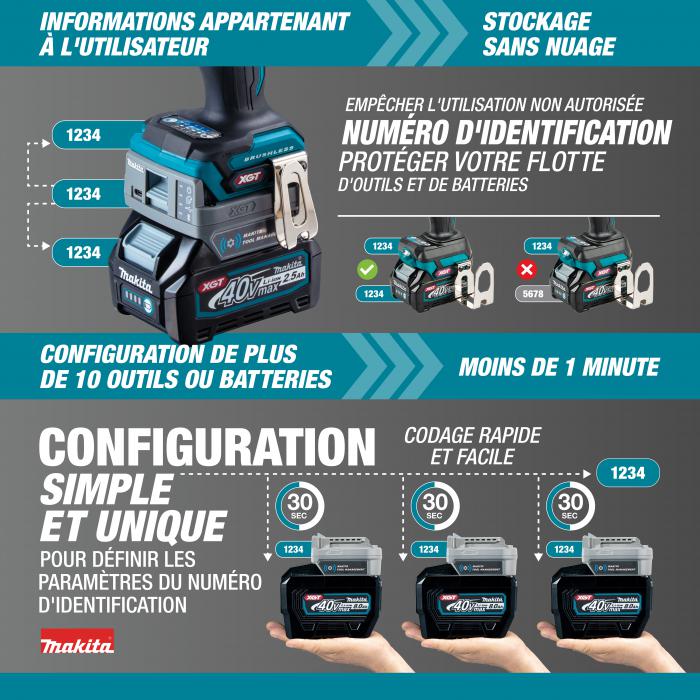

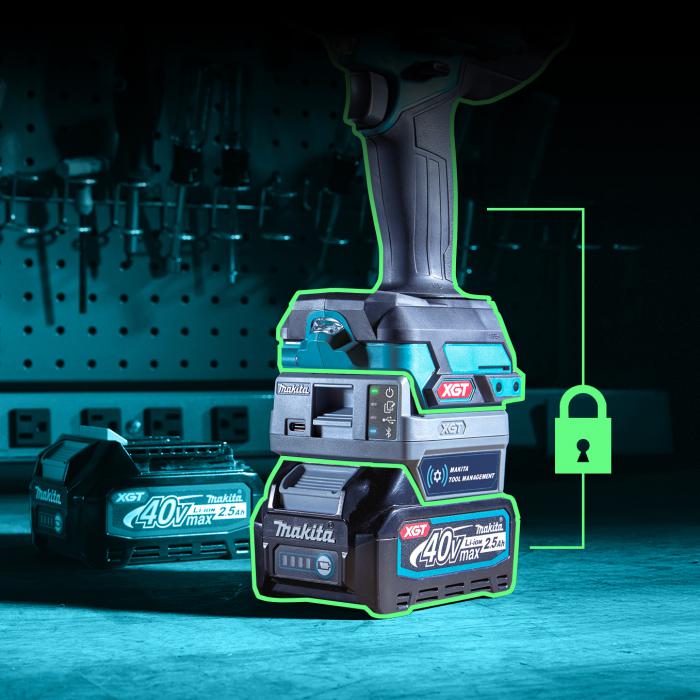

  • Theft-Deterrent function allows users to prevent unauthorized use by PIN-Protecting fleet of tools and batteries with unique 4-digit PINs for individual or fleets

  • Two Operation Mode settings can be selected when coding your tool or battery, Stand-Alone Mode and Communication Mode

  • Stand-Alone mode allows for quick and easy batch PIN coding of tools and batteries

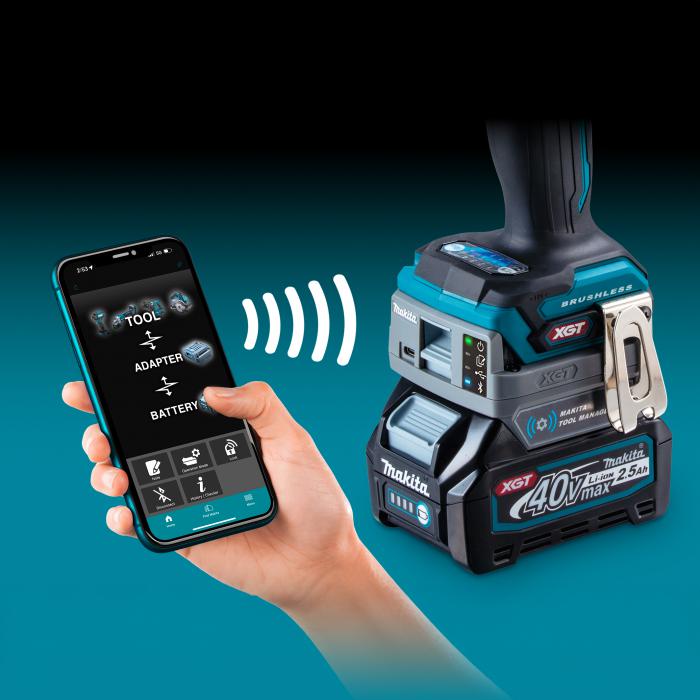

  • Communication mode allows for individually paired tool and battery coding of PIN codes, notes, and additional functions

  • PIN Code-protect over 10 tools or batteries in under 1 minute using Stand-Alone Mode

  • User-owned information is fully controlled by user, however they want to manage. No cloud storage or data is collected

  • Document ownership information for tools and batteries with specific Ownership field

  • Notepad function allows users to add freeform notes to individual or fleet of tools and batteries. Save service dates, job sites, user assignments and more

  • Battery Timer function allows user to restrict usage to certain hours or specific dates up to 2 years in advance

  • Tool Checker function provides the number of times a protective function has been activated on a tool such as overload protection, thermal protection, motor lock and AFT (only for tools that are equipped with AFT)

  • Battery Checker function provides battery information such as charge capacity and current temperature

  • Makita Tool Management software is required, Android, iPhone, PC and MAC compatible
*incompatible tools LM002G, CF001G, UV001G



SPECIFICATIONS


Compatible Tools:  All XGT tools and batteries are compatible except the ones noted below.

Incompatible Tools:
LM002G, CF001G, UV001G
App/Software Manual:
Download Link
PC/Mac:
Download Link
Android:
Download Link
Apple:
Download Link




Note: Makita Canada reserves the right to change specification of products without notice. The contents of the parts breakdown and Instruction manuals may be different from current products.
