DGA506RTX5

18V LXT Brushless Cordless 5" Angle Grinder w/ Slide Switch, ADT & XPT (5.0 Ah Kit)

High Performance And Efficiency For Heavy-Duty Grinding Applications

Thumb Switch with Lock-On, Electric Brake

LXT Technology LXT Technology LXT Technology ADT 18V 5.0Ah Fuel Guage Battery
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED charge level indicator displays approximate remaining battery power
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

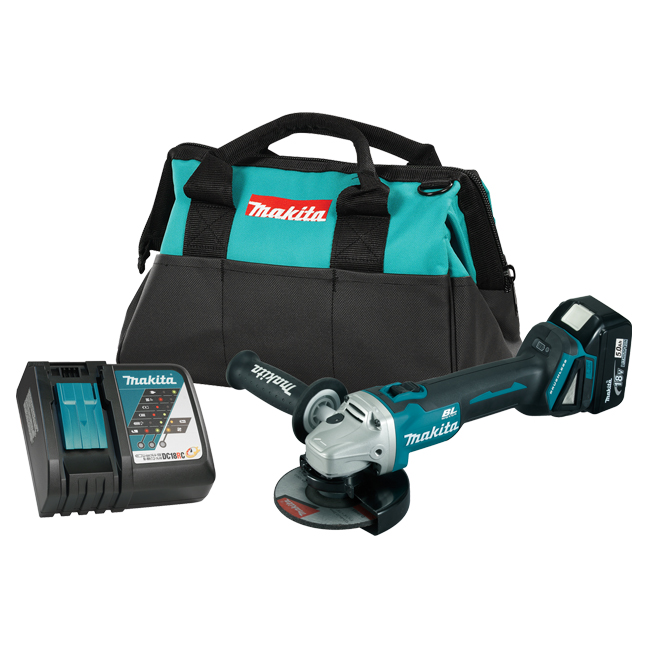

Items Included:18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), MC SE 5 " Depressed Centre Wheel (D-20797), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4), 14" Tool Bag (821010-X)

  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED charge level indicator displays approximate remaining battery power
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), MC SE 5 " Depressed Centre Wheel (D-20797), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4), 14" Tool Bag (821010-X)

Shipping Dimensions (Length x Width x Height) & Weight : 10.51 In. X 15.51 In. X 10.28 In. Weight : 13.49 Lb.

Specifications

Battery Capacities 18V LXT
Grinding Wheel 5" (125 mm)
No Load Speed 8,500 RPM
Arbor Size 7/8" (22.23 mm)
Spindle Thread 5/8" - 11 UNC
Vibration Level 6.5 m/s²
Noise Level 79 dB(A)
Overall Length 14-1/4" (362 mm)
Net Weight 5.7 lbs (2.6 kg)
