You are here: Home / Tool / Cordless / 40V XGT / Rotary Hammers / HR006GM203

XGT Technology

(Tool + Batteries + Charger)


HR006GM203

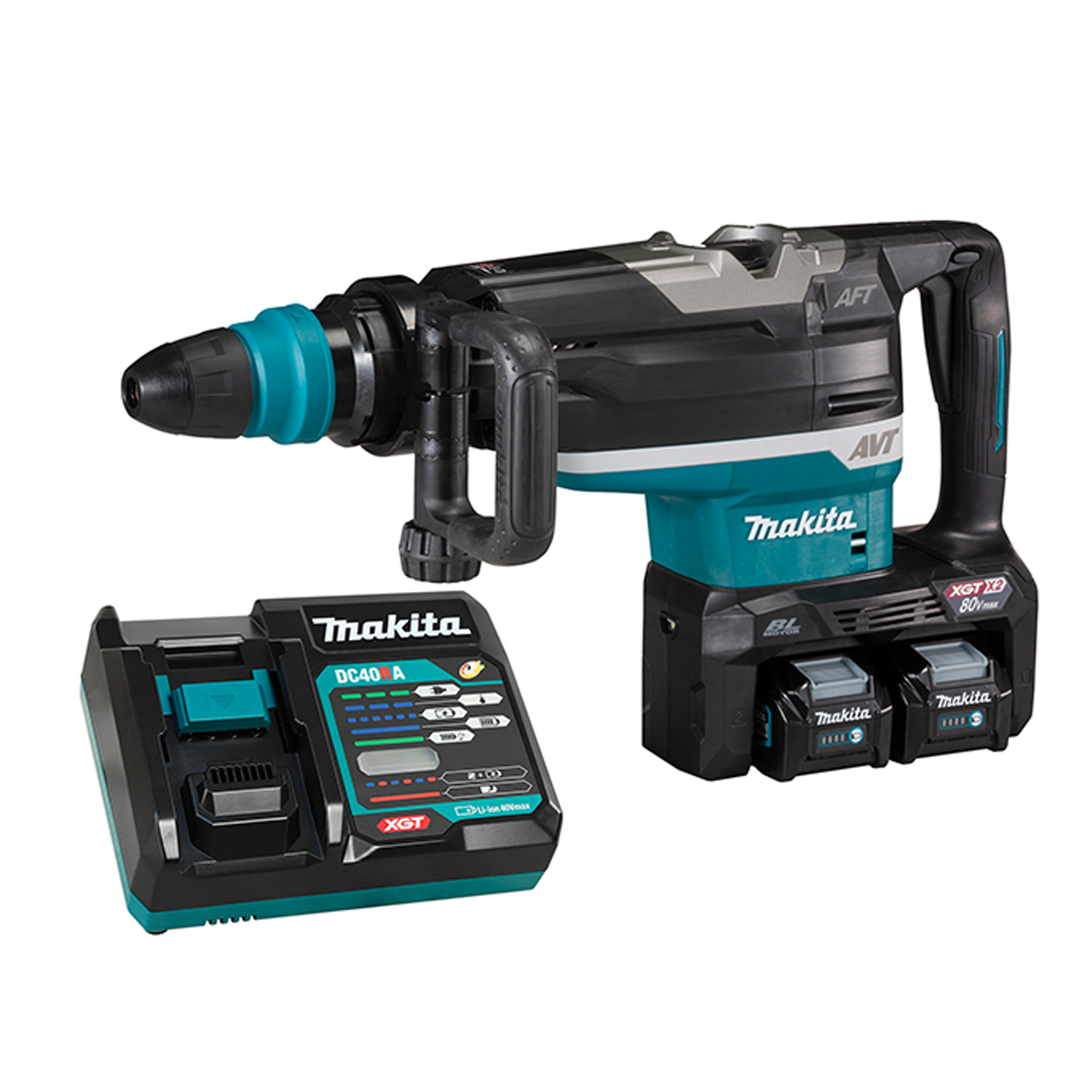

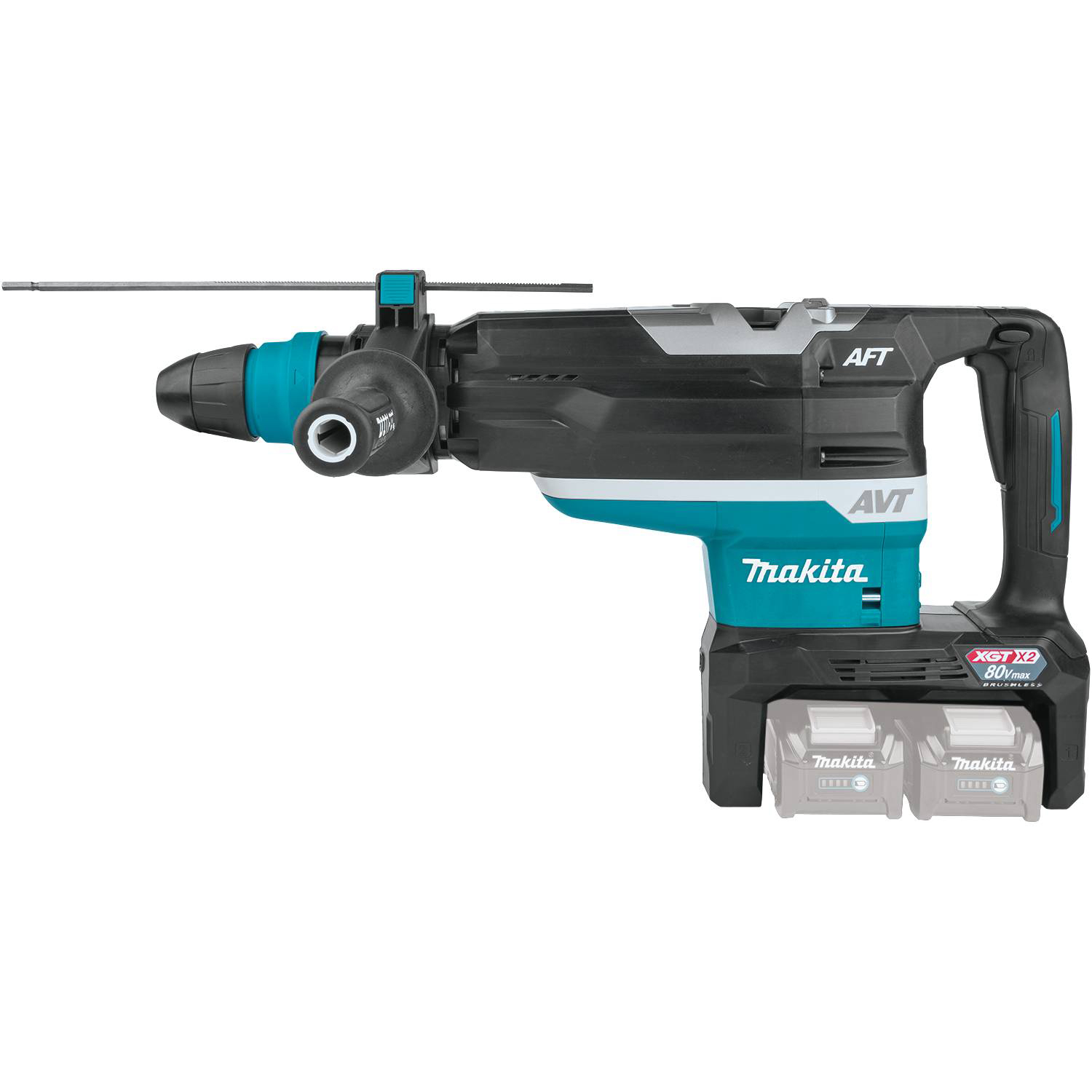

80V max (40VX2) XGT Brushless Cordless 2" SDS-MAX Rotary Hammer w/AWS, AFT & AVT (4.0 Ah x2 Kit)

Increased Impact Energy With Low Vibration To Replace AC Rotary Hammers!

Rotation + Hammer / Hammer Only

SDS-MAX Shank

Variable Speed

XGT Technology LXT Technology Active Feedback technology LXT Technology AWS Technology Anti vibration Technology

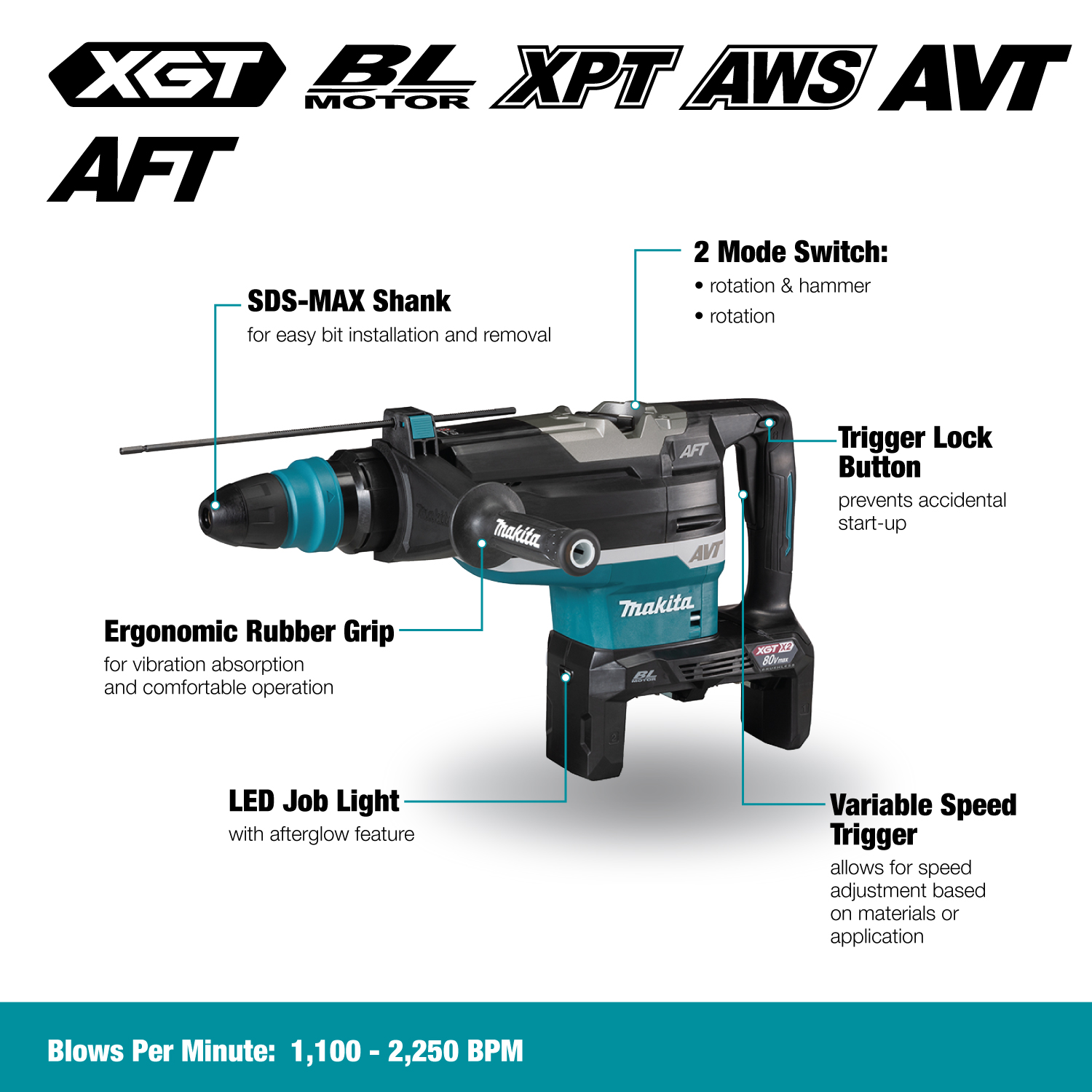

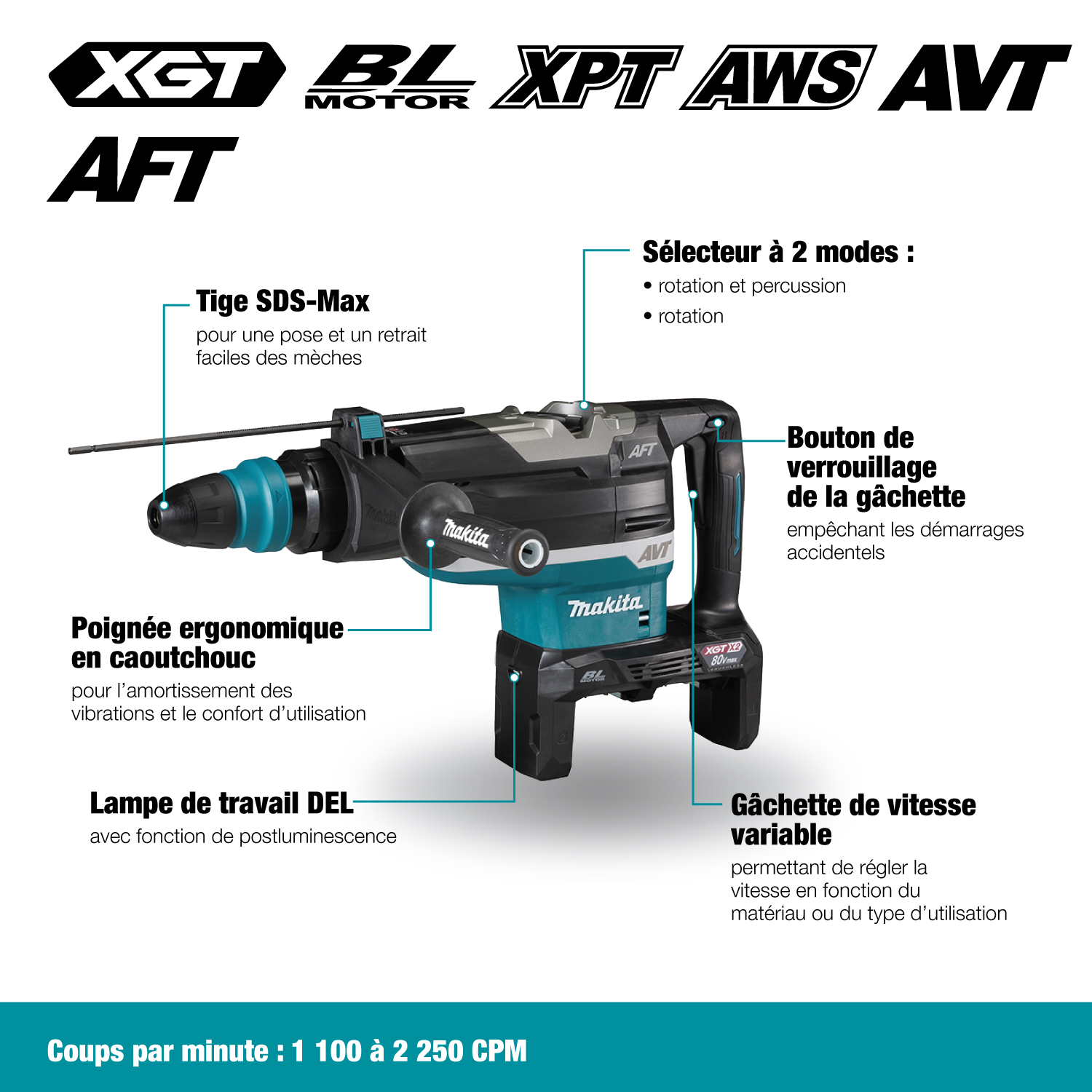

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications

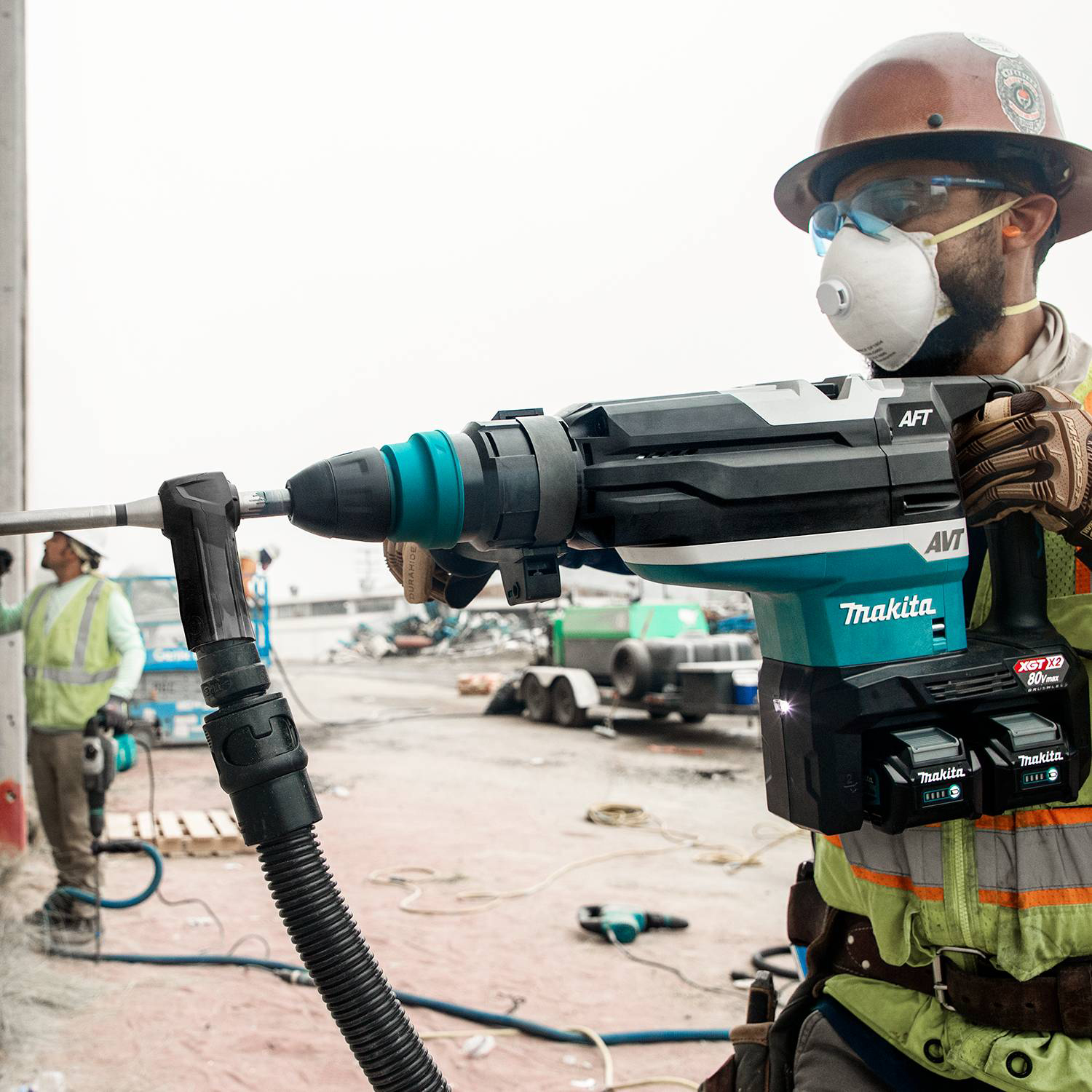

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • 2 operating modes: Rotation + Hammer / Hammer Only
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • Soft no-load motor suppression limits vibration and bit deflection when idling
  • Variable speed dial and trigger allows operator to adjust speed based on materials or application
  • One-touch SDS-MAX sliding chuck for easy bit installation and removal
  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Two 40V Max (4.0Ah) Li-Ion Battery BL4040 (191E81-6), Rapid Charger (DC40RA), Straight Side Handle (135629-4), D-Style Side Handle (135283-4), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331955-1), Plastic Carrying Case

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools

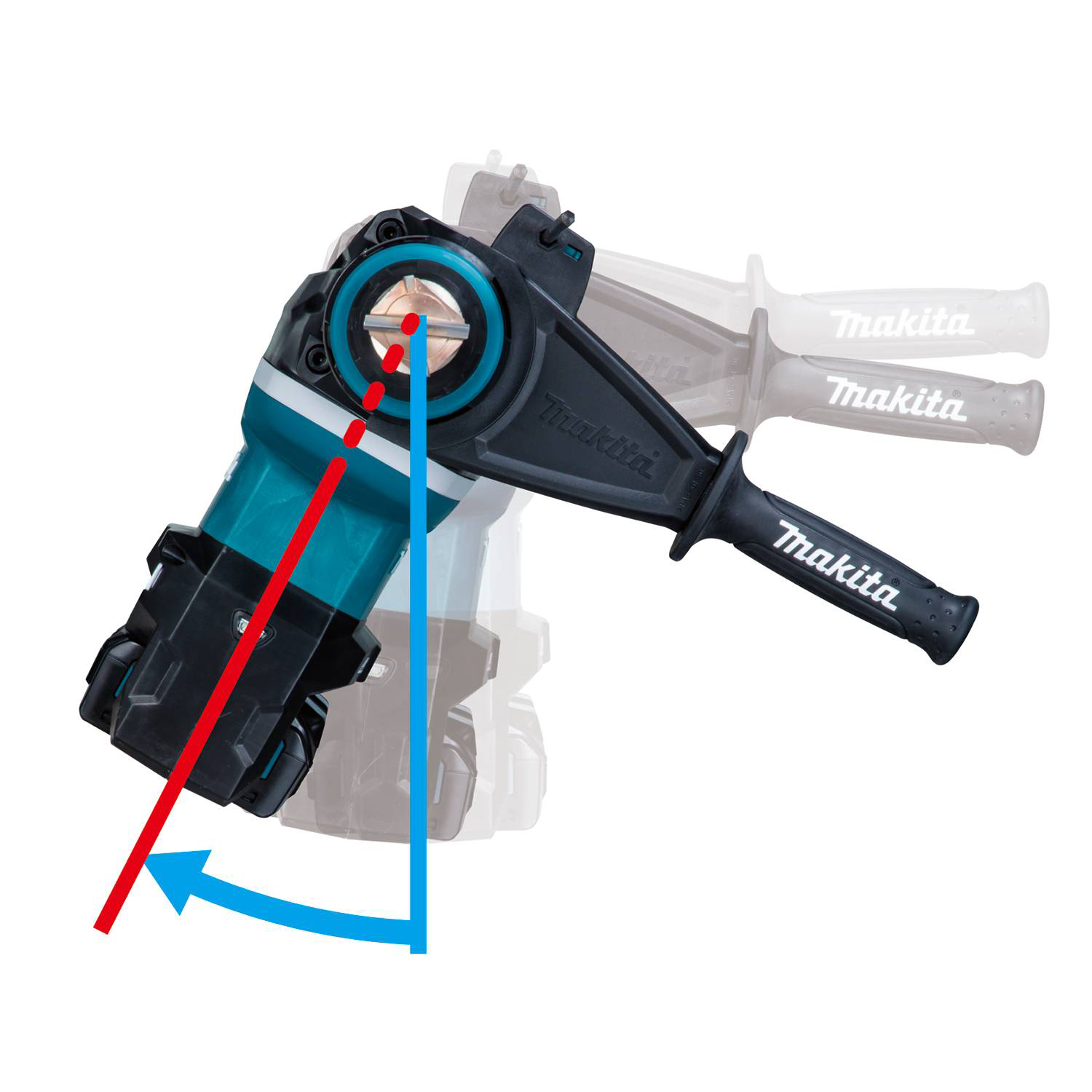

  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • 2 operating modes: Rotation + Hammer / Hammer Only
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • Soft no-load motor suppression limits vibration and bit deflection when idling
  • Variable speed dial and trigger allows operator to adjust speed based on materials or application
  • One-touch SDS-MAX sliding chuck for easy bit installation and removal
  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Two 40V Max (4.0Ah) Li-Ion Battery BL4040 (191E81-6), Rapid Charger (DC40RA), Straight Side Handle (135629-4), D-Style Side Handle (135283-4), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331955-1), Plastic Carrying Case

Product Dimensions (Length x Width x Height) & Weight : 8.98 In. X 36.06 In. X 19.8 In. Weight : 55.11 Lb.

Specifications

Battery Capacities  Two 40V Max Li-Ion
Capacities:
  Concrete (TCT)  Concrete (TCT) 2-1/16" (52 mm)
  Concrete (Core Bit) Concrete (Core) 6-5/16" (160 mm)
Impact Energy (EPTA)   21.4 J (15.8 ft. lbs)
No Load Speed  150 - 310 RPM
Blows Per Minute  1,100 - 2,250 BPM
Vibration Level  8.5 m/s²
Noise Level  99 dB(A)
Overall Length  22-5/8" (610 mm)
Net Weight 30.20 lbs (13.69 kg)
