You are here: Home / Tool / Cordless / 18V LXT / DPB184ZB

LXT Technology

(Tool only)


DPB184ZB

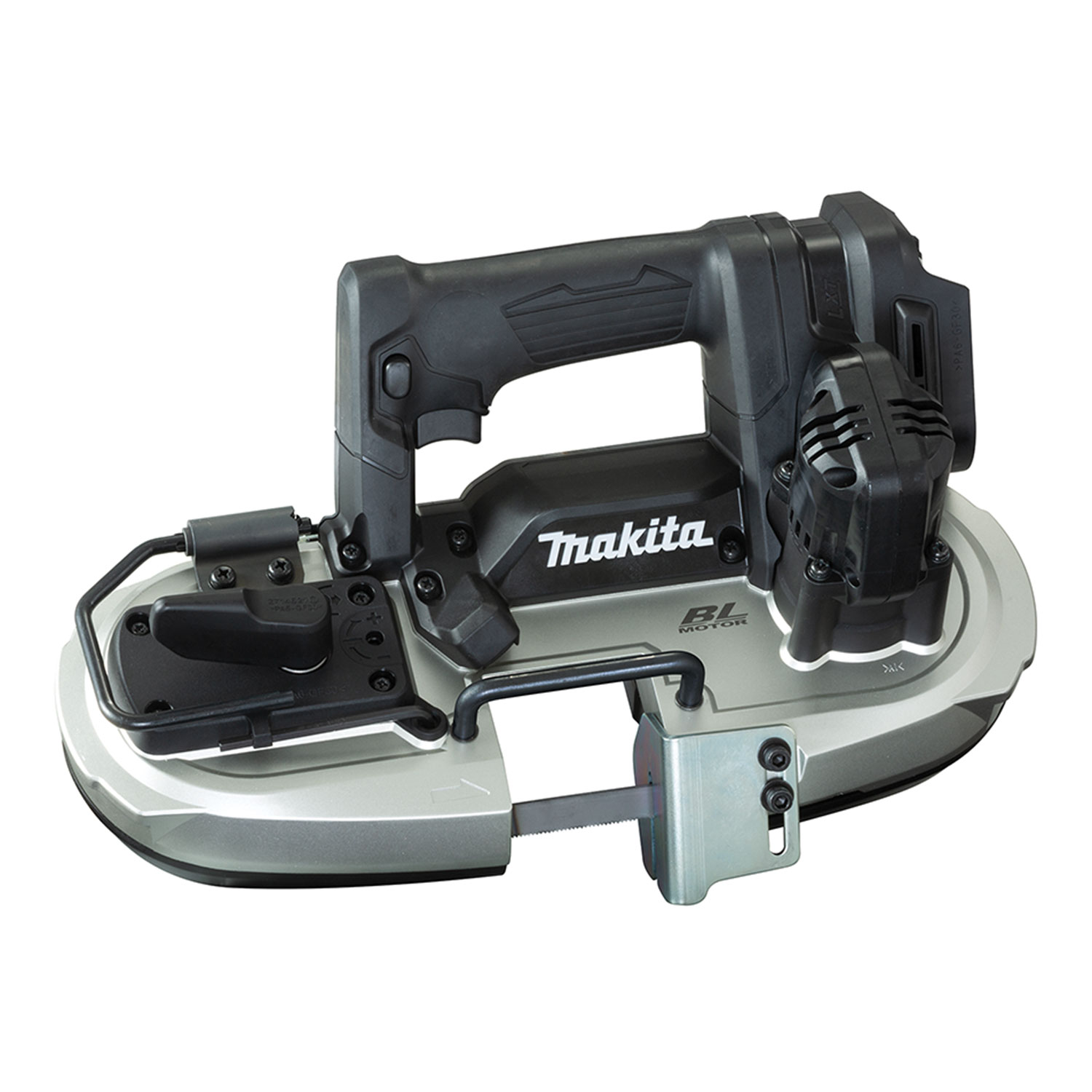

Sub-Compact Cordless Bandsaw

Sub-Compact Design Ideal For One-Handed Overhead Cutting Applications

Electric Brake, Variable Speed, Constant Speed Control

Sub Compact LXT Technology 18V Battery
  • Sub-compact and ultra-lightweight design ideal for one-handed overhead cutting applications or small diameter pipes, channel, strut and more!
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Aluminum diecast frame for maximum cutting rigidity and increased durability

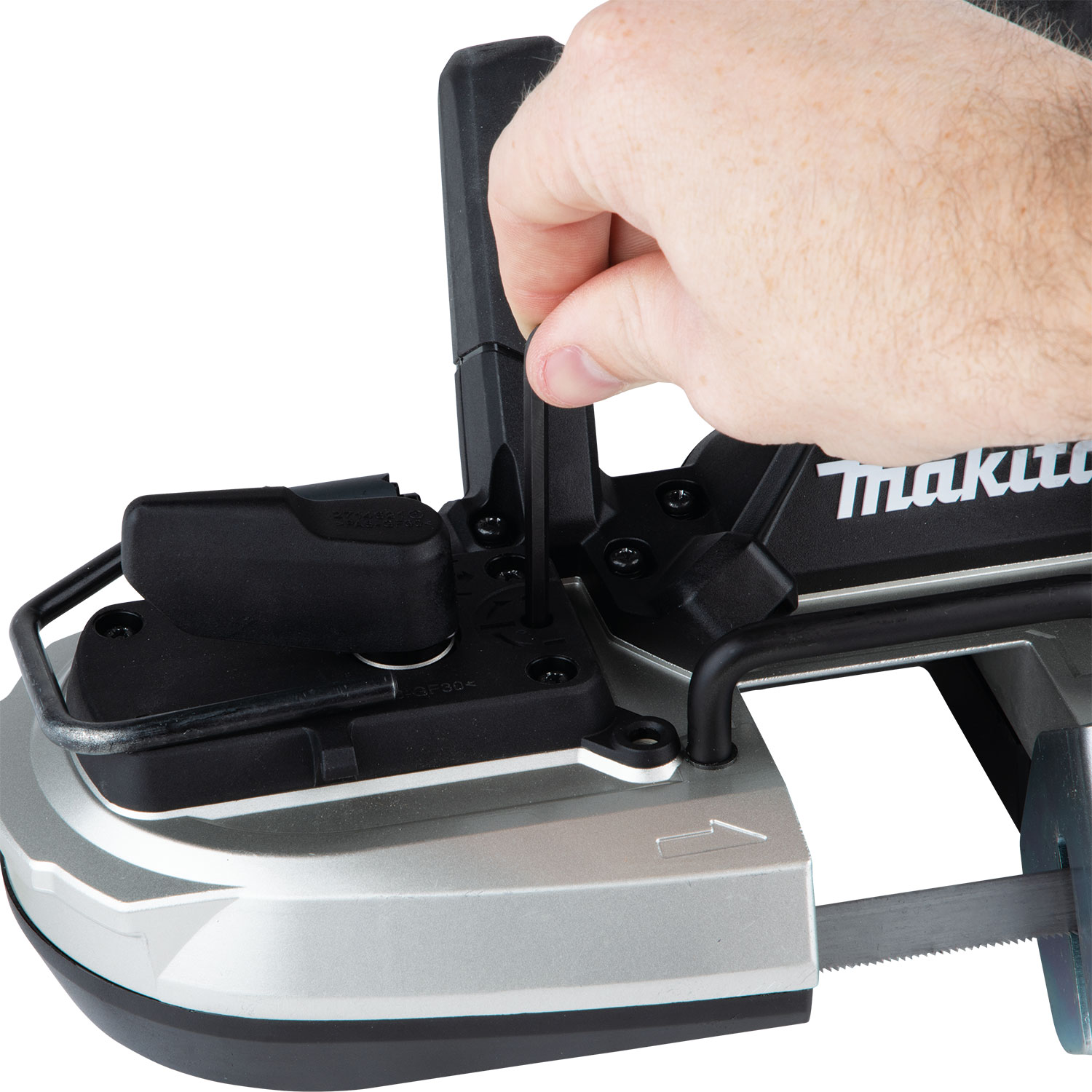

  • Easy blade tracking adjustment for increased performance and productivity
  • Lock-off button prevents accidental startup and is easily accessible by left or right hand users
  • Ball bearing blade guide provides smooth blade movement for increased cutting efficiency

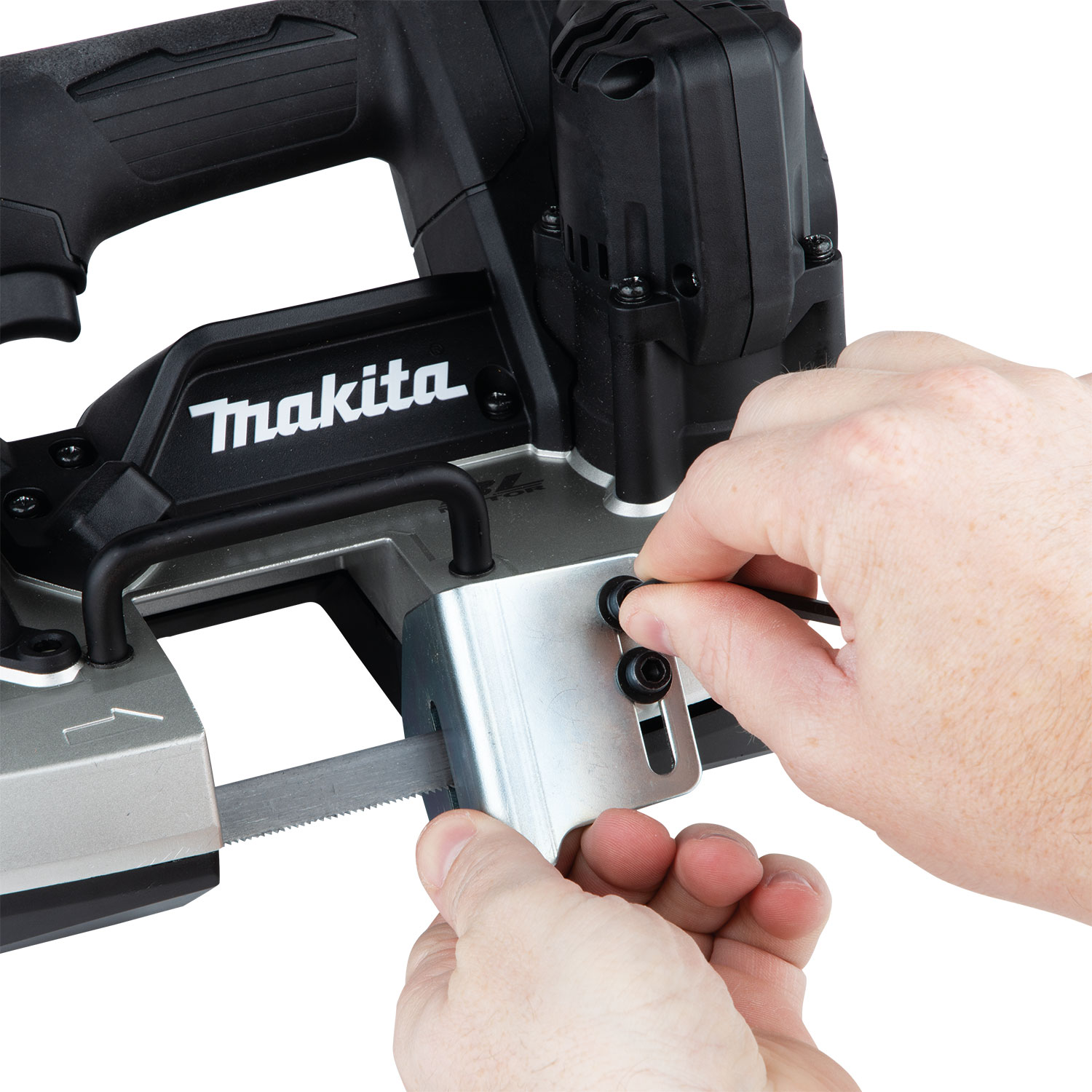

  • Adjustable guide plate
  • Constant speed control maintains constant speed under heavy load
  • Variable speed feature allows operator to adjust speed based on materials or application
  • Retractable hook allows tool to be hung on ladders, pipes or scaffolding

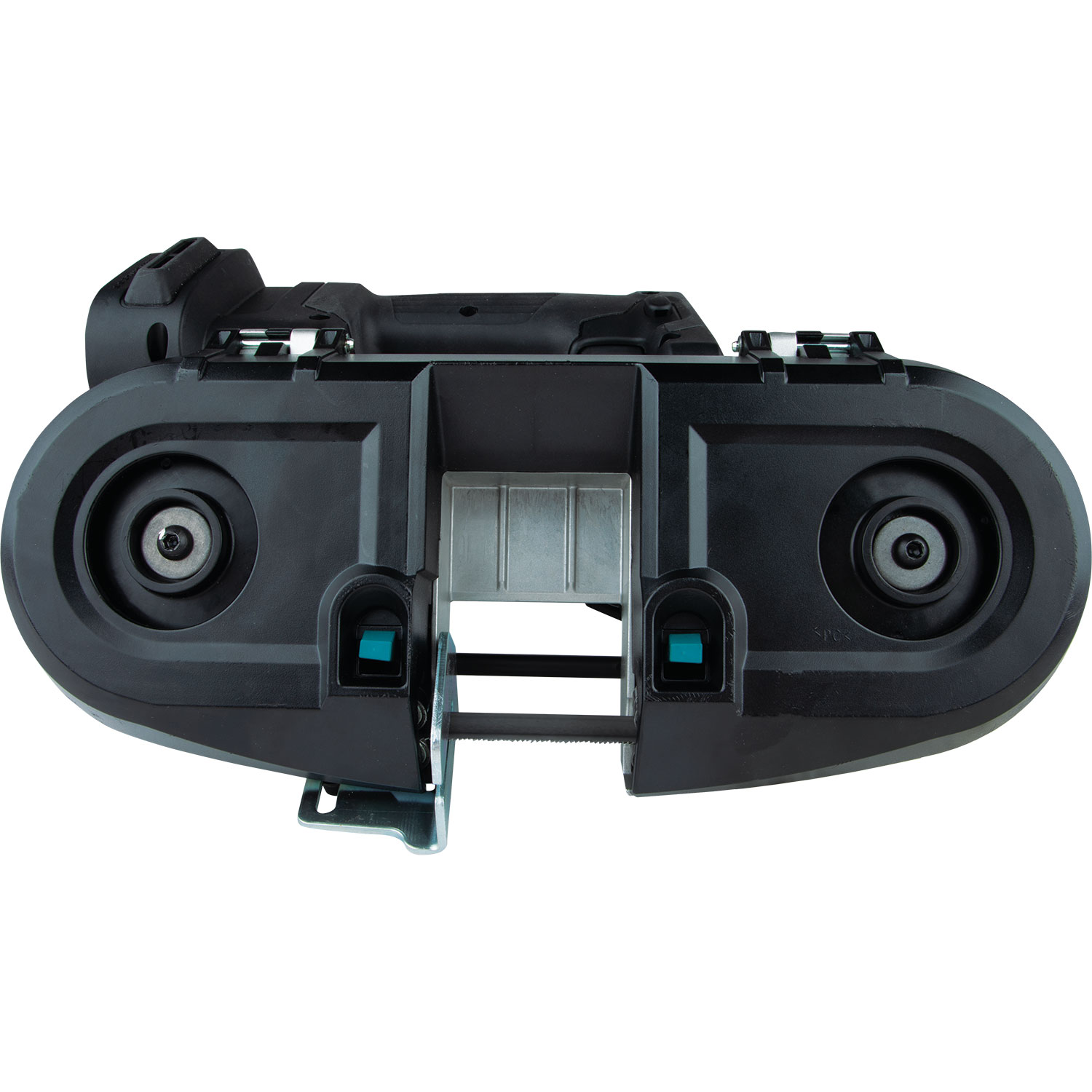

  • Blade cover protects blade and wheels from damage and limits contamination by debris and materials
  • LED job light with pre-glow and after-glow features
  • Accepts 1/2" x 28-3/4" bandsaw blades
  • Use with Makita Bandsaw Blade Wax (part no. 191897-9) for optimal blade lubrication

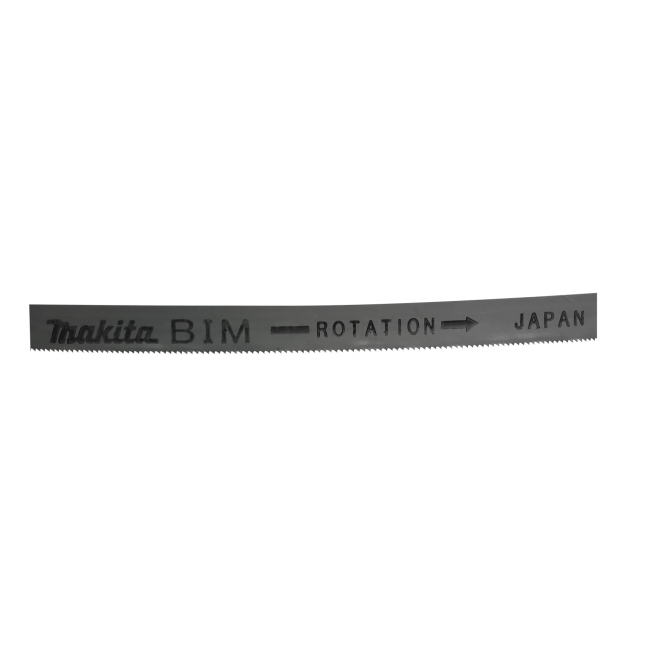

Items Included:Tool Only. Batteries and Charger Sold Separately. Bi-Metal Band Saw Blade 18TPI (E-04139), Hex Wrench 4 (783202-0)

  • Sub-compact and ultra-lightweight design ideal for one-handed overhead cutting applications or small diameter pipes, channel, strut and more!
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Aluminum diecast frame for maximum cutting rigidity and increased durability
  • Easy blade tracking adjustment for increased performance and productivity
  • Lock-off button prevents accidental startup and is easily accessible by left or right hand users
  • Ball bearing blade guide provides smooth blade movement for increased cutting efficiency
  • Adjustable guide plate
  • Constant speed control maintains constant speed under heavy load
  • Variable speed feature allows operator to adjust speed based on materials or application
  • Retractable hook allows tool to be hung on ladders, pipes or scaffolding
  • Blade cover protects blade and wheels from damage and limits contamination by debris and materials
  • LED job light with pre-glow and after-glow features
  • Accepts 1/2" x 28-3/4" bandsaw blades
  • Use with Makita Bandsaw Blade Wax (part no. 191897-9) for optimal blade lubrication

Items Included: Tool Only. Batteries and Charger Sold Separately. Bi-Metal Band Saw Blade 18TPI (E-04139), Hex Wrench 4 (783202-0)

Specifications

Battery Capacities 18V Li-Ion
Cutting Capacities:
Round Material 2" (51 mm)
Square Material  2" x 2" (51 mm x 51 mm)
Blade Speed 0-630 ft./min.
Vibration Level 2.5 m/s2
Noise Level 80 dB(A)
Overall Length 14-3/4" (373 mm)
Net Weight 6.4 lbs (2.9 kg)
