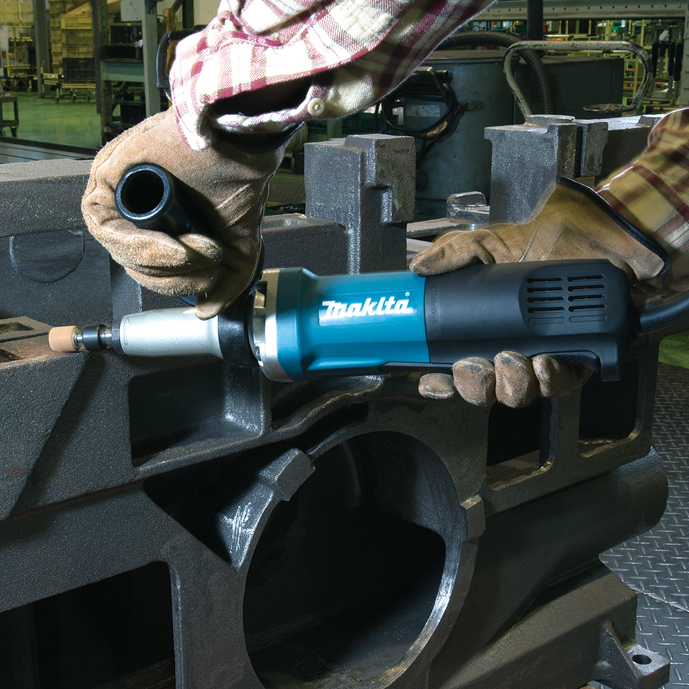

1/4" Die Grinder w/SJS, Paddle Switch

"SJS" Technology, High Speed Range

SJS (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
Soft start feature gradually increases speed to eliminate start up shock
Constant speed control maintains constant speed under heavy load
Variable speed dial allows operator to adjust speed based on materials or application
Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "zig-zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Standard equipment side handle provides maximum operator control during operation

Where to buy

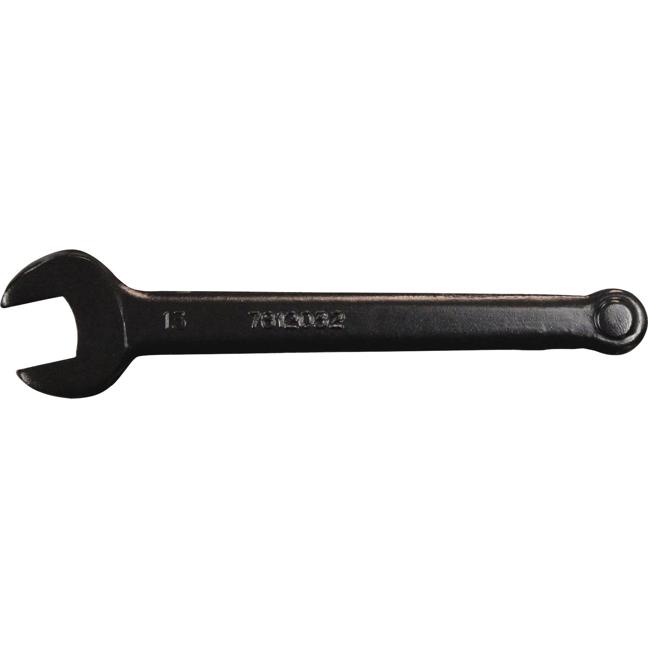

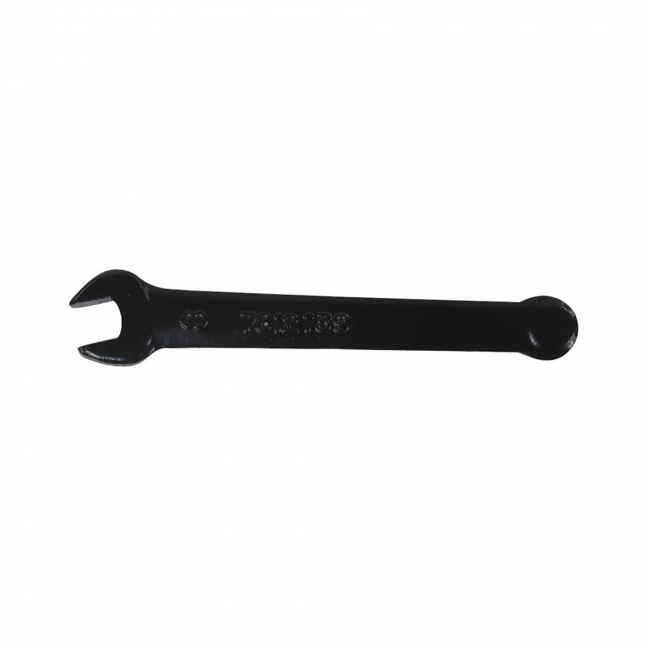

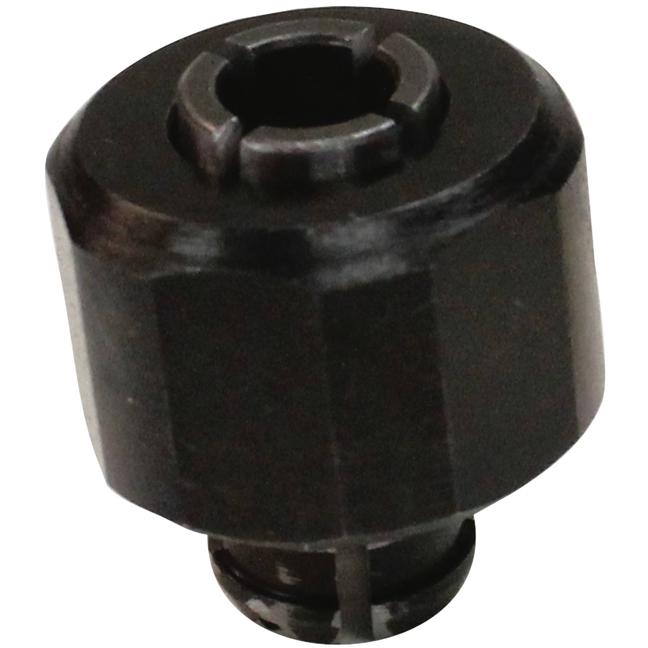

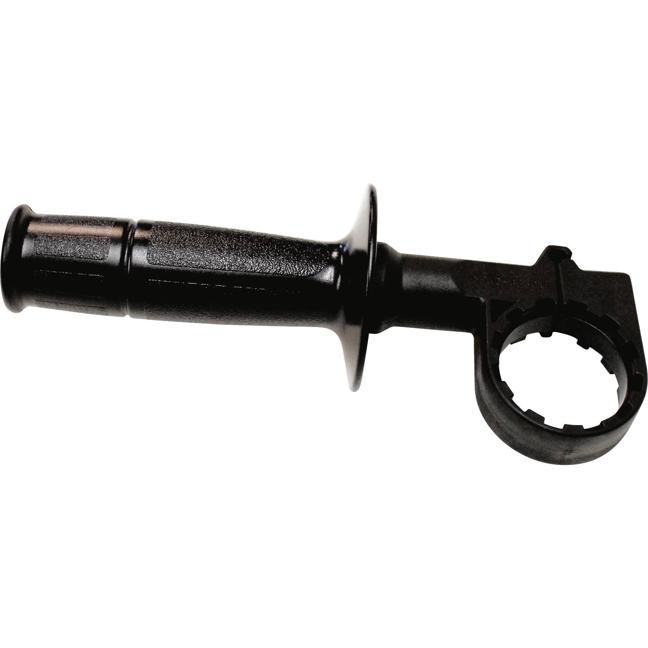

Items Included:Collet Cone Set 1/4” (192986-3), Wrench 13 (781203-2), Wrench 19 (781206-6), Side Handle (192985-5)

192986-3

781203-2

781206-6

192985-5

Images shown may not represent the full listing or the true size of included items.

SJS (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
Soft start feature gradually increases speed to eliminate start up shock
Constant speed control maintains constant speed under heavy load
Variable speed dial allows operator to adjust speed based on materials or application
Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "zig-zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Standard equipment side handle provides maximum operator control during operation

Items Included: Collet Cone Set 1/4” (192986-3), Wrench 13 (781203-2), Wrench 19 (781206-6), Side Handle (192985-5)

Shipping Dimensions (Length x Width x Height) & Weight : 20.31 In. X 3.86 In. X 5.43 In. Weight : 6.5 Lb.

Specifications

Collet Capacity	1/4" (6.35 mm)
Maximum Wheel Point Diameter	1" (25 mm)
No Load Speed	7,000 - 29,000 RPM
AMPS (120V)	6.6 A
Vibration Level	3.5 m/s²
Noise Level	80 dB(A)
Overall Length	15-3/8" (390 mm)
Net Weight	4.3 lbs (2.0 kg)
