LXT Technology

(Tool only)


DJV186Z

18V LXT Jig Saw w/D-Handle, Tool Only

High Cutting Efficiency With Lightweight Compact Design!

D-Handle Style

LXT Technology

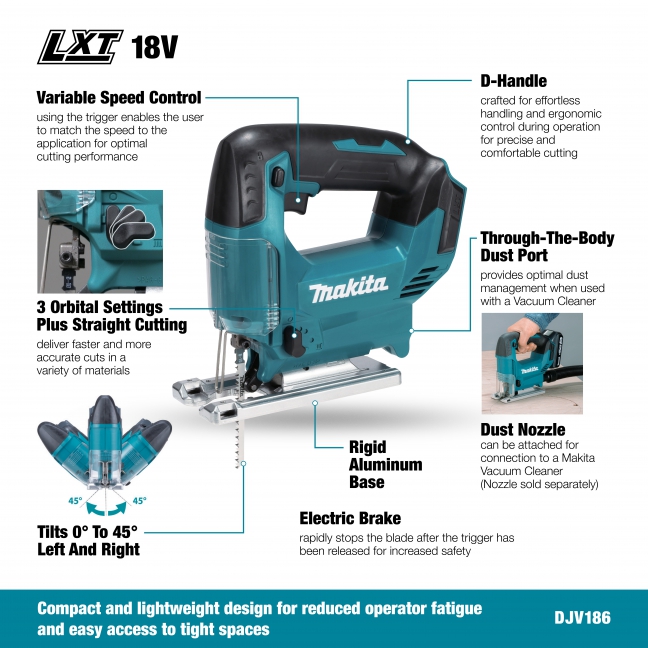

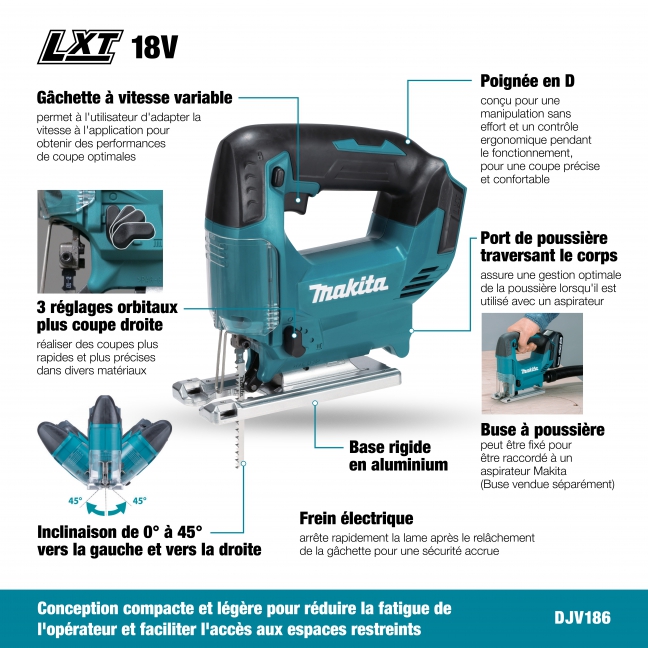

  • Makita purpose built motor with high power to weight ratio for maximum work efficiency

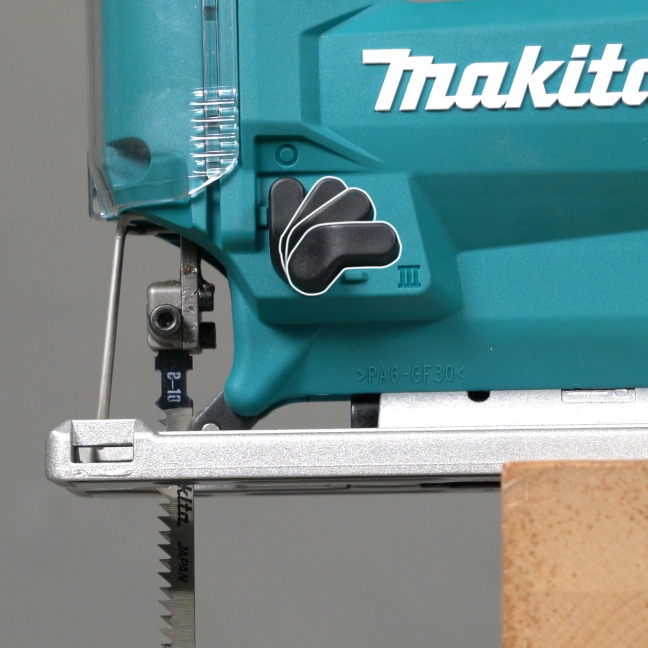

  • 3 orbital settings + straight cutting enables operator to obtain a finer or more aggressive cut
  • Variable speed dial and trigger allows operator to adjust cutting speed based on materials or application
  • Compact and lightweight design for reduced operator fatigue and easy access to tight spaces.
  • Ergonomically designed rubberized grip for increased comfort and control
  • Electric brake rapidly stops the blade after the trigger has been released for increased safety.

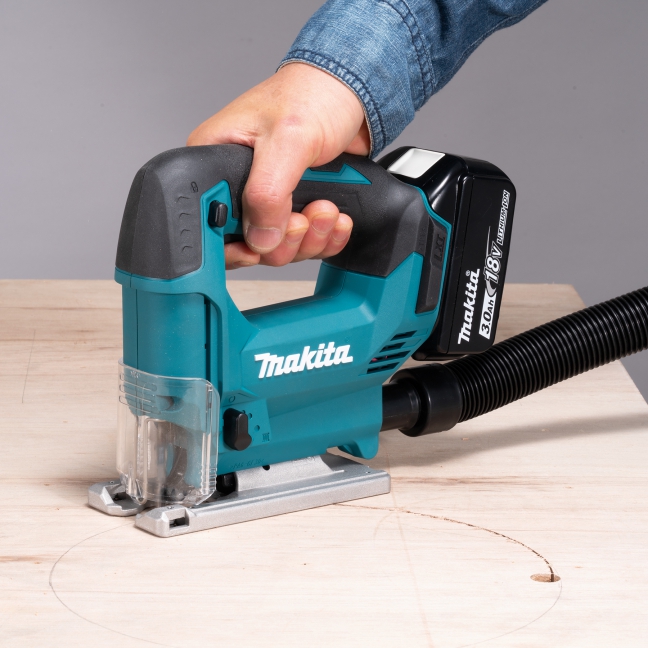

  • Through-the-body dust port provides optimal dust management when used with a vacuum cleaner.

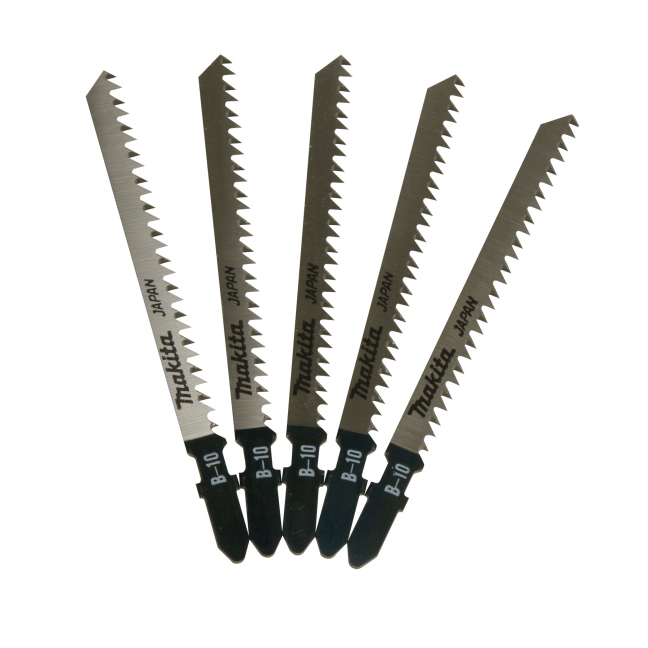

Items Included:Tool Only. Batteries and Charger Sold Separately. Jig Saw Blades (792529-7), Hex Wrench 3 (783201-2)

  • Makita purpose built motor with high power to weight ratio for maximum work efficiency
  • 3 orbital settings + straight cutting enables operator to obtain a finer or more aggressive cut
  • Variable speed dial and trigger allows operator to adjust cutting speed based on materials or application
  • Compact and lightweight design for reduced operator fatigue and easy access to tight spaces.
  • Ergonomically designed rubberized grip for increased comfort and control
  • Electric brake rapidly stops the blade after the trigger has been released for increased safety.
  • Through-the-body dust port provides optimal dust management when used with a vacuum cleaner.

Items Included: Tool Only. Batteries and Charger Sold Separately. Jig Saw Blades (792529-7), Hex Wrench 3 (783201-2)

Shipping Dimensions (Length x Width x Height) & Weight : 9.9 In. X 3.7 In. X 9.3 In. Weight : 4.2 Lb.

Specifications

Battery Capacities 18V Li-Ion
Max. Cutting Depth:
  Mild Steel  1/4" (6 mm)
  Wood  2-9/16" (65 mm)
  Aluminum  3/8" (10 mm)
Stroke Per Minute  0 - 2,900 SPM
Length of Stroke  11/16" (18 mm)
Vibration Level  7.5 m/s²
Noise Level  85 dB(A)
Overall Length  9-1/2" (241 mm)
Net Weight  4.2 lbs - 4.9 lbs (1.9 kg - 2.2 kg)

User Manual: DJV186 - EN FR SP.pdf

Parts Breakdown: DJV186 - JUL2025.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
