You are here: Home / Tool / Electric / Metalworking / 9566PC

(Tool only)

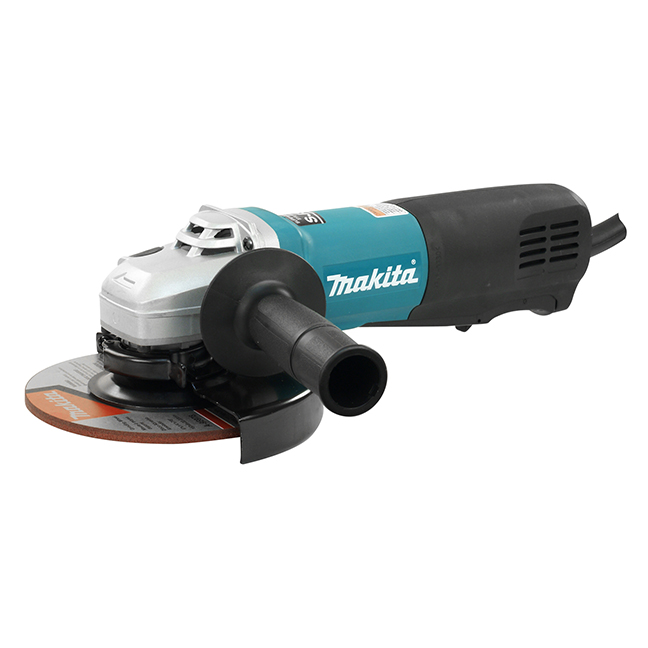

9566PC

6" Angle Grinder

Two Stage Safety Paddle Switch (AC)

"SJS" Technology

SJS Technology
  • "SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
  • Electronic current limiter prevents motor burnout due to overloading
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Labyrinth construction seals motor and bearings from contamination
  • Large paddle switch for easy operation right or left handed
  • Removable side handle can be mounted on left or right side of tool
  • Rotatable gear housing can be positioned at every 90o
  • Advanced dust-proof construction

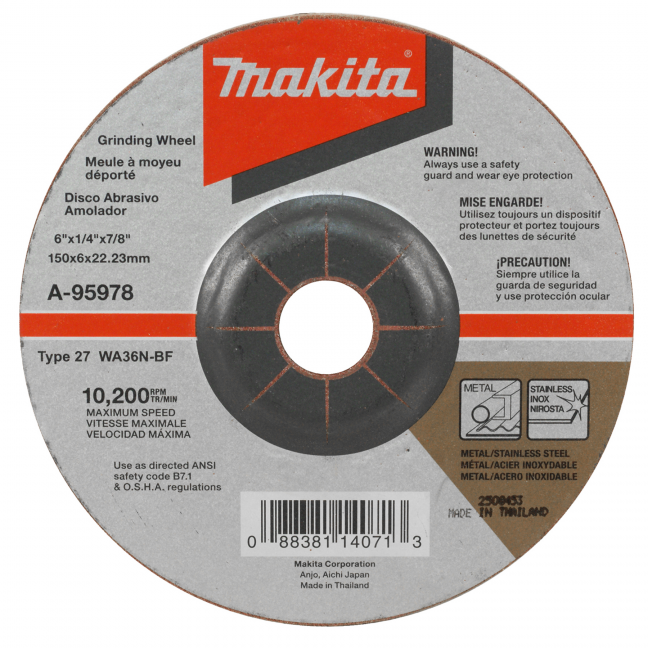

Items Included:Side Handle (153489-2), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123146-6), 6" Depressed Centre Wheel (A-95978), Inner Flange (224602-0), Lock Nut 5/8"-45 (224568-4)

  • "SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
  • Electronic current limiter prevents motor burnout due to overloading
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Labyrinth construction seals motor and bearings from contamination
  • Large paddle switch for easy operation right or left handed
  • Removable side handle can be mounted on left or right side of tool
  • Rotatable gear housing can be positioned at every 90o
  • Advanced dust-proof construction

Items Included: Side Handle (153489-2), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123146-6), 6" Depressed Centre Wheel (A-95978), Inner Flange (224602-0), Lock Nut 5/8"-45 (224568-4)

Specifications

Maximum Capacities:
Grinding Wheel 6" (150 mm)
Sanding Disc 6" (150 mm)
Diamond Wheel 6" (150 mm)
Wire Brush 4" (102 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed: 10,000 RPM
AMPS (120V): 13.0
Vibration Level 8.5 m/s2
Noise Level 84 dB(A)
Overall Length: 12-1/8" (307 mm)
Net Weight: 5.5 lbs (2.5 kg)
