LXT Technology

(Tool + Battery + Charger)


DTW180TX1B

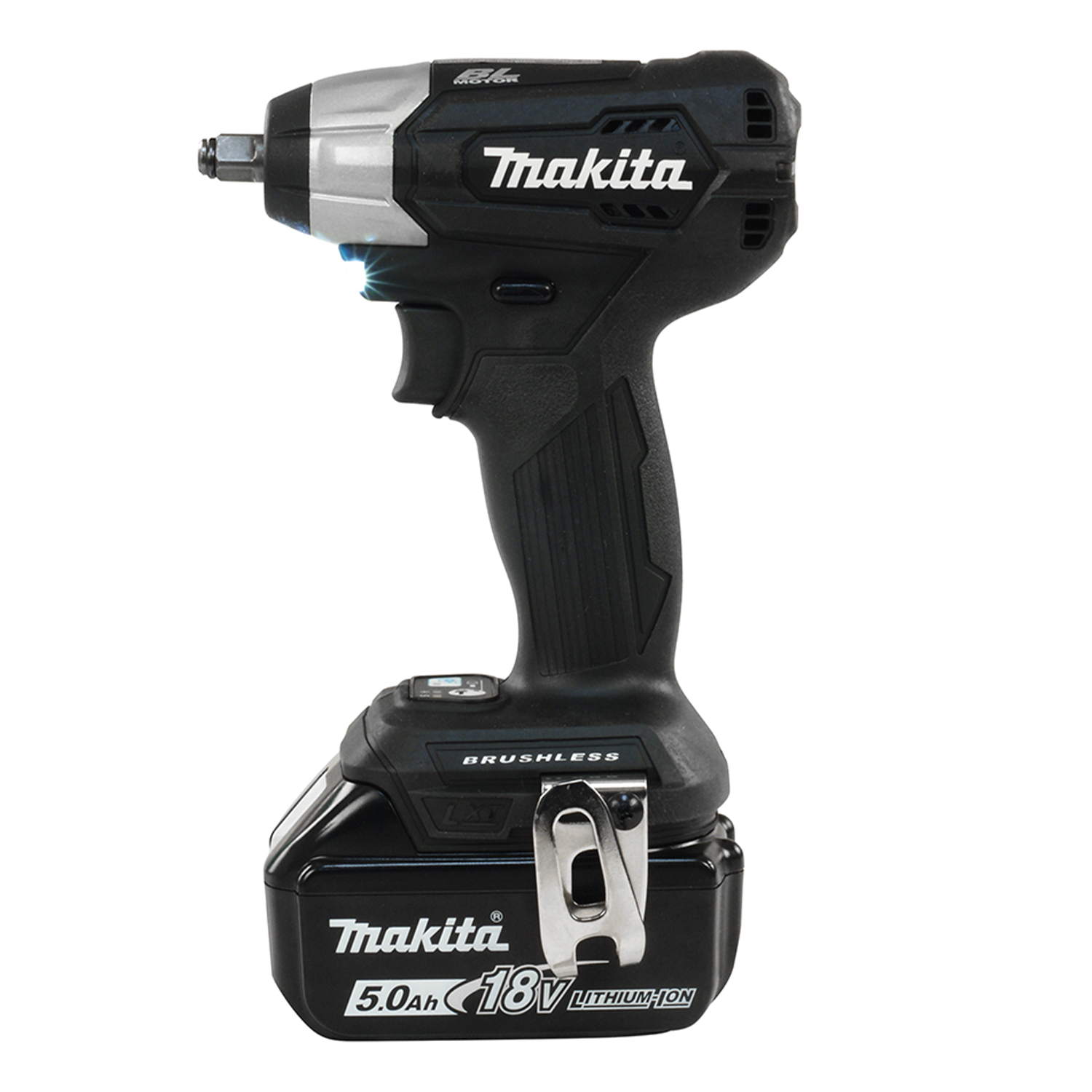

3/8" (5.0 Ah) Sub-Compact Cordless Impact Wrench with Brushless Motor Kit

SUB-COMPACT Size - PROFESSIONAL Power

3/8" Square Drive, Variable 2-Speed, Reversible

LXT Technology LXT Technology Sub Compact LXT Technology 18V 5.0Ah Fuel Guage Battery
  • Sub-compact size (only 5-5/8" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection prevents over-tightening of fasteners
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), Battery Cover (450128-8), Hook (346449-3), 14" Tool Bag (821010-X)

  • Sub-compact size (only 5-5/8" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection prevents over-tightening of fasteners
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), Battery Cover (450128-8), Hook (346449-3), 14" Tool Bag (821010-X)

Shipping Dimensions (Length x Width x Height) & Weight : 15.38 In. X 6.94 In. X 10.13 In. Weight : 9.92 Lb.

Specifications

Battery Capacities: 18V LXT
Square Drive 3/8"
No Load Speed 0 - 1,300 / 2,400 RPM
Impacts Per Minute 0 - 2,000 / 3,600 IPM
Maximum Fastening Torque  130 ft.lbs (180 Nm)
Vibration Level  9.0 m/s²
Noise Level 89 dB(A)
Overall Length 5-5/8" (144 mm)
Net Weight  3.1 lbs (1.4 kg)
