DA3010F

3/8" Angle Drill

Built-In LED Job Light For Excellent Work Efficiency

Variable Speed, Built-In LED Job Light

  • Industrial metal gear housing for durability and long tool life
  • Reduced head height (2-5/8") for working in limited space
  • Ball bearing construction for longer motor life
  • Paddle switch with speed limiting dial

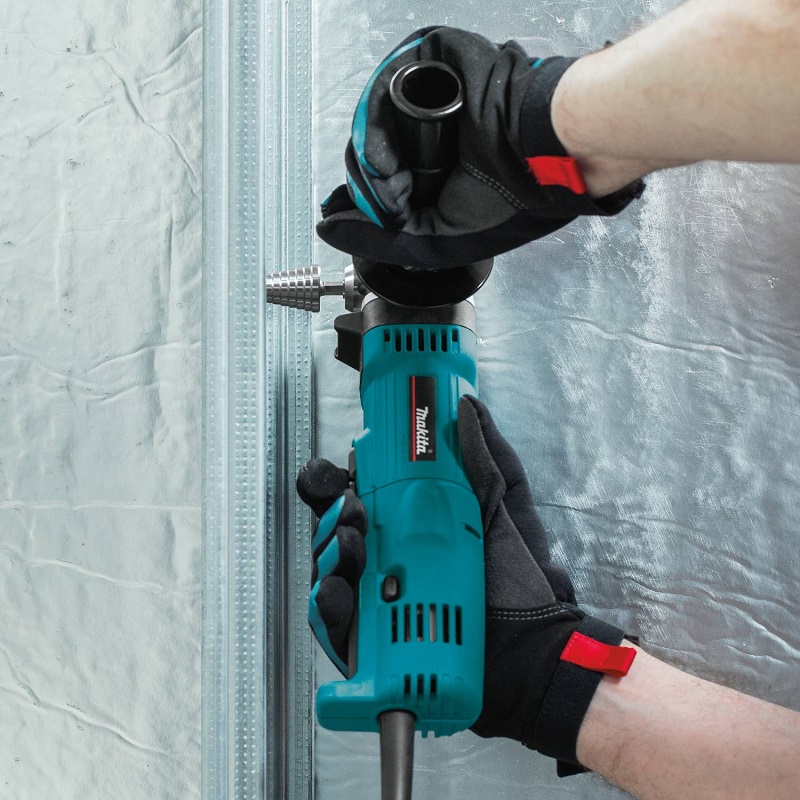

  • Compact (10-5/8" length) design for easy use when working between framing studs or any other close quarter application

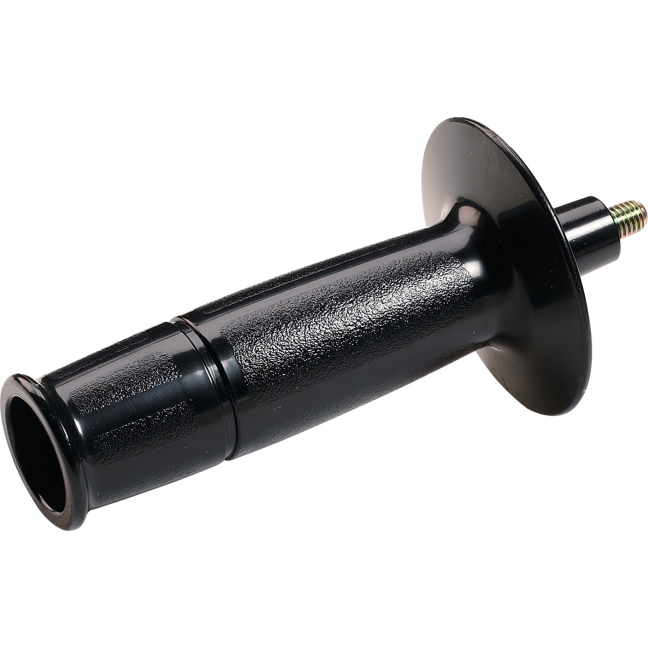

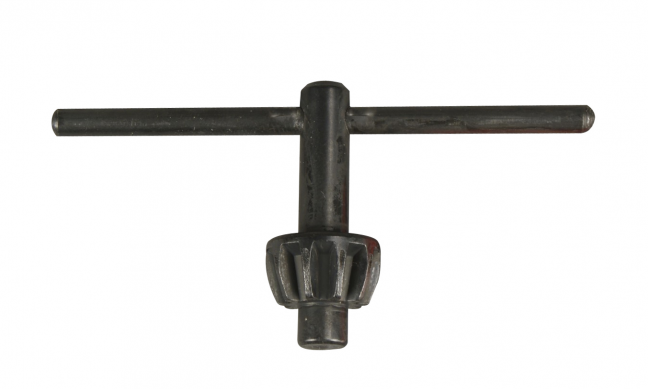

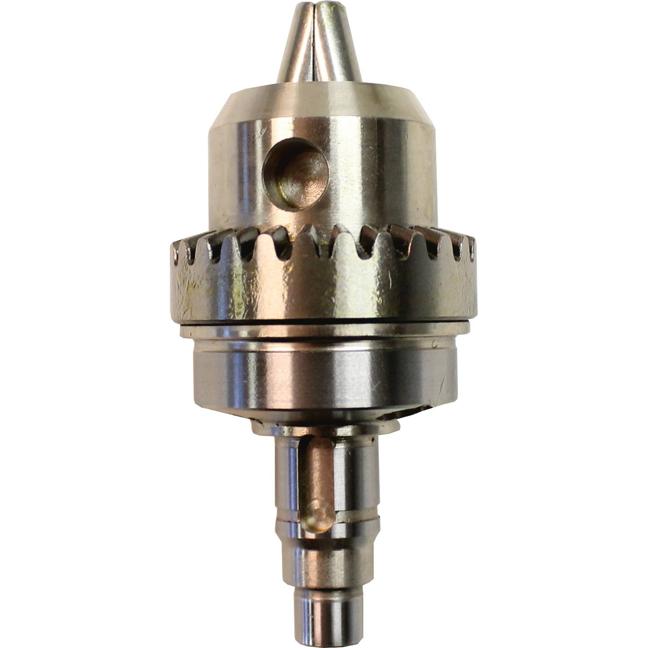

Items Included:Drill Chuck (763174-5), Chuck Key (763415-9), Side Handle (153489-2)

  • Industrial metal gear housing for durability and long tool life
  • Reduced head height (2-5/8") for working in limited space
  • Ball bearing construction for longer motor life
  • Paddle switch with speed limiting dial
  • Compact (10-5/8" length) design for easy use when working between framing studs or any other close quarter application

Items Included: Drill Chuck (763174-5), Chuck Key (763415-9), Side Handle (153489-2)

Shipping Dimensions (Length x Width x Height) & Weight : 13.5 In. X 3.43 In. X 5.35 In. Weight : 3.97 Lb.

Specifications

Capacities: Steel 3/8" (10 mm), Wood 1" (25 mm)
No Load Speed 0 - 2,400 RPM
AMPS (120V) 4.0 A
Vibration Level 2.5 m/s²
Noise Level 81 dB(A)
Overall Length 10-5/8" (270 mm)
Net Weight 3.5 lbs (1.6 kg)
HSS-TiN (Titanium-Nitride) (Economy) Twist Drill Bit 21 Pc Index Set

HSS-TiN (Titanium-Nitride) (Economy) Twist Drill Bit 21 Pc Index Set

Read More
HSS-CO (Cobalt) Twist Drill Bit 21 Pc Index Set

HSS-CO (Cobalt) Twist Drill Bit 21 Pc Index Set

Read More

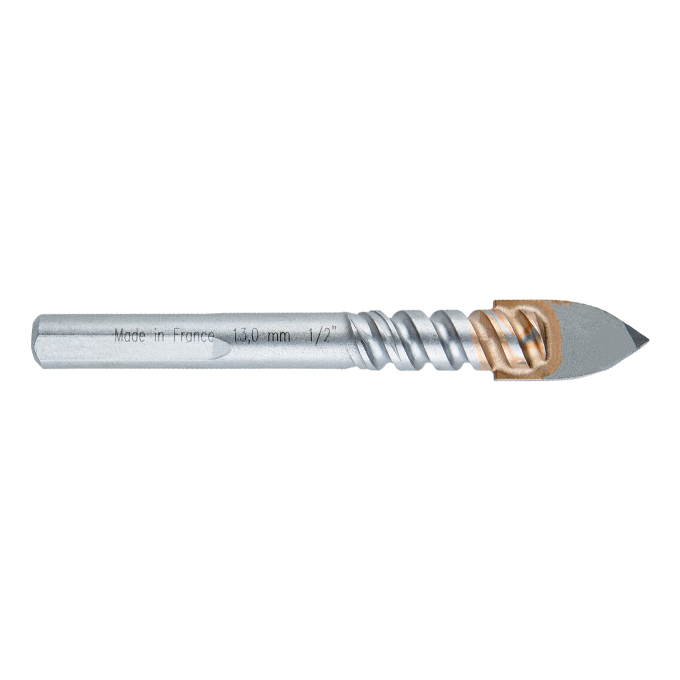

Premium Glass & Tile Drill Bits

Premium Glass & Tile Drill Bits

Read More
70 Pc Drill & Driver Bit MAKPAC Interlocking Accessory Kit

70 Pc Drill & Driver Bit MAKPAC Interlocking Accessory Kit

Read More

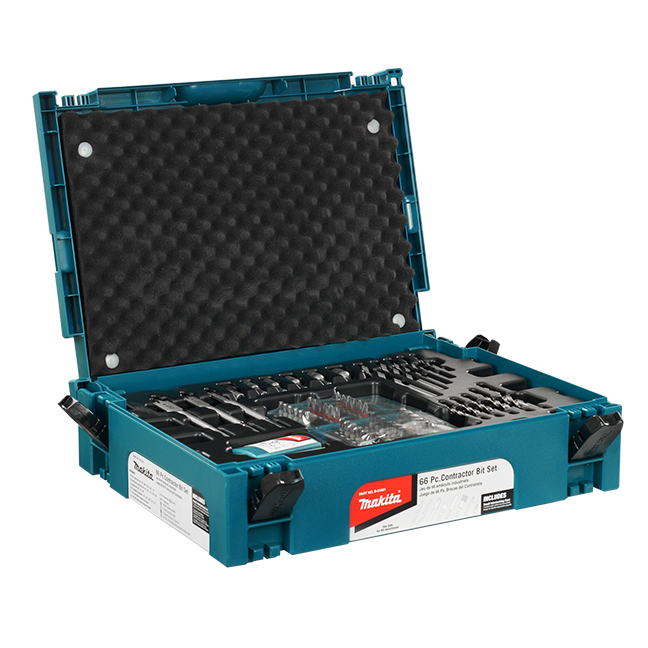

66 Pc Drill & Driver Bit MAKPAC Interlocking Accessory Kit

66 Pc Drill & Driver Bit MAKPAC Interlocking Accessory Kit

Read More

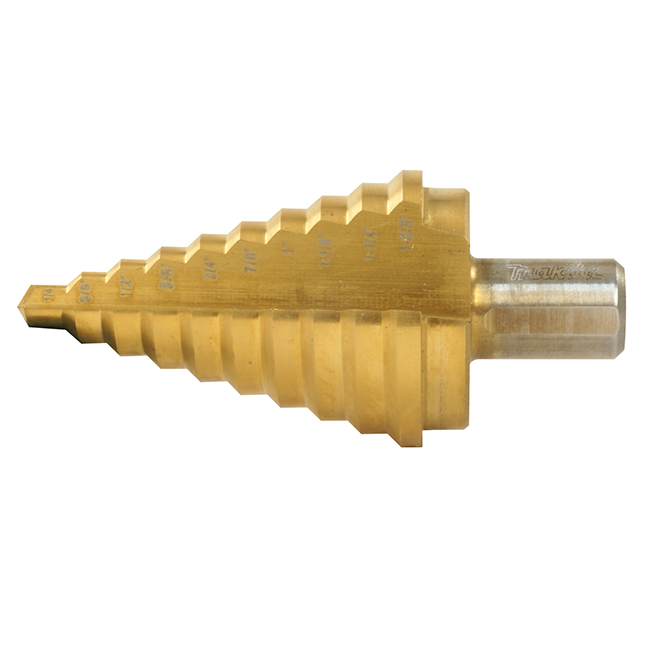

Straight Flute Step Drill Bits
