TD023DSX1

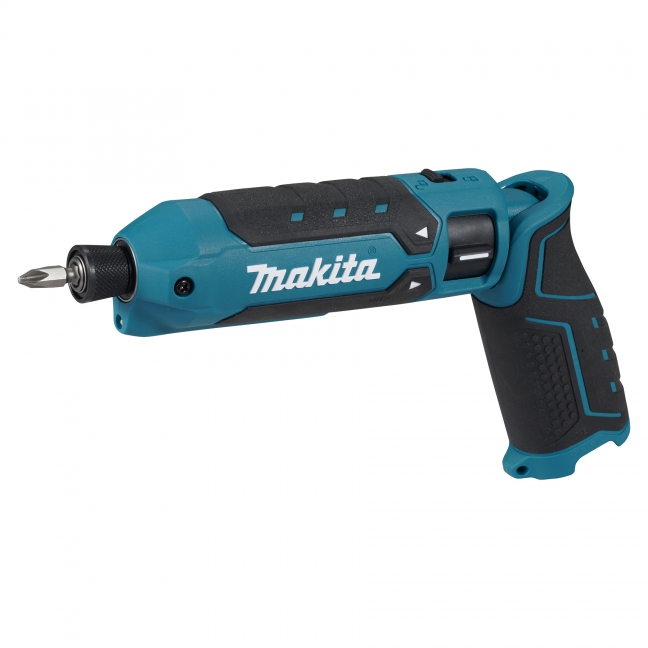

7.2V Li-Ion 1/4" Impact Driver, 1.5Ah x2Kit

Compact And Lightweight Design With Precision Control And High Fastening Torque

Delivers 25 N·m (220 in/lbs.) of Max Torque

Variable Speed, Reversible, Electric Brake

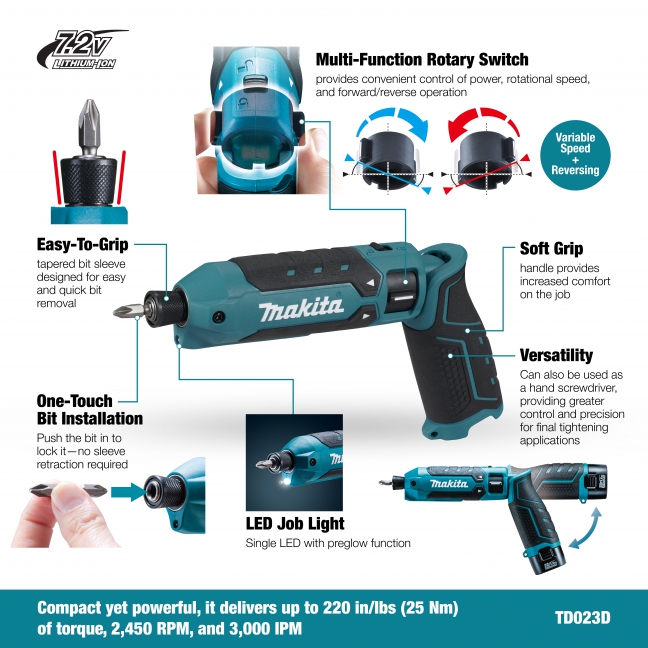

  • Multi-function variable speed rotary switch allows operators to adjust driving speed and direction simultaneously for precise fastening applications
  • Switch position enables easy access for left or right handed users
  • Lock-off button prevents accidental start up

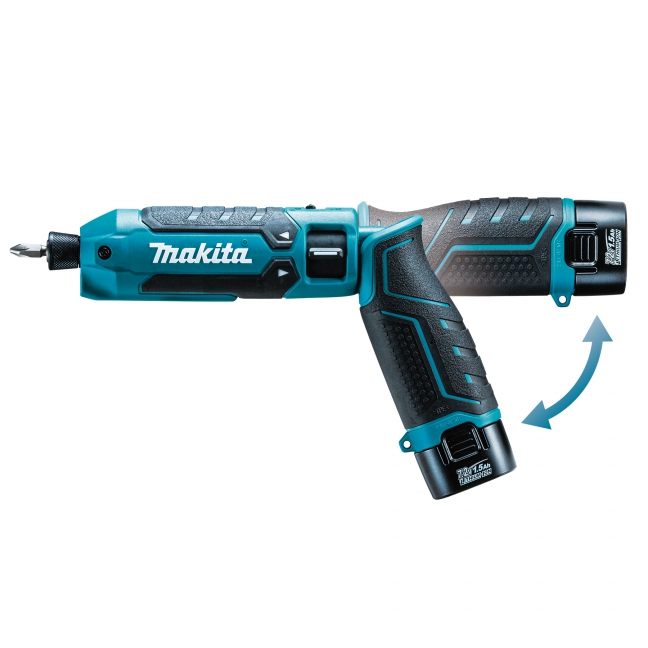

  • Adjustable handle with enhanced hinge mechanism for operational versatility

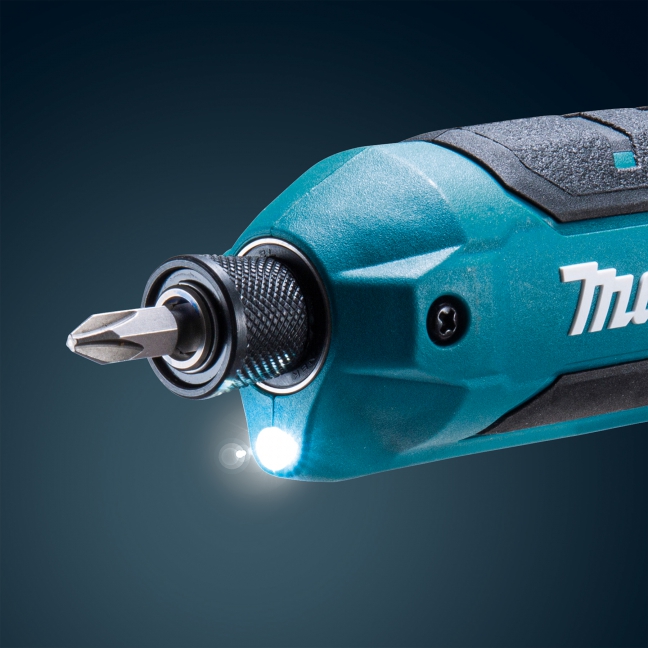

  • LED job light with pre-glow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

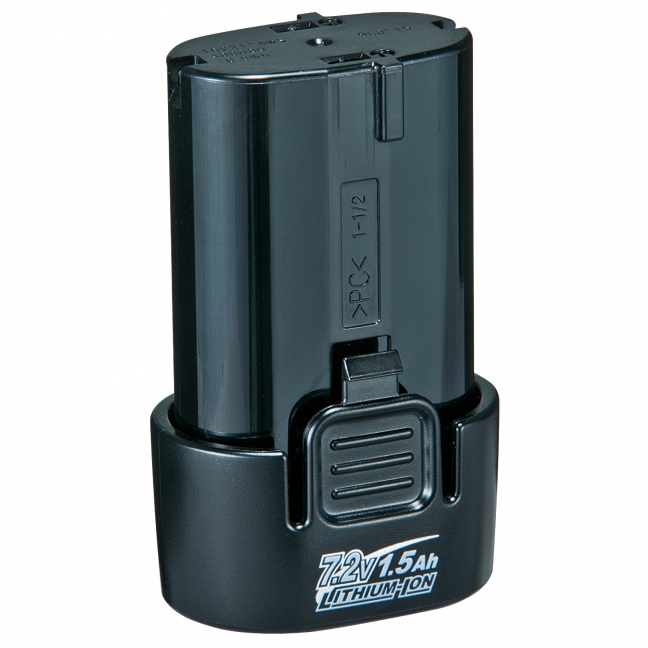

Items Included:Two 7.2V Li-ion (1.5AH) Battery BL0715 (BL0715), Charger (DC10WB), Holster (168435-2), Phillips Bit 2-50 (784244-7), Tool Bag (831277-4)

  • Multi-function variable speed rotary switch allows operators to adjust driving speed and direction simultaneously for precise fastening applications
  • Switch position enables easy access for left or right handed users
  • Lock-off button prevents accidental start up
  • Adjustable handle with enhanced hinge mechanism for operational versatility
  • LED job light with pre-glow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Two 7.2V Li-ion (1.5AH) Battery BL0715 (BL0715), Charger (DC10WB), Holster (168435-2), Phillips Bit 2-50 (784244-7), Tool Bag (831277-4)

Shipping Dimensions (Length x Width x Height) & Weight : 12.1 In. X 3.8 In. X 10.1 In. Weight : 4.67 Lb.

Specifications

Battery Capacities 7.2V Li-Ion
Hex Shank 1/4"
Impacts Per Minute 0 - 3,000 IPM
No Load Speed 0 - 2,450 RPM
Maximum Torque 220 in. lbs (25 Nm)
Capacities: Machine Screw: 1/8" - 5/16" (M3 - M8), Standard Bolt: 1/8" - 5/16" (M3 - M8), High Tensile Bolt: 1/8" - 1/4" (M3 - M6)
Overall Length 11-1/4" (285 mm)
Net Weight 1.3 lbs (0.58 kg)

User Manual: TD023D - EN FR SP.pdf

Parts Breakdown: TD023D - MAR2026.pdf
