RP0900K

1-1/4 hp Plunge Router

Compact And Lightweight Plunge Router With Enhanced Durability

Trigger Switch


  • Large Ball Bearing on fan end and Dust Proof Bearing on commutator end of armature for enhanced durability of tool
  • 3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
  • Trigger Switch located on handle for operator convenience
  • Conveniently located Plunge Locking Lever for easy engagement during operation
  • Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

Items Included:1/4” Collet Cone (763637-1), Wrench 13 (781006-4), Wrench 22 (781011-1), Straight Guide (164834-6), Plastic Carrying Case (824880-8)

  • Large Ball Bearing on fan end and Dust Proof Bearing on commutator end of armature for enhanced durability of tool
  • 3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
  • Trigger Switch located on handle for operator convenience
  • Conveniently located Plunge Locking Lever for easy engagement during operation
  • Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

Items Included: 1/4” Collet Cone (763637-1), Wrench 13 (781006-4), Wrench 22 (781011-1), Straight Guide (164834-6), Plastic Carrying Case (824880-8)

Specifications

Collet Capacity 1/4", 3/8" (6.35 mm , 9.53 mm)
Plunge Capacity 1-3/8" (35 mm)
No Load Speed 27,000 RPM
AMPS (120V) 8.0 A
Vibration Level 4.0 m/s2
Noise Level 89 dB(A)
Base Diameter 4-5/16" (110 mm)
Overall Height 8-17/32" (217 mm)
Net Weight 6.0 lbs (2.7 kg)
14

14" Tool Bag

Read More

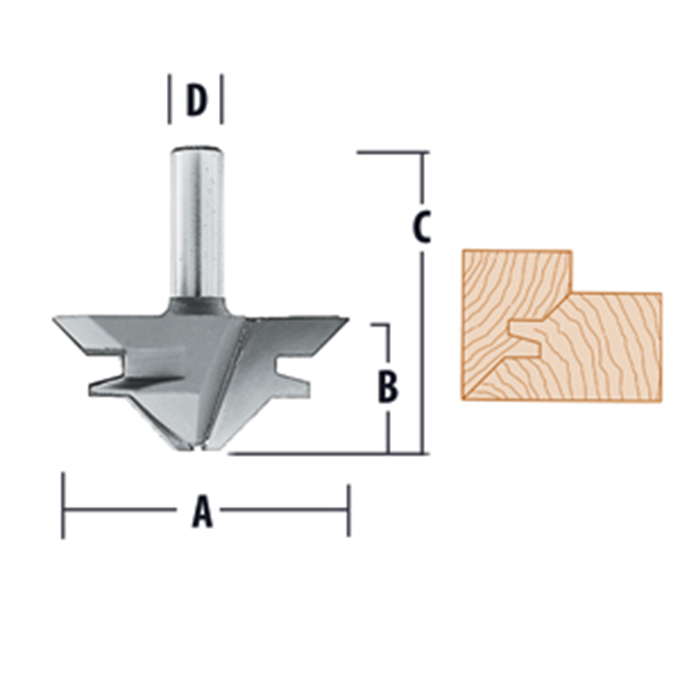

45 Degree Lock Miter Router Bit

45 Degree Lock Miter Router Bit

Read More

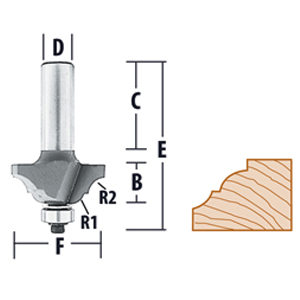

Beading Router Bits

Beading Router Bits

Read More

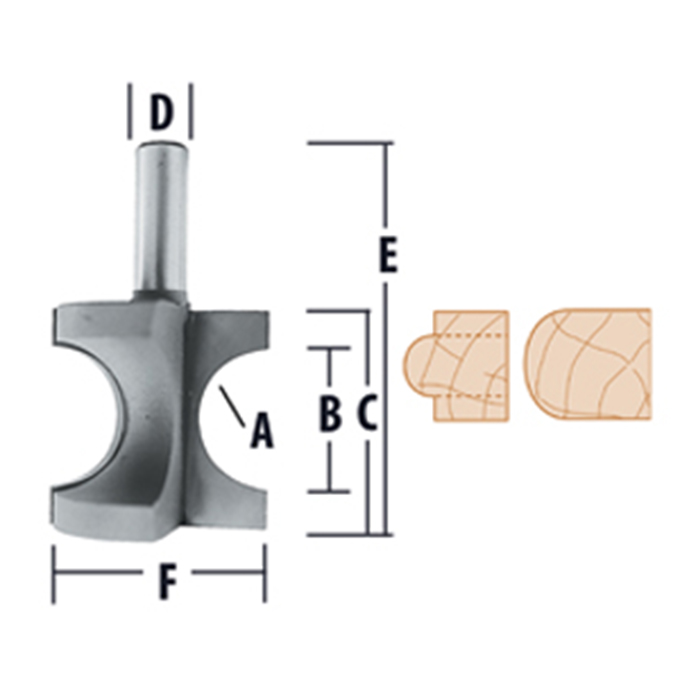

Bull Nose - 2 Flute Router Bits

Bull Nose - 2 Flute Router Bits

Read More

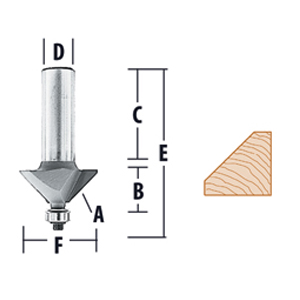

Chamfering Router Bits

Chamfering Router Bits

Read More

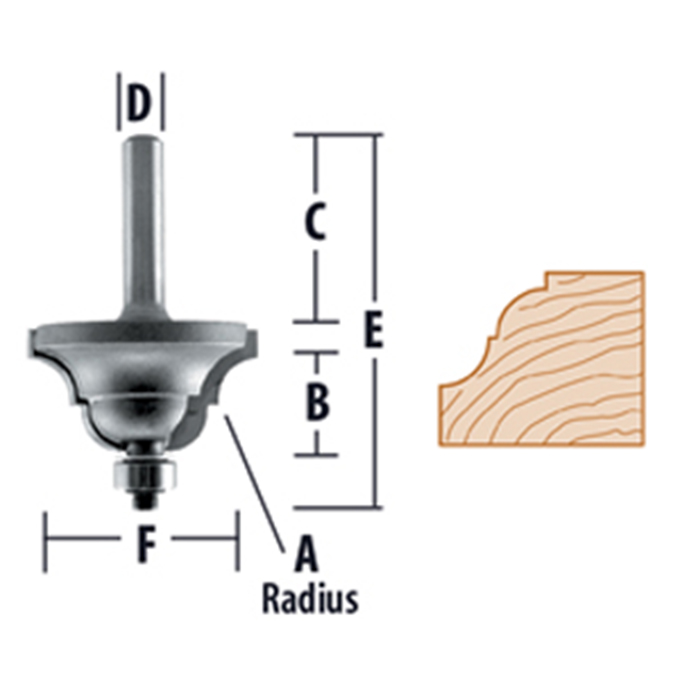

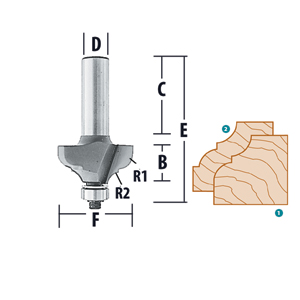

Classical Router Bits

Classical Router Bits

Read More
Cord Holders

Cord Holders

Read More
Corner Bead Router Bits

Corner Bead Router Bits

Read More

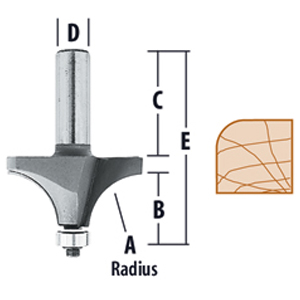

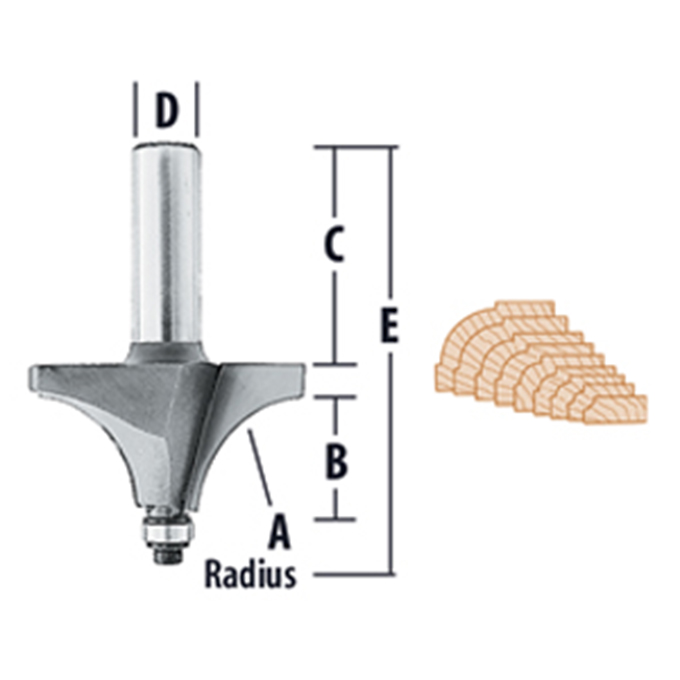

Corner Rounding Router Bits

Corner Rounding Router Bits

Read More
Cove and Bead Router Bits

Cove and Bead Router Bits

Read More

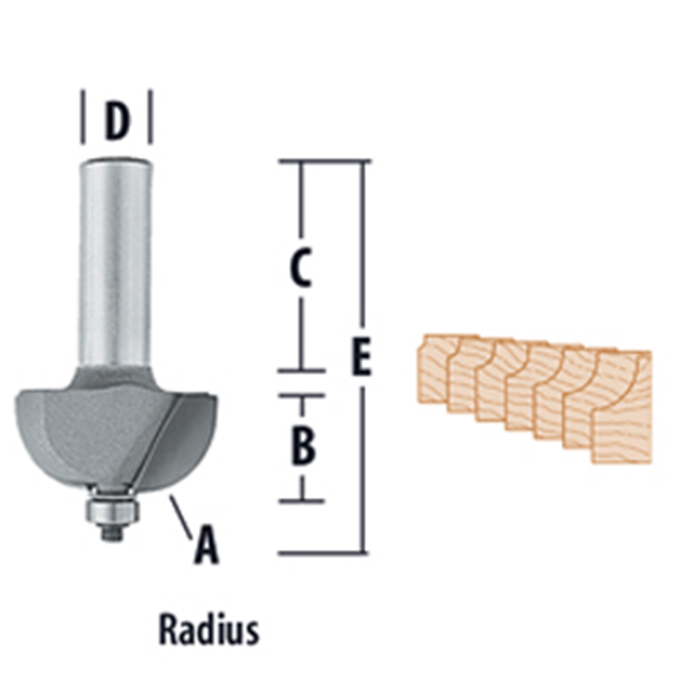

Cove Router Bits
