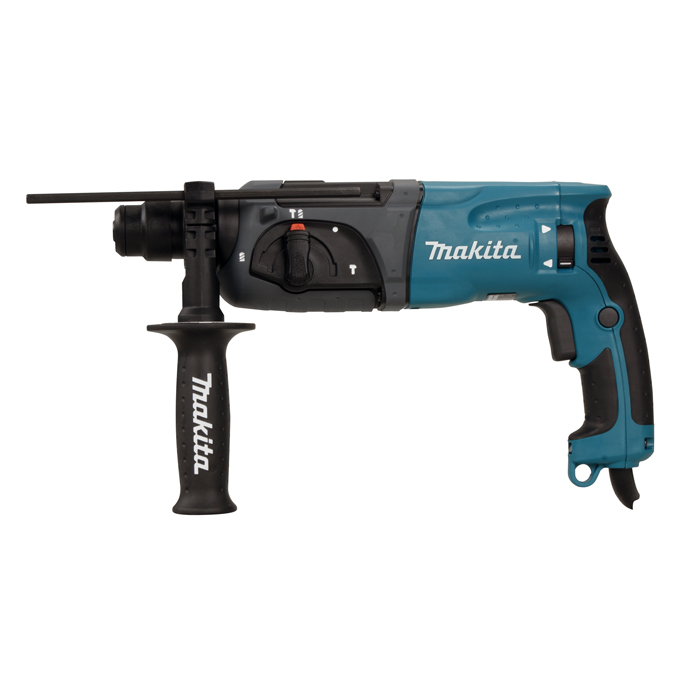

HR2470F

15/16" Rotary Hammer

SDS-PLUS Shank

Hammer & Rotation / Hammer Only / Rotation Only

Variable Speed, Reversible

  • Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • High Durability design with Zig-Zag Armature Varnish, Enhanced Sealing, Improved Impact Bolt and Impact Reducing Cushion Ring
  • Reverse Rotation System using Brush Holder Unit provides the same amount of power in forward and reverse and extends life of carbon brushes
  • Rubber Housing Bumper protects mode selector switch and gear housing from damage
  • 40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • LED Light illuminates drilling position
  • Ergonomic Soft Rubber Grips for vibration absorption and comfortable operation

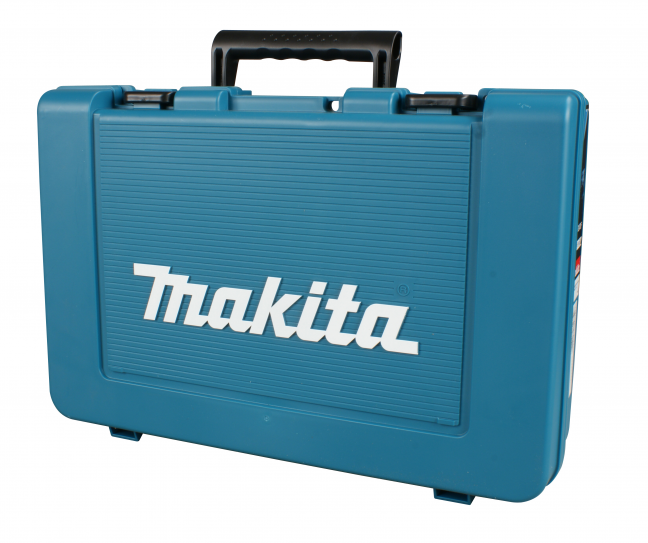

Items Included:Side Handle (158057-6), Depth Gauge (324219-0), Plastic Carrying Case (824799-1)

  • Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • High Durability design with Zig-Zag Armature Varnish, Enhanced Sealing, Improved Impact Bolt and Impact Reducing Cushion Ring
  • Reverse Rotation System using Brush Holder Unit provides the same amount of power in forward and reverse and extends life of carbon brushes
  • Rubber Housing Bumper protects mode selector switch and gear housing from damage
  • 40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • LED Light illuminates drilling position
  • Ergonomic Soft Rubber Grips for vibration absorption and comfortable operation

Items Included: Side Handle (158057-6), Depth Gauge (324219-0), Plastic Carrying Case (824799-1)

Shipping Dimensions (Length x Width x Height) & Weight : 18.11 In. X 4.53 In. X 12.44 In. Weight : 10.58 Lb.

Specifications

Bit Type SDS-PLUS
Maximum Capacities:
Concrete 15/16" (24 mm)
Steel 1/2" (13 mm)
Wood 1-1/4" (32 mm)
No Load Speed 0 – 1,100 RPM
Blows Per Minute 0 – 4,500 BPM
Impact Energy 2.7 J (1.99 ft. lbs)
AMPS (120V) 6.7 A
Vibration Level 15.5 m/s2 (Concrete) / 4.5 m/s2 (Metal)
Noise Level 90 dB
Overall Length 14-1/2" (370 mm)
Net Weight 6.4 lbs (2.9 kg)
