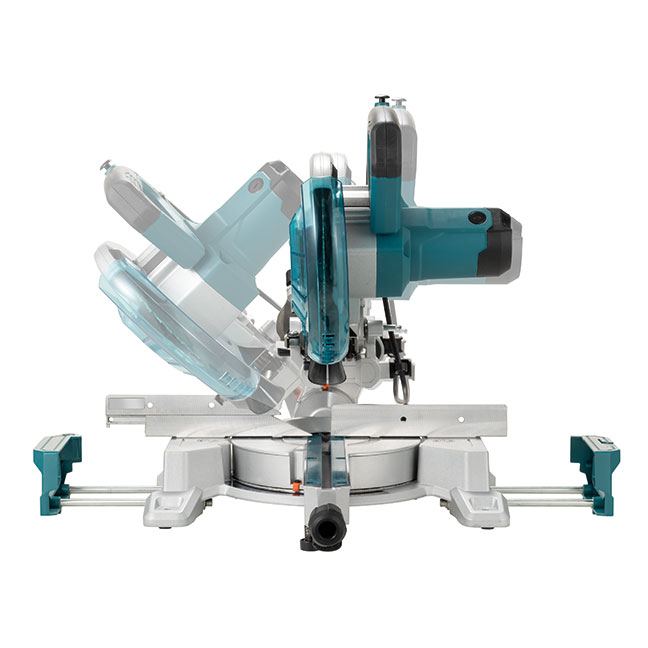

LS0816F

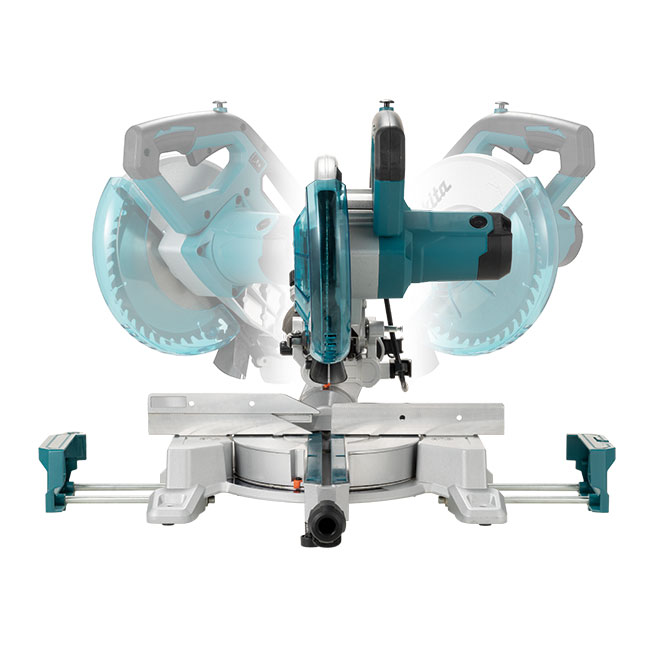

8-1/2" Sliding Compound Mitre Saw w/LED Cut Line

Cuts up to 12" at 90˚ and 8-1/2" at 45˚

LED job light with cut line guide function

Adjustable sub fence and sub bases for stable cutting

Cuts Up To 12" At 90 Degrees

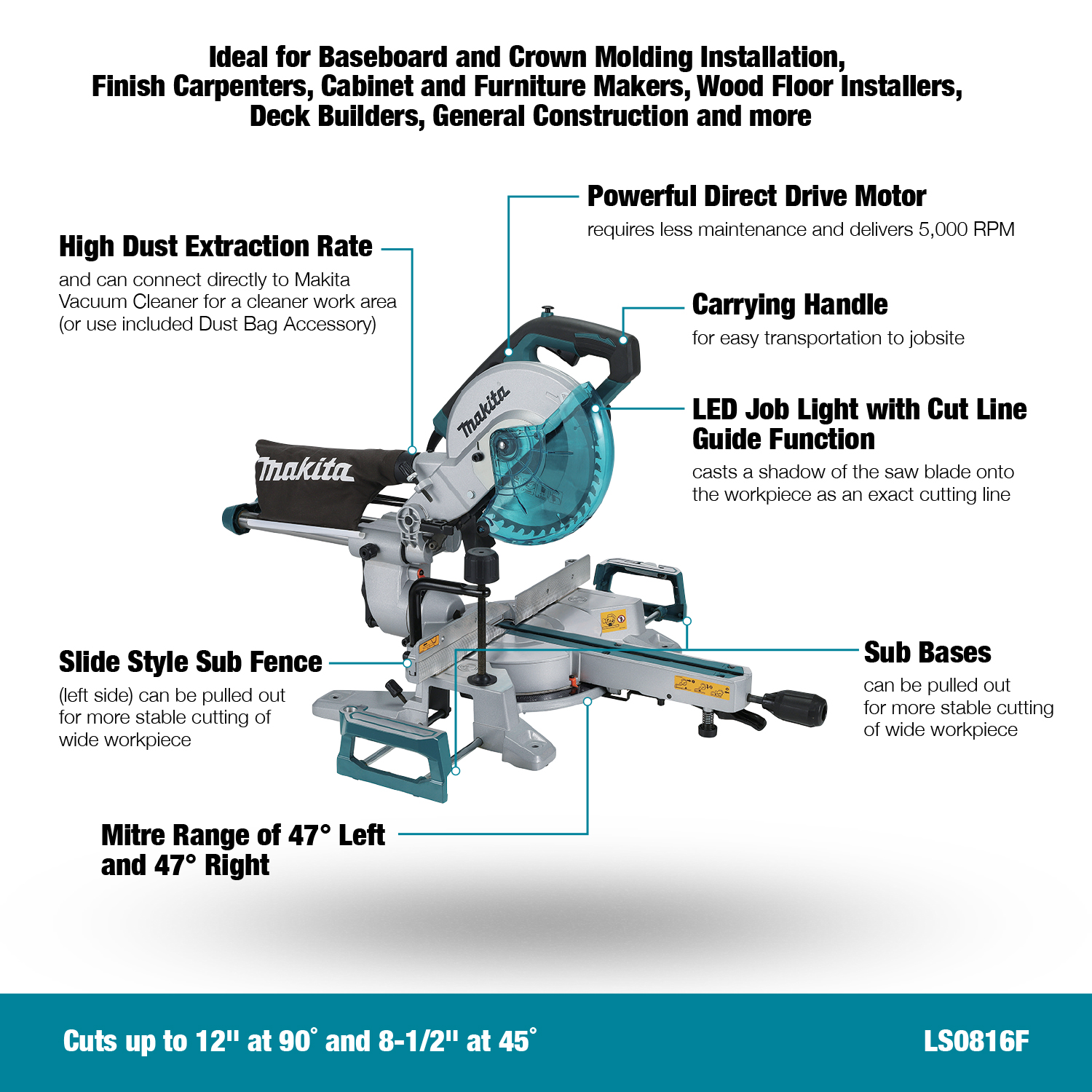

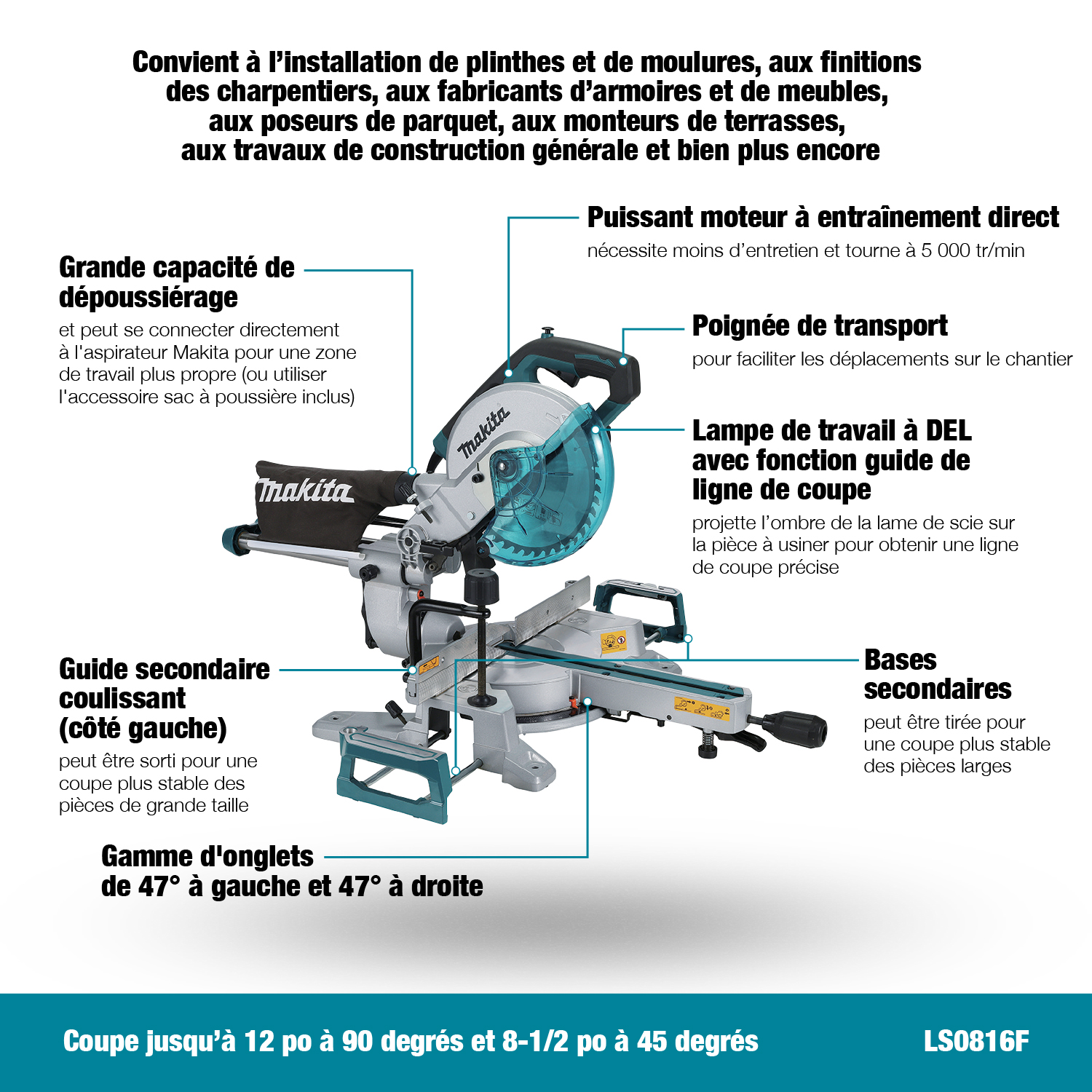

  • 8-1/2" Sliding Compound Mitre Saw with LED Light with Cut Line Guide Function.
  • High cutting capacity and dust extraction rate.
  • Cuts up to 12” at 90° and 8-1/2” at 45°.
  • High dust extraction rate and can connects directly to Makita vacuum cleaner for a cleaner work area.
  • Powerful direct drive motor requires less maintenance and delivers 5,000 RPM.

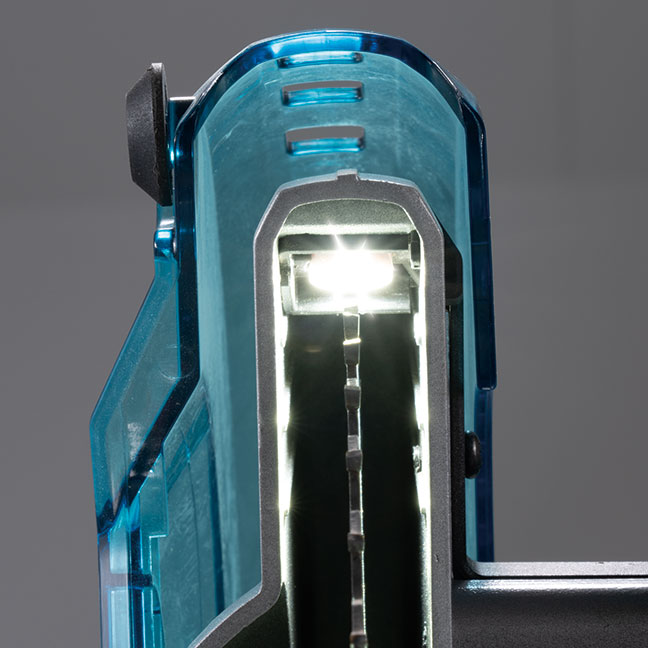

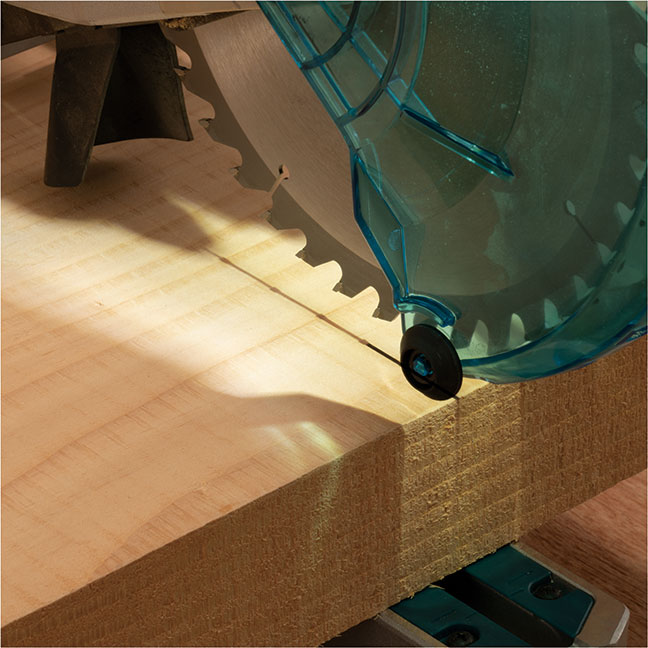

  • LED job light with cut line guide function casts a shadow of the saw blade onto the workpiece as an exact cutting line.

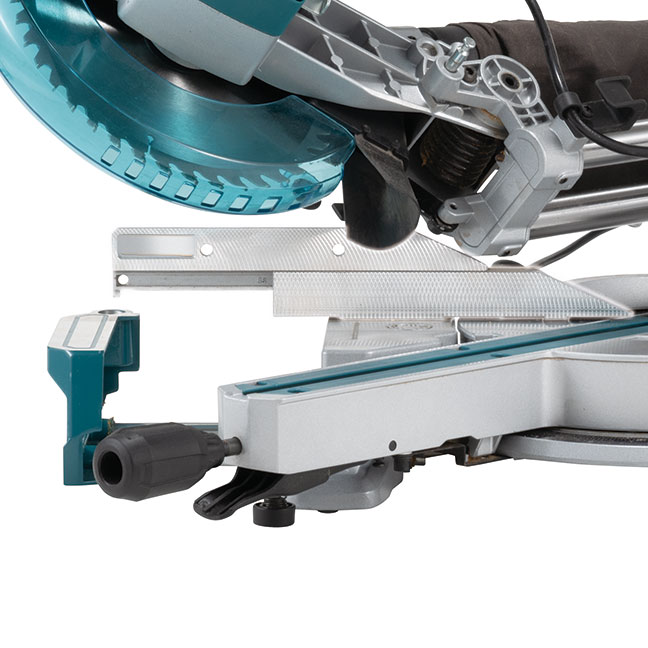

  • Slide style sub fence (left side) can be pulled out for more stable cutting of wide workpiece.
  • Soft start feature for smooth start-ups.
  • Carrying handle for easy transportation to jobsite.
  • Ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction and more.

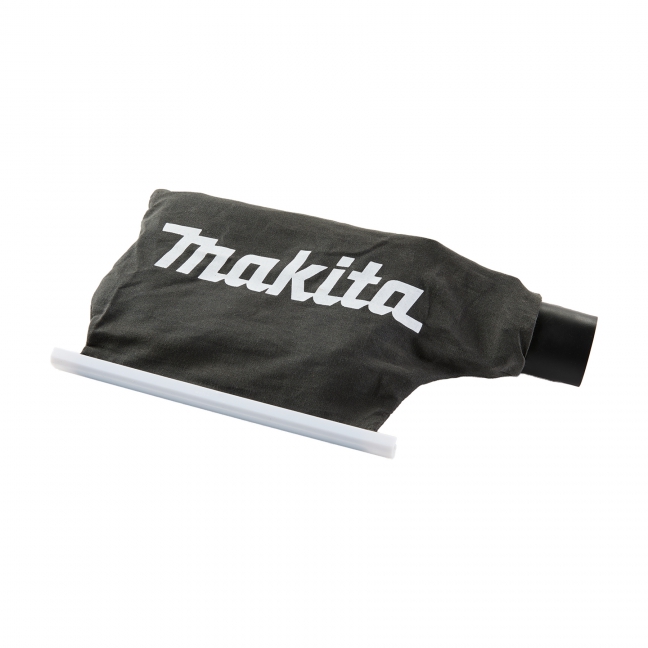

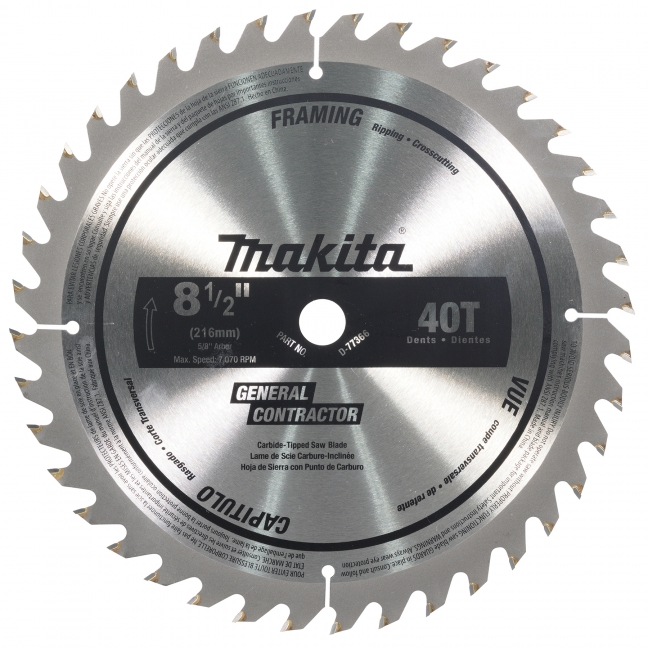

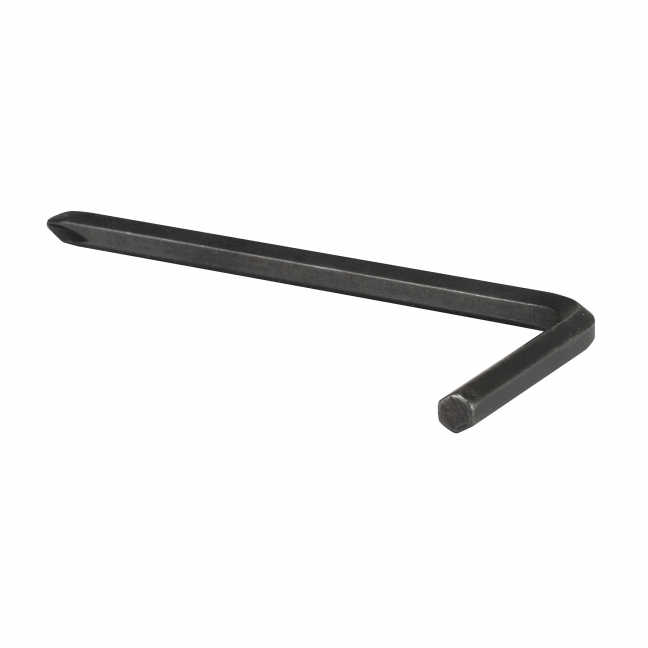

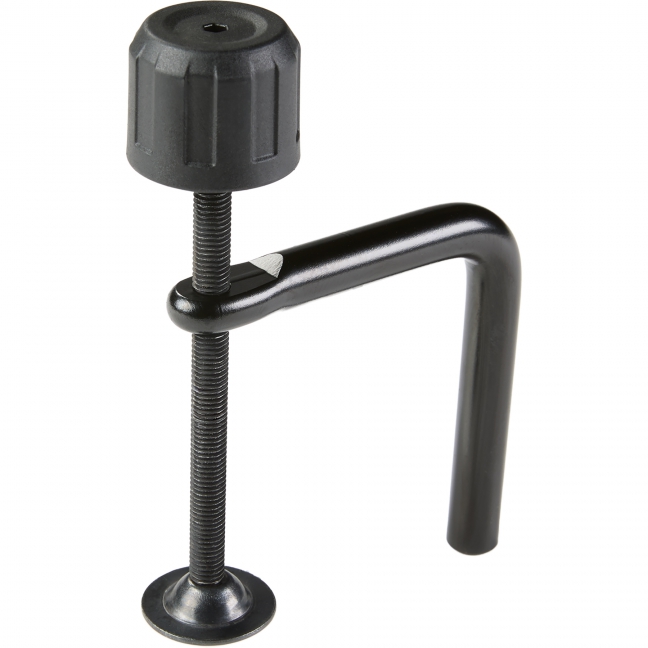

Items Included:8-1/2" C.T. Blade 40T (D-77366), Hex Wrench (JM00000445), Dust Bag (JM00000535), Vertical Vise (JM00000432)

  • 8-1/2" Sliding Compound Mitre Saw with LED Light with Cut Line Guide Function.
  • High cutting capacity and dust extraction rate.
  • Cuts up to 12” at 90° and 8-1/2” at 45°.
  • High dust extraction rate and can connects directly to Makita vacuum cleaner for a cleaner work area.
  • Powerful direct drive motor requires less maintenance and delivers 5,000 RPM.
  • LED job light with cut line guide function casts a shadow of the saw blade onto the workpiece as an exact cutting line.
  • Slide style sub fence (left side) can be pulled out for more stable cutting of wide workpiece.
  • Soft start feature for smooth start-ups.
  • Carrying handle for easy transportation to jobsite.
  • Ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction and more.

Items Included: 8-1/2" C.T. Blade 40T (D-77366), Hex Wrench (JM00000445), Dust Bag (JM00000535), Vertical Vise (JM00000432)

Shipping Dimensions (Length x Width x Height) & Weight : 15.08 In. X 29.13 In. X 21.06 In. Weight : 42.99 Lb.

Specifications

Blade Diameter 8-1/2" (216 mm)
Arbor 5/8" (15.88 mm)
No Load Speed 5,000 RPM
AMPS (120V) 10.5 A
Vibration Level 2.5  m/s²
Noise Level 91 dB(A)
Dimensions (L x W x H)  18-3/4" x 27-3/4" x 20-1/2" (476 mm x 705 mm x 521 mm)
Net Weight  30.6 lbs (13.9 kg)

User Manual: LS0816F - EN FR SP.pdf

Parts Breakdown: LS0816F - APR2024.pdf
