DCU601Z

36V(18Vx2) LXT Brushless Material Mover, Flatbed, Electric Lift, Tool Only

36V(18Vx2) LXT BL material mover features an electric lift to effortlessly tackle heavy material handling tasks

LXT Technology LXT Technology 18Vx2

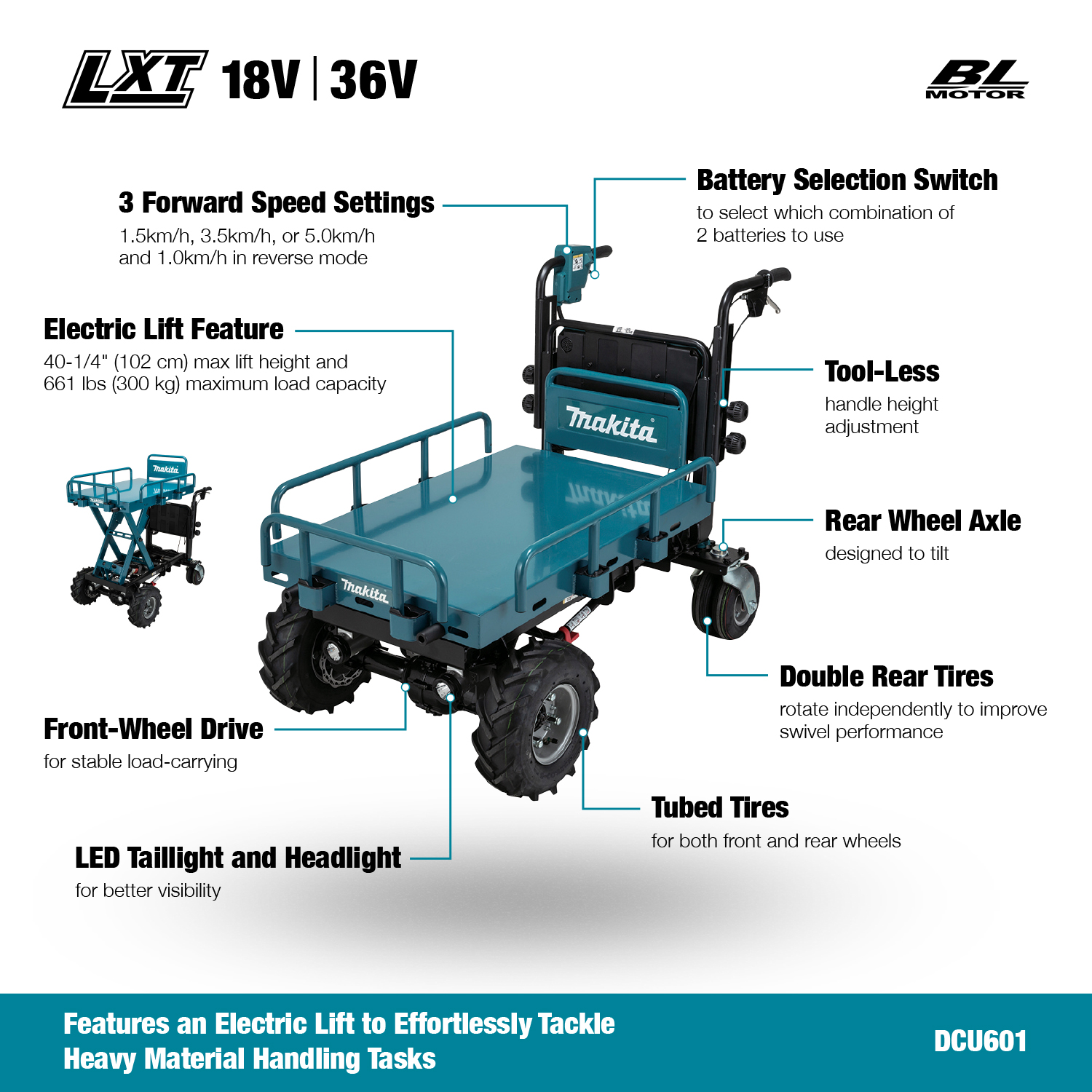

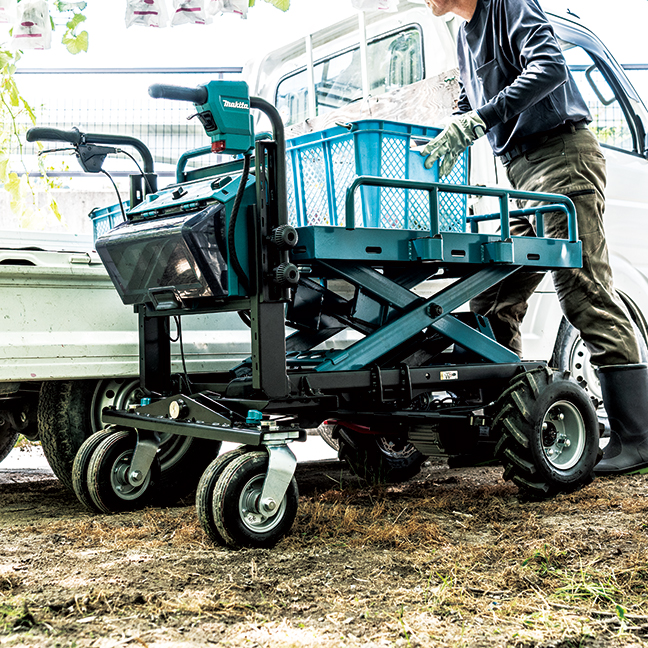

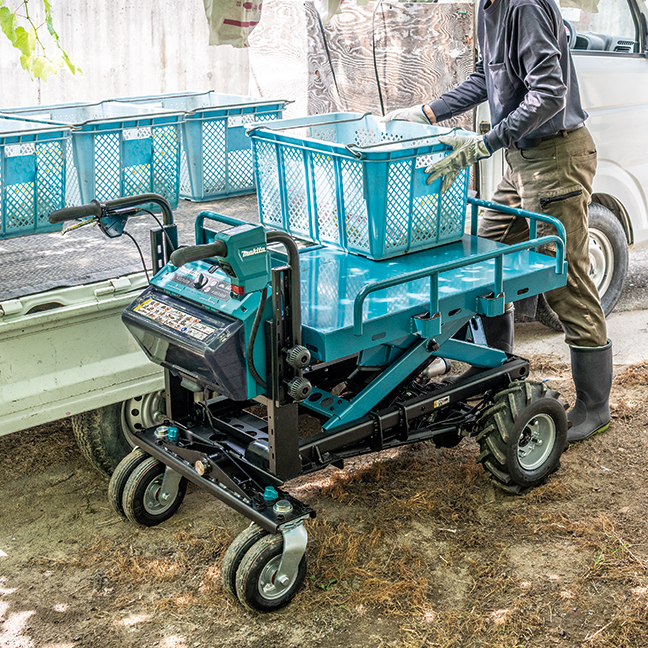

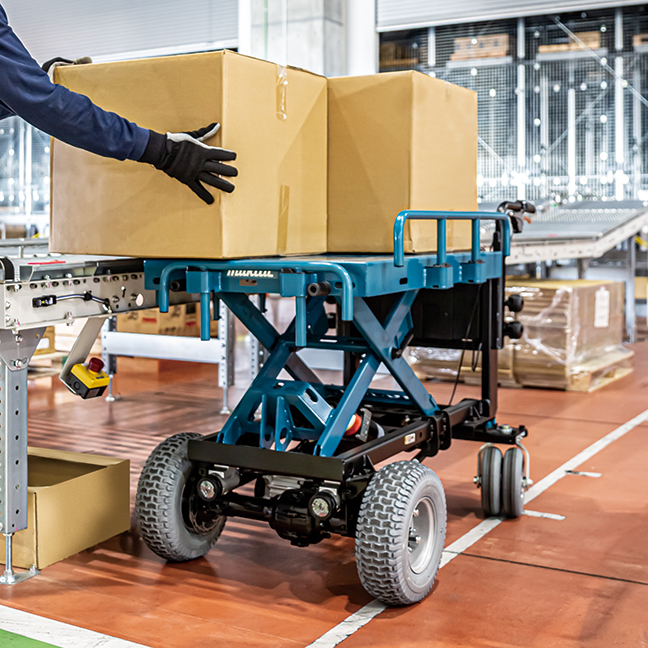

  • CONVENIENCE: Electric lift feature reduces workload featuring 40-1/4" (1,020 mm) max lift height and 661 lbs (300 kg) max load capacity
  • PERFORMANCE: 100-minute runtime and up to 7.2km range using four BL1860B 18V LXT (6.0Ah) batteries

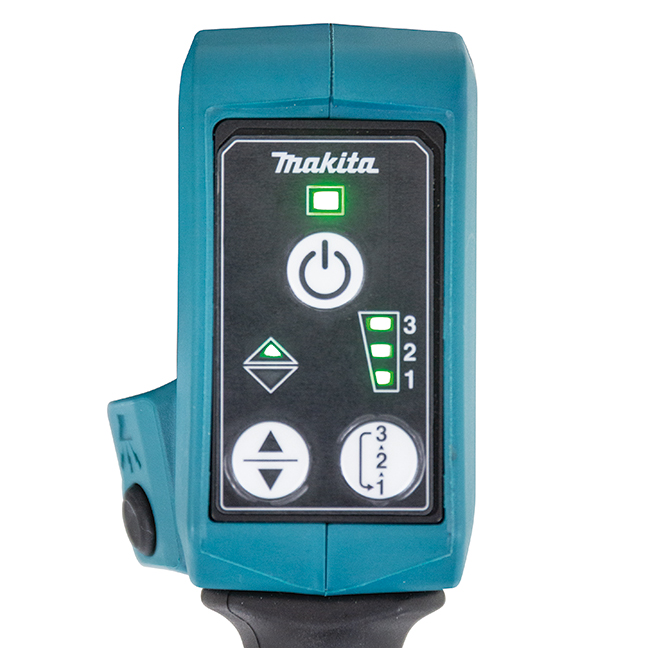

  • ADAPTABILITY: Enjoy flexibility with 3 forward speed settings (1.5km/h, 3.5km/h, or 5.0km/h), and effortlessly maneuver at 1.0km/h in reverse mode
  • 4-wheels with front-wheel drive system for stable load-carrying even with heavy loads

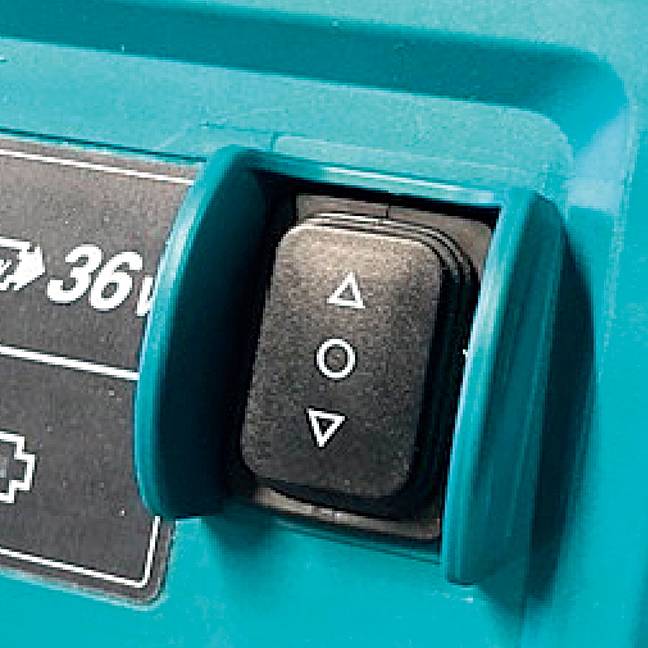

  • Equipped with a battery selection switch to choose which combination of 2 batteries to use with up to total 4 batteries installed for long run time
  • LED taillight and headlight lights up together for better visibility in the dark and turns off automatically with no operation for 10 minutes
  • Tubed tire used for both front and rear wheels along with 2-piece split wheels for easy repair

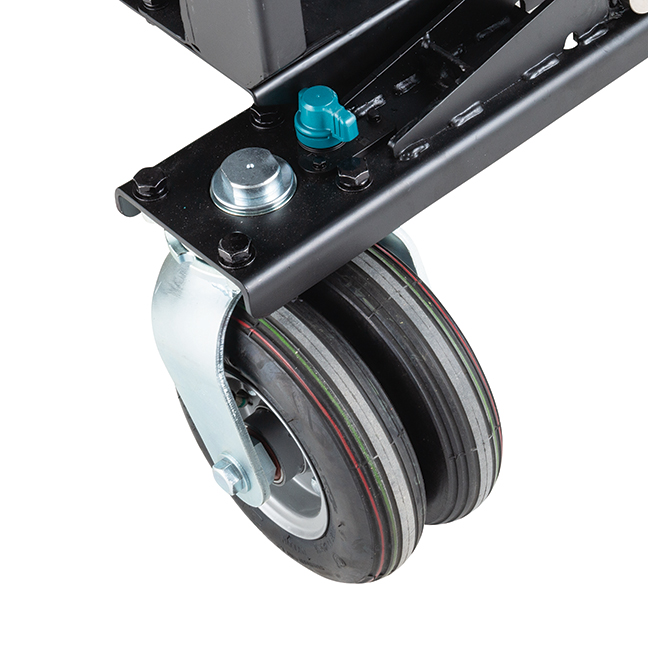

  • Double rear tires, each of which rotates independently, improve swivel performance (especially in U-turn when the rear wheels swivel 180º)
  • Rear wheel axle is designed to tilt to enable Front wheels (driving wheels) to stably touch the ground for reliable driving even on bumpy road surfaces
  • Handle height can be adjusted according to user's height without tool simply by turning 2 knob screws
  • Constant speed control feature automatically applies additional power to the motor to maintain speed under heavy load
  • Soft start for smooth start-ups make the unit easier to control and maneuver
  • Warning beeper comes standard to alert people around you for added safety
  • Includes a lock key to prevent unauthorized operation and theft

Items Included:Batteries and Charger Sold Separately.

  • CONVENIENCE: Electric lift feature reduces workload featuring 40-1/4" (1,020 mm) max lift height and 661 lbs (300 kg) max load capacity
  • PERFORMANCE: 100-minute runtime and up to 7.2km range using four BL1860B 18V LXT (6.0Ah) batteries
  • ADAPTABILITY: Enjoy flexibility with 3 forward speed settings (1.5km/h, 3.5km/h, or 5.0km/h), and effortlessly maneuver at 1.0km/h in reverse mode
  • 4-wheels with front-wheel drive system for stable load-carrying even with heavy loads
  • Equipped with a battery selection switch to choose which combination of 2 batteries to use with up to total 4 batteries installed for long run time
  • LED taillight and headlight lights up together for better visibility in the dark and turns off automatically with no operation for 10 minutes
  • Tubed tire used for both front and rear wheels along with 2-piece split wheels for easy repair
  • Double rear tires, each of which rotates independently, improve swivel performance (especially in U-turn when the rear wheels swivel 180º)
  • Rear wheel axle is designed to tilt to enable Front wheels (driving wheels) to stably touch the ground for reliable driving even on bumpy road surfaces
  • Handle height can be adjusted according to user's height without tool simply by turning 2 knob screws
  • Constant speed control feature automatically applies additional power to the motor to maintain speed under heavy load
  • Soft start for smooth start-ups make the unit easier to control and maneuver
  • Warning beeper comes standard to alert people around you for added safety
  • Includes a lock key to prevent unauthorized operation and theft

Items Included: Batteries and Charger Sold Separately.

Shipping Dimensions (Length x Width x Height) & Weight : 40.35 In. X 60.24 In. X 36.22 In. Weight : 443.1 Lb.

Specifications

Battery Capacities Two 18V LXT
Maximum Speed:
    Forward 1.5 / 3.5 / 5.0 km/h
    Reverse  1.0 km/h
Minimum Turning Radius (Outer diameter when turning with front wheel as axis)  45-1/4" (115 cm)
Maximum Climbing Capacity  12°
Maximum Load Capacity:
    On Flat Ground 661.4 lbs (300 kg)
    On Slope (3 ° - 12 °) 397 lbs (180kg)
Overall Dimensions (L x W x H)   55" x 28-3/4" x 38-1/4" (140 cm x 73 cm x 82 cm)
Net Weight  316 lbs (143.3 kg)
