LXT Technology

(Tool only)


DLM536Z

36V (18Vx2) LXT Brushless Cordless 21" Self-Propelled Lawn Mower w/XPT (Tool Only)

Suitable For Lawns Up To 2,300 square meters (Approx. 24,800 square feet)


LXT Technology LXT Technology LXT Technology
  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily

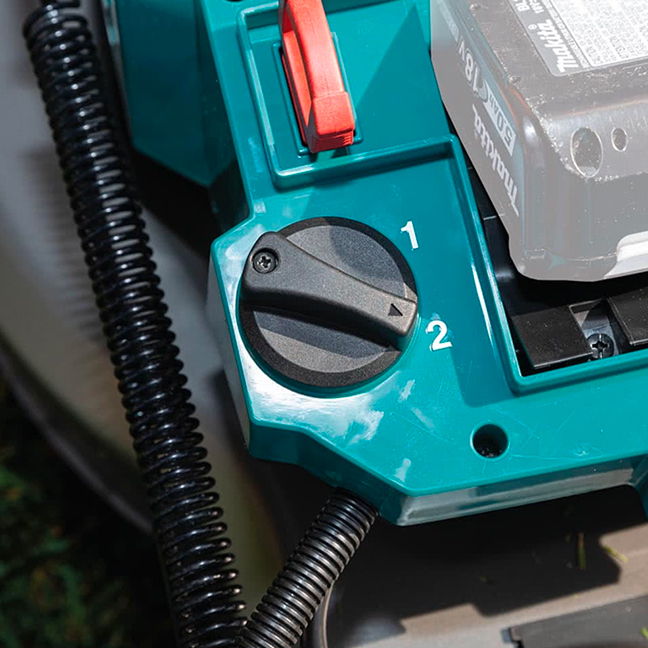

  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Large steel deck with 21” cutting width ensures the job is completed with fewer passes
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or side discharge

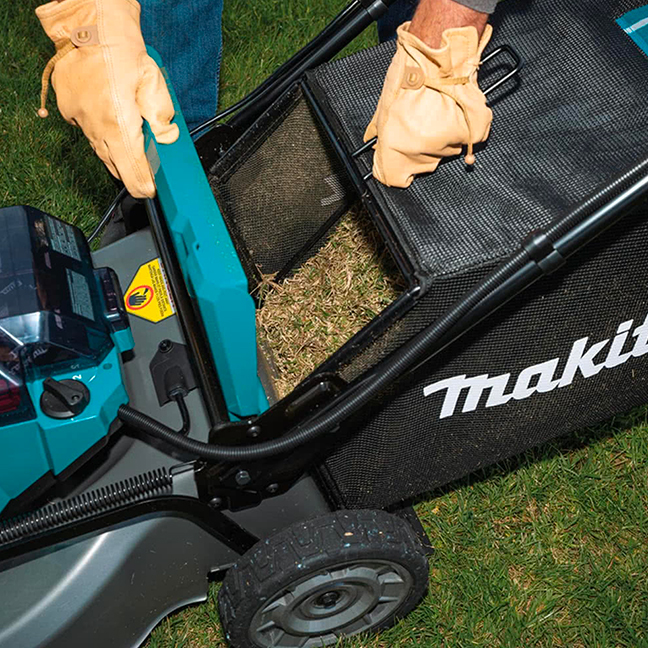

  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Rapid start means full power can be achieved in under 1 second
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

Items Included:Batteries and Charger Sold Separately. Rod 6 (327589-6), Side Discharge Mouth (459887-1), Socket Wrench 13 (782212-4), Socket Wrench 17 (782210-8), Mulching Plug Assembly (127516-1)

  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily
  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Large steel deck with 21” cutting width ensures the job is completed with fewer passes
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or side discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Rapid start means full power can be achieved in under 1 second
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

Items Included: Batteries and Charger Sold Separately. Rod 6 (327589-6), Side Discharge Mouth (459887-1), Socket Wrench 13 (782212-4), Socket Wrench 17 (782210-8), Mulching Plug Assembly (127516-1)

Product Dimensions (Length x Width x Height) & Weight : 18.9 In. X 39.76 In. X 25.39 In. Weight : 103.06 Lb.

Specifications

Battery Capacities Two 18V Li-Ion
Cutting Width 21" (534 mm)
Range of Height 13/16" - 3-15/16" (20 - 100 mm)
Step 10 Steps
Grass Box Capacity 70 L
No Load Speed  Normal mode: 2,800 RPM, Energy-saving mode: 2,300 RPM
Vibration Level 2.5 m/s²
Noise Level 78.1 dB(A)
Dimensions (L x W x H)  67-1/2” x 23-1/4"x 43” (1,715 mm x 590 mm x 1,095 mm)
Net Weight  91.3 lbs. (41.4 kg)

User Manual: DLM536 - EN FR SP.pdf

Parts Breakdown: DLM536PT4, DLM536Z - SEP2022.pdf
