XGT Technology

(Tool + Battery + Charger)


UC015GT101

40V max XGT Brushless Cordless 14" Rear Handle Chainsaw (5.0Ah Kit)

Power equivalent to a 42cc gas model

Toolless Chain Tension Adjustment

XGT Technology LXT Technology
  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Toolless bar mounting and chain tension adjustment for quick and easy set up and adjustment on the jobsite
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 5,020 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

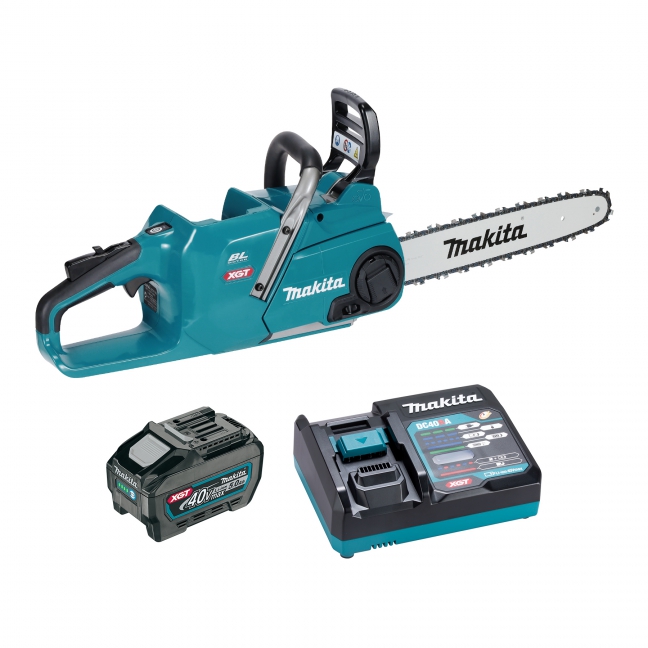

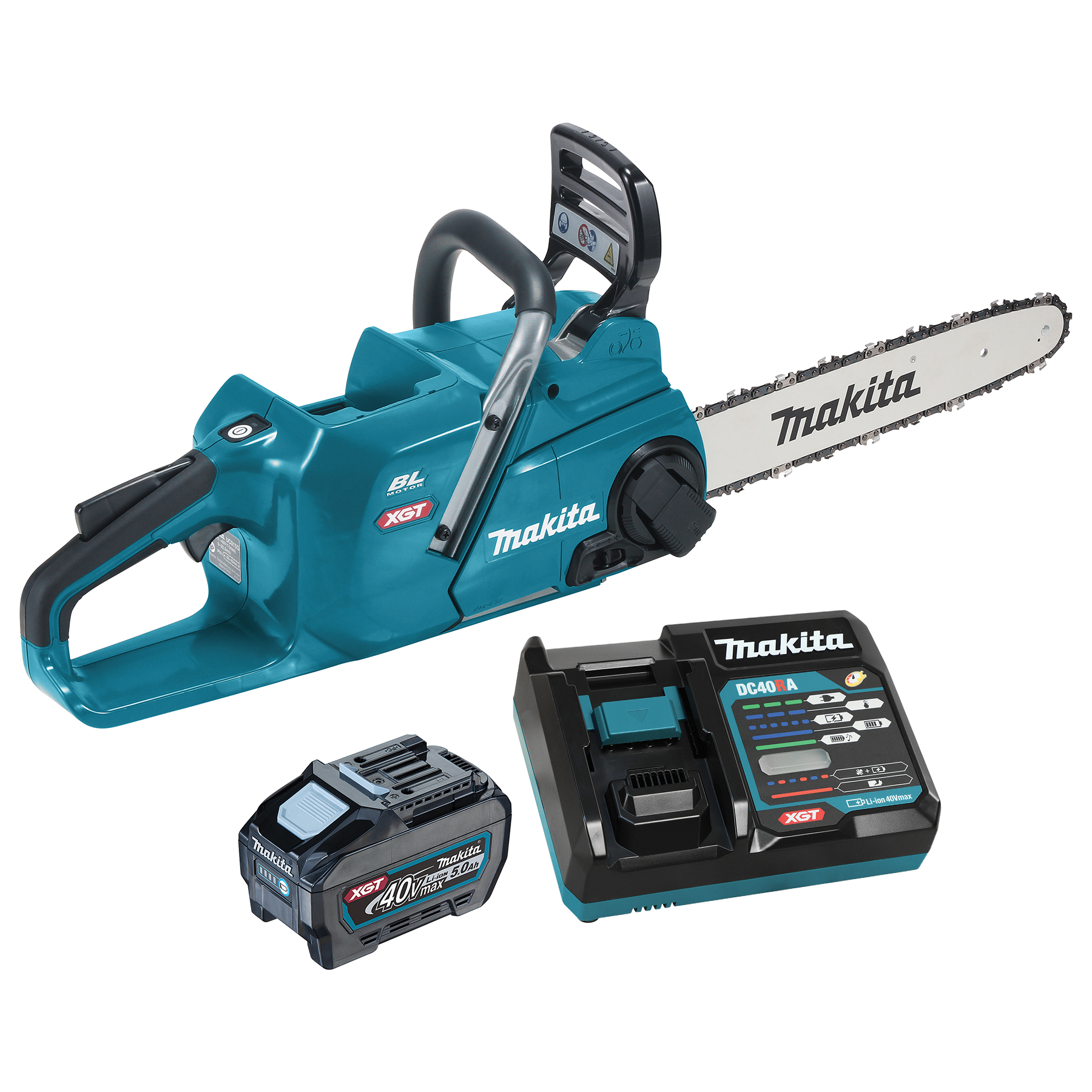

Items Included:40V Max (5.0Ah) Li-Ion Battery BL4050F (BL4050F), Rapid Charger (DC40RA), Battery Cover (412393-7), 14" Chain (191T91-3), 14" Guide Bar (191T87-4), Chain Cover (419288-5), Spike Bumper (347925-0), Wrench 13-16 (782023-7), Oil Supply (199897-3)

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Toolless bar mounting and chain tension adjustment for quick and easy set up and adjustment on the jobsite
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 5,020 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (5.0Ah) Li-Ion Battery BL4050F (BL4050F), Rapid Charger (DC40RA), Battery Cover (412393-7), 14" Chain (191T91-3), 14" Guide Bar (191T87-4), Chain Cover (419288-5), Spike Bumper (347925-0), Wrench 13-16 (782023-7), Oil Supply (199897-3)

Shipping Dimensions (Length x Width x Height) & Weight : 12.01 In. X 21.38 In. X 10.43 In. Weight : 21.8 Lb.

Specifications

Guide Bar Length 14" (350 mm)
Chain Pitch / Gauge 0.325" / 43G
Chain Speed 0 - 5,020 FPM (0 - 1,530 m/min)
Vibration Level  (unavailable)
Noise Level (unavailable)
Overall Length 17-1/2" (445 mm)
Net Weight 12.8 lbs (5.8 kg)

User Manual: UC015G - EN FR SP.pdf

Parts Breakdown: UC015GT101, UC015GZ - NOV2022.pdf
