XGT Technology

(Tool only)


UC012GZ

40V max XGT Brushless Cordless 16" Rear-Handle Chainsaw w/Wet Guard (Tool Only)

Power Equivalent To A 42cc Gasoline Chainsaw

Captive Bar Nuts

XGT Technology LXT Technology
  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact

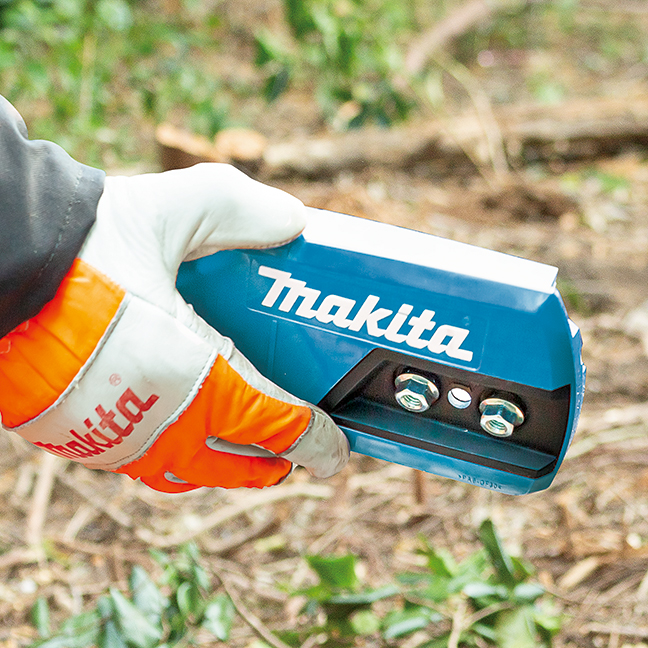

  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 5,020 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Wet guard with IPX4 rating offers maximum protection in wet environments
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately. 16" Chain (191T92-1), 16" Guide Bar (191T88-2), Chain Cover (419242-9), Spike Bumper (347925-0), Wrench 13-16 (782023-7), Oil Supply (199897-3)

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 5,020 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Wet guard with IPX4 rating offers maximum protection in wet environments
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. 16" Chain (191T92-1), 16" Guide Bar (191T88-2), Chain Cover (419242-9), Spike Bumper (347925-0), Wrench 13-16 (782023-7), Oil Supply (199897-3)

Specifications

Battery Capacities 40V Max Li-Ion
Guide Bar Length  16" (400 mm)
Chain Pitch / Gauge 0.325" / 43G
Chain Speed 0 - 5,020 FPM (0 - 1,530 m/min)
Vibration Level  (unavailable)
Noise Level (unavailable)
Overall Length 17-1/2" (445 mm)
Net Weight 9.9 lbs (4.5 kg)

User Manual: UC012G - EN FR SP.pdf

Parts Breakdown: UC012GZ - NOV2022.pdf
