DTD157ZB

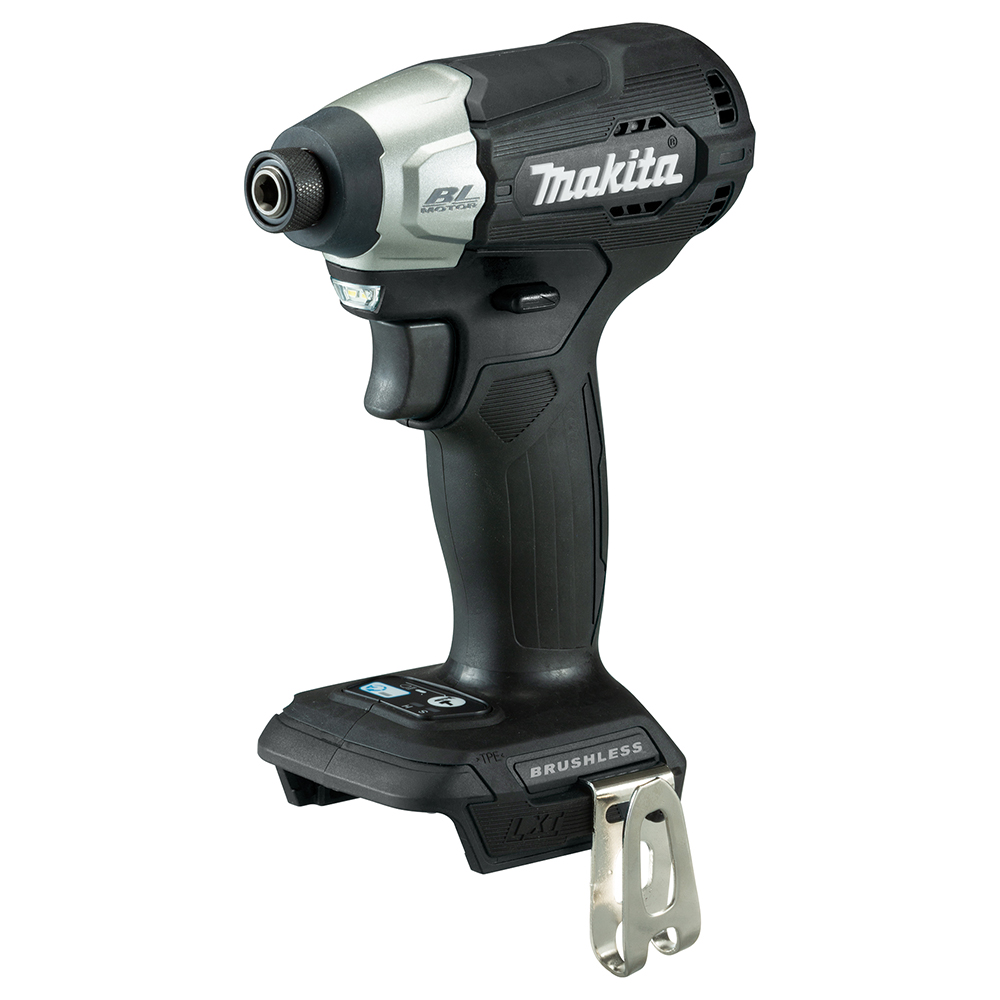

1/4" Sub-Compact Cordless Impact Driver with Brushless Motor

SUB-COMPACT Size - PROFESSIONAL Power

Variable 2-Speed, Reversible

LXT Technology Sub Compact LXT Technology 18V Battery

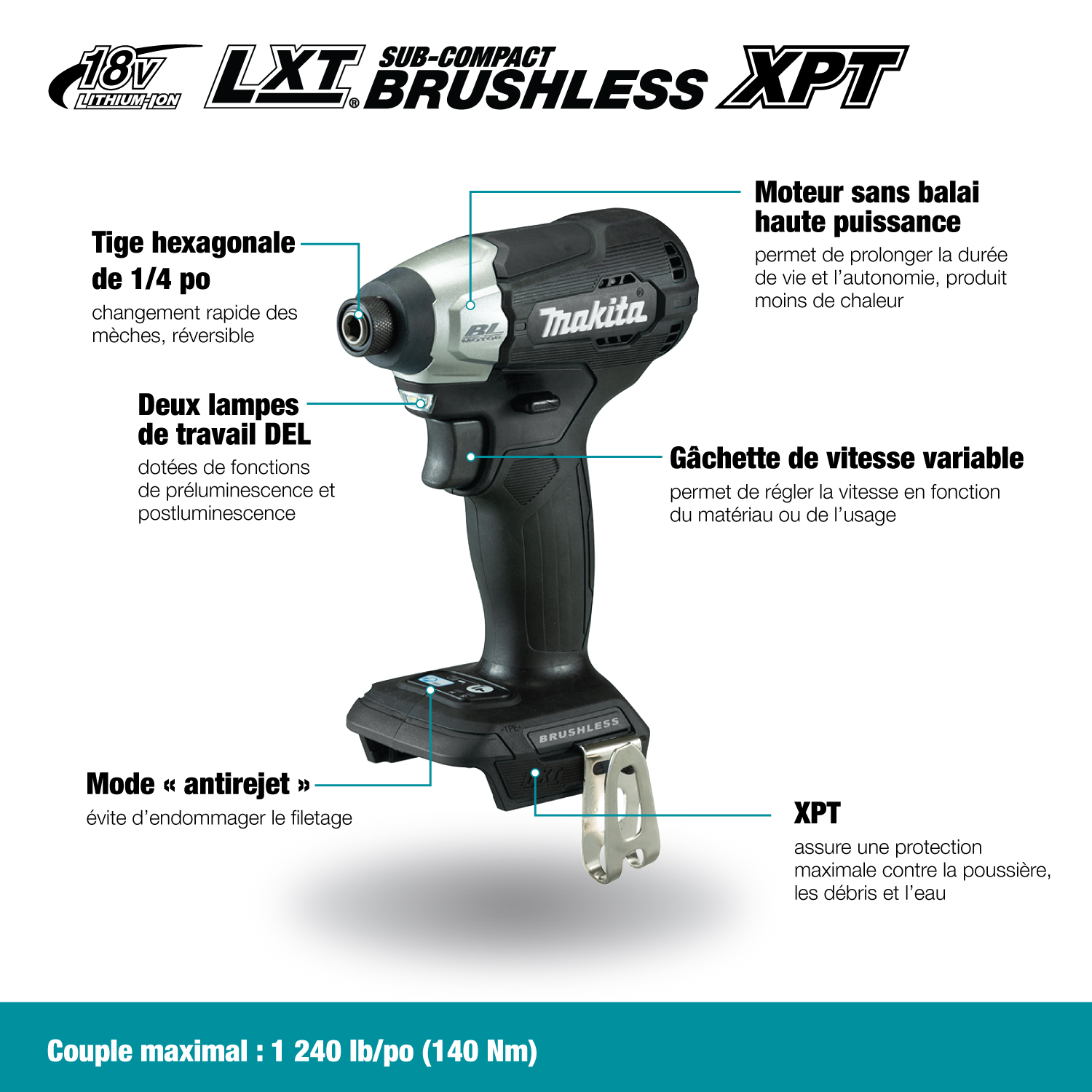

  • Sub-compact size (only 5-1/4" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

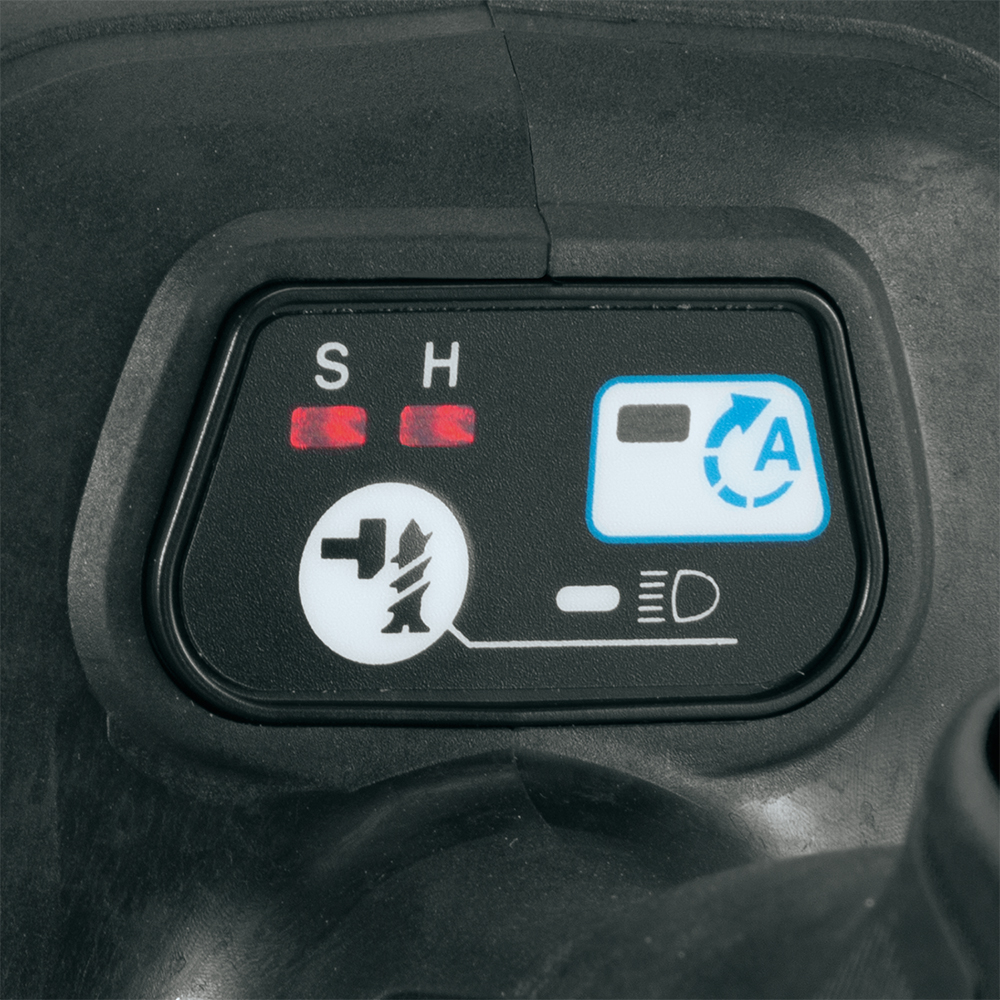

  • 2 stage impact power selection + 'Cam-Out' mode ensures precise fastening and prevents damage to fasteners
  • 'Cam-Out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (346449-3)

  • Sub-compact size (only 5-1/4" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection + 'Cam-Out' mode ensures precise fastening and prevents damage to fasteners
  • 'Cam-Out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (346449-3)

Specifications

Battery Capacities: 18V Li-Ion
Hex Shank 1/4"
No Load Speed:  Hard 0 - 3,000 RPM, Soft 0 - 1,300 RPM
Impacts Per Minute:  Hard 0 - 4,200 IPM, Soft 0 - 2,000 IPM
Maximum Torque  1,240 in. lbs (140 Nm)
Vibration Level  11.5 m/s²
Noise Level 95 dB(A)

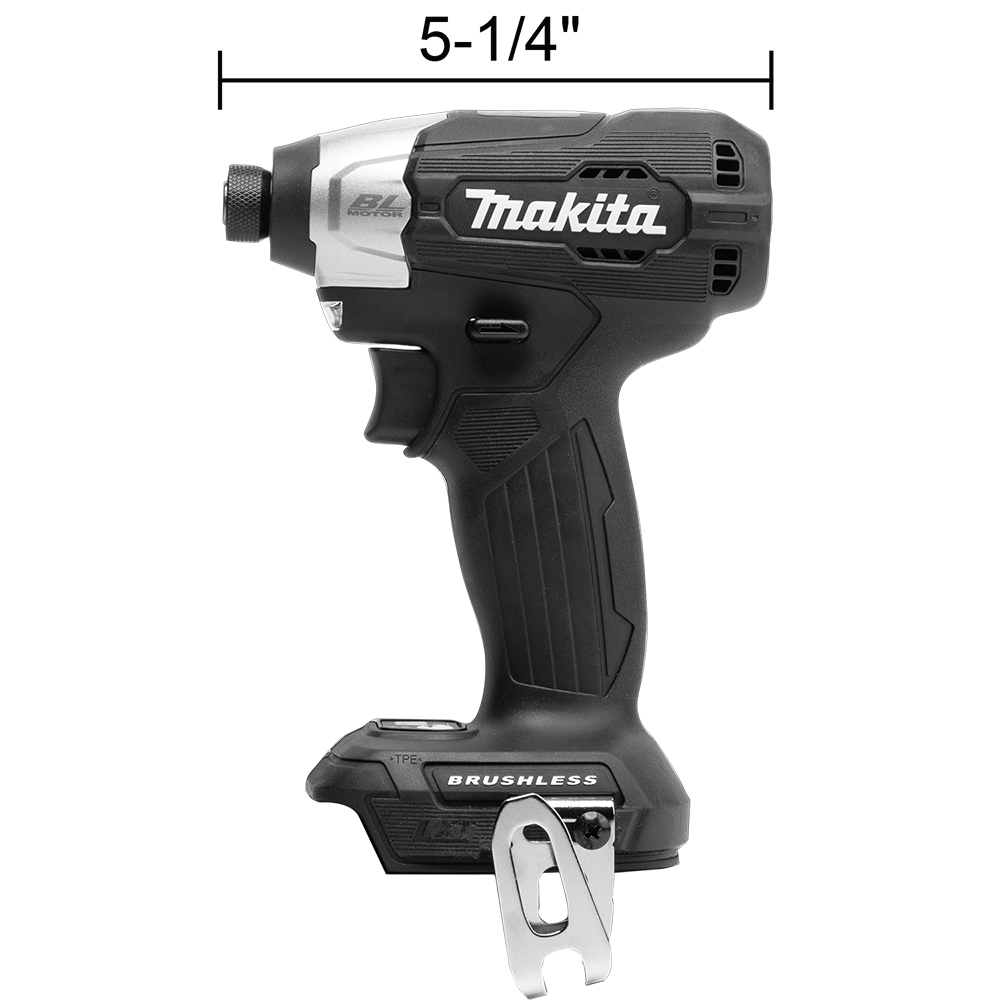

Overall Length  5-1/4" (133 mm)
Net Weight 1.8 lbs (0.8 kg)
18V LXT Cordless 500 lm LED Worklight (Tool Only)

18V LXT Cordless 500 lm LED Worklight (Tool Only)

Read More
Combo Kit Insert Trays / Interlocking Plastic Cases

Combo Kit Insert Trays / Interlocking Plastic Cases

Read More

User Manual: DTD157 - EN FR SP.pdf

Parts Breakdown: DTD157SFB, DTD157ZB - JUN2022.pdf
