LXT Technology

(Tool + Batteries + Charger)


DTW285XVTE

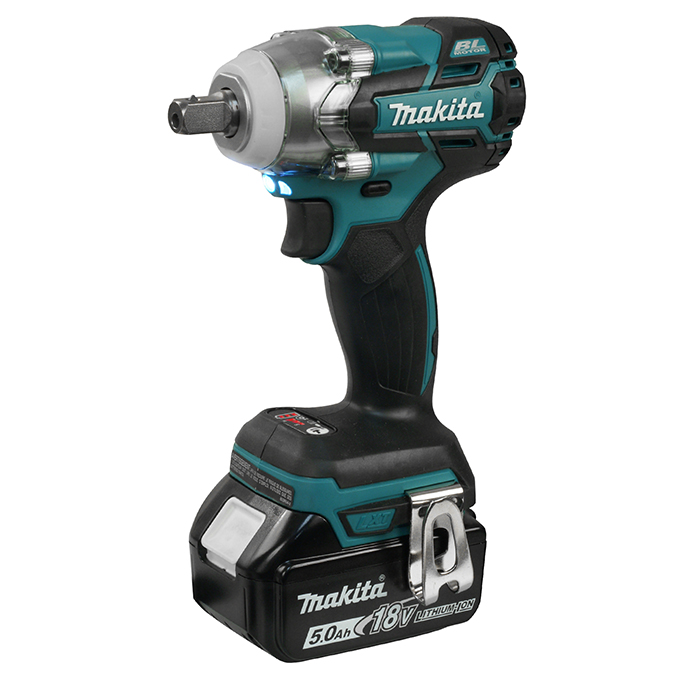

1/2" Cordless Impact Wrench with Brushless Motor

Features Increased Maximum Fastening Torque And Ultra-Compact Design

1/2" Square Drive, Variable 3-Speed, Reversible

LXT Technology LXT Technology 18V 5.0Ah Fuel Guage Battery
  • Suitable for use in high-voltage environments and applications
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

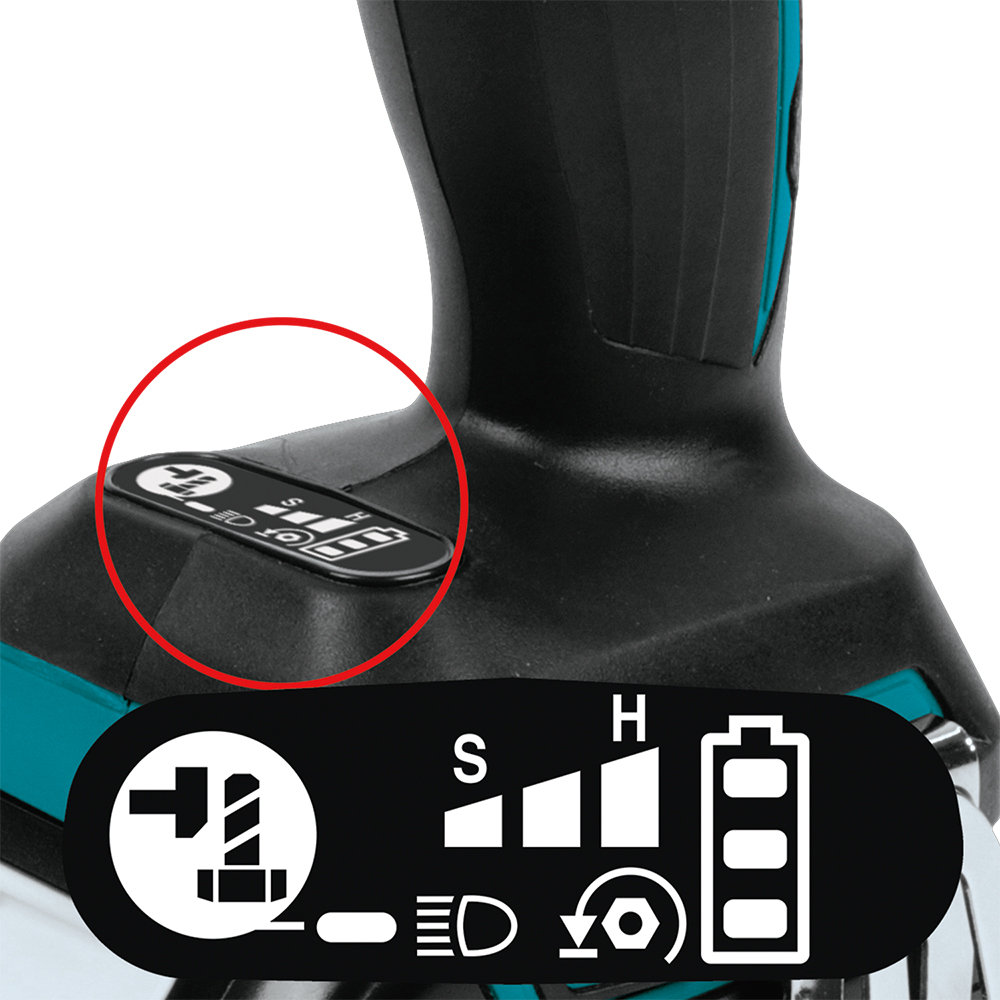

  • 3 stage impact power selection prevents over-tightening of fasteners
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED job light with pre-glow and after-glow feature and independent on/off switch
  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included:Two 18V (5.0 Ah) Li-Ion Batteries BL1850B (196675-2), Rapid Charger, Battery Cover, Hook (346449-3), Plastic Carrying Case (824812-5)

  • Suitable for use in high-voltage environments and applications
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 3 stage impact power selection prevents over-tightening of fasteners
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED job light with pre-glow and after-glow feature and independent on/off switch
  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: Two 18V (5.0 Ah) Li-Ion Batteries BL1850B (196675-2), Rapid Charger, Battery Cover, Hook (346449-3), Plastic Carrying Case (824812-5)

Specifications

Battery Capacities: 18V Li-Ion
Square Drive 1/2"
No Load Speed 0 - 1,600 / 2,100 / 2,800 RPM
Impacts Per Minute 0 - 1,800 / 2,600 / 3,500 IPM
Maximum Fastening Torque  210 ft.lbs (280 Nm)
Vibration Level 11.5 m/s2
Noise Level 96 dB(A)
Overall Length 5-3/4" (147 mm)
Net Weight 2.5 lbs (1.1 kg)
