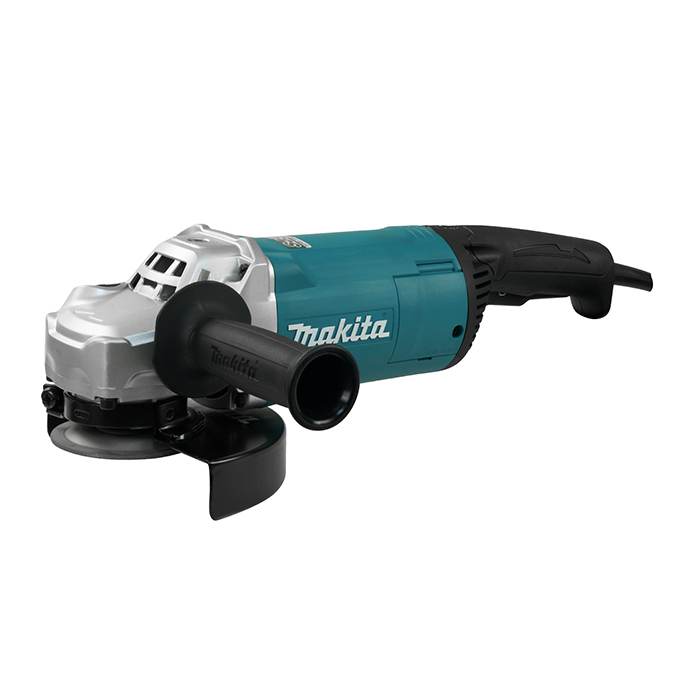

GA7061R

7" Angle Grinder

"SJS II" Technology, Soft Start, Anti-Restart Feature

SJS Technology
  • Heavy duty design, including improved armature and motor housing for maximum jobsite durability
  • Newly designed slanted shaft lock enables easier engagement by operator
  • Improved brush holders extends working life of carbon brushes
  • Transparent cover protects serial number against wear
  • Soft start feature gradually increases speed to eliminate start up shock
  • Anti-Restart feature prevents tool from operating if it is plugged in when locked in the on position
  • SJS II (Super Joint System II) reduces vibration and prevents kickback during wheel lock up for optimal tool and operator protection
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features "zig-zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Wheel Cover (122939-8), Inner Flange (224317-9), Lock Nut 5/8"-45 (224486-6)

  • Heavy duty design, including improved armature and motor housing for maximum jobsite durability
  • Newly designed slanted shaft lock enables easier engagement by operator
  • Improved brush holders extends working life of carbon brushes
  • Transparent cover protects serial number against wear
  • Soft start feature gradually increases speed to eliminate start up shock
  • Anti-Restart feature prevents tool from operating if it is plugged in when locked in the on position
  • SJS II (Super Joint System II) reduces vibration and prevents kickback during wheel lock up for optimal tool and operator protection
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features "zig-zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Wheel Cover (122939-8), Inner Flange (224317-9), Lock Nut 5/8"-45 (224486-6)

Specifications

Maximum Capacities:
Grinding Wheel 7" (180 mm)
Sanding Disc 7" (180 mm)
Wire Cup Brush 4-3/8" (110 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed 8,500 RPM
AMPS (120V) 15.0 A
Vibration Level 7.0 m/s2
Noise Level 91 dB(A)
Overall Length 17-3/4" (450 mm)
Net Weight 12.1 lbs (5.5 kg)
