(Tool only)

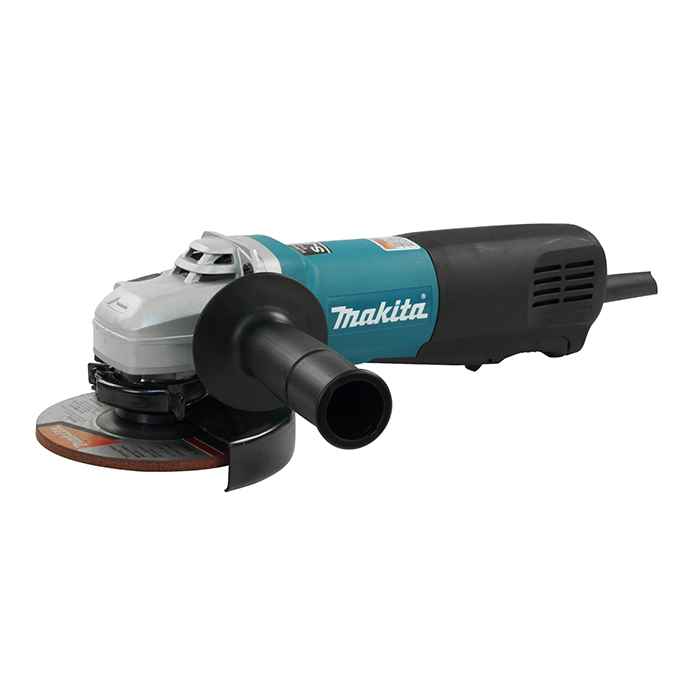

9565P

5 "Angle Grinder

Two Stage Safety Paddle Switch (AC)

"SJS" Technology

SJS Technology
  • "SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
  • Labyrinth construction seals motor and bearings from contamination
  • Large paddle switch for easy operation right or left handed
  • Removable side handle can be mounted on left or right side of tool
  • Rotatable gear housing can be positioned at every 90o
  • Advanced dust-proof construction

Items Included:5" Depressed Centre Wheel (1 Ea. A-95962-25), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4)

  • "SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
  • Labyrinth construction seals motor and bearings from contamination
  • Large paddle switch for easy operation right or left handed
  • Removable side handle can be mounted on left or right side of tool
  • Rotatable gear housing can be positioned at every 90o
  • Advanced dust-proof construction

Items Included: 5" Depressed Centre Wheel (1 Ea. A-95962-25), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4)

Specifications

Maximum Capacities:
Grinding Wheel 5" (125 mm)
Sanding Disc 5" (125 mm)
Wire Cup Brush 3-1/2" (90 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed: 11,900 RPM
AMPS (120V): 10.0 A
Vibration Level 9.5 m/s2
Noise Level 85 dB(A)
Overall Length: 12-1/8" (307 mm)
Net Weight: 5.3 lbs (2.4 kg)
