DFT124RZ

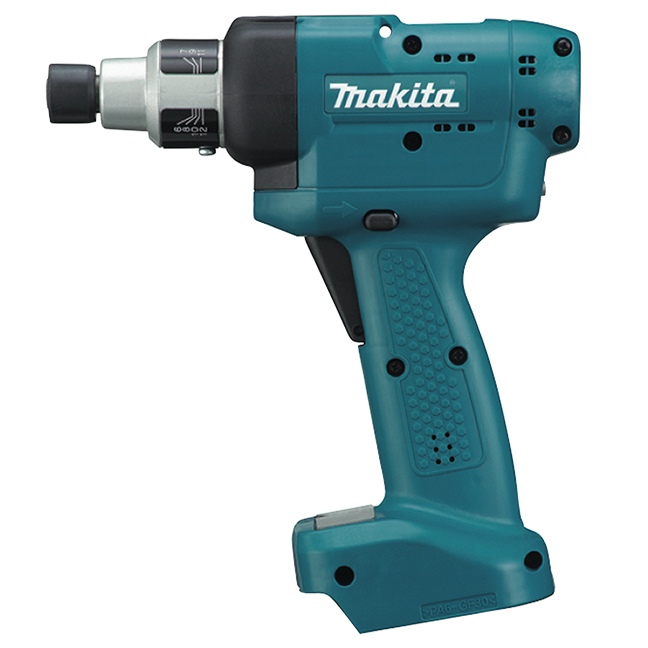

14.4 V Torque Tracer Cordless Precise Torque Screwdriver

Bluetooth® Enabled For Wireless Data Capture Of Fastening Torque And Angle

Reversible

LXT Technology
  • Precise torque control consistently delivers repeatability of +/- 10%
  • Built in LED to illuminate tight spaces
  • Using optional receiver, can record torque and angle data
  • Highly accurate spring clutch
  • Uses LXT technology for long battery life
  • Design and built to withstand high volume assembly processes

Items Included:Tool Only. Batteries and Charger Sold Separately. Torque Adjustment Tool (765027-4)

  • Precise torque control consistently delivers repeatability of +/- 10%
  • Built in LED to illuminate tight spaces
  • Using optional receiver, can record torque and angle data
  • Highly accurate spring clutch
  • Uses LXT technology for long battery life
  • Design and built to withstand high volume assembly processes

Items Included: Tool Only. Batteries and Charger Sold Separately. Torque Adjustment Tool (765027-4)

Product Dimensions (Length x Width x Height) & Weight : 9.33 In. X 8.07 In. X 3.19 In. Weight : 4.85 Lb.

Specifications

Battery Capacities 14.4V Li-Ion
Hex Shank 1/4"
No Load Speed 600 RPM
Maximum Torque   106 in. lbs (12 Nm)
Vibration Level 2.5 m/s2
Noise Level 70 dB(A)
Width 2-13/16" (72 mm)
Height (with battery) 10-15/32" (266 mm)
Length 7-1/2" (191 mm)
Net Weight 2.2 lbs (1.0 kg)
