LXT Technology

(Tool only)


DTP141Z

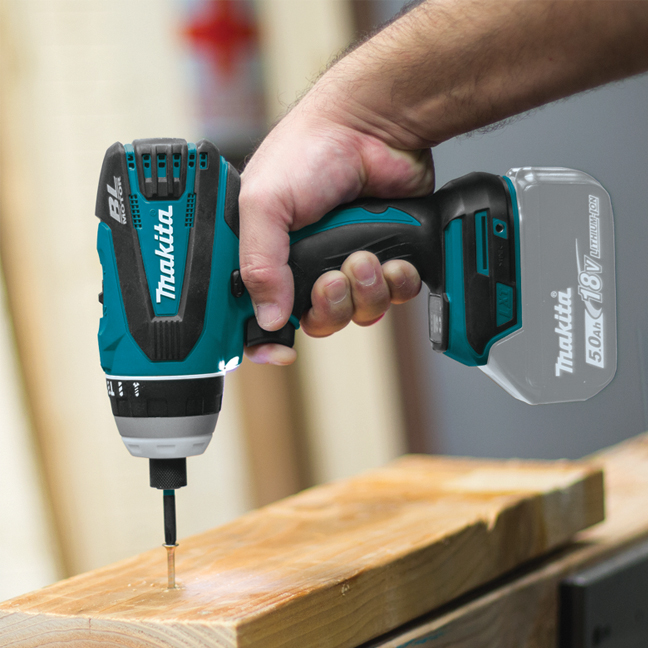

1/4" Cordless 4-Mode Impact Driver with Brushless Motor

Impact Driver, Hammer Driver-Drill, Driver-Drill And Screwdriver All In One!

Compact and Lightweight Design with Brushless DC Motor

Variable Speed, Reversible

LXT Technology 18V Battery
  • Impact driver, hammer driver-drill, driver-drill, and screwdriver all in one, with mechanical high/low speed switch for maximum versatility on the jobsite
  • 3 stage impact power selection provides up to 1,330 in. lbs max. fastening torque
  • TEK mode reduces impact power during final stages of fastener seating, preventing over tightening of fasteners (screwdriver mode only)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Change ring style mode selector for ease of use and increased durability
  • Electronic clutch mechanism with 18 torque settings provides torque range of 6.2 - 106.21 in. lbs. for a wide range of applications
  • Electric brake stops bit rotation immediately for maximum operator safety
  • LED job light with pre-glow / afterglow feature and independent off-switch

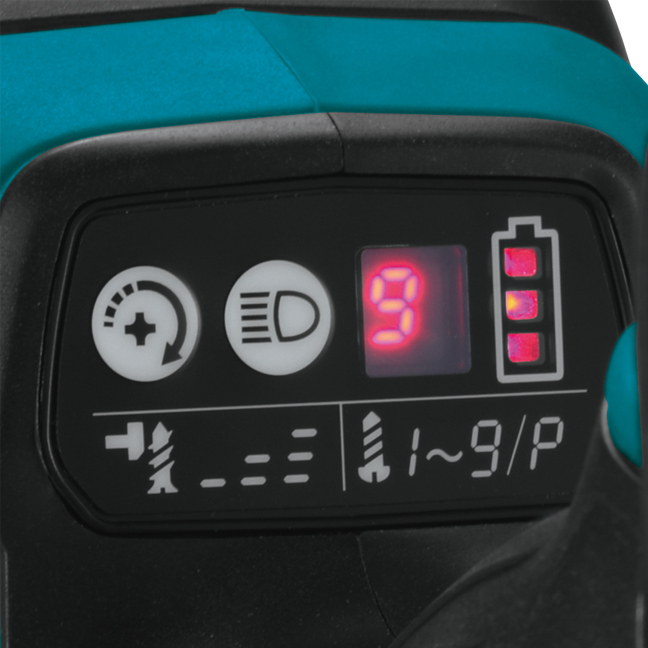

  • LED charge level indicator displays approximate remaining battery power
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (346449-3)

  • Impact driver, hammer driver-drill, driver-drill, and screwdriver all in one, with mechanical high/low speed switch for maximum versatility on the jobsite
  • 3 stage impact power selection provides up to 1,330 in. lbs max. fastening torque
  • TEK mode reduces impact power during final stages of fastener seating, preventing over tightening of fasteners (screwdriver mode only)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Change ring style mode selector for ease of use and increased durability
  • Electronic clutch mechanism with 18 torque settings provides torque range of 6.2 - 106.21 in. lbs. for a wide range of applications
  • Electric brake stops bit rotation immediately for maximum operator safety
  • LED job light with pre-glow / afterglow feature and independent off-switch
  • LED charge level indicator displays approximate remaining battery power
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (346449-3)

Specifications

Battery Capacities: 18V Li-Ion
Hex Shank 1/4"
Impacts Per Minute:
Impact Driver Mode (Soft/Medium/Hard) 0 - 1,200 / 0 - 2,400 / 0 - 3,200 IPM
Hammer Drill Mode (Low/High) 0 - 8,400 / 0 - 32,400 BPM
No Load Speed:
Impact Driver Mode (Soft/Medium/Hard) 0 - 1,300 / 0 - 2,200 / 0 - 2,700 RPM
Drill Mode (Low/High) 0 - 700 / 0 - 2,700 RPM
Screwdriver Mode (Low/High) 0 - 600 / 0 - 2,300 RPM
Maximum Torque:
Impact Driver Mode 1,330 in.lbs (150 Nm)
Drill Mode 142 in. lbs (16 Nm)
Vibration Level 13.0 m/s2 (Concrete)
Noise Level 85 dB(A)
Overall Length 6-3/4" (171 mm)
Net Weight 2.7 lbs (1.2 kg)
