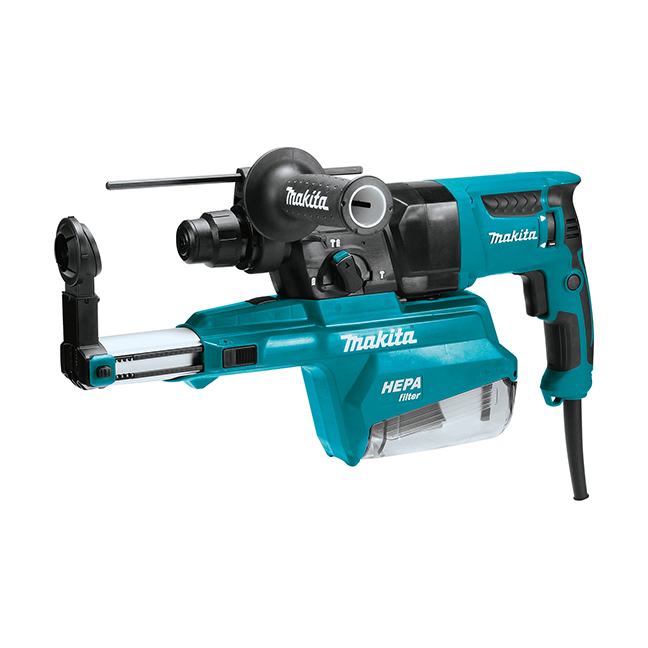

1" Rotary Hammer

SDS-PLUS Shank

Hammer & Rotation / Hammer Only / Rotation Only

Variable Speed, Reversible

Integrated dust extraction system with HEPA^TM filter captures harmful silica dust at point of origin for virtually dust-free operation and reduced harm to workers
Ideal for use in dust sensitive environments, e.g. hospitals, healthcare facilities, offices, facilities, institutions and more!
HEPA^TM filter offers 99.75% efficiency
Anti-Vibration Technology (AVT^TM) system incorporates an active dynamic vibration absorbing counterbalance spring to actively counteract the vibration of the tool for greatly reduced transmission to the operator
Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
Variable speed trigger allows operator to adjust speed based on materials or application
40 angle bit positions enable chisels to be positioned at optimum angle of operation
One-touch sliding chuck for easy bit installation and removal
Ergonomic soft rubber grip for vibration absorption and comfortable operation

Items Included:Side Handle (158057-6), Depth Gauge (324219-0), Five Sealing Caps (424474-5), Dust Collector (136018-6), Plastic Carrying Case (821722-7)

Where to buy

Integrated dust extraction system with HEPA^TM filter captures harmful silica dust at point of origin for virtually dust-free operation and reduced harm to workers
Ideal for use in dust sensitive environments, e.g. hospitals, healthcare facilities, offices, facilities, institutions and more!
HEPA^TM filter offers 99.75% efficiency
Anti-Vibration Technology (AVT^TM) system incorporates an active dynamic vibration absorbing counterbalance spring to actively counteract the vibration of the tool for greatly reduced transmission to the operator
Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
Variable speed trigger allows operator to adjust speed based on materials or application
40 angle bit positions enable chisels to be positioned at optimum angle of operation
One-touch sliding chuck for easy bit installation and removal
Ergonomic soft rubber grip for vibration absorption and comfortable operation

Items Included: Side Handle (158057-6), Depth Gauge (324219-0), Five Sealing Caps (424474-5), Dust Collector (136018-6), Plastic Carrying Case (821722-7)

Product Dimensions (Length x Width x Height) & Weight : 7.87 In. X 19.21 In. X 4.84 In. Weight : 16.53 Lb.

Specifications

Bit Type	SDS-PLUS
Maximum capacities:
Concrete	1" (26 mm)
Steel	1/2" (13 mm)
Wood	1-1/4" (32 mm)
No Load Speed	0 - 1,200 RPM
Blows Per Minute	0 - 4,600 BPM
Impact Energy	2.9 J (2.1 ft. lbs)
AMPS (120V)	7.0 A
Vibration Level	11.5 m/s²
Noise Level	92 dB(A)
Overall Length	23-3/4" (604 mm)
Net Weight	9.3 lbs (4.2 kg)
