(Tool only)


DLS600Z

6-1/2" Cordless Dual Compound Mitre Saw with Brushless Motor & Laser

Incorporates Makita's Deep And Exact Cutting Technology (DXT) Up To 3-5/8" Cuts In 2x Material


LXT Technology ADT 18V Battery
  • Compact size and weight ideal for cutting small materials, including molding, casing and trim, flooring, dowels, DIY, hobby and more!
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • 3 stage gear reduction system increases cutting capacity vs. traditional mitre saws

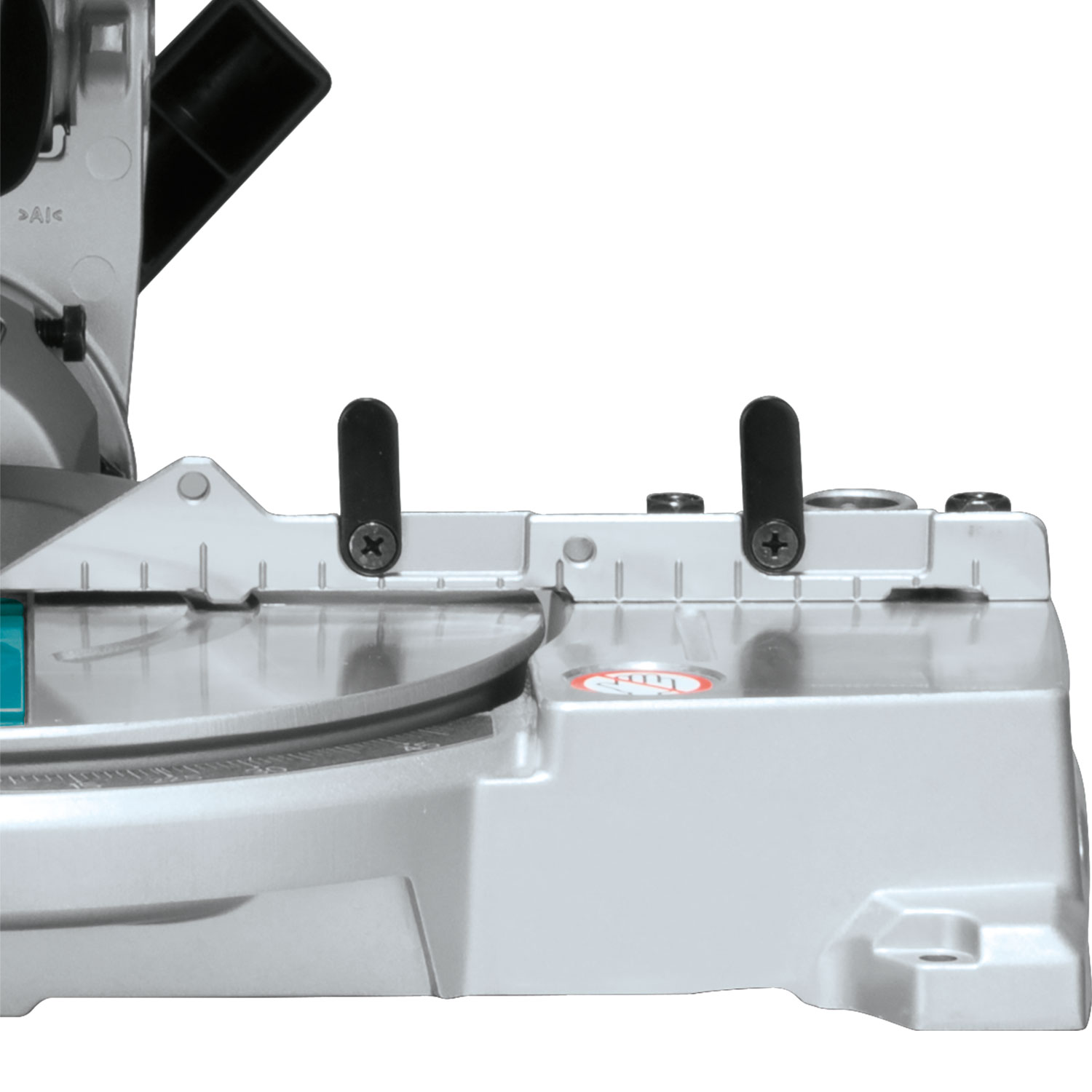

  • Mini sub-fence provides material support for vertical and left bevel cuts
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Factory calibrated class II laser enables accurate alignment of blade and material

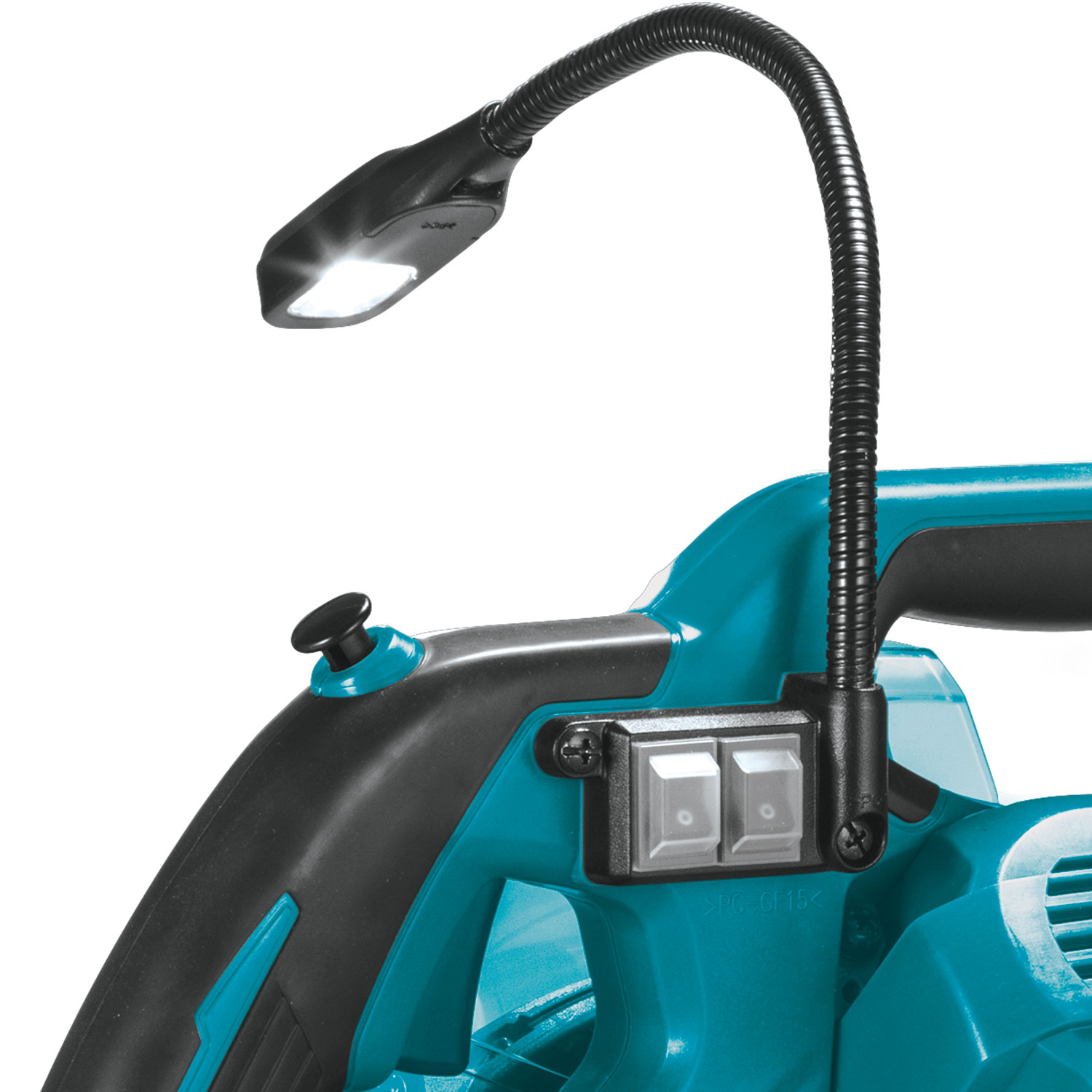

  • Adjustable position LED job light successfully illuminates cutting area
  • LED charge level indicator displays approximate remaining battery power
  • Bevel capacity of 46o left or right with positive stop at 45o
  • Mitre capacity of 52o left or right with positive stops at 0o, 15o, 22.5o, 30o & 45o
  • 2-stage safety switch for increased operator safety
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

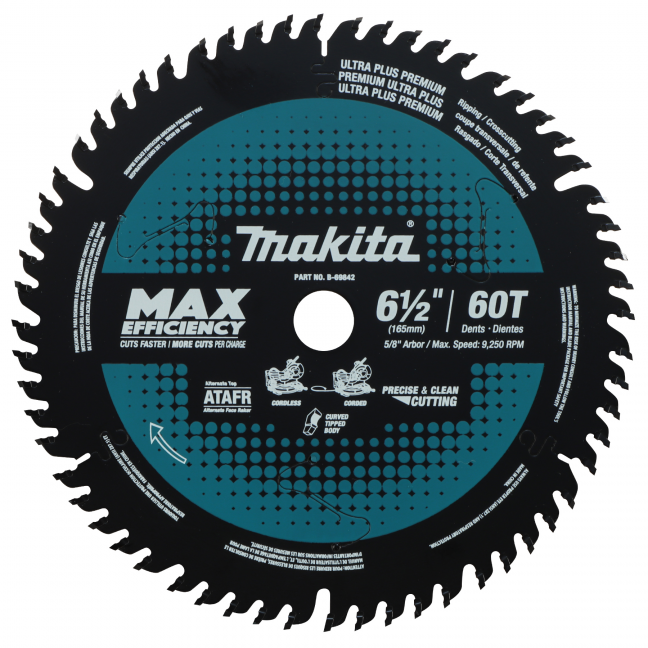

Items Included:Tool Only. Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 60T (B-69842), Dust Bag (122884-7), Vertical Vise (122940-3), Triangle Rule (762001-3), Sub-Fence (126697-8), Hex Wrench 2.5 (783208-8), Hex Wrench 5 (783203-8)

  • Compact size and weight ideal for cutting small materials, including molding, casing and trim, flooring, dowels, DIY, hobby and more!
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • 3 stage gear reduction system increases cutting capacity vs. traditional mitre saws
  • Mini sub-fence provides material support for vertical and left bevel cuts
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Factory calibrated class II laser enables accurate alignment of blade and material
  • Adjustable position LED job light successfully illuminates cutting area
  • LED charge level indicator displays approximate remaining battery power
  • Bevel capacity of 46o left or right with positive stop at 45o
  • Mitre capacity of 52o left or right with positive stops at 0o, 15o, 22.5o, 30o & 45o
  • 2-stage safety switch for increased operator safety
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 60T (B-69842), Dust Bag (122884-7), Vertical Vise (122940-3), Triangle Rule (762001-3), Sub-Fence (126697-8), Hex Wrench 2.5 (783208-8), Hex Wrench 5 (783203-8)

Specifications

Battery Capacities 18V Li-Ion
Blade Diameter 6-1/2" (165 mm)
Arbor 5/8" (15.88 mm)
No Load Speed 5,000 RPM
Vibration Level 2.5 m/s2
Noise Level 90 dB(A)
Dimensions (L x W x H) 13-3/8" x 15-3/4" x 17-1/4" (340 mm x 400 mm x 440 mm)
Net Weight 13.3 lbs (6.0 kg)
