You are here: Home / Tool / Cordless / 18V LXT / DRT50ZX4

LXT Technology

(Tool only)


DRT50ZX4

Cordless Compact Router with Brushless Motor

Makita's FIRST CORDLESS ROUTER!!

Variable Speed

LXT Technology 18V Battery
  • Accepts Makita and other industry standard 2 piece template guides
  • Brushless (BL) DC motor generates less heat buildup and is ideal for prolonged use in manufacturing and production applications
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load

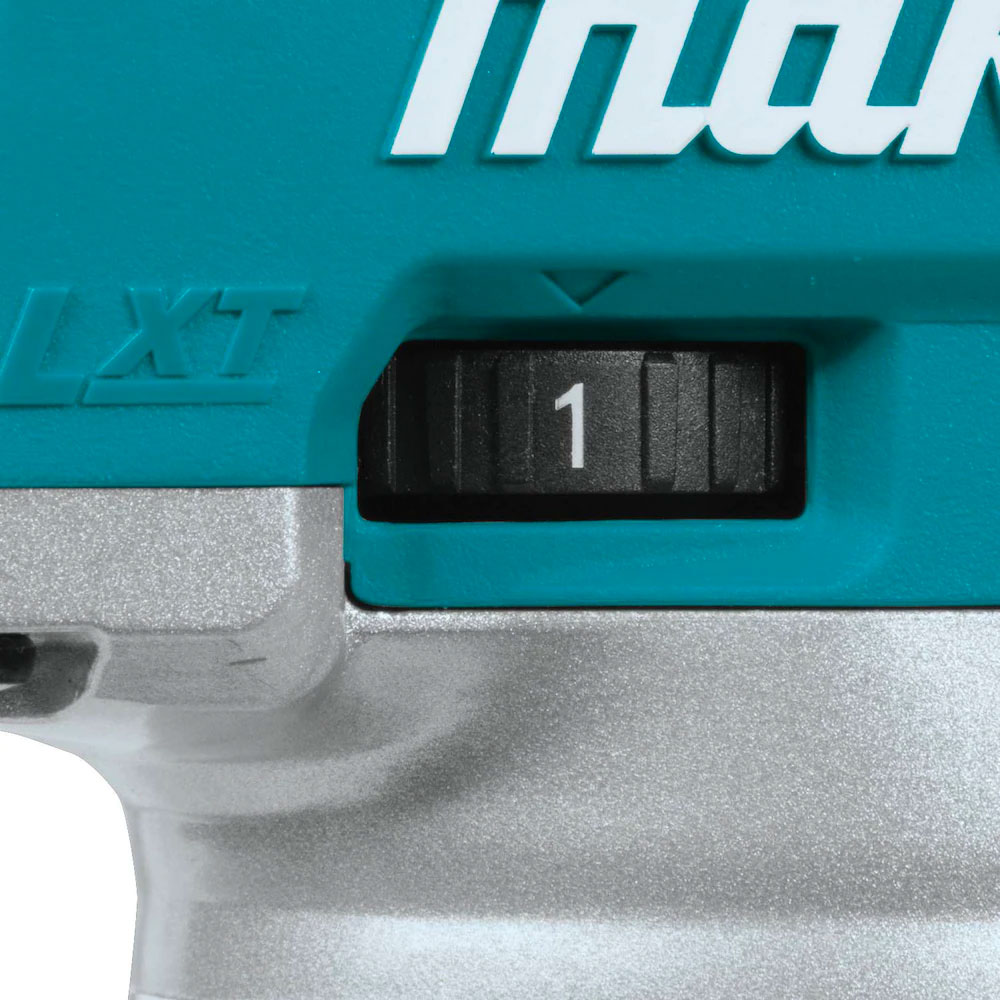

  • Variable speed dial allows operator to adjust speed based on materials or application
  • Flat top design provides a stable platform when changing bits
  • Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
  • Aluminum base and housing offer increased durability and accuracy
  • Push button ON/OFF and LOCK/UNLOCK control
  • Trimmer base assembly provides smooth, fast cutting and easy handling
  • Optional plunge base assembly with precision cutting depth adjustment for accurate plunge cutting applications
  • Optional offset base assembly allows operator to make close to wall cuts of just 3/4"
  • Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials

Items Included:Tool Only. Batteries and Charger Sold Separately. 1/4" Collet Cone (763637-1), 3/8" Collet Cone (763619-3), Trimmer Guide (122703-7), Template Guide 10 (343577-5), Wrench 13 (781039-9), Wrench 22 (781011-1), Dust Nozzle Set (195559-1)

  • Accepts Makita and other industry standard 2 piece template guides
  • Brushless (BL) DC motor generates less heat buildup and is ideal for prolonged use in manufacturing and production applications
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Flat top design provides a stable platform when changing bits
  • Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
  • Aluminum base and housing offer increased durability and accuracy
  • Push button ON/OFF and LOCK/UNLOCK control
  • Trimmer base assembly provides smooth, fast cutting and easy handling
  • Optional plunge base assembly with precision cutting depth adjustment for accurate plunge cutting applications
  • Optional offset base assembly allows operator to make close to wall cuts of just 3/4"
  • Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials

Items Included: Tool Only. Batteries and Charger Sold Separately. 1/4" Collet Cone (763637-1), 3/8" Collet Cone (763619-3), Trimmer Guide (122703-7), Template Guide 10 (343577-5), Wrench 13 (781039-9), Wrench 22 (781011-1), Dust Nozzle Set (195559-1)

Specifications

Battery Capacities: 18V Li-Ion
Collet Capacity 1/4", 3/8" (6.35 mm , 9.53 mm)
No Load Speed 10,000 - 30,000 RPM
Vibration Level 4.5 m/s2
Noise Level 78 dB(A)
Overall Height 8-7/8" (226 mm)
Net Weight 3.4 lbs (1.5 kg)
