Home / Tool / / / DFL122FZ

LXT Technology

(Tool only)


DFL122FZ

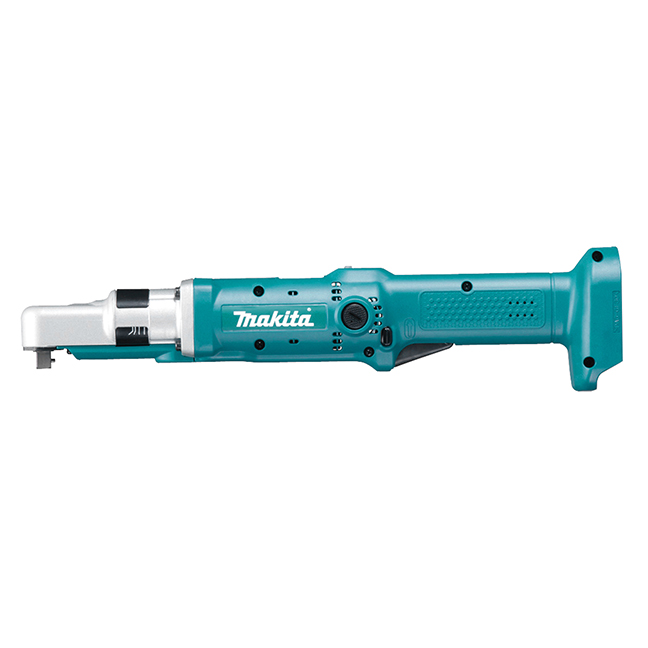

14.4V Cordless Precise Torque Angle Wrench

Precise Torque Control Consistently Delivers Repeatability Of +/- 10%

Reversible

LXT Technology
  • Built in LED to illuminate tight spaces
  • Extremely compact and lightweight for outstanding ergonomics
  • On board LED and audible signal informs user of successful rundown
  • Highly accurate spring clutch
  • Designed and manufactured to withstand high volume assembly processes

Items Included:Torque adjustment tool (765027-4)

  • Built in LED to illuminate tight spaces
  • Extremely compact and lightweight for outstanding ergonomics
  • On board LED and audible signal informs user of successful rundown
  • Highly accurate spring clutch
  • Designed and manufactured to withstand high volume assembly processes

Items Included: Torque adjustment tool (765027-4)

Shipping Dimensions (Length x Width x Height) & Weight : 17.99 In. X 4.02 In. X 2.99 In. Weight : 3.24 Lb.

Specifications

Battery Capacities 14.4V Li-Ion
Capacity (driving shank)
Square 3/8"
No load speed 410 RPM
Fastening torque 5 - 12 Nm. (44 – 106 in./lbs)
Vibration Level 2.5 m/s2
Noise Level 70 dB(A)
Width 2-15/16" (74 mm)
Height (with battery) 3-7/8" (98 mm)
Length (with battery) 16-5/8" (422 mm)
Net weight 2.7 lbs (1.2 kg)
