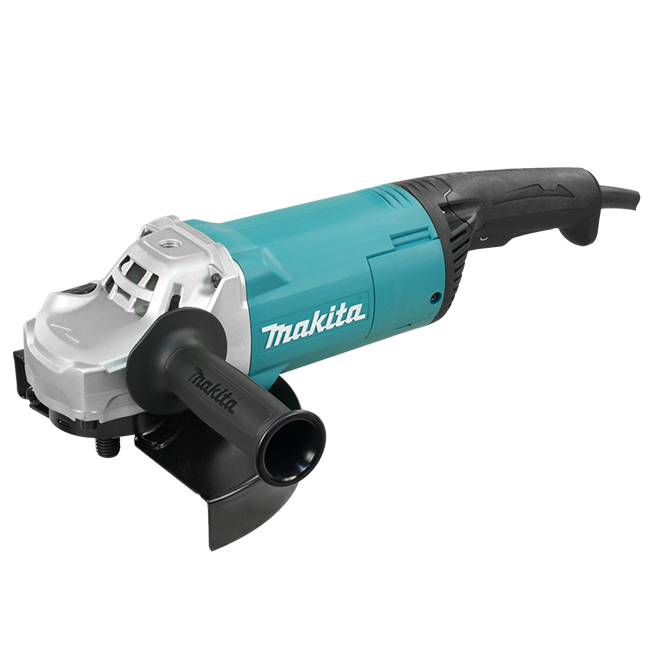

GA9060

9" Angle Grinder

Two-Stage Safety Trigger Switch (AC)


  • Heavy duty design, including improved armature components and low absorbent motor housing for maximum jobsite durability

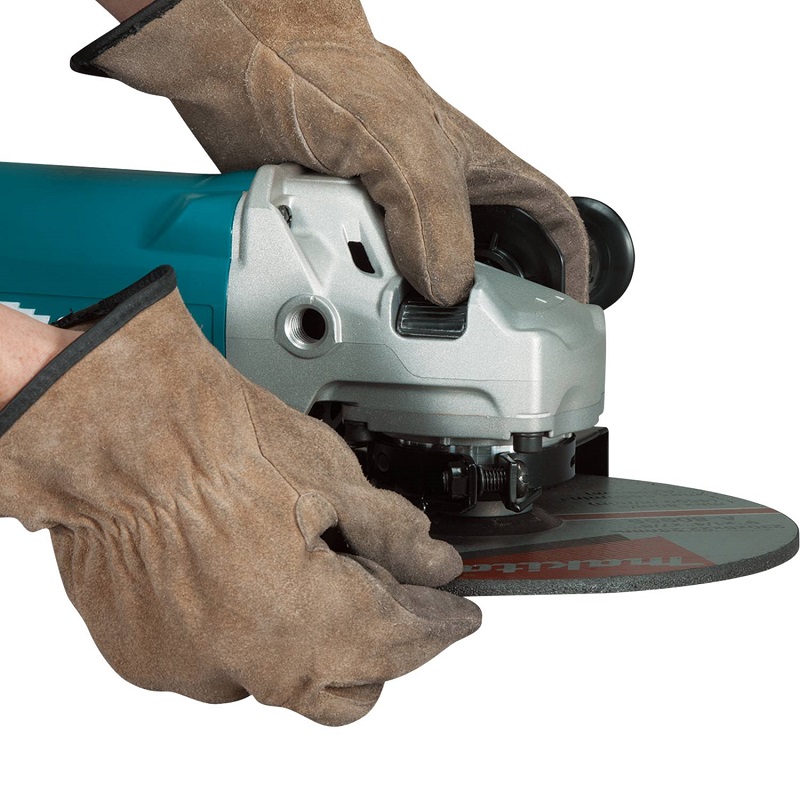

  • Newly designed slanted shaft lock enables easier engagement by operator

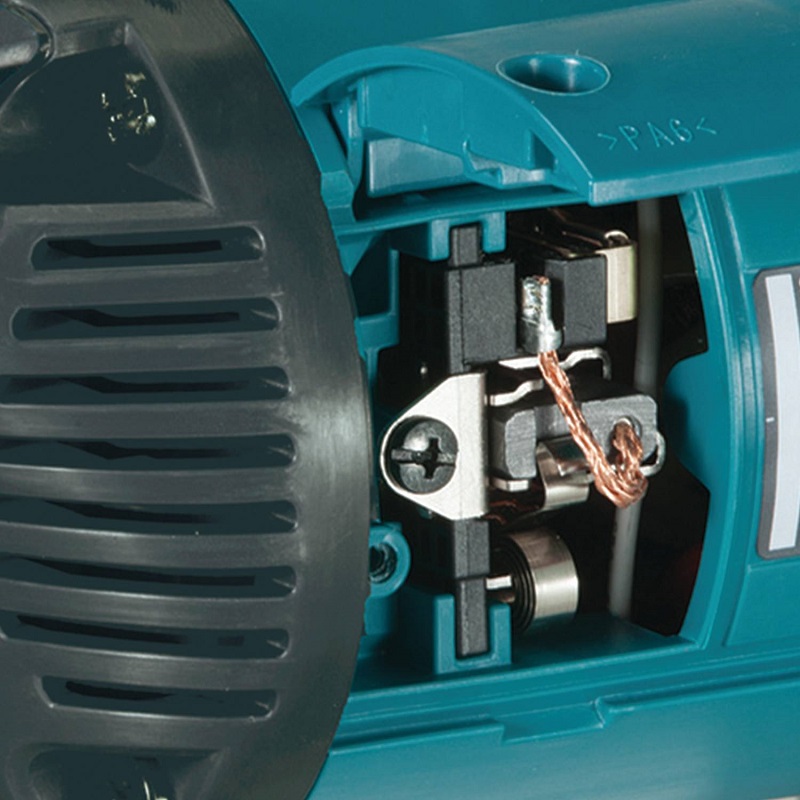

  • Long life carbon brushes and spiral spring brush holders minimize service and maintenance requirements
  • Anti-short switch cover, armature components and increased commutator depth ensure optimal electrical contact and performance
  • Transparent cover protects serial number and name plate against wear

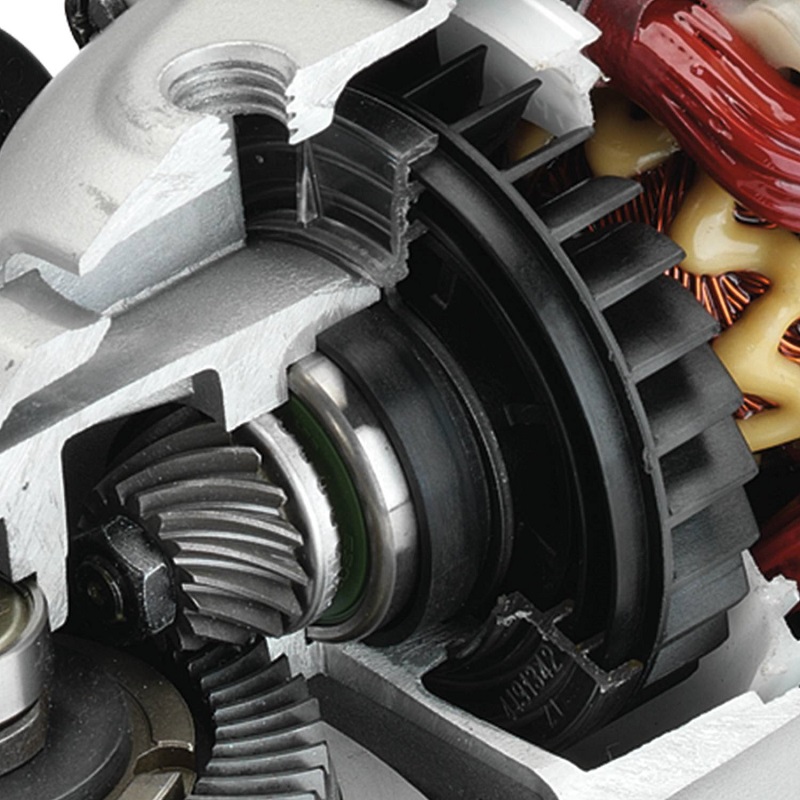

  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features increased "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

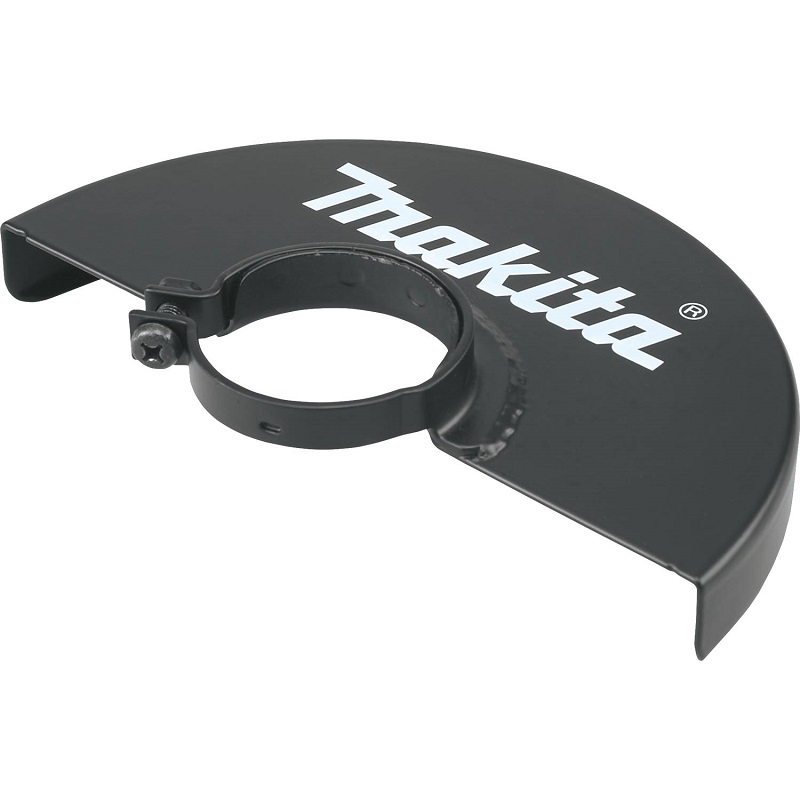

Items Included:Wheel Cover (122939-8), Side Handle (143486-6), Inner Flange (224317-9), Lock Nut 5/8"-45 (224486-6), Lock Nut Wrench 28 (782412-6)

  • Heavy duty design, including improved armature components and low absorbent motor housing for maximum jobsite durability
  • Newly designed slanted shaft lock enables easier engagement by operator
  • Long life carbon brushes and spiral spring brush holders minimize service and maintenance requirements
  • Anti-short switch cover, armature components and increased commutator depth ensure optimal electrical contact and performance
  • Transparent cover protects serial number and name plate against wear
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features increased "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Wheel Cover (122939-8), Side Handle (143486-6), Inner Flange (224317-9), Lock Nut 5/8"-45 (224486-6), Lock Nut Wrench 28 (782412-6)

Specifications

Maximum Capacities:
Grinding Wheel 9" (230 mm)
Sanding Disc 9" (230 mm)
Wire Cup Brush 4-3/8" (110 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed 6,600 RPM
AMPS (120V) 15.0 A
Vibration Level 6.5 m/s2
Noise Level 91 dB(A)
Overall Length 17-3/4" (450 mm)
Net Weight 12.1 lbs (5.5 kg)
