15/16" Cordless Rotary Hammer with Brushless Motor

Lightweight, 3-Mode Rotary Hammer

SDS-PLUS Shank

Hammer & Rotation / Hammer Only / Rotation Only

Variable Speed, Reversible

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in high production applications

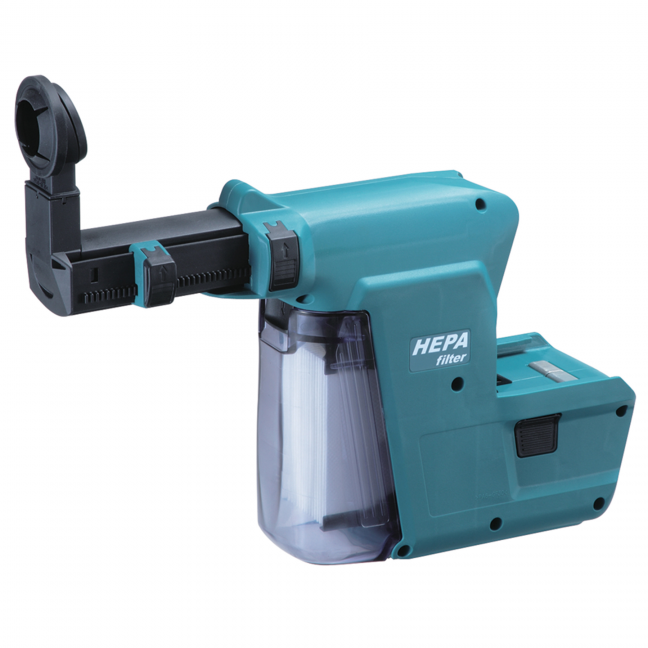

Includes DX01 HEPA filter dust extraction system for dustless drilling applications in sensitive work environments
DX01 HEPA filter dust extraction system features one-touch attachment/removal system, adjustable depth gauge and large capacity dust box for maximum efficiency and versatility
Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
40 angle bit positions enable chisels to be positioned at optimum angle of operation
Plastic housing bumper protects mode selector switch and gear housing from damage
One touch sliding chuck enables quick and easy bit changes
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

Items Included:Tool Only. Batteries and Charger Sold Separately. Depth Gauge (324219-0), Side Handle (158057-6), Dust Extraction System (DX01), 21" Tool Bag (821007X)

324219-0

158057-6

DX01

Images shown may not represent the full listing or the true size of included items.

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in high production applications
Includes DX01 HEPA filter dust extraction system for dustless drilling applications in sensitive work environments
DX01 HEPA filter dust extraction system features one-touch attachment/removal system, adjustable depth gauge and large capacity dust box for maximum efficiency and versatility
Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
40 angle bit positions enable chisels to be positioned at optimum angle of operation
Plastic housing bumper protects mode selector switch and gear housing from damage
One touch sliding chuck enables quick and easy bit changes
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Depth Gauge (324219-0), Side Handle (158057-6), Dust Extraction System (DX01), 21" Tool Bag (821007X)

Shipping Dimensions (Length x Width x Height) & Weight : 23.35 In. X 6.02 In. X 12.52 In. Weight : 10.63 Lb.

Specifications

Battery Capacities	18V LXT
Capacities:
Concrete	15/16" (24 mm)
Steel	1/2" (13 mm)
Wood	1-1/16" (27 mm)
Impact Energy	2.4 J (1.8 ft. lbs)
No Load Speed	0 - 950 RPM
Blows Per Minute	0 - 4,700 BPM
Vibration Level	13.5 m/s²
Noise Level	90 dB(A)
Overall Length	12-7/8" (328 mm)
Net Weight	6.0 lbs (2.7 kg)
