EK6101

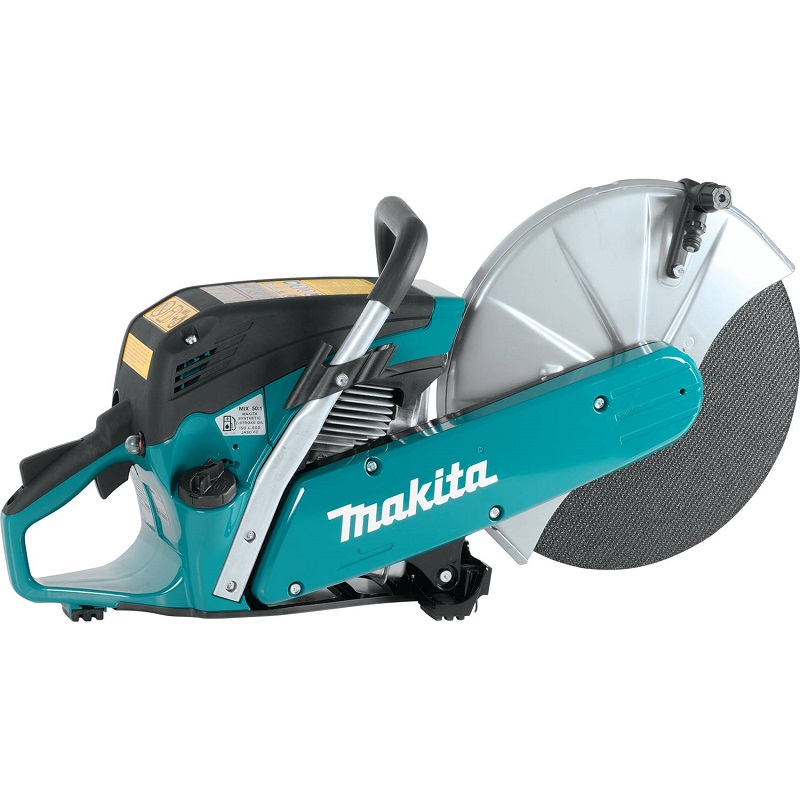

14" / 4.4 hp 2-Stroke Power Cutter (20 mm Arbor)

NEW! Lighter weight power cutter in the 14" class!

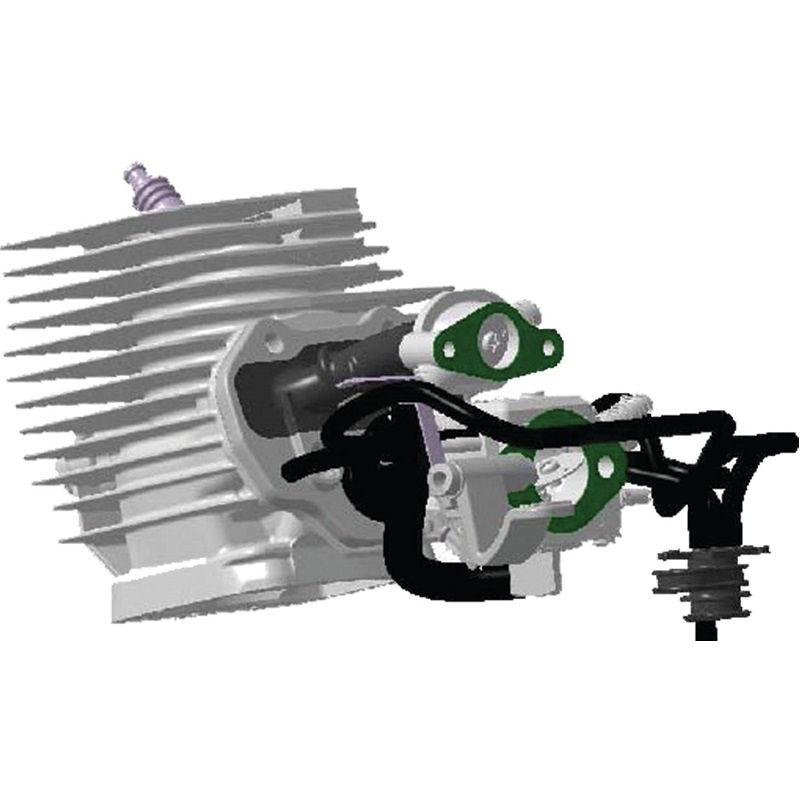

Stratified Scavenging System complies with exhaust emission regulations


2 Stroke Engine 2 Year Warranty
  • NEW Scavenging Losses Rejection (SLR) Muffler recycles exhaust unburnt gas emissions for increased operational efficiency and cleaner emissions
  • Lightweight; 1.0 kg (2.2 lbs) lighter than previous 64cc / 14" power cutter

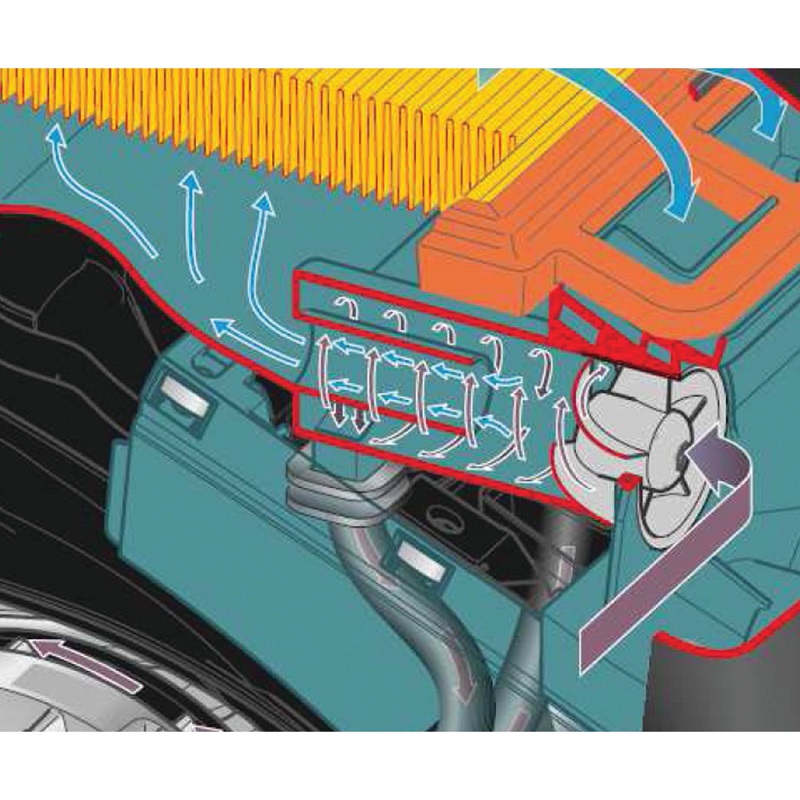

  • Enhanced 5 stage air filtration; cyclone pre-separation system effectively removes dust particles away from intake air and reduces dust stuck on the filter.
  • Rapid start pull force required to start the machine is drastically reduced with spring-assisted recoil starter
  • Electronic Ignition with rev limiter

Items Included:14" Cutting Disk For Stone (721712-9), Tool Kit (198692-8), Water Attachment Kit (183J43-8), Coupling Sleeve (123120-4), Starter Rope (394 164 020), Spark Plug (168517-0)

  • NEW Scavenging Losses Rejection (SLR) Muffler recycles exhaust unburnt gas emissions for increased operational efficiency and cleaner emissions
  • Lightweight; 1.0 kg (2.2 lbs) lighter than previous 64cc / 14" power cutter
  • Enhanced 5 stage air filtration; cyclone pre-separation system effectively removes dust particles away from intake air and reduces dust stuck on the filter.
  • Rapid start pull force required to start the machine is drastically reduced with spring-assisted recoil starter
  • Electronic Ignition with rev limiter

Items Included: 14" Cutting Disk For Stone (721712-9), Tool Kit (198692-8), Water Attachment Kit (183J43-8), Coupling Sleeve (123120-4), Starter Rope (394 164 020), Spark Plug (168517-0)

Specifications

Displacement 3.7 cu.in (60.7cc)
Max. Power 3.2 kW (4.4 hp)
Fuel / Oil Mixture 50:1
Fuel Tank Capacity 1/6 Gal (0.7 L)
No Load Speed (Engine) 9,850 RPM
Max. Spindle Speed 4,400 RPM
Arbor 20 mm

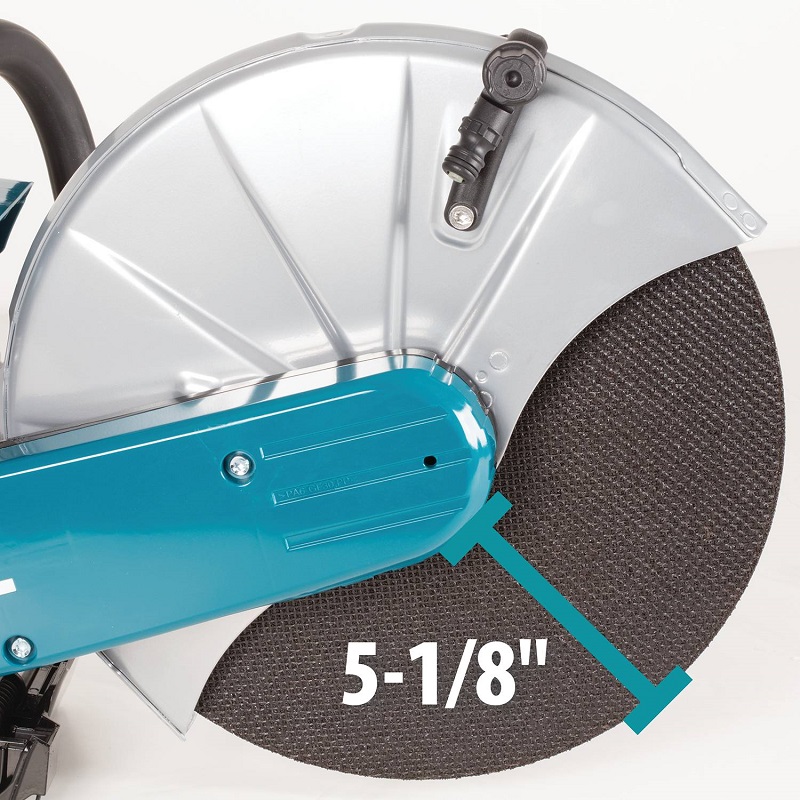

Max. Cutting Depth 5-1/8" (130 mm)
Dry Weight 19.6 lbs (8.9 kg)
10L (2.5 Gal) Pressurized Water Tank

10L (2.5 Gal) Pressurized Water Tank
