You are here: Home / Tool / Cordless / 18V LXT / DLS713Z

LXT Technology

(Tool only)


DLS713Z

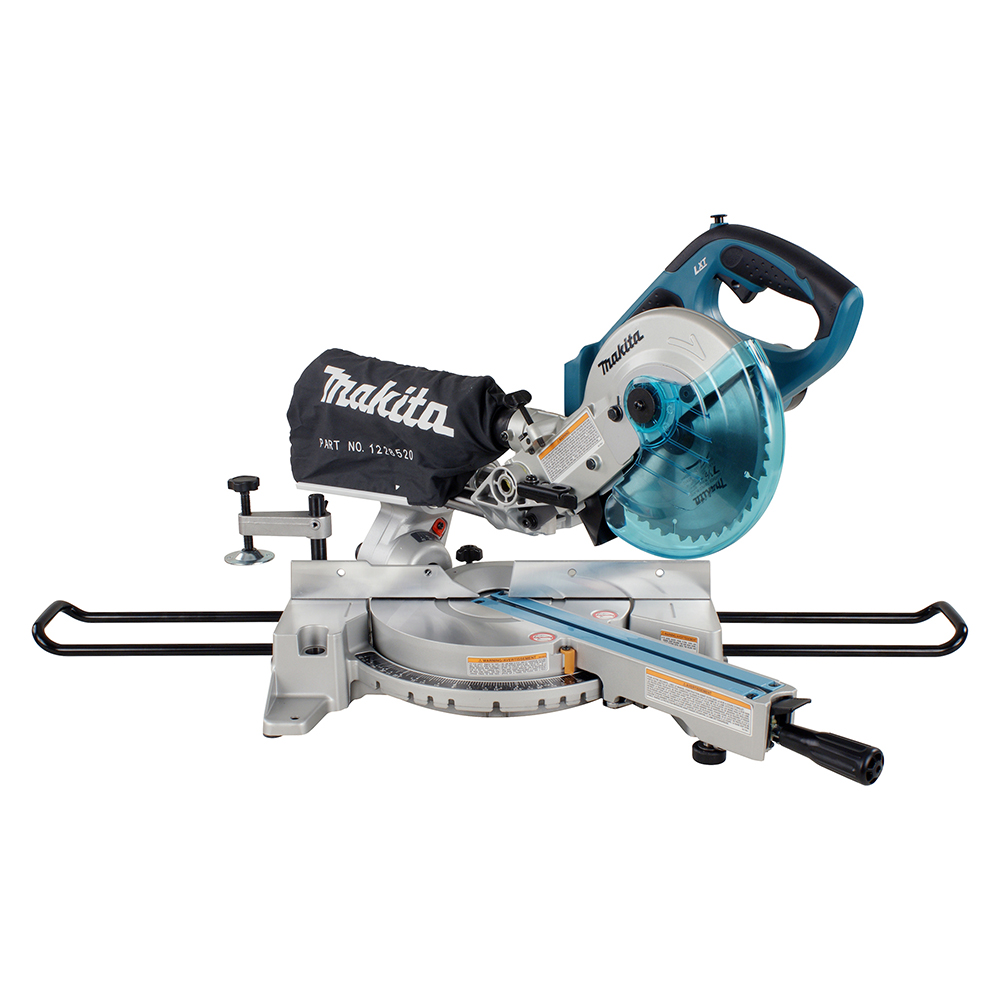

7-1/2" Cordless Dual Sliding Compound Mitre Saw

Incorporates Makita's NEW Battery Protection System, Up To 11-3/4" Cuts In 2x Material


18V Battery
  • NEW Battery Protection System provides Over-Discharge, Temperature and Current Protection for enhanced performance, battery cycle life and overall battery life

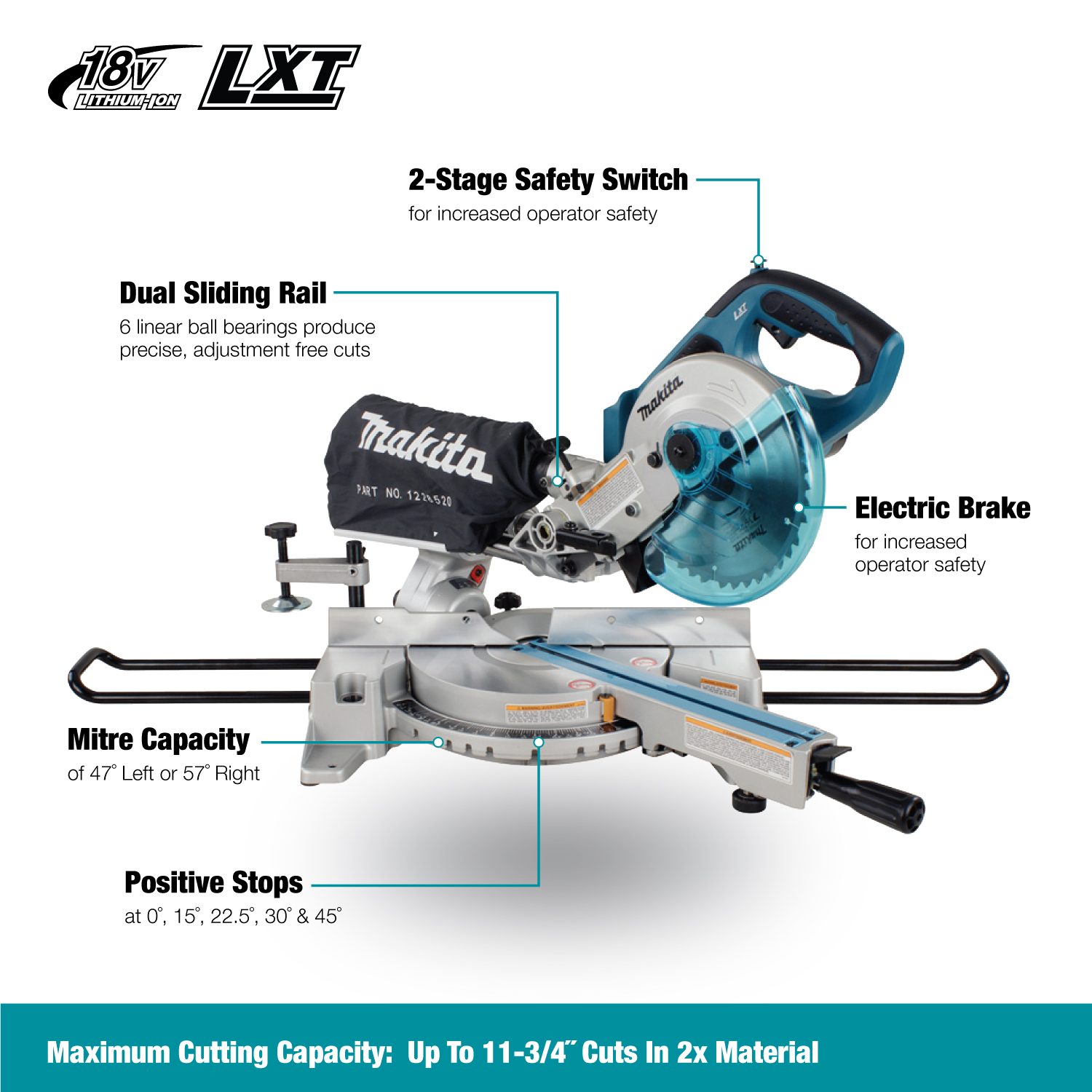

  • Dual Sliding Rail Mechanism incorporating 6 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
  • Electric Brake for increased operator safety
  • 2 Stage Safety Switch for increased operator safety
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Mitre Capacity of 47o Left or 57o Right with Positive Stops at 0o, 15o, 22.5o, 30o & 45o
  • Bevel Capacity of 45o Left or 5o Right

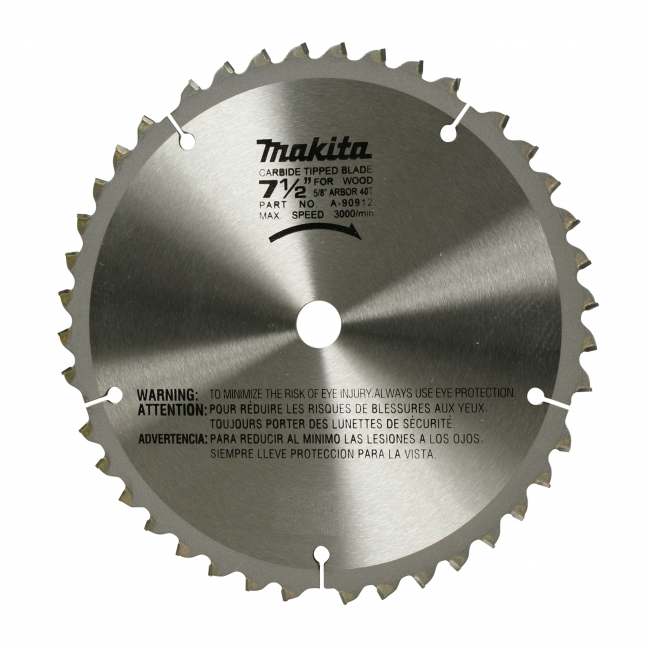

Items Included:  Tool Only.  Batteries and Charger Sold Separately.  7-1/2" C.T. Blade 40T (A-90912), Dust Bag (122852-0), Hex Wrench 5 (783203-8), Triangle Rule (762001-3), Vertical Vice (122571-8), Two Holder Assembly (127056-9)

  • NEW Battery Protection System provides Over-Discharge, Temperature and Current Protection for enhanced performance, battery cycle life and overall battery life
  • Dual Sliding Rail Mechanism incorporating 6 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
  • Electric Brake for increased operator safety
  • 2 Stage Safety Switch for increased operator safety
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Mitre Capacity of 47o Left or 57o Right with Positive Stops at 0o, 15o, 22.5o, 30o & 45o
  • Bevel Capacity of 45o Left or 5o Right

Items Included:   Tool Only.  Batteries and Charger Sold Separately.  7-1/2" C.T. Blade 40T (A-90912), Dust Bag (122852-0), Hex Wrench 5 (783203-8), Triangle Rule (762001-3), Vertical Vice (122571-8), Two Holder Assembly (127056-9)

Specifications

Battery Capacities 18V Li-Ion
Blade Diameter 7-1/2" (190 mm)
Arbor 5/8" (15.88 mm)
No Load Speed 2,200 RPM
Vibration Level 2.5 m/s2
Noise Level 88 dB(A)
Dimensions (L x W x H) 25-3/4" x 17" x 17-7/8" (655 mm x 430 mm x 454 mm)
Net Weight 26.0 lbs (11.8 kg)
