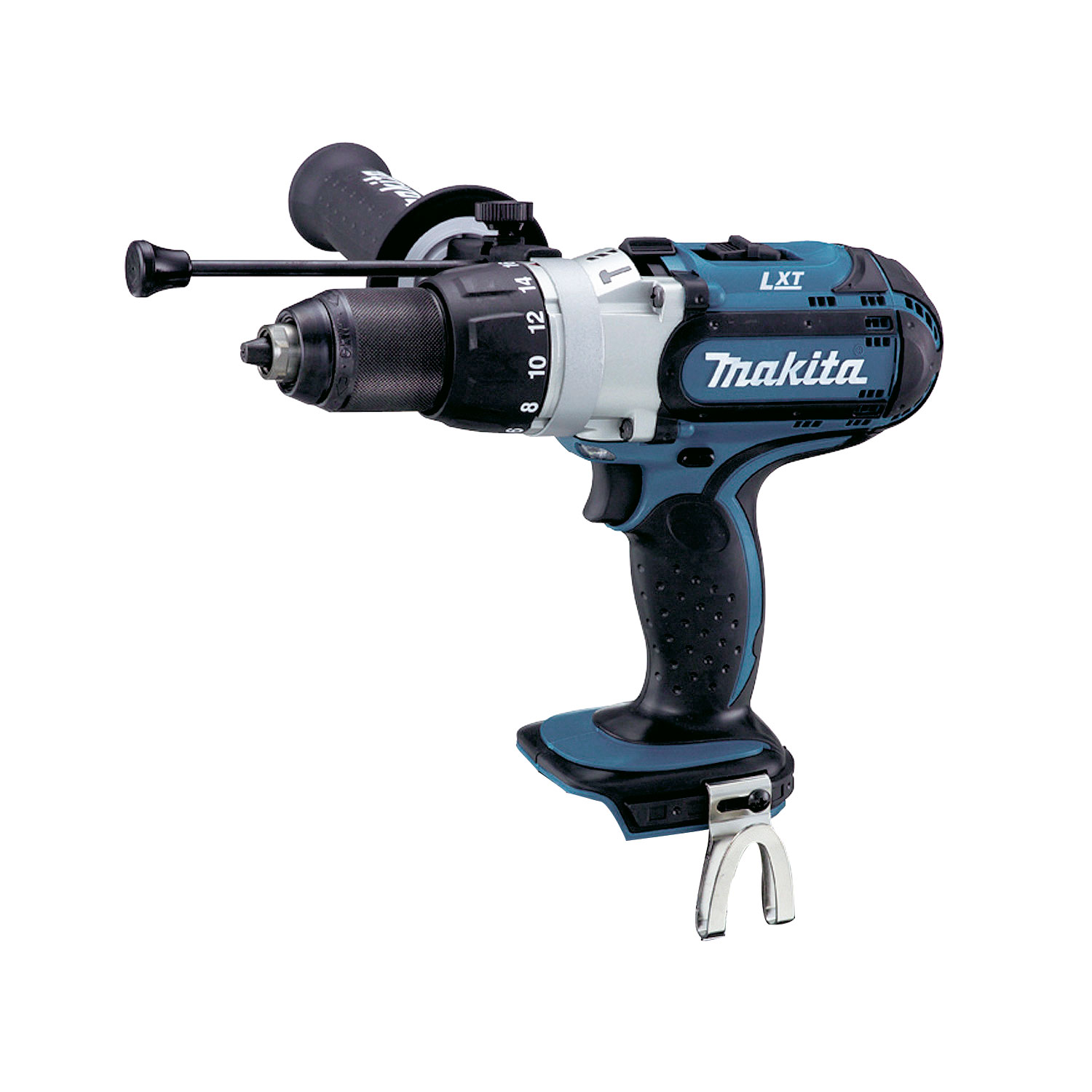

DHP451Z

1/2" Cordless Hammer Drill / Driver

Features 3 Speed RPM Range

Hammer With Rotation / Rotation Only

Variable 3-Speed, Reversible

LXT Technology 18V Battery
  • 16 Clutch Settings deliver up to 560 in. lbs. of torque
  • Three Speed Gearing for more efficiency

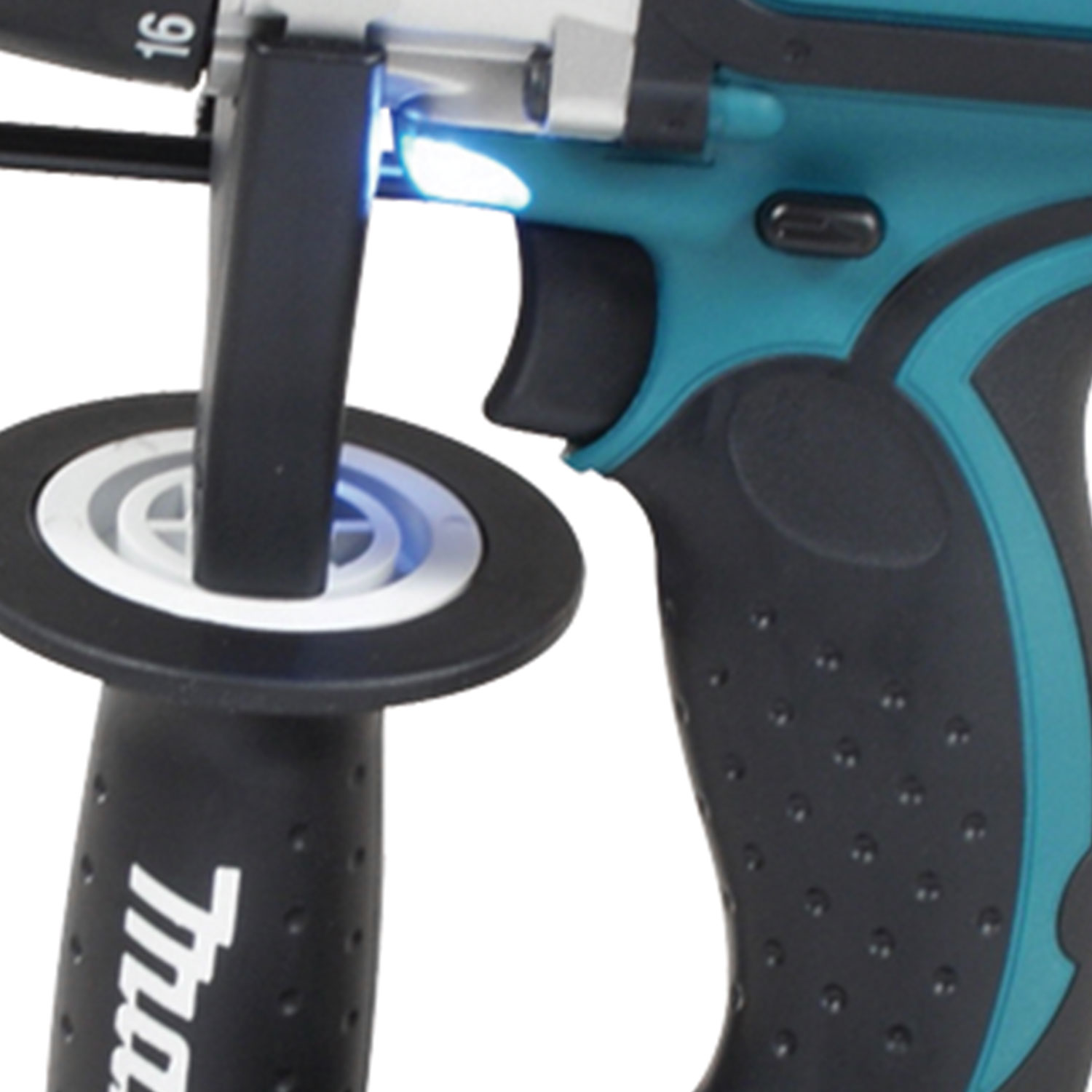

  • Dual LED Lights with Afterglow feature
  • Shift-Lock drive converts from Hammer to Drill to Driver mode
  • All Metal Gears for more efficient power transmission
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Side Handle (122750-8), Two Double Ended Bits 2-45 (784637-8), Stopper Pole (122576-8), 1/2" Keyless Chuck (763191-5), Bit Holder (452947-8), Hook (346449-3)

  • 16 Clutch Settings deliver up to 560 in. lbs. of torque
  • Three Speed Gearing for more efficiency
  • Dual LED Lights with Afterglow feature
  • Shift-Lock drive converts from Hammer to Drill to Driver mode
  • All Metal Gears for more efficient power transmission
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Side Handle (122750-8), Two Double Ended Bits 2-45 (784637-8), Stopper Pole (122576-8), 1/2" Keyless Chuck (763191-5), Bit Holder (452947-8), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.02 In. X 10.39 In. X 4.25 In. Weight : 4.85 Lb.

Specifications

Battery Capacities 18 V Li-ion
Capacities:
Steel 1/2" (13 mm)
Masonry 5/8" (16 mm)
Wood 2-9/16" (65 mm)
No load speed:
1st speed 0 - 300 RPM
2nd speed 0 - 600 RPM
3rd speed 0 - 1,700 RPM
Impacts per minute:
1st speed 0 - 4,500 BPM
2nd Speed 0 - 9,000 BPM
3rd Speed 0 - 25,500 BPM
Maximum Torque  708 in.lbs (80 Nm)
Vibration Level 10.0 m/s2 (Concrete) / 2.5 m/s2 (Metal)
Noise Level 86 dB
Overall length 9-7/8" (250 mm)
Net weight 4.2 lbs (1.9 kg)
