You are here: Home / Tool / Cordless / 18V LXT / Jig Saws / DJV180Z

LXT Technology

(Tool only)

Full Screen

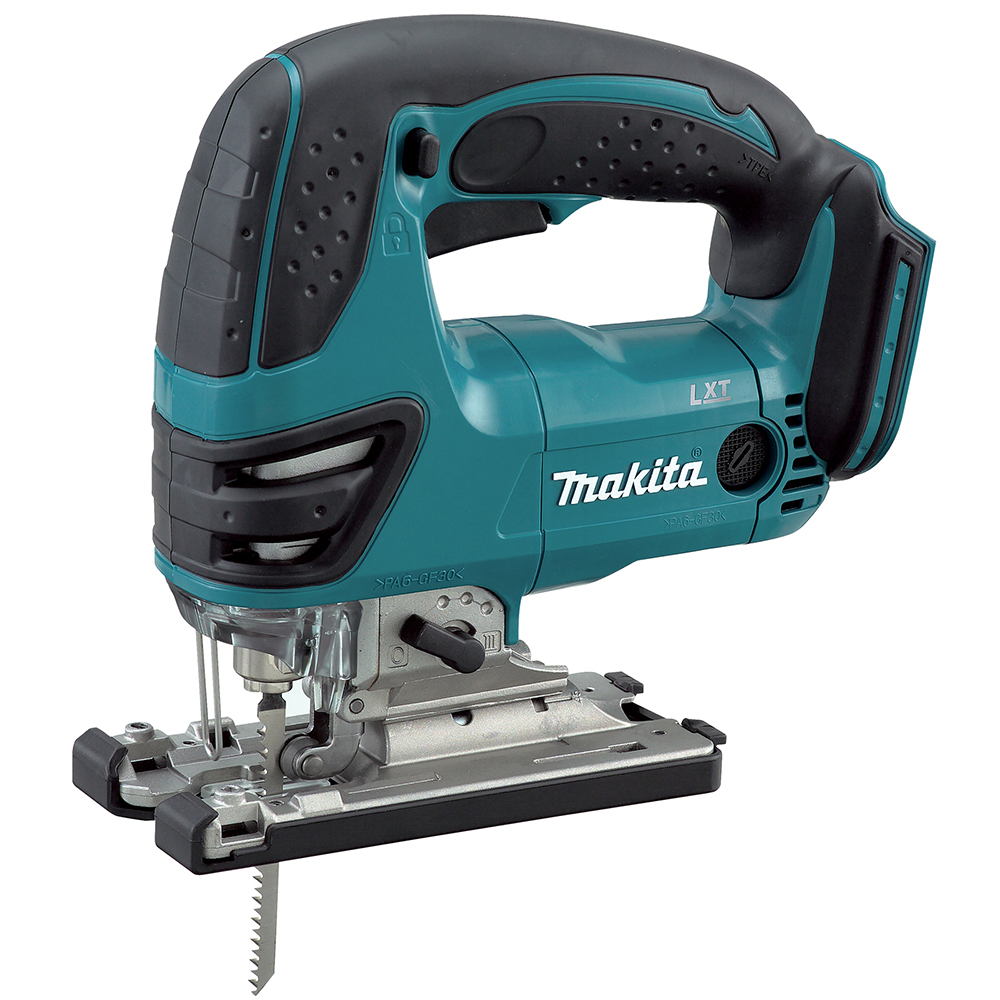

DJV180Z

Cordless Jig Saw

Tool-Less Blade Change For Fast Blade Installation And Removal

Tool-Less Blade Change, Variable Speed

LXT Technology 18V Battery

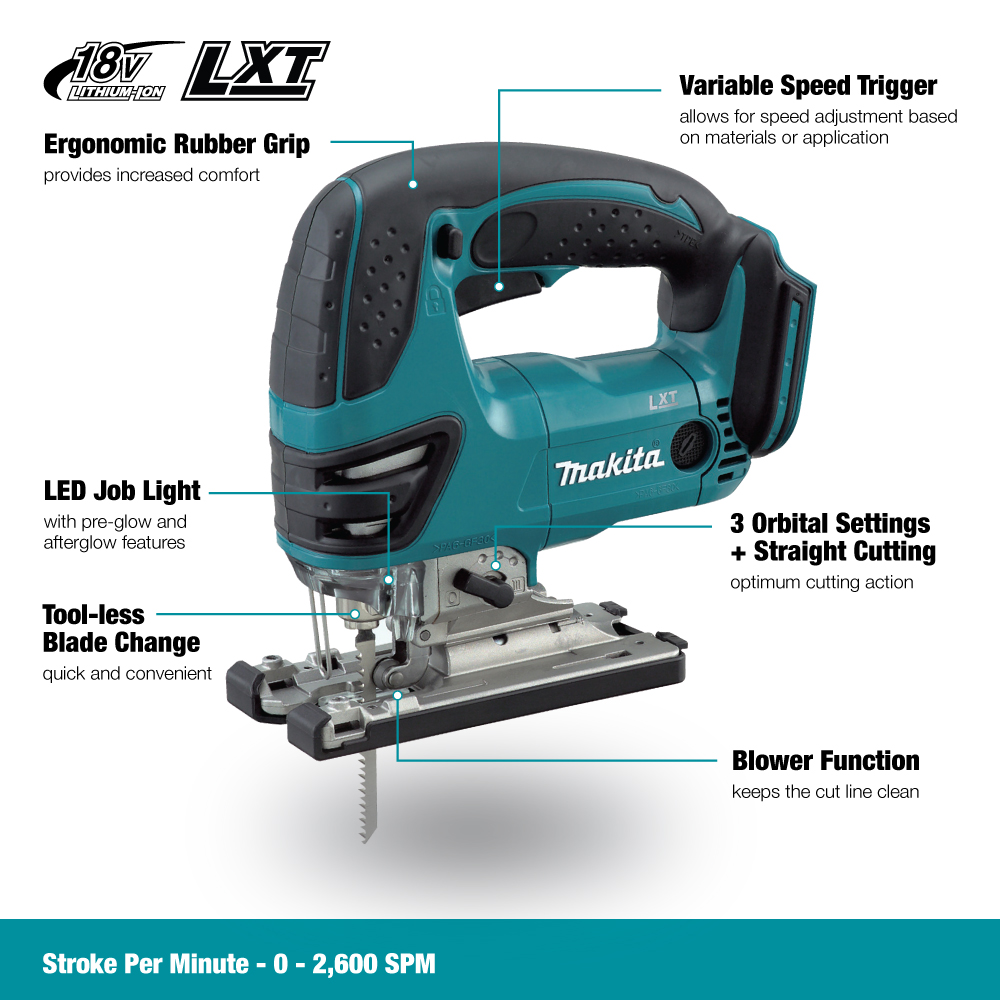

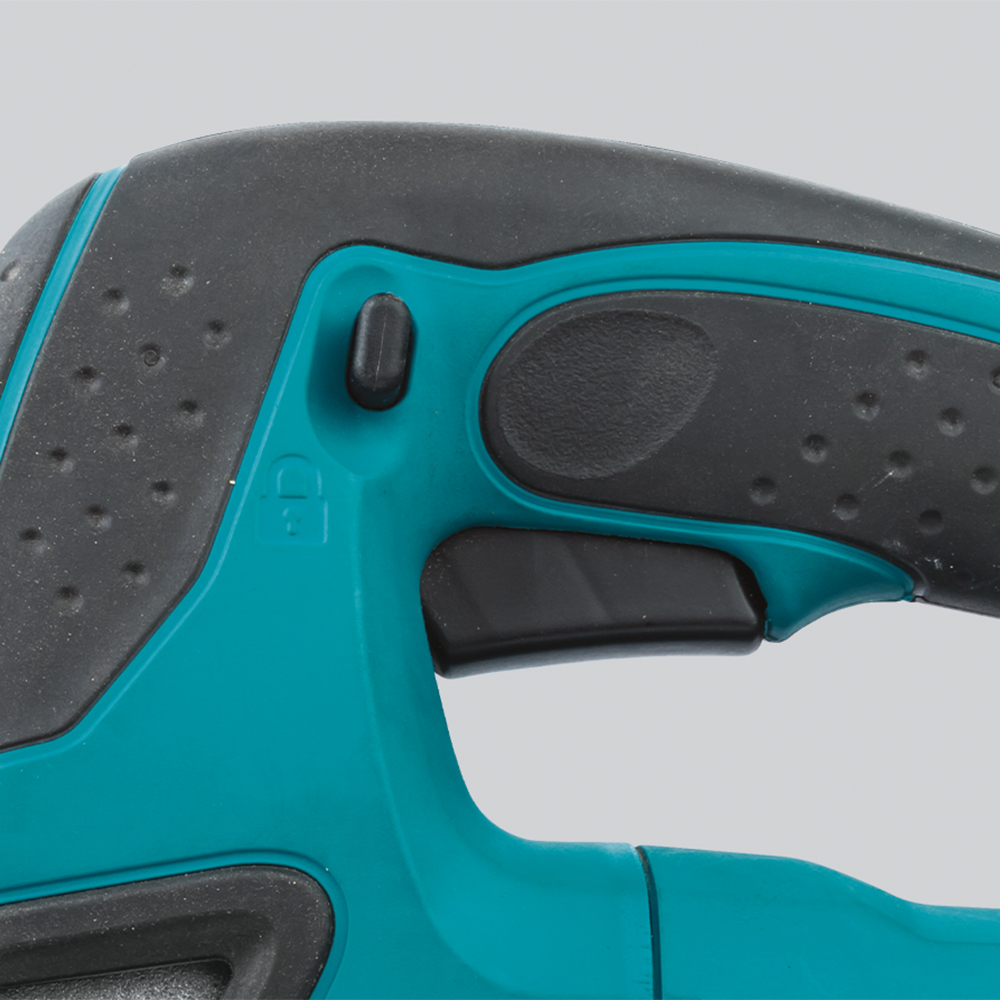

  • Large Variable Speed 2 finger trigger switch
  • 3 Orbital settings enable operator to obtain a more aggressive cut
  • Blower feature keeps cutting line free of saw dust
  • LED Job Light illuminates work area
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included:Tool Only.  Batteries and Charger Sold Separately.  Jig Saw Blade Set (E-10687), Hex Wrench 4 (783202-0), Anti-Splintering Device (415524-7), Cover Plate (417852-6)

Read More
  • Large Variable Speed 2 finger trigger switch
  • 3 Orbital settings enable operator to obtain a more aggressive cut
  • Blower feature keeps cutting line free of saw dust
  • LED Job Light illuminates work area
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Tool Only.  Batteries and Charger Sold Separately.  Jig Saw Blade Set (E-10687), Hex Wrench 4 (783202-0), Anti-Splintering Device (415524-7), Cover Plate (417852-6)

Shipping Dimensions (Length x Width x Height) & Weight : 3.39 In. X 12.13 In. X 9.02 In. Weight : 5.73 Lb.

Specifications

Battery Capacities 18V Li-Ion
Max. Cutting Depth:
Steel 3/8" (10 mm)
Wood 5-5/16" (135 mm)
Aluminum 25/32" (20 mm)
Stroke Per Minute 0 - 2,600 SPM
Length of Stroke 1" (26 mm)
Vibration Level: 7.0 m/s2 (cutting board)
Noise Level 84 dB(A)
Overall Length 10-1/8" (257 mm)
Net Weight 5.1 lbs (2.3 kg)
18V (4.0 Ah) Li-Ion Battery & Rapid Charger Kit

18V (4.0 Ah) Li-Ion Battery & Rapid Charger Kit

Read More
18V (5.0 Ah) Li-Ion Battery & Rapid Charger Kit

18V (5.0 Ah) Li-Ion Battery & Rapid Charger Kit

Read More
18V (Compact) Li-Ion Battery

18V (Compact) Li-Ion Battery

Read More
18V LXT Battery Adapter for XGT Chargers - ADP10

18V LXT Battery Adapter for XGT Chargers - ADP10

Read More
18V LXT Cordless 500 lm LED Flashlight (Tool Only)

18V LXT Cordless 500 lm LED Flashlight (Tool Only)

Read More
18V LXT Cordless 500 lm LED Flashlight with Lamp Shade (Tool Only)

18V LXT Cordless 500 lm LED Flashlight with Lamp Shade (Tool Only)

Read More
18V LXT Li-Ion Compact LED Flashlight, 30 lumens

18V LXT Li-Ion Compact LED Flashlight, 30 lumens

Read More
18V LXT Li-Ion Cordless/Corded Work Light, Light Only

18V LXT Li-Ion Cordless/Corded Work Light, Light Only

Read More
18V LXT Li-Ion LED Flashlight, 160 Lumens

18V LXT Li-Ion LED Flashlight, 160 Lumens

Read More
AC (120V) / DC (18V Li-Ion) LED Area Worklight

AC (120V) / DC (18V Li-Ion) LED Area Worklight

Read More
AC (120V) / DC (18V Li-Ion) LED Self-Righting Area Work Light

AC (120V) / DC (18V Li-Ion) LED Self-Righting Area Work Light

Read More
Guide Rail Connectors

Guide Rail Connectors

Read More

User Manual: DJV180 - EN, FR, SP.pdf

Parts Breakdown: DJV180F, DJV180RFE, DJV180Z - DEC2021.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
