DCG180YX1

18V LXT 300 ml Caulking Gun, Compact x1Kit

Ideal For Quick and Precise Application of Caulking and Sealants

Accepts Standard 300 ml Cartridges

Anti-Drip Function, Variable Speed

LXT Technology 18V Compact Battery
  • Anti-drip function eliminates residual pressure on caulking tube to prevent caulking from escaping when the trigger is released
  • Variable speed dial allows operator to set maximum dispensing speed while the variable speed trigger enables fine adjustment for maximum control and precision in a wide range of applications
  • 360o rotating tube tray allows operator to adjust positioning based on materials or application
  • Overload protection feature with warning light prevents motor burnout caused by overloading
  • NEW battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • LED job light with pre-glow and afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

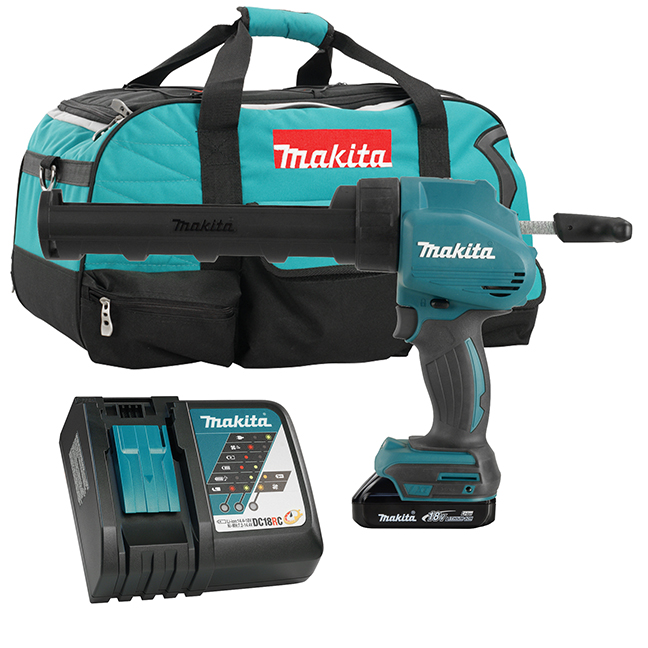

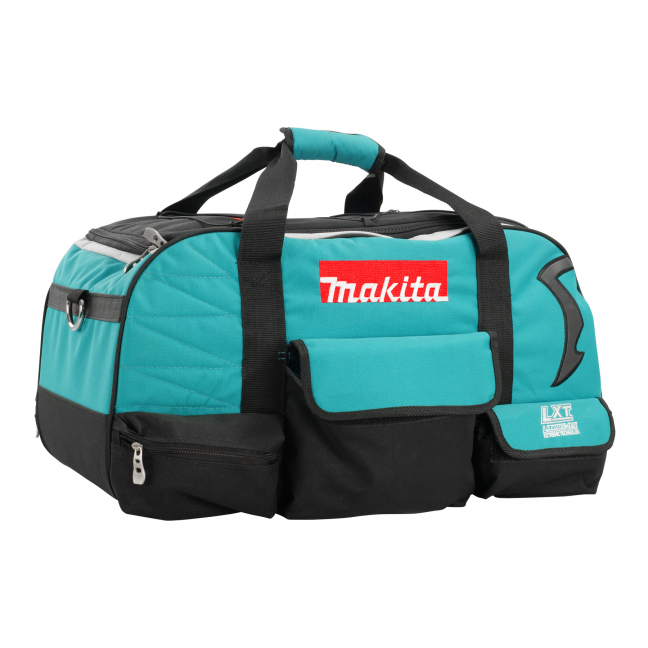

Items Included:18V (Compact) Li-Ion Battery BL1815N (196235-0), Rapid Charger (DC18RC), Battery Cover (450128-8), Tool Bag (831278-2)

  • Anti-drip function eliminates residual pressure on caulking tube to prevent caulking from escaping when the trigger is released
  • Variable speed dial allows operator to set maximum dispensing speed while the variable speed trigger enables fine adjustment for maximum control and precision in a wide range of applications
  • 360o rotating tube tray allows operator to adjust positioning based on materials or application
  • Overload protection feature with warning light prevents motor burnout caused by overloading
  • NEW battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • LED job light with pre-glow and afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 18V (Compact) Li-Ion Battery BL1815N (196235-0), Rapid Charger (DC18RC), Battery Cover (450128-8), Tool Bag (831278-2)

Shipping Dimensions (Length x Width x Height) & Weight : 21.85 In. X 15.75 In. X 9.49 In. Weight : 14.11 Lb.

Specifications

Battery Capacities: 18V LXT
Max Pushing Force 1,100 lb (5,000 N)
Compatible Sealant Size 300 ml Cartridge
Vibration Level 2.5 m/s²
Noise Level 70 dB(A)
Dimensions (L x W x H) 15-7/8" x 4-1/4" x 10-3/8" (404 mm x 108 mm x 264 mm)
Net Weight  4.7 lbs (2.1 kg)
