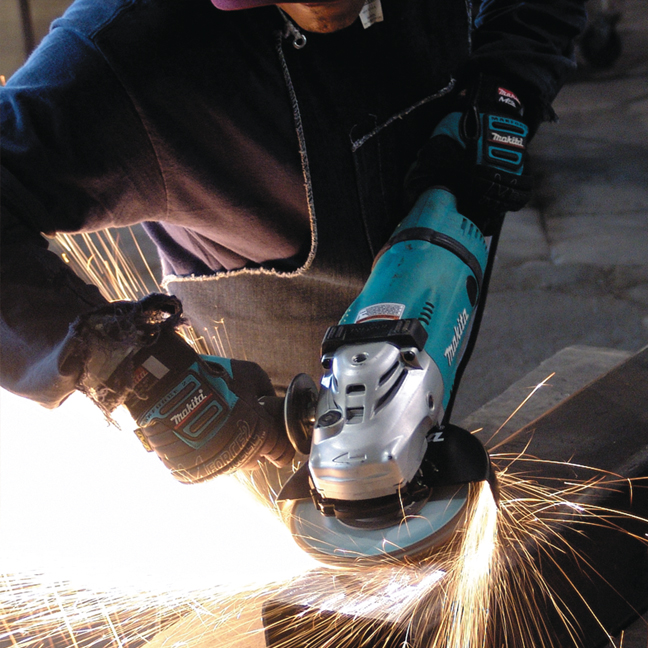

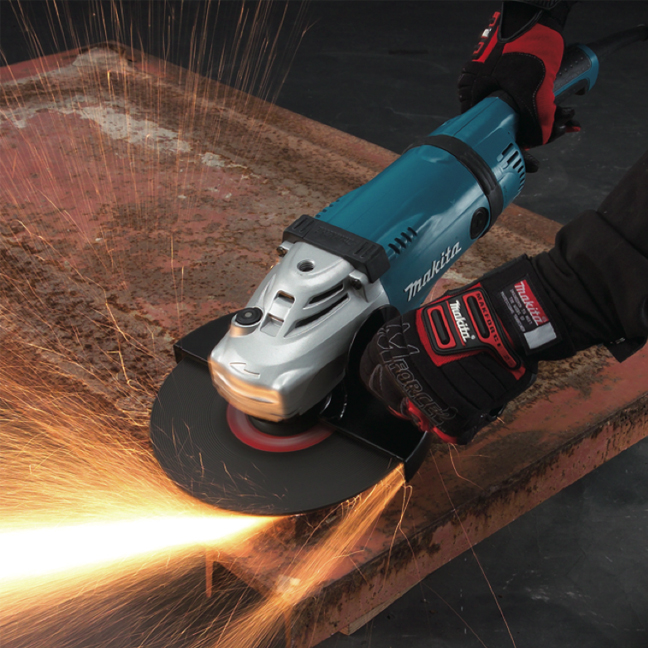

7" Angle Grinder w/Trigger Switch

Trigger Switch with Lock-On Button (AC)

Soft Start

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Soft start feature gradually increases speed to eliminate start up shock
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Rotatable rear handle can be adjustable to suit various cutting and grinding operations
Low vibration rear handle ideal for improved operator comfort during periods of prolonged use
Removable side handle can be mounted on left, right, or top side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

Items Included:Anti-Vibration Side Handle (194543-3), Lock Nut Wrench 28 (782412-6), Toolless Wheel Cover (123542-8), 7" Depressed Centre Wheel (D-20806), Inner Flange (224317-9), Lock Nut 5/8"-45 (224568-4)

194543-3

782412-6

123542-8

D-20806

224317-9

224568-4

Images shown may not represent the full listing or the true size of included items.

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Soft start feature gradually increases speed to eliminate start up shock
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Rotatable rear handle can be adjustable to suit various cutting and grinding operations
Low vibration rear handle ideal for improved operator comfort during periods of prolonged use
Removable side handle can be mounted on left, right, or top side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Anti-Vibration Side Handle (194543-3), Lock Nut Wrench 28 (782412-6), Toolless Wheel Cover (123542-8), 7" Depressed Centre Wheel (D-20806), Inner Flange (224317-9), Lock Nut 5/8"-45 (224568-4)

Shipping Dimensions (Length x Width x Height) & Weight : 23.75 In. X 7 In. X 8 In. Weight : 18.94 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	7" (180 mm)
Sanding Disc	7" (180 mm)
Wire Cup Brush	4-3/8" (110 mm)
Spindle Thread	5/8" - 11 UNC
No Load Speed	8,500 RPM
AMPS (120V)	15.0 A
Vibration Level	7.5 m/s²
Noise Level	90 dB(A)
Overall Length	20-1/8" (511 mm)
Net Weight	14.2 lbs (6.4 kg)
