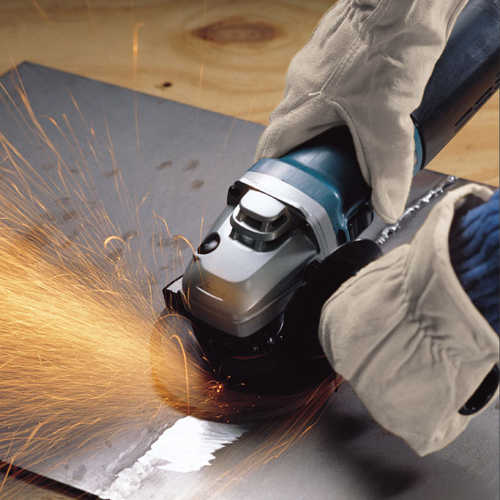

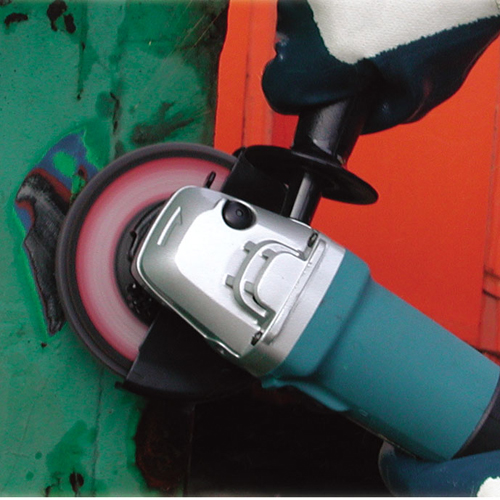

5" Angle Grinder

Thumb Switch with Lock-On (AC)

"SJS" Technology, Variable Speed, Electronic Current Limiter

"SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
Labyrinth construction seals motor and bearings from contamination
Electronic current limiter protects motor from accidental overload
Thumb switch conveniently located for operator comfort
Removable side handle can be mounted on left or right side of tool
Tool-less wheel guard adjustment

Where to buy

Items Included:5” Depressed Center Wheel (D-20797), Inner Flange (224399-1), Toolless Wheel Cover (123145-8), Lock Nut 5/8"-45 (224568-4), Lock Nut Wrench 28 (782412-6), Side Handle (158237-4)

D-20797

224399-1

123145-8

224568-4

782412-6

158237-4

Images shown may not represent the full listing or the true size of included items.

"SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
Labyrinth construction seals motor and bearings from contamination
Electronic current limiter protects motor from accidental overload
Thumb switch conveniently located for operator comfort
Removable side handle can be mounted on left or right side of tool
Tool-less wheel guard adjustment

Items Included: 5” Depressed Center Wheel (D-20797), Inner Flange (224399-1), Toolless Wheel Cover (123145-8), Lock Nut 5/8"-45 (224568-4), Lock Nut Wrench 28 (782412-6), Side Handle (158237-4)

Shipping Dimensions (Length x Width x Height) & Weight : 5.31 In. X 15 In. X 5.63 In. Weight : 7.72 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	5" (125 mm)
Sanding Disc	5" (125 mm)
Diamond Wheel	5" (125 mm)
Wire Cup Brush	3-1/2" (90 mm)
Spindle Thread	5/8" - 11 UNC
No Load Speed:	2,800 - 10,500 RPM
AMPS (120 V):	12.0 A
Vibration Level	8.0 m/s²
Noise Level	82 dB(A)
Overall Length:	11-3/4" (299 mm)
Net Weight:	5.3 lbs (2.4 kg)
