TD004GZ

40Vmax XGT Brushless 1/4" Impact Driver, Tool Only

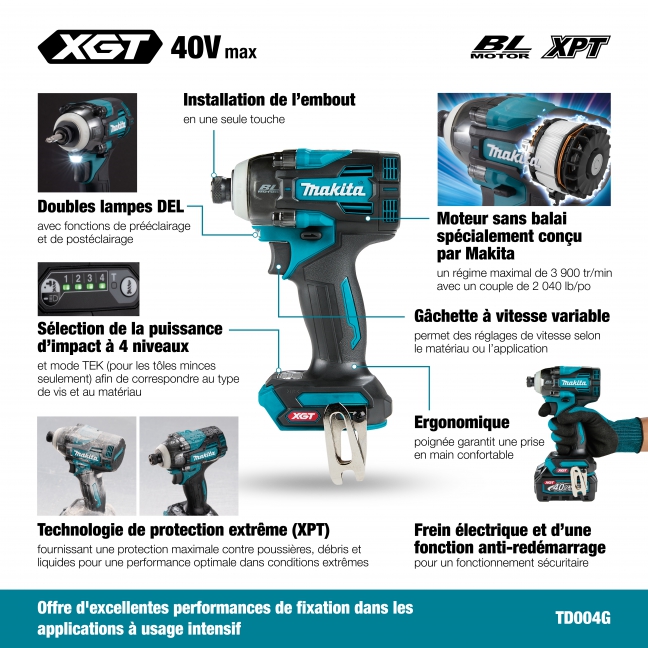

Genuine Makita Purpose Built Brushless Motor Delivers 3900 Max RPM With 2,040 in.lbs Of Torque

Four selectable speed settings make it easy to adjust the tool for a wide range of applications.

Twin LED job lights provides bright illumination with preglow and afterglow functions for enhanced visibility.


XGT Technology LXT Technology LXT Technology

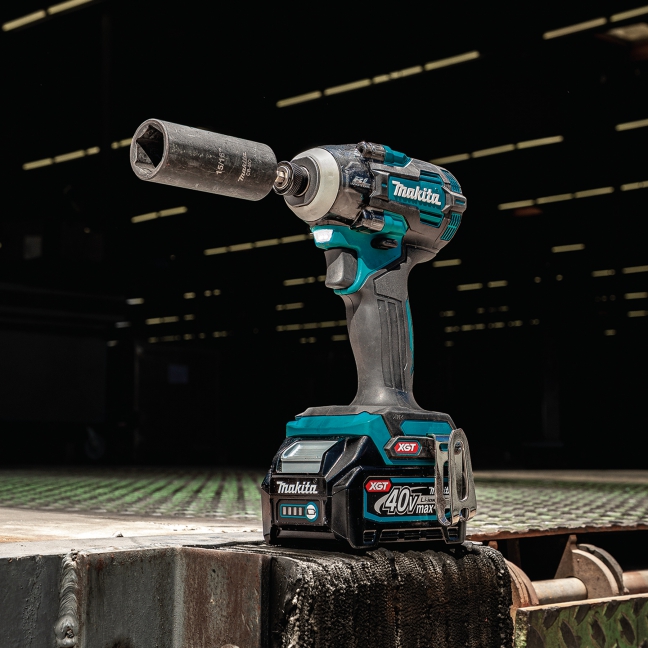

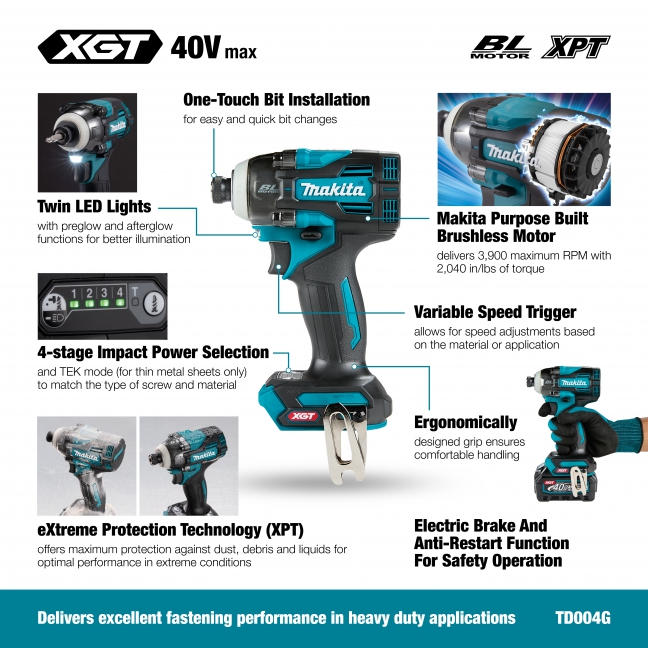

  • With a maximum fastening torque of 2,040 in.lbs (230 Nm), this impact driver delivers excellent fastening performance in heavy duty applications such as tightening hex head or Torx head course thread screws, which are less prone to cam-out.

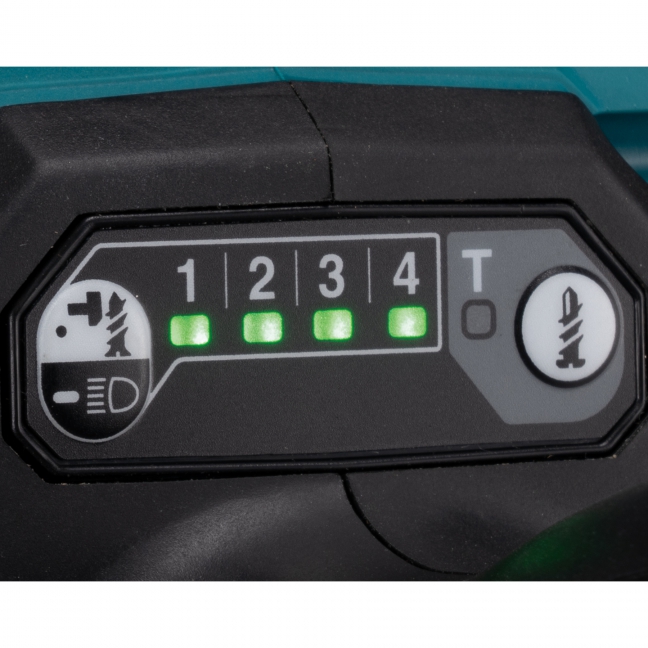

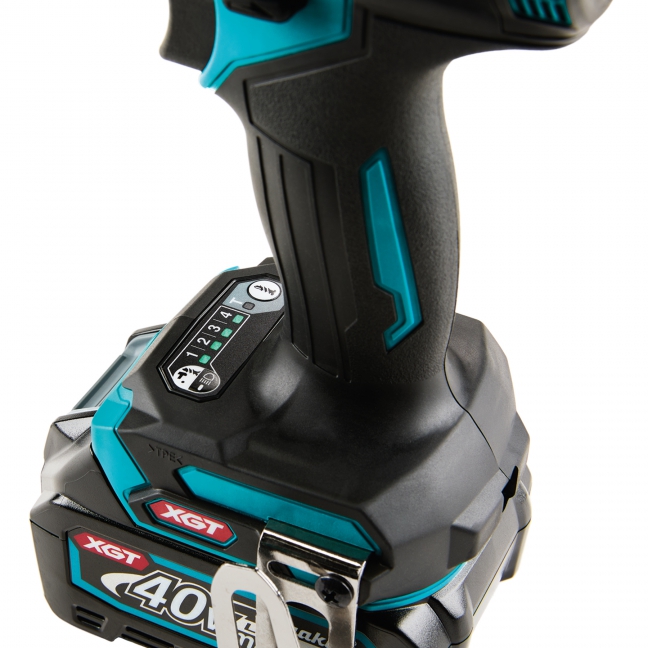

  • 4-stage impact power selection and TEK mode (for thin metal sheets only) to match the type of screw and material.
  • For tasks requiring attention to cam-out, such as with Phillips head screws, the impact force can be adjusted accordingly.
  • TEK mode assists to minimize screw stripping, which may occur when a self-drilling screw is tightened into a thin metal sheet workpiece under light load.

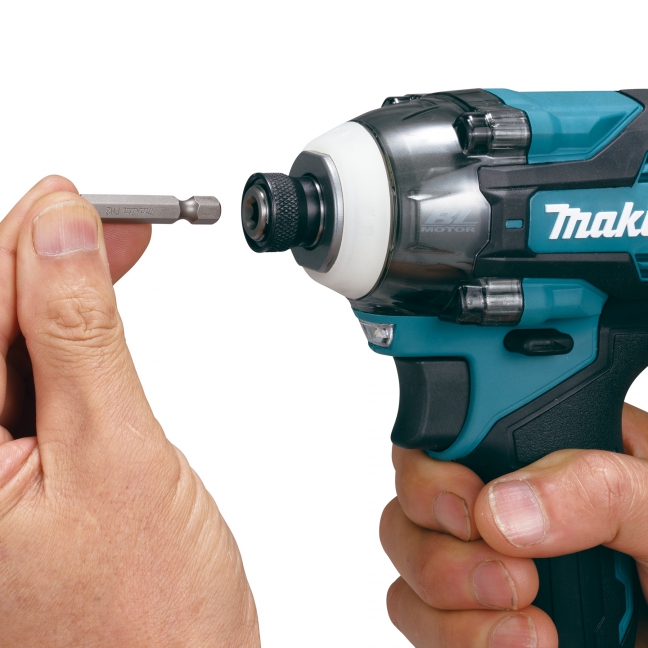

  • One-touch bit installation for easy and quick bit changes.

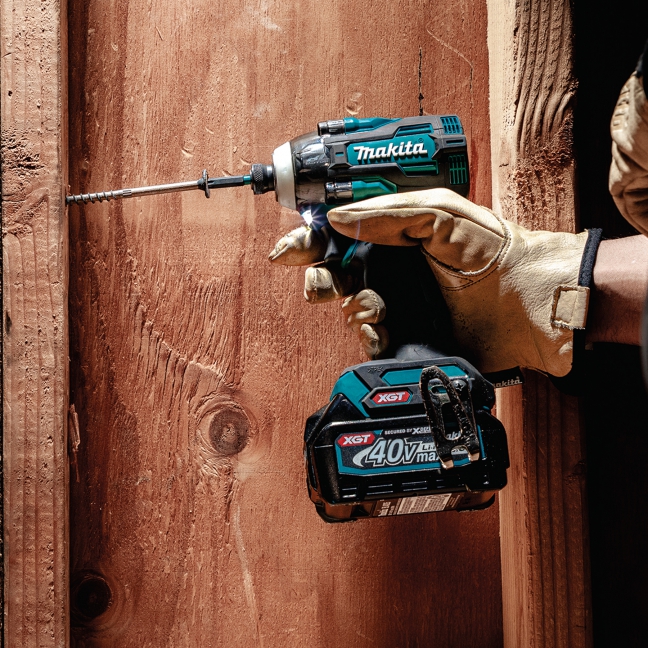

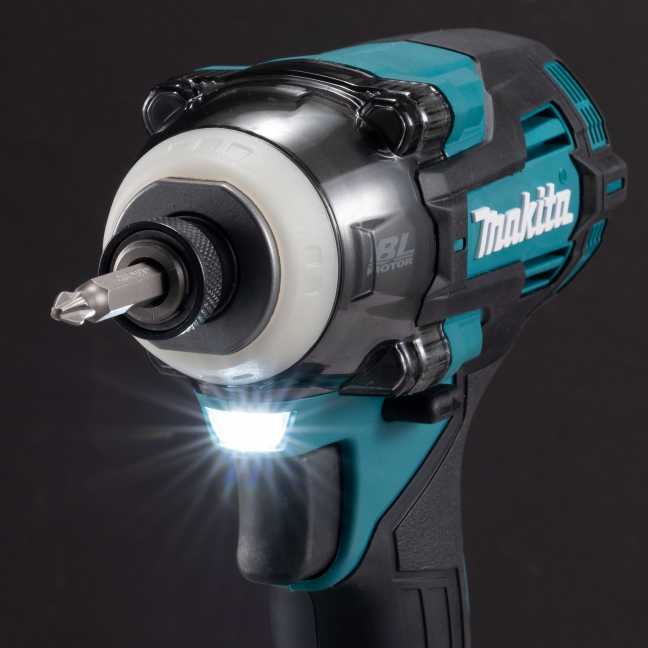

  • Twin LED lights with preglow and afterglow functions for better illumination

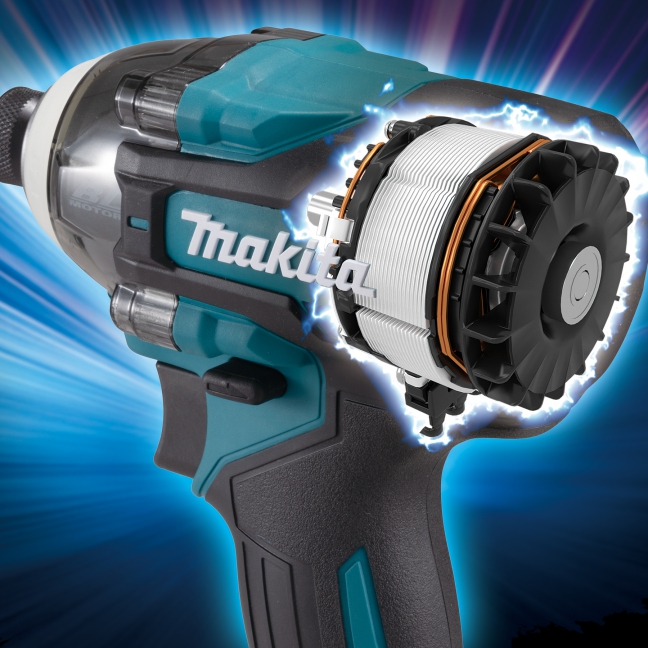

  • The brushless motor provides longer work hours per charge and extended tool life.

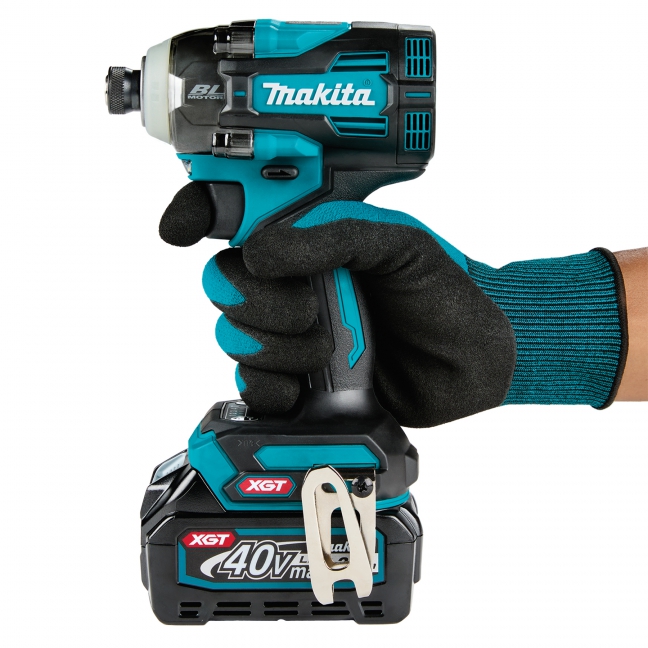

  • An ergonomically designed grip ensures comfortable handling.

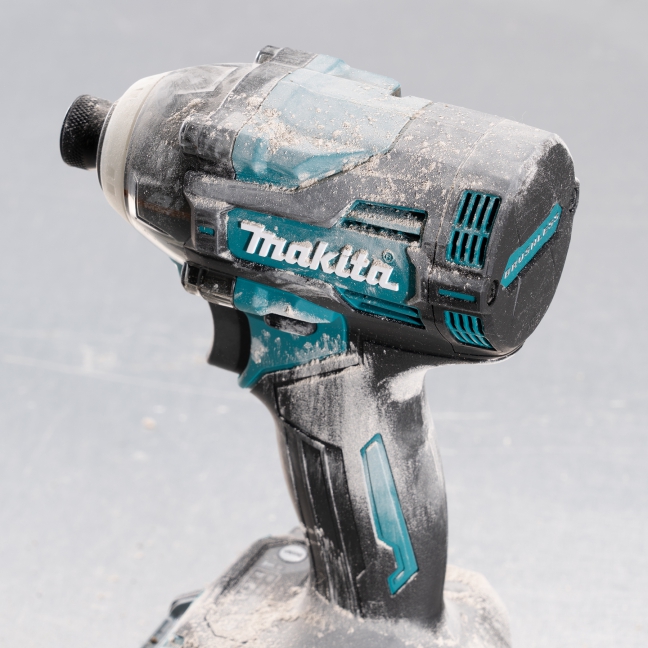

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • Equipped with an electric brake and anti-restart function for safety operation
  • Reversing switch is conveniently located.
  • The removable belt hook allows for easy and convenient hanging of the tool.

Items Included:Batteries and Charger Sold Separately. Hook (346317-0)

  • With a maximum fastening torque of 2,040 in.lbs (230 Nm), this impact driver delivers excellent fastening performance in heavy duty applications such as tightening hex head or Torx head course thread screws, which are less prone to cam-out.
  • 4-stage impact power selection and TEK mode (for thin metal sheets only) to match the type of screw and material.
  • For tasks requiring attention to cam-out, such as with Phillips head screws, the impact force can be adjusted accordingly.
  • TEK mode assists to minimize screw stripping, which may occur when a self-drilling screw is tightened into a thin metal sheet workpiece under light load.
  • One-touch bit installation for easy and quick bit changes.
  • Twin LED lights with preglow and afterglow functions for better illumination
  • The brushless motor provides longer work hours per charge and extended tool life.
  • An ergonomically designed grip ensures comfortable handling.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • Equipped with an electric brake and anti-restart function for safety operation
  • Reversing switch is conveniently located.
  • The removable belt hook allows for easy and convenient hanging of the tool.

Items Included: Batteries and Charger Sold Separately. Hook (346317-0)

Shipping Dimensions (Length x Width x Height) & Weight : 7.1 In. X 4.1 In. X 9.1 In. Weight : 3.29 Lb.

Specifications

Battery Capacities 40Vmax XGT
Hex Shank 1/4"
No Load Speed: 0 - 3,900 / 3,000 / 2,100 / 1,200 RPM
Impacts Per Minute: 0 - 3,900 / 3,600 / 3,100 / 1,900 IPM
Maximum Torque 2,040 in. lbs (230 Nm)
Vibration Level 23.5 m/s²
Noise Level 100 dB(A)
Overall Length 5-3/8" (136 mm)
Net Weight 4.0 - 6.8 lbs (1.8 - 3.1 kg)
